Infiniti G37 Coupe. Manual - part 153

AV

ANTENNA FEEDER (SATELLITE RADIO)

AV-365

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

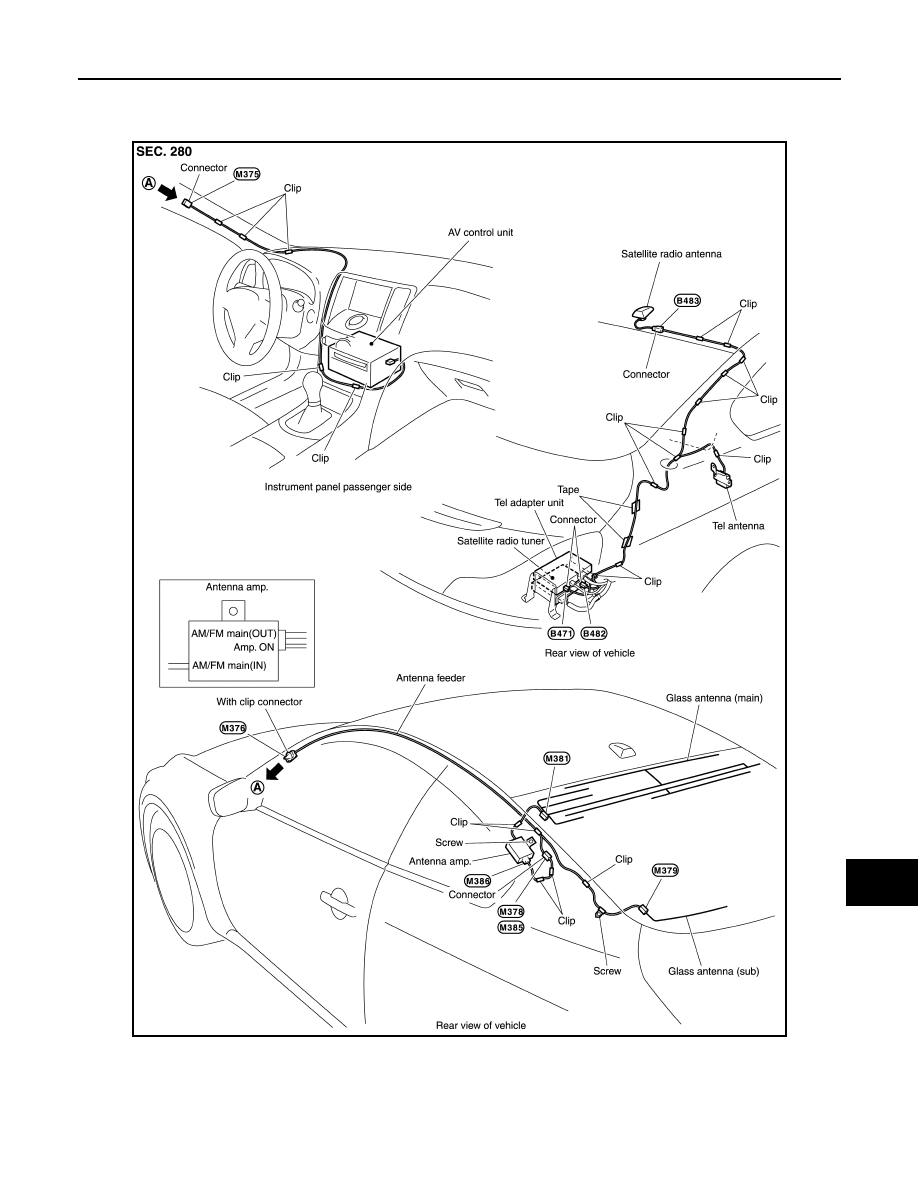

ANTENNA FEEDER (SATELLITE RADIO)

Harness Layout

INFOID:0000000001684397

JPNIA0496GB

AV-366

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

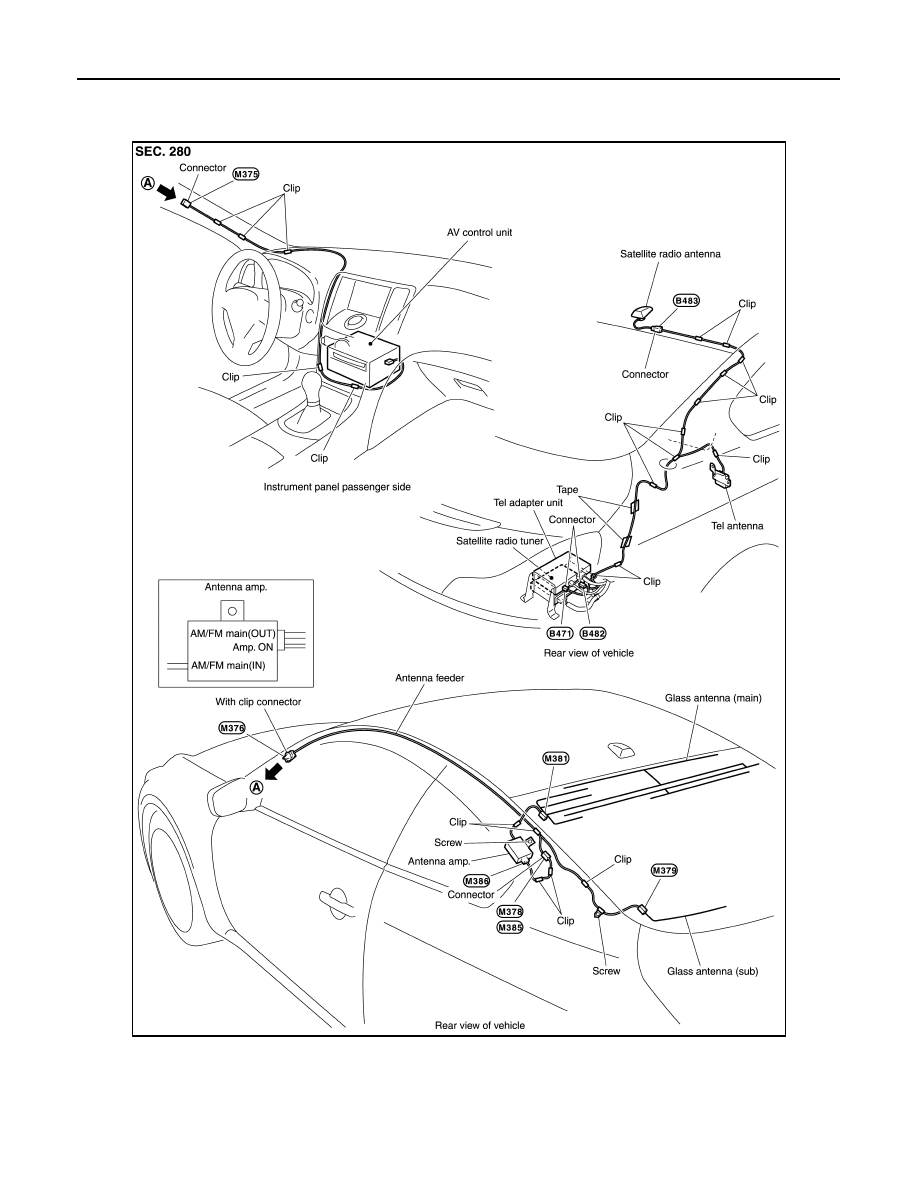

ANTENNA FEEDER (TEL)

ANTENNA FEEDER (TEL)

Harness Layout

INFOID:0000000001684396

JPNIA0496GB

AV

DIAGNOSIS AND REPAIR WORK FLOW

AV-367

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000001558761

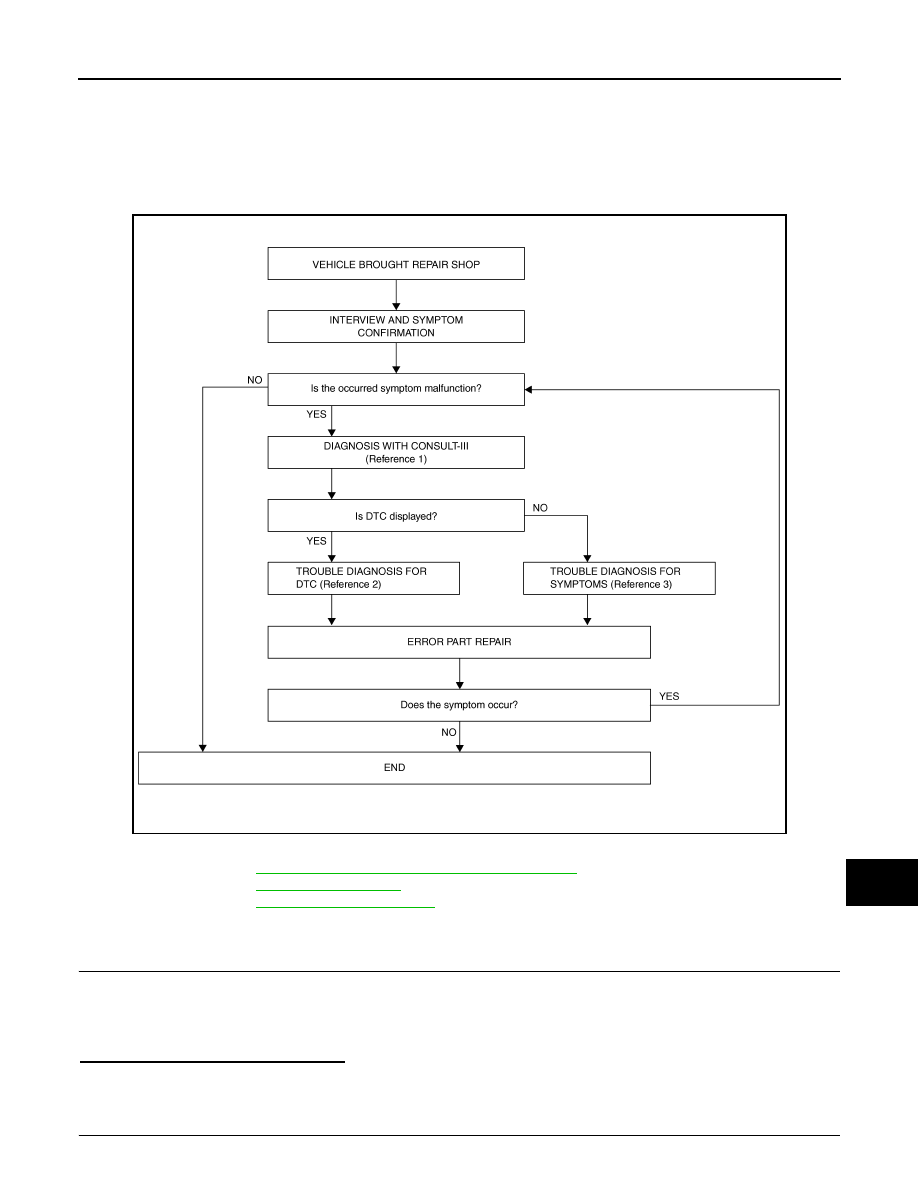

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-403, "CONSULT - III Function (MULTI AV)"

.

• Reference 2··· Refer to

AV-488, "DTC Index"

.

• Reference 3··· Refer to

AV-596, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

Is the occurred symptom malfunction?

YES

>> GO TO 2.

NO

>> INSPECTION END

2.

DIAGNOSIS WITH CONSULT-III

JSNIA0732GB

AV-368

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS AND REPAIR WORK FLOW

1.

Connect CONSULT-III and perform a self-diagnosis for “MULTI AV”. Refer to

AV-403, "CONSULT - III

Function (MULTI AV)"

.

NOTE:
Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2.

Check if any DTC is displayed in the self-diagnosis results.

Is DTC displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

TROUBLE DIAGNOSIS FOR DTC

1.

Check the DTC indicated in the self-diagnosis results.

2.

Perform the relevant diagnosis referring to the DTC Index. Refer to

AV-488, "DTC Index"

.

>> GO TO 5.

4.

TROUBLE DIAGNOSIS FOR SYMPTOMS

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-596, "Symptom

Table"

.

>> GO TO 5.

5.

ERROR PART REPAIR

1.

Repair or replace the identified malfunctioning parts.

2.

Perform a self-diagnosis for “MULTI AV” with CONSULT-III.
NOTE:
Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC
has been indicated in the self-diagnosis results.

3.

Check that the symptom does not occur.

Does the symptom occur?

YES

>> GO TO 1.

NO

>> INSPECTION END
