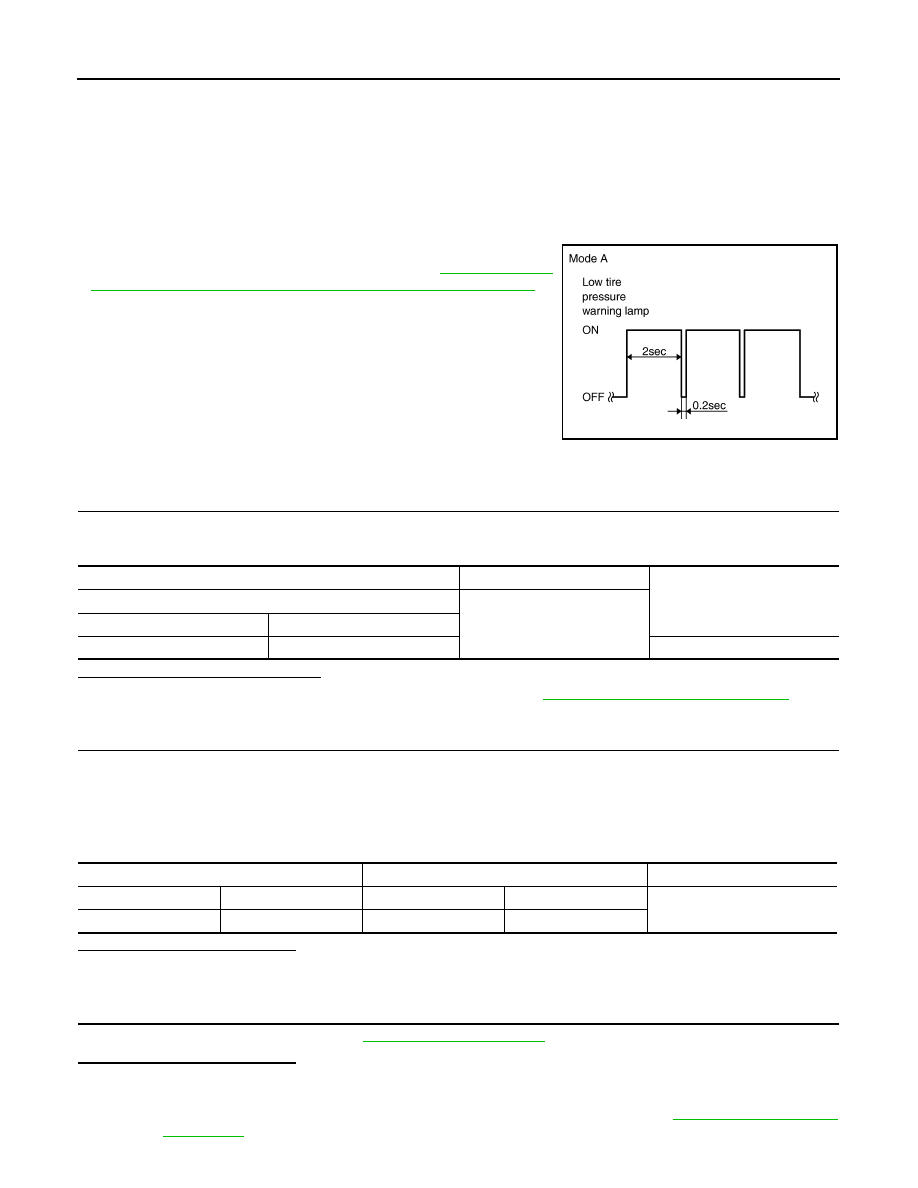

WT-44 < COMPONENT DIAGNOSIS > TIRE PRESSURE WARNING CHECK SWITCH TIRE PRESSURE WARNING CHECK SWITCH Description INFOID:0000000001686995 The following item can be checked by grounding the tire pressure warning check switch harness connector Perform transmitter wake up operation. Refer to MITTER WAKE UP OPERATION : Special Repair Requirement" . Diagnosis Procedure INFOID:0000000001686996 1. CHECK TIRE PRESSURE WARNING CHECK SWITCH POWER SUPPLY 1. Turn ignition switch “ON”. 2. Check voltage between tire pressure warning check switch connector M23 terminal 1 and ground. Is the reference voltage outputted? YES >> Repair or replace BCM circuit. Replace BCM. Refer to BCS-79, "Removal and Installation" . NO >> GO TO 2. 2. CHECK TIRE PRESSURE WARNING CHECK SWITCH CIRCUIT 1. Turn ignition switch “OFF”. 2. Disconnect BCM harness connector 3. Check continuity between BCM harness connector M123 terminal 149 and tire pressure warning check 4. Check harness for short to ground. Is the inspection result normal? YES >> GO TO 3. NO >> Repair or replace damaged parts. 3. CHECK BCM Check BCM input/output signal. Refer to Is the inspection result normal? YES >> INSPECTION END NO >> Check BCM pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts. Replace BCM Refer to JPEIC0031GB (+) (-) Voltage (Approx.) Tire pressure warning check switch Ground Connector Terminal M23 1 5.0 V BCM Tire pressure warning check switch Continuity Connector Terminal Connector Terminal Existed M123 149 M23 1 |
