WCS-40

< ECU DIAGNOSIS >

COMBINATION METER

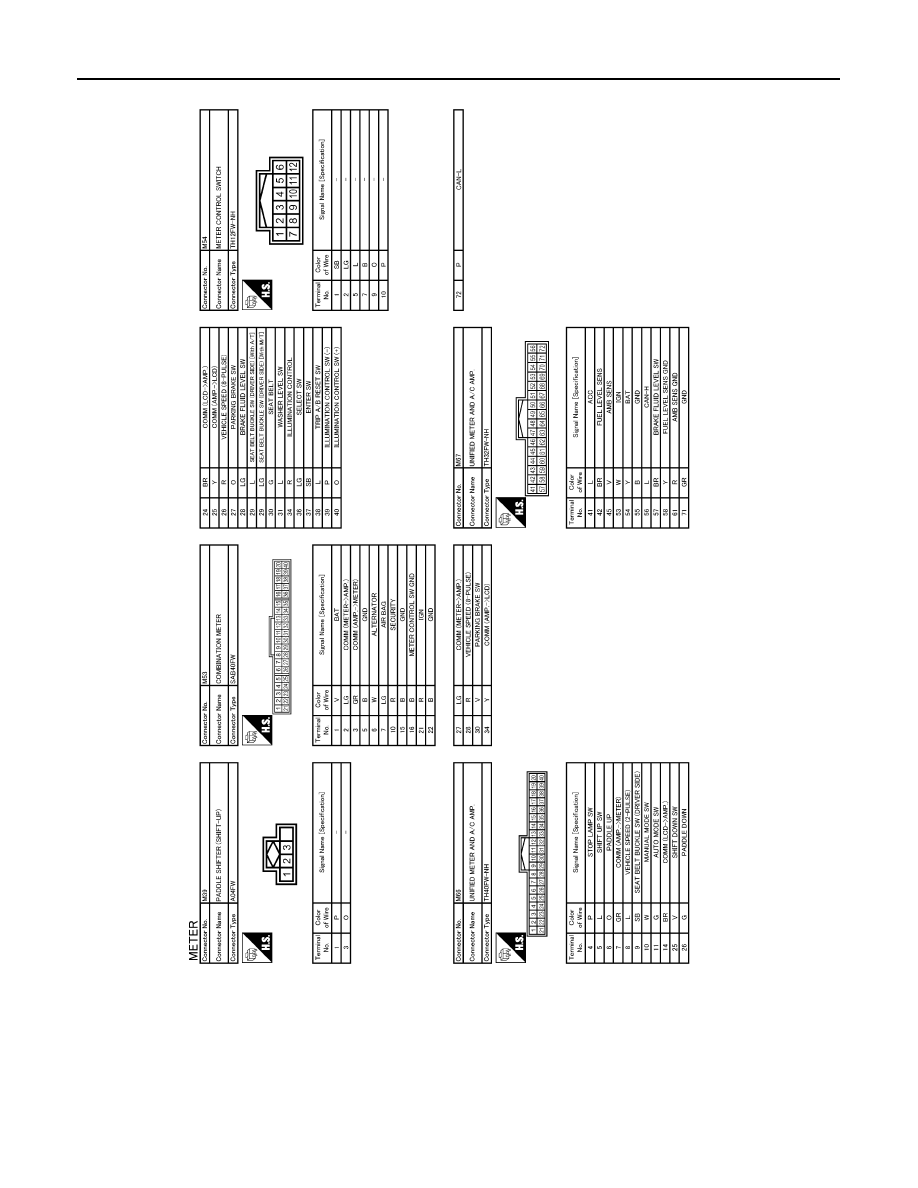

JCNWA0443GB

WCS

COMBINATION METER

WCS-41

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

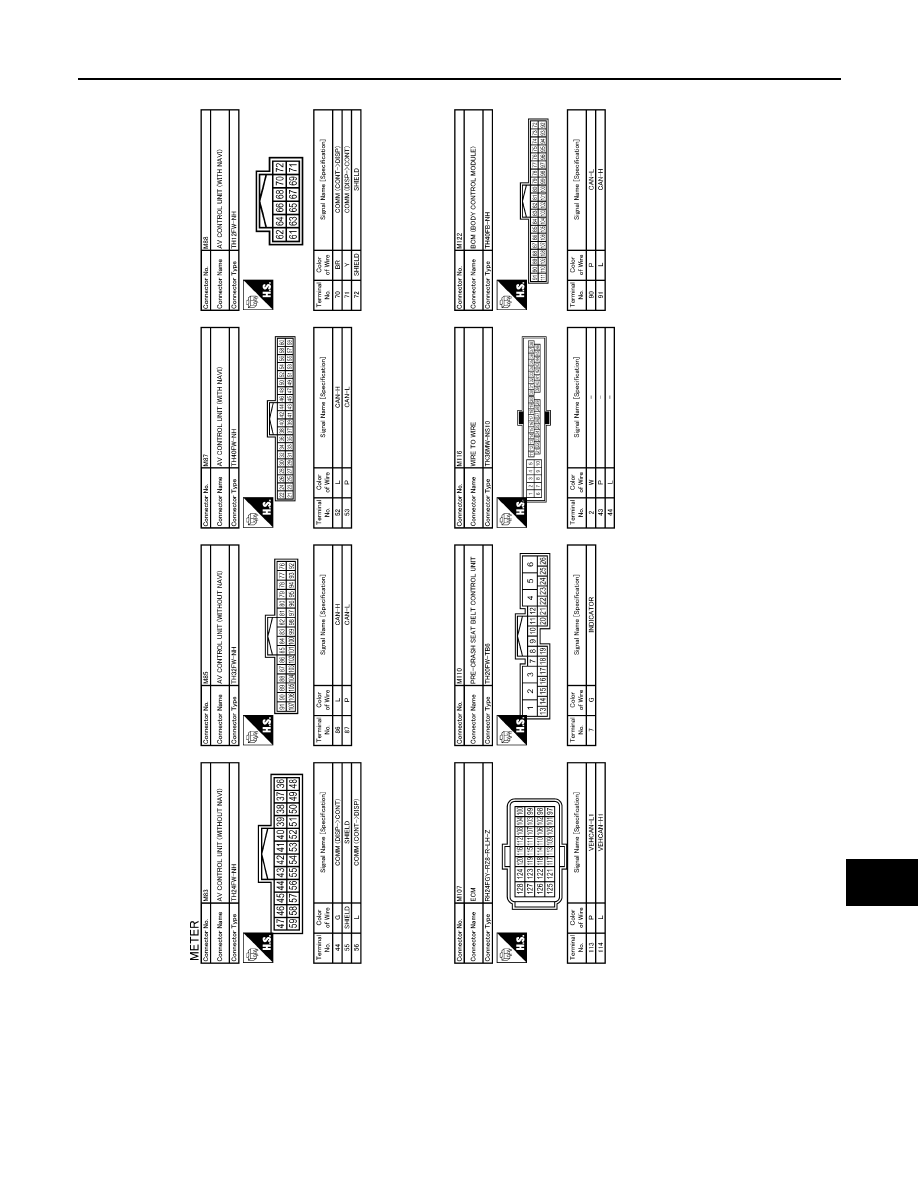

JCNWA0444GB

WCS-42

< ECU DIAGNOSIS >

COMBINATION METER

Fail Safe

INFOID:0000000001677398

FAIL SAFE

Combination meter performs fail-safe operation when unified meter and A/C amp. communication is malfunc-
tion.
Solution for communication error between the unified meter and A/C amp. and combination meter.

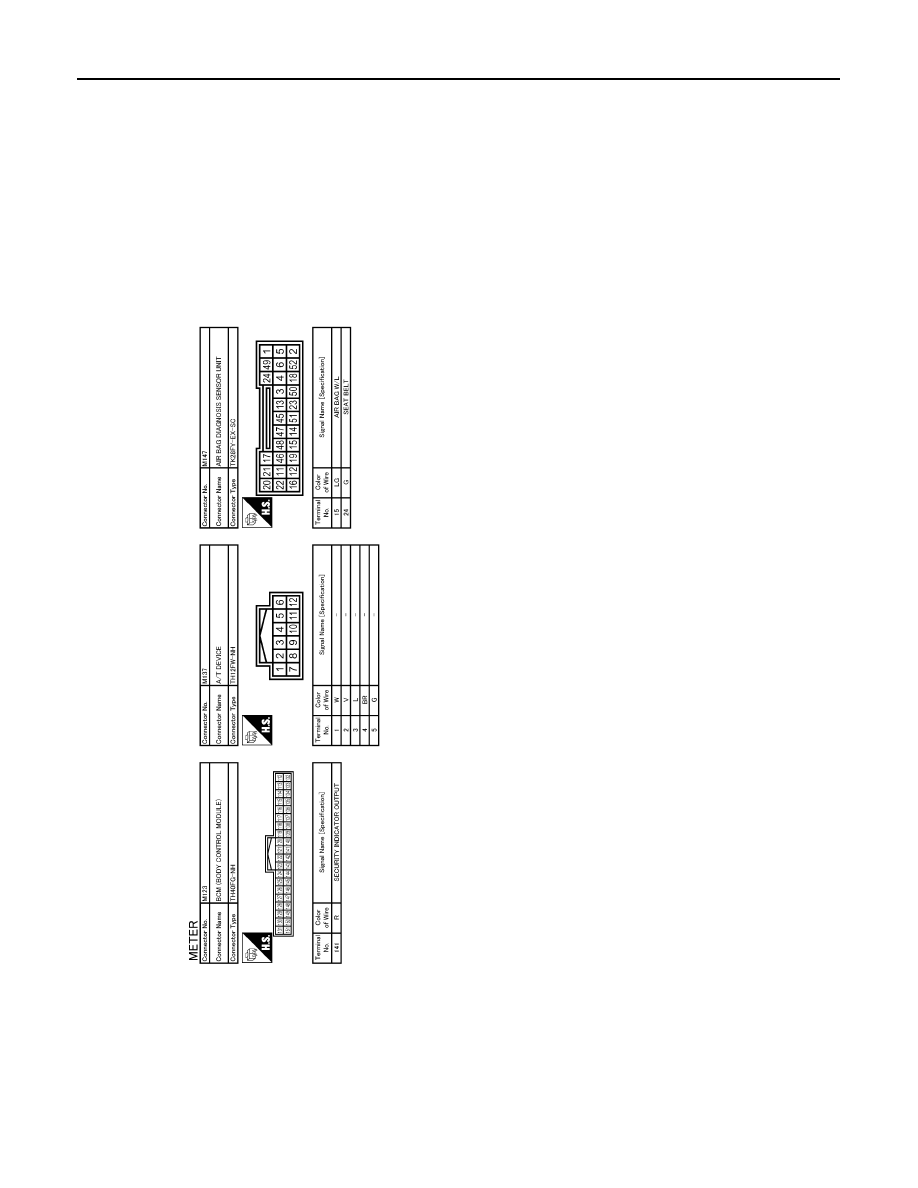

JCNWA0445GB

WCS

COMBINATION METER

WCS-43

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC Index

INFOID:0000000001677399

Refer to

WCS-61, "DTC Index"

.

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Fuel gauge

Water temperature gauge

Illumination control

When suspending communication, change to nighttime mode.

Information display

The display turns off by suspending communication.

Buzzer

The buzzer turns off by suspending communication.

Warning lamp/indicator
lamp

ABS warning lamp

The lamp turns on by suspending communication.

VDC OFF indicator lamp

SLIP indicator lamp

Brake warning lamp

CRUISE warning lamp

High beam indicator

The lamp turns off by suspending communication.

Turn signal indicator lamp

Front fog indicator lamp

Oil pressure warning lamp

Malfunction indicator lamp

A/T CHECK warning lamp

Low tire pressure warning lamp

Key warning lamp

AFS OFF indicator lamp

4WAS warning lamp

Master warning lamp
