WCS-12

< FUNCTION DIAGNOSIS >

WARNING CHIME SYSTEM

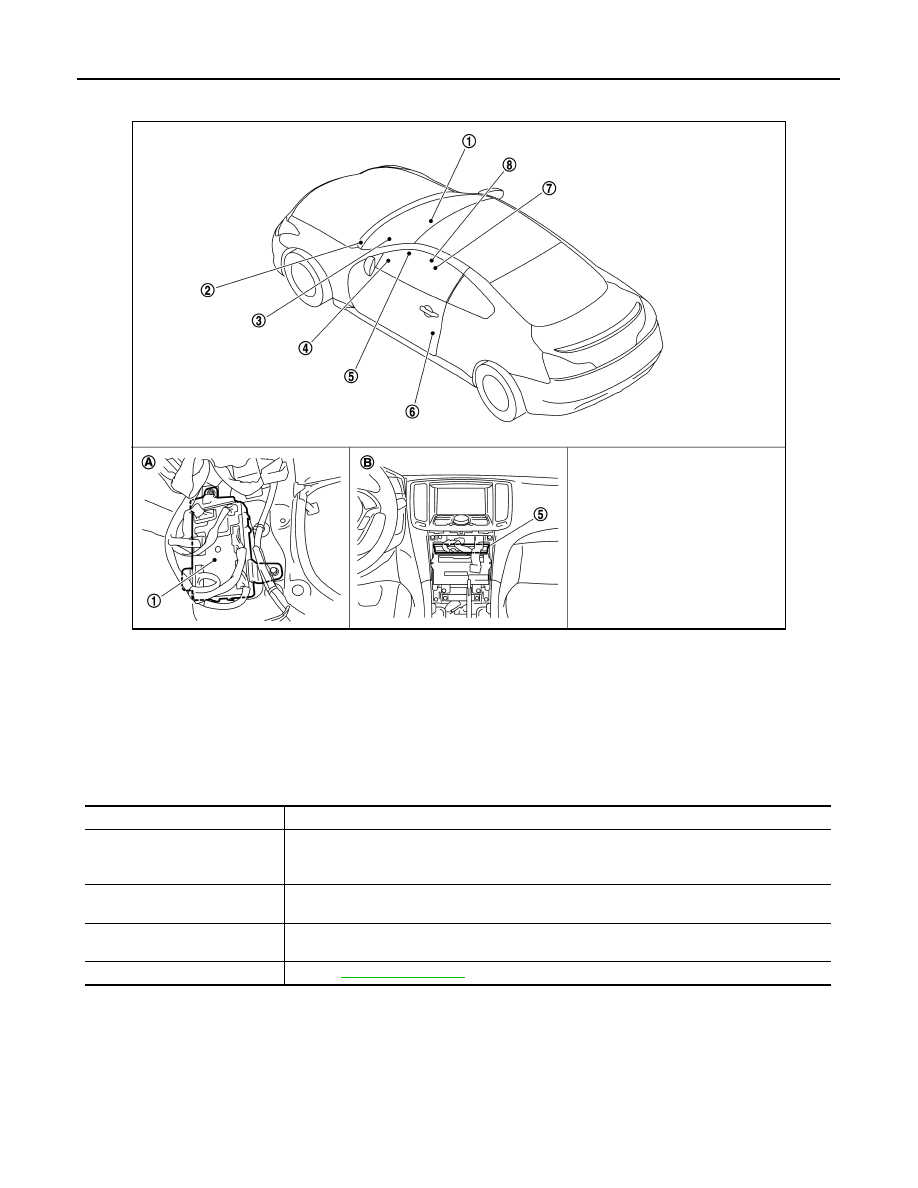

PARKING BRAKE RELEASE WARNING CHIME : Component Parts Location

INFOID:0000000001697931

PARKING BRAKE RELEASE WARNING CHIME : Component Description

INFOID:0000000001606819

JPNIA0502ZZ

1.

BCM

2.

Parking brake switch (A/T models)

3.

Combination meter

4.

Combination switch
(Lighting switch)

5.

Unified meter and A/C amp.

6.

Front driver side door switch

7.

Seat belt buckle switch (driver side)

8.

Parking brake switch (M/T models)

A.

Dash side lower (passenger side)

B.

Behind cluster lid C (back)

Unit

Description

Combination meter

Judges whether the parking brake is released from the vehicle speed signal received from the
unified meter and A/C amp. via CAN communication line and the parking brake switch signal from
the parking brake switch, and sounds the buzzer if necessary.

Unified meter and A/C amp.

Receives a vehicle speed signal from ABS actuator and electric unit (control unit) via CAN com-
munication line and transmits it to the combination meter by means of communication line.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to combination meter via CAN communication line.

Parking brake switch

Refer to

MWI-61, "Description"

.

WCS

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

WCS-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

CONSULT-III Function (METER/M&A)

INFOID:0000000001683784

CONSULT-III APPLICATION ITEMS

CONSULT-III can perform the following diagnosis modes with CAN communication with the unified meter and
A/C amp.

SELF DIAG RESULT

Refer to

MWI-100, "DTC Index"

.

DATA MONITOR

Display Item List

X: Applicable

System

Diagnosis mode

Description

METER/M&A

Self Diagnostic Result

Unified meter and A/C amp. checks the conditions and displays memorized error.

Data Monitor

Displays unified meter and A/C amp. input/output data in real time.

Display item [Unit]

MAIN

SIGNALS

Description

SPEED METER
[km/h]

X

Value of vehicle speed signal received from ABS actuator and electric unit (control
unit) with CAN communication line.
NOTE:
655.35 is displayed when the malfunction signal is received.

SPEED OUTPUT
[km/h]

X

Vehicle speed signal value transmitted to other units with CAN communication
line.
NOTE:
655.35 is displayed when the malfunction signal is received.

ODO OUTPUT
[km]

Odometer signal value transmitted to other units with CAN communication line.

TACHO METER
[rpm]

X

Value of the engine speed signal received from ECM with CAN communication
line.
NOTE:
8191.875 is displayed when the malfunction signal is received.

FUEL METER
[L]

X

Fuel level indicated on combination meter.

W TEMP METER
[

°

C]

X

Value of engine coolant temperature signal received from ECM with CAN commu-
nication line.
NOTE:
215 is displayed when the malfunction signal is input.

ABS W/L
[On/Off]

Status of ABS warning lamp judged from ABS warning lamp signal received from
ABS actuator and electric unit (control unit) with CAN communication line.

VDC/TCS IND
[On/Off]

Status of VDC OFF indicator lamp judged from VDC OFF indicator lamp signal re-
ceived from ABS actuator and electric unit (control unit) with CAN communication
line.

SLIP IND
[On/Off]

Status of SLIP indicator lamp judged from slip indicator lamp signal received from
ABS actuator and electric unit (control unit) with CAN communication line.

BRAKE W/L
[On/Off]

Status of brake warning lamp judged from brake warning lamp signal received
from ABS actuator and electric unit (control unit) with CAN communication line.
NOTE:
Displays “Off” if the brake warning lamp is illuminated when the valve check starts,
the parking brake switch is turned ON or the brake fluid level switch is turned ON.

DOOR W/L
[On/Off]

Status of door warning judged from door switch signal received from BCM with
CAN communication line.

TRUNK/GLAS-H
[On/Off]

Status of trunk warning judged from trunk switch signal received from BCM with
CAN communication line.

WCS-14

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

HI-BEAM IND
[On/Off]

Status of high beam indicator lamp judged from high beam request signal received
from BCM with CAN communication line.

TURN IND
[On/Off]

Status of turn indicator lamp judged from turn indicator signal received from BCM
with CAN communication line.

FR FOG IND
[On/Off]

Status of front fog light indicator lamp judged from front fog light request signal re-
ceived from BCM with CAN communication line.

RR FOG IND
[Off]

This item is displayed, but cannot be monitored.

LIGHT IND
[On/Off]

Status of light indicator lamp judged from position light request signal received
from BCM with CAN communication line.

OIL W/L
[On/Off]

Status of oil pressure warning lamp judged from oil pressure switch signal re-
ceived from IPDM E/R with CAN communication line.

MIL
[On/Off]

Status of malfunction indicator lamp judged from malfunctioning indicator lamp
signal received from ECM with CAN communication line.

GLOW IND
[On/Off]

This item is displayed, but cannot be monitored.

C-ENG2 W/L
[On/Off]

This item is displayed, but cannot be monitored.

CRUISE IND
[On/Off]

Status of CRUISE indicator judged from ASCD status signal received from ECM
with CAN communication line.

SET IND
[On/Off]

Status of SET indicator judged from ASCD SET indicator signal received from
ECM with CAN communication line.

CRUISE W/L
[On/Off]

Status of CRUISE warning lamp judged from ASCD status signal received from
ECM with CAN communication line.

BA W/L
[Off]

This item is displayed, but cannot be monitored.

ATC/T-AMT W/L
[On/Off]

Status of A/T check warning lamp judged from A/T check indicator signal received
from TCM with CAN communication line.

4WD W/L
[On/Off]

This item is displayed, but cannot be monitored.

4WD LOCK IND
[Off]

This item is displayed, but cannot be monitored.

FUEL W/L
[On/Off]

Low-fuel warning lamp status judged by the identified fuel level.

WASHER W/L
[On/Off]

Status of washer warning lamp judged from washer level switch input to combina-
tion meter.

AIR PRES W/L
[On/Off]

Status of low tire pressure warning lamp judged from tire pressure signal received
from BCM with CAN communication line.

KEY G/Y W/L
[On/Off]

Status of key warning lamp (G/Y) judged from key warning signal received from
BCM with CAN communication line.

AFS OFF IND
[On/Off]

Status of AFS OFF indicator lamp judged from AFS OFF indicator lamp signal re-
ceived from AFS control unit with CAN communication line.

4WAS/RAS W/L
[On/Off]

Status of 4WAS warning lamp judged from 4WAS warning lamp signal received
from 4WAS main control unit with CAN communication line.

HDC W/L
[On/Off]

This item is displayed, but cannot be monitored.

LDP R IND
[On/Off]

This item is displayed, but cannot be monitored.

LDP G Y IND
[On/Off]

This item is displayed, but cannot be monitored.

Display item [Unit]

MAIN

SIGNALS

Description

WCS

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

WCS-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

LCD
[B&P N, B&P I, ID NG, ROTAT, SFT
P, INSRT, BATT, NO KY,OUTKY, LK
WN, C&P N, C&P I]

Displays status of Intelligent Key system warning judged from meter display signal
received from BCM with CAN communication line.

ACC TARGET
[On/Off]

Status of vehicle ahead detection indicator judged from meter display signal re-
ceived from ICC sensor integrated unit with CAN communication line.

ACC DISTANCE
[Off, SHOR, MID, LONG]

Status of set distance indicator judged from meter display signal received from
ICC sensor integrated unit with CAN communication line.

ACC OWN VHL
[On/Off]

Status of own vehicle indicator judged from meter display signal received from
ICC sensor integrated unit with CAN communication line.

ACC SET SPEED

Display ICC set vehicle speed from meter display signal received from ICC sensor
integrated unit with CAN communication line.

ACC UNIT
[On/Off]

Status of display unit judged from meter display signal received from ICC sensor
integrated unit with CAN communication line.

O/D OFF SW
[On/Off]

This item is displayed, but cannot be monitored.

SHIFT IND
[P, R, N, D, M1, M2, M3, M4, M5]

Status of shift position indicator judged from shift position signal and manual mode
indicator signal received from TCM with CAN communication line.

AT S MODE SW
[On/Off]

Status of snow mode switch.

AT P MODE SW
[On/Off]

This item is displayed, but cannot be monitored.

M RANGE SW
[On/Off]

Status of manual mode switch.

NM RANGE SW
[On/Off]

Status of not manual mode switch.

AT SFT UP SW
[On/Off]

Status of A/T shift up switch.

AT SFT DWN SW
[On/Off]

Status of A/T shift down switch.

ST SFT UP SW
[On/Off]

Status of paddle shifter up switch.

ST SFT DWN SW
[On/Off]

Status of paddle shifter down switch.

COMP F/B SIG
[On/Off]

A/C compressor activation condition that ECM judges according to the water tem-
perature and the acceleration degree.

4WD LOCK SW
[Off]

This item is displayed, but cannot be monitored.

PKB SW
[On/Off]

Status of parking brake switch.

BUCKLE SW
[On/Off]

Status of seat belt buckle switch.

BRAKE OIL SW
[On/Off]

Status of brake fluid level switch.

DISTANCE
[km]

Value of possible driving distance calculated by unified meter and A/C amp.

OUTSIDE TEMP
[

°

C or

°

F]

Ambient air temperature value converted from ambient sensor signal received
from ambient sensor.
NOTE:
This may not match with the temperature value indicated on the information dis-
play. (Because the information display value is a corrected value from the ambient
sensor input value.)

Display item [Unit]

MAIN

SIGNALS

Description
