Infiniti G37 Coupe. Manual - part 1377





BLOWER UNIT

VTL-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

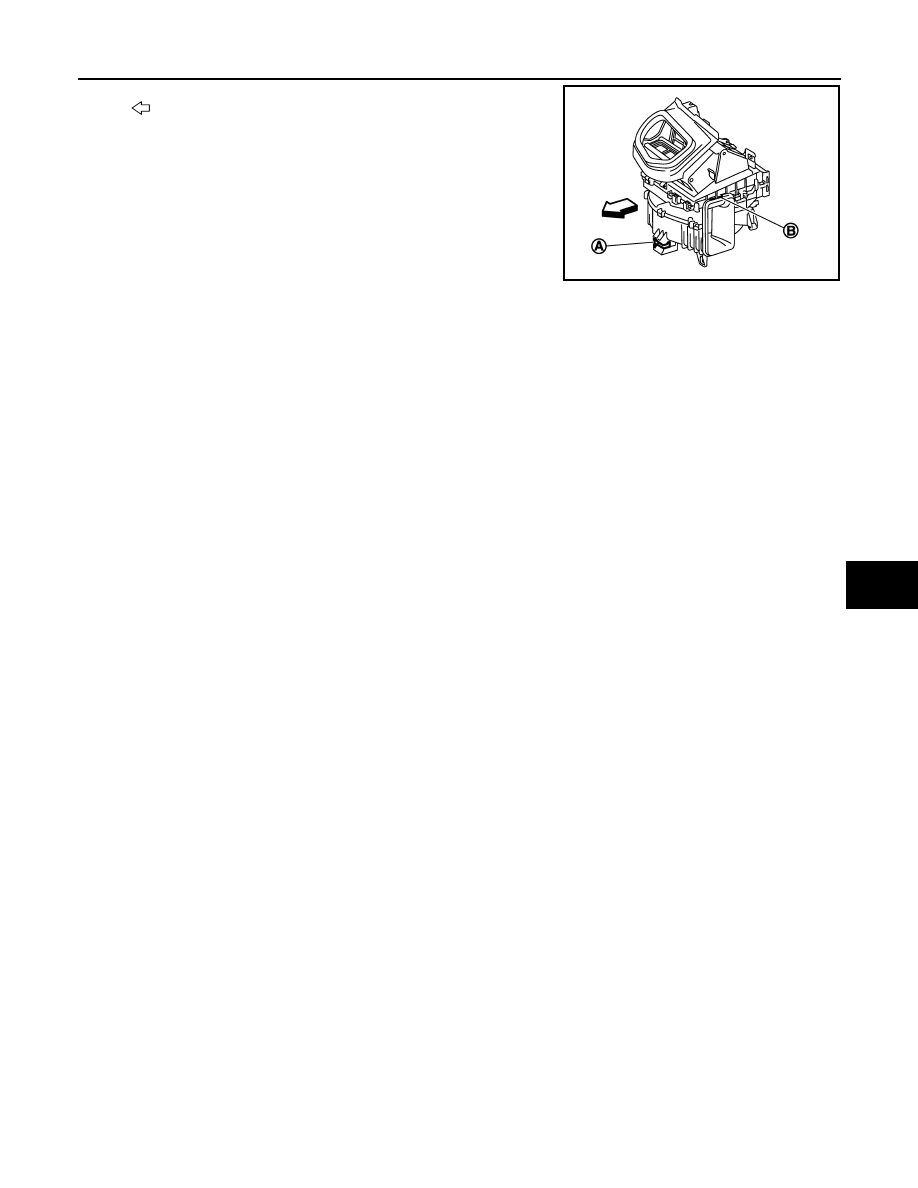

CAUTION:

Make sure locating pin (A) and joint (B) are securely inserted.

:

Vehicle front

JSIIA0008ZZ

VTL-32

< ON-VEHICLE REPAIR >

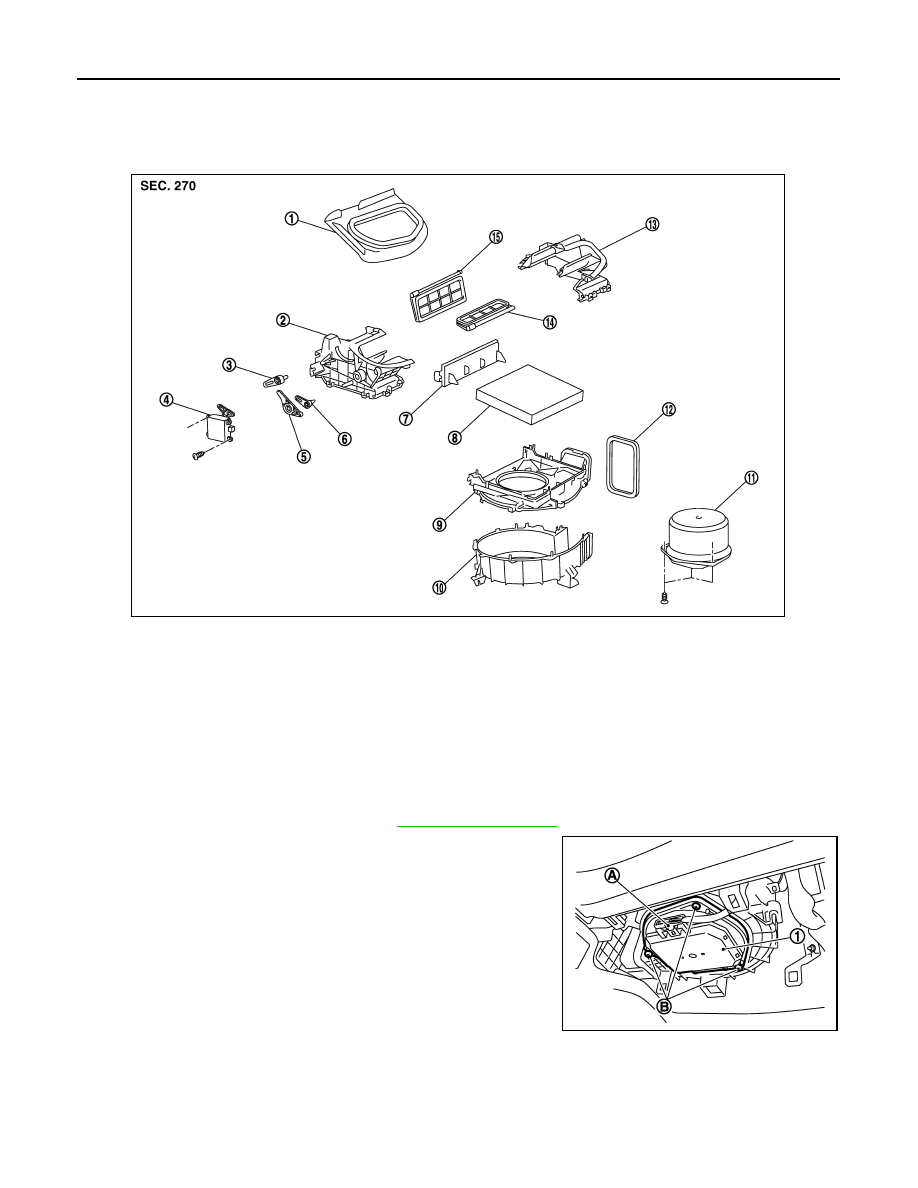

BLOWER MOTOR

BLOWER MOTOR

Exploded View

INFOID:0000000001713724

Removal and Installation

INFOID:0000000001665940

REMOVAL

1.

Remove instrument lower cover. Refer to

IP-11, "Exploded View"

.

2.

Disconnect blower motor connector (A).

3.

Remove mounting screws (B), and then remove blower motor
assembly (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Adapter

2.

Intake box (right)

3.

Intake door lever 2

4.

Intake door motor

5.

Intake door link

6.

Intake door lever 1

7.

Filter cover

8.

In-cabin microfilter

9.

Intake upper case

10. Intake lower case

11.

Blower motor assembly

12. Seal

13. Intake box (left)

14.

Intake door 1

15. Intake door 2

JSIIA0009ZZ

JSIIA0033ZZ

INTAKE DOOR MOTOR

VTL-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

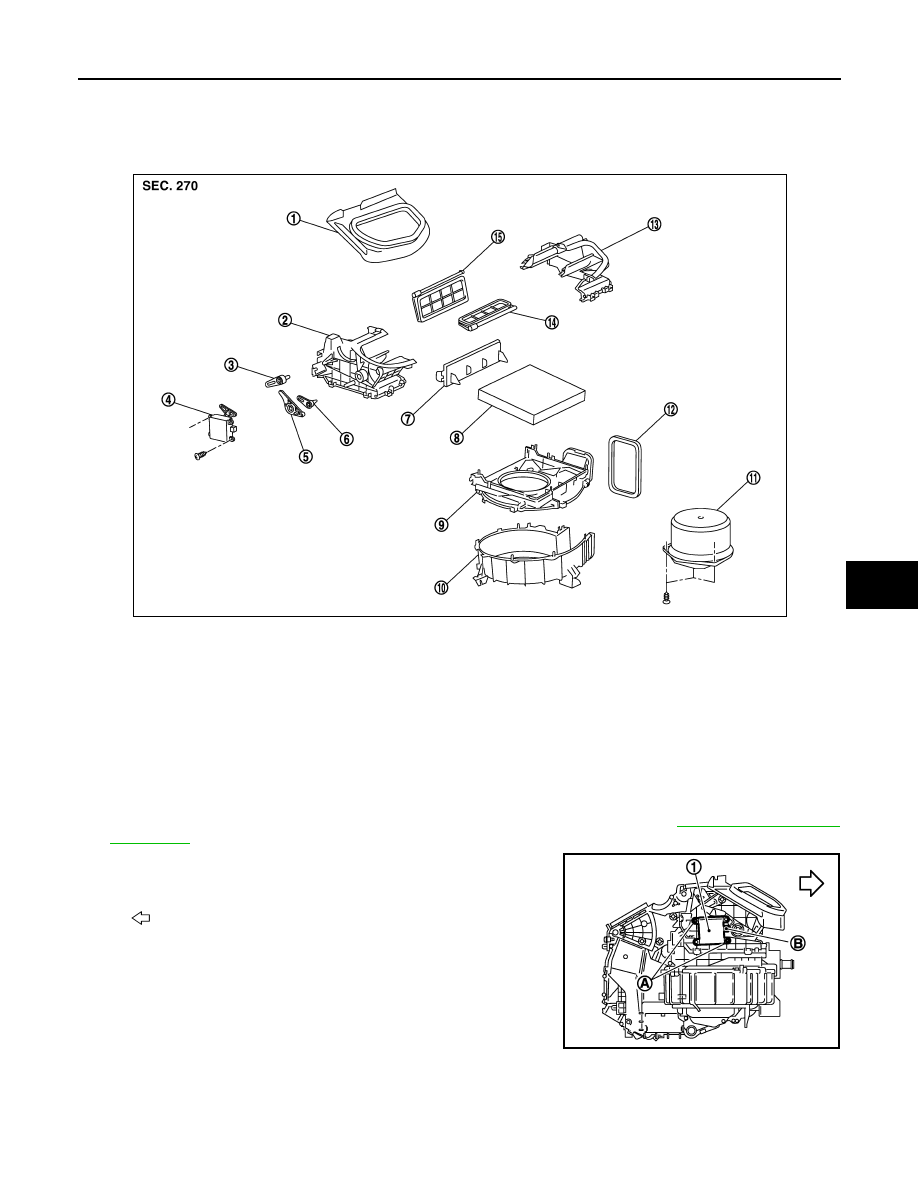

INTAKE DOOR MOTOR

Exploded View

INFOID:0000000001713725

Removal and Installation

INFOID:0000000001665942

REMOVAL

1.

Remove ECM and power steering control unit with bracket attached. Refer to

VTL-30, "Removal and

Installation"

.

2.

Remove mounting screws (A), and then remove intake door
motor (1) from blower unit.

3.

Disconnect intake door motor connector (B).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Adapter

2.

Intake box (right)

3.

Intake door lever 2

4.

Intake door motor

5.

Intake door link

6.

Intake door lever 1

7.

Filter cover

8.

In-cabin microfilter

9.

Intake upper case

10. Intake lower case

11.

Blower motor assembly

12. Seal

13. Intake box (left)

14.

Intake door 1

15. Intake door 2

JSIIA0009ZZ

:

Vehicle front

JSIIA0108ZZ

VTL-34

< ON-VEHICLE REPAIR >

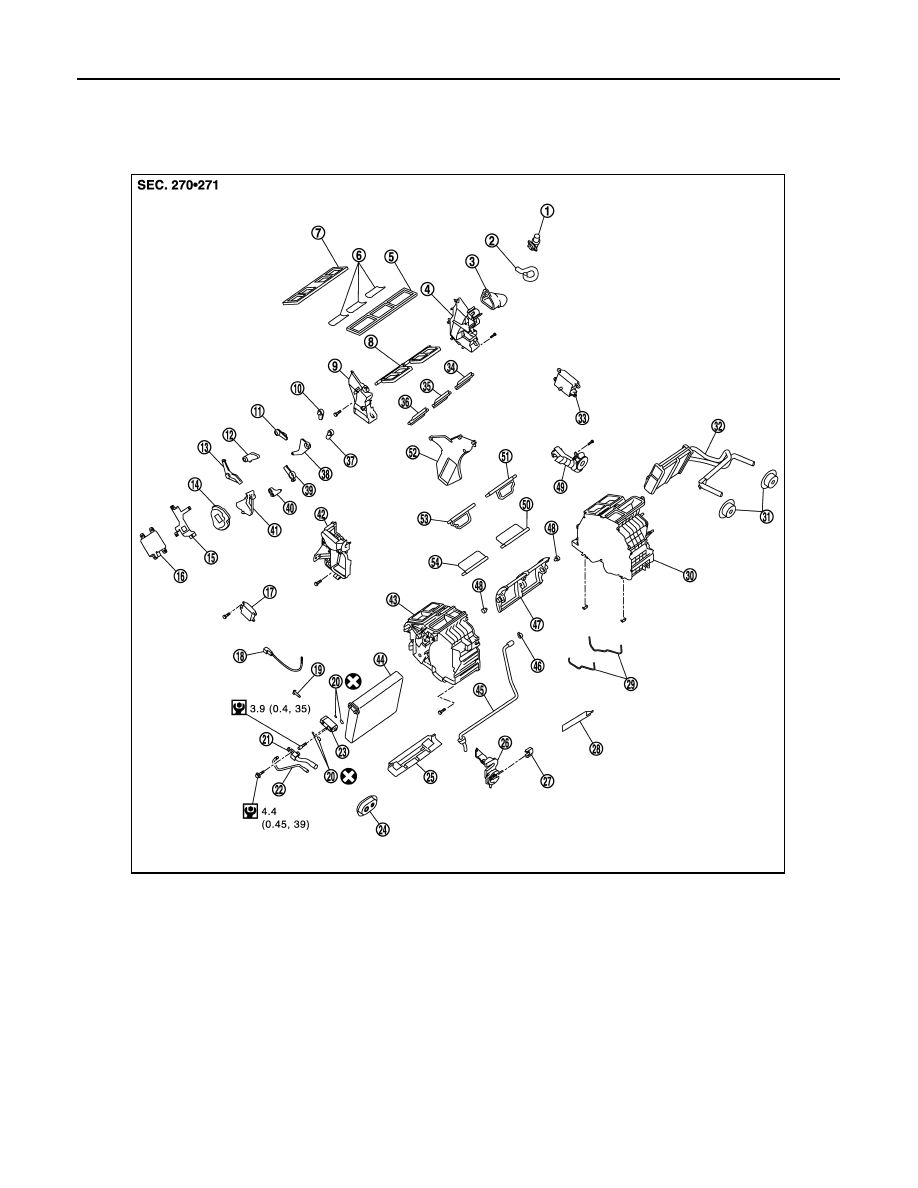

HEATER & COOLING UNIT ASSEMBLY

HEATER & COOLING UNIT ASSEMBLY

Exploded View

INFOID:0000000001665943

1.

Aspirator

2.

Aspirator hose

3.

Front heater duct

4.

Foot duct (left)

5.

Defroster seal

6.

Packing

7.

Ventilator seal

8.

Ventilator door

9.

Foot duct (right)

10. Defroster door lever

11.

Foot door lever

12.

Ventilator door lever

13. Ventilator door link

14.

Main link

15.

Mode door motor bracket

16. Mode door motor

17.

Air mix door motor (passenger side)

18.

Intake sensor

19. Intake sensor bracket

20.

O-ring

21.

Low-pressure pipe 1

22. High-pressure pipe 2

23.

Expansion valve

24.

Cooler pipe grommet

25. Insulator

26.

Evaporator cover adapter

27.

Heater pipe bracket

28. Case rubber

29.

Case packing

30.

Heater & cooling unit case (left)

31. Heater pipe grommet

32.

Heater core

33.

Air mix door motor (driver side)

*

34. Foot door (left)

35.

Rear ventilator door

36.

Foot door (right)

JSIIA0863GB
