PRESET SWITCH

VTL-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

ON-VEHICLE REPAIR

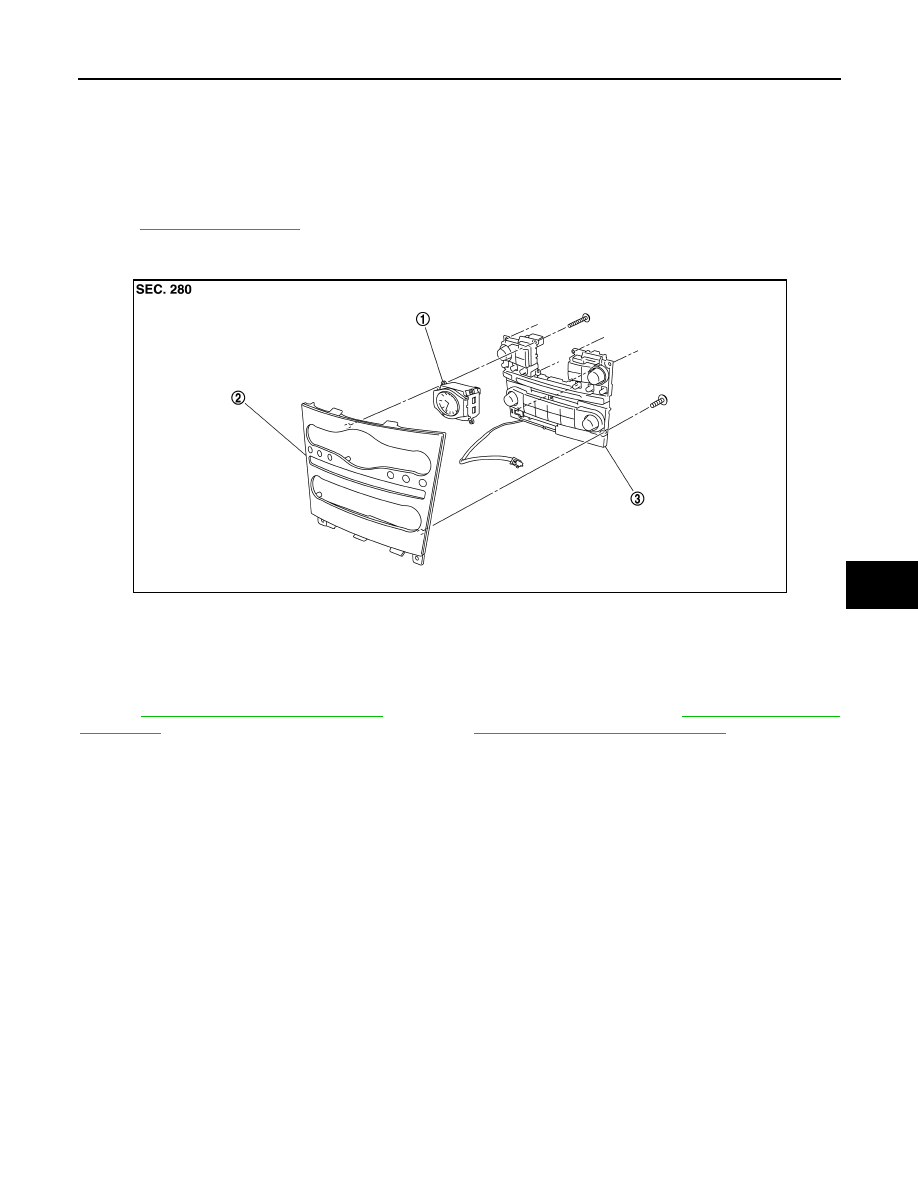

PRESET SWITCH

Exploded View

INFOID:0000000001713719

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001665926

REMOVAL

Refer to

AV-118, "Removal and Installation"

 (BASE AUDIO WITHOUT NAVIGATION),

AV-357, "Removal and

Installation"

 (BOSE AUDIO WITHOUT NAVIGATION),

AV-621, "Removal and Installation"

 (BOSE AUDIO

WITH NAVIGATION).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Clock

2.

Cluster lid C

3.

Preset switch

JPNIA0477ZZ

VTL-24

< ON-VEHICLE REPAIR >

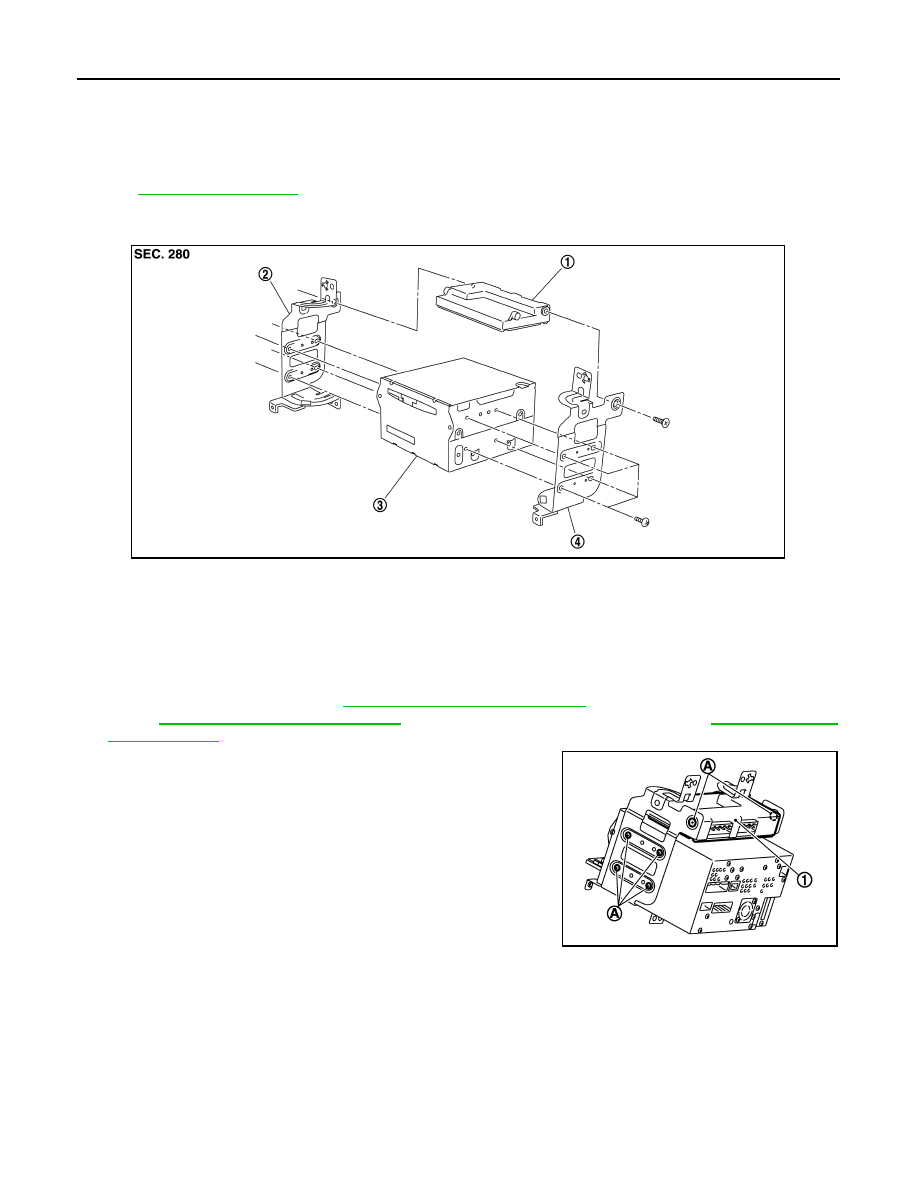

AUTO AMP.

AUTO AMP.

Exploded View

INFOID:0000000001713718

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001665928

REMOVAL

1.

Remove AV control unit. Refer to

AV-109, "Removal and Installation"

 (BASE AUDIO WITHOUT NAVIGA-

TION),

AV-343, "Removal and Installation"

 (BOSE AUDIO WITHOUT NAVIGATION) or

AV-608, "Removal

and Installation"

 (BOSE AUDIO WITH NAVIGATION).

2.

Remove mounting screws (A), and then remove unified meter
and A/C amp. (1).

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

Since unified meter and A/C amp. connector and AV control unit connector have the same form, be
careful not to insert them wrongly.

1.

Unified meter and A/C amp.

2.

Bracket LH

3.

AV control unit

4.

Bracket RH

JPNIA0470ZZ

JSIIA0015ZZ

AMBIENT SENSOR

VTL-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

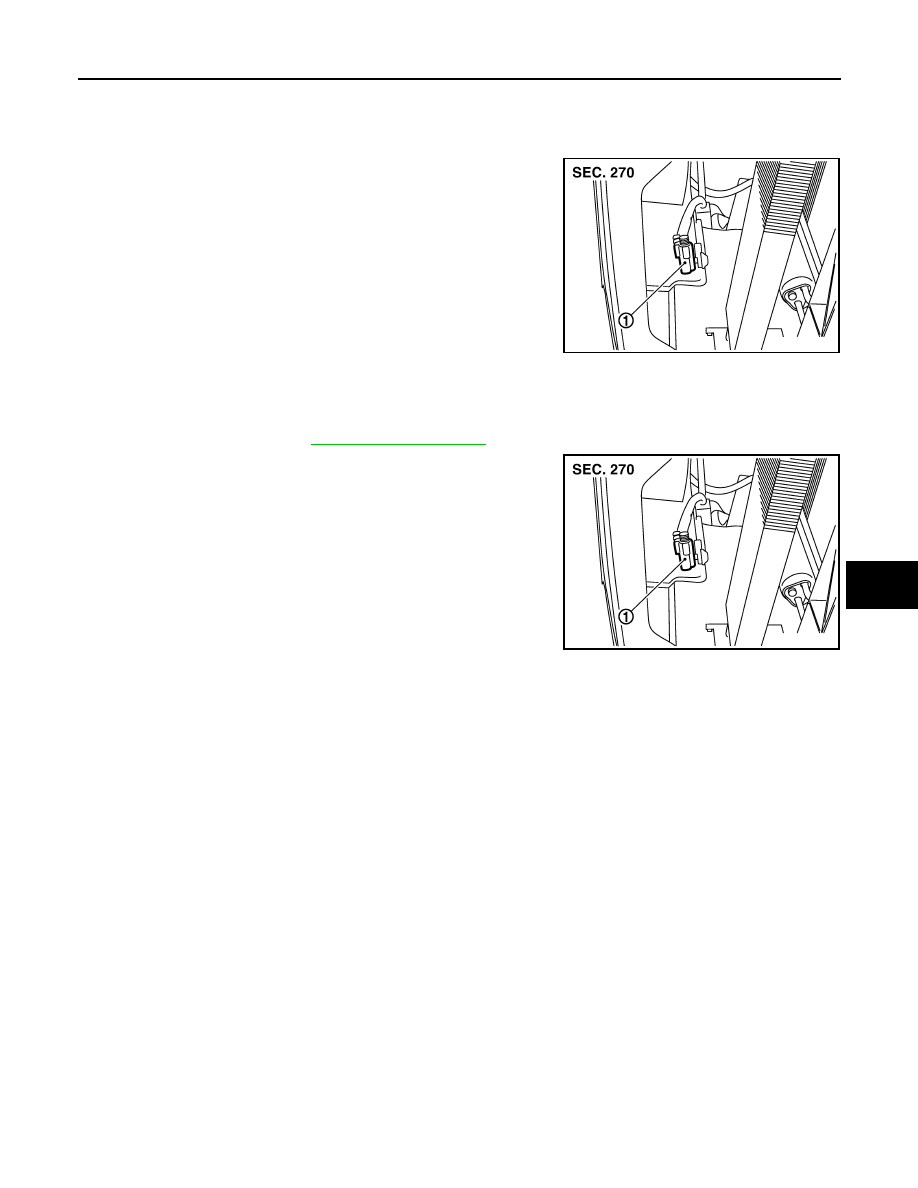

AMBIENT SENSOR

Exploded View

INFOID:0000000001665929

Removal and Installation

INFOID:0000000001665930

REMOVAL

1.

Remove front grille. Refer to

EXT-19, "Exploded View"

.

2.

Disconnect ambient sensor connector, and then remove ambi-
ent sensor (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Ambient sensor

JSIIA0658ZZ

JSIIA0658ZZ

VTL-26

< ON-VEHICLE REPAIR >

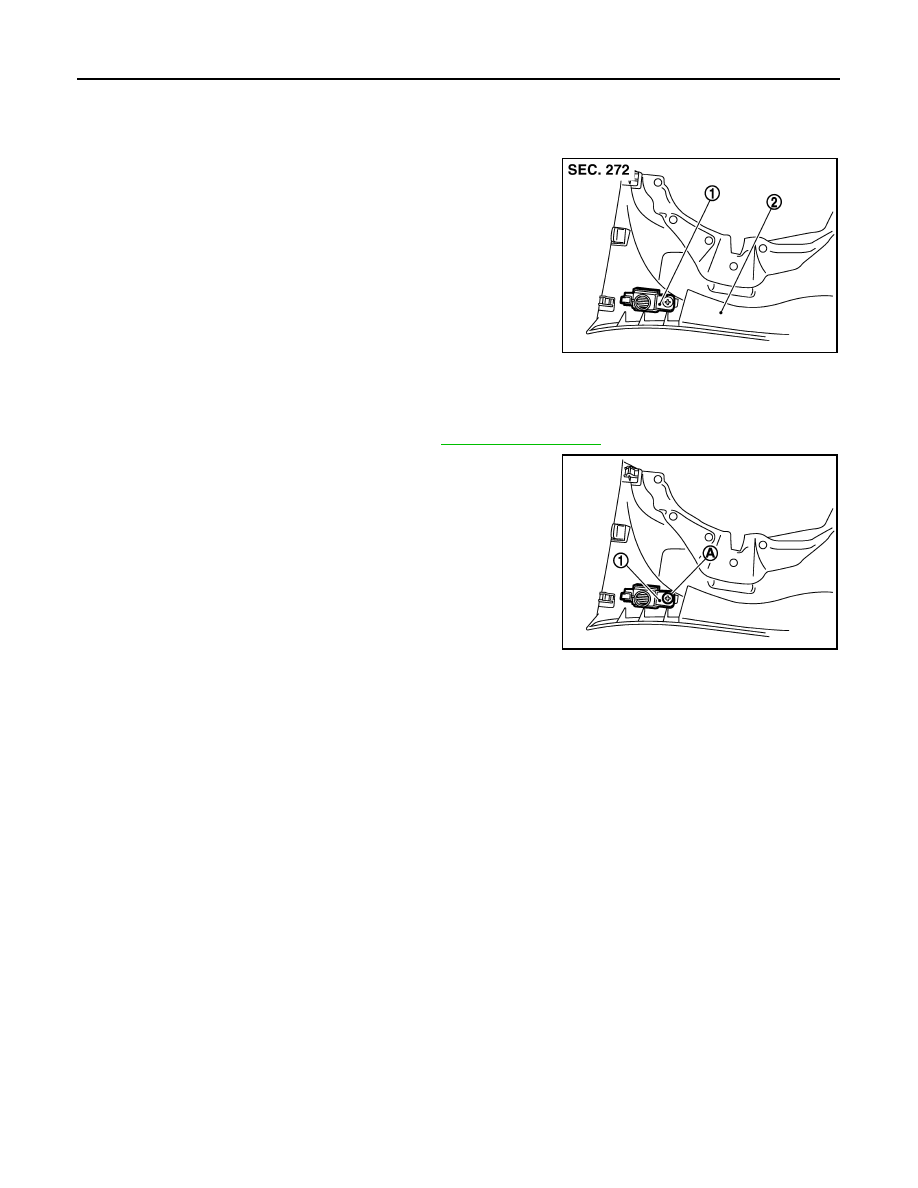

IN-VEHICLE SENSOR

IN-VEHICLE SENSOR

Exploded View

INFOID:0000000001665931

Removal and Installation

INFOID:0000000001665932

REMOVAL

1.

Remove instrument driver lower panel. Refer to

IP-11, "Exploded View"

.

2.

Remove mounting screw (A), and then remove in-vehicle sensor
(1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

In-vehicle sensor

2.

instrument driver lower panel

JSIIA0126ZZ

JSIIA0032ZZ
