MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH HUB

TM-321

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

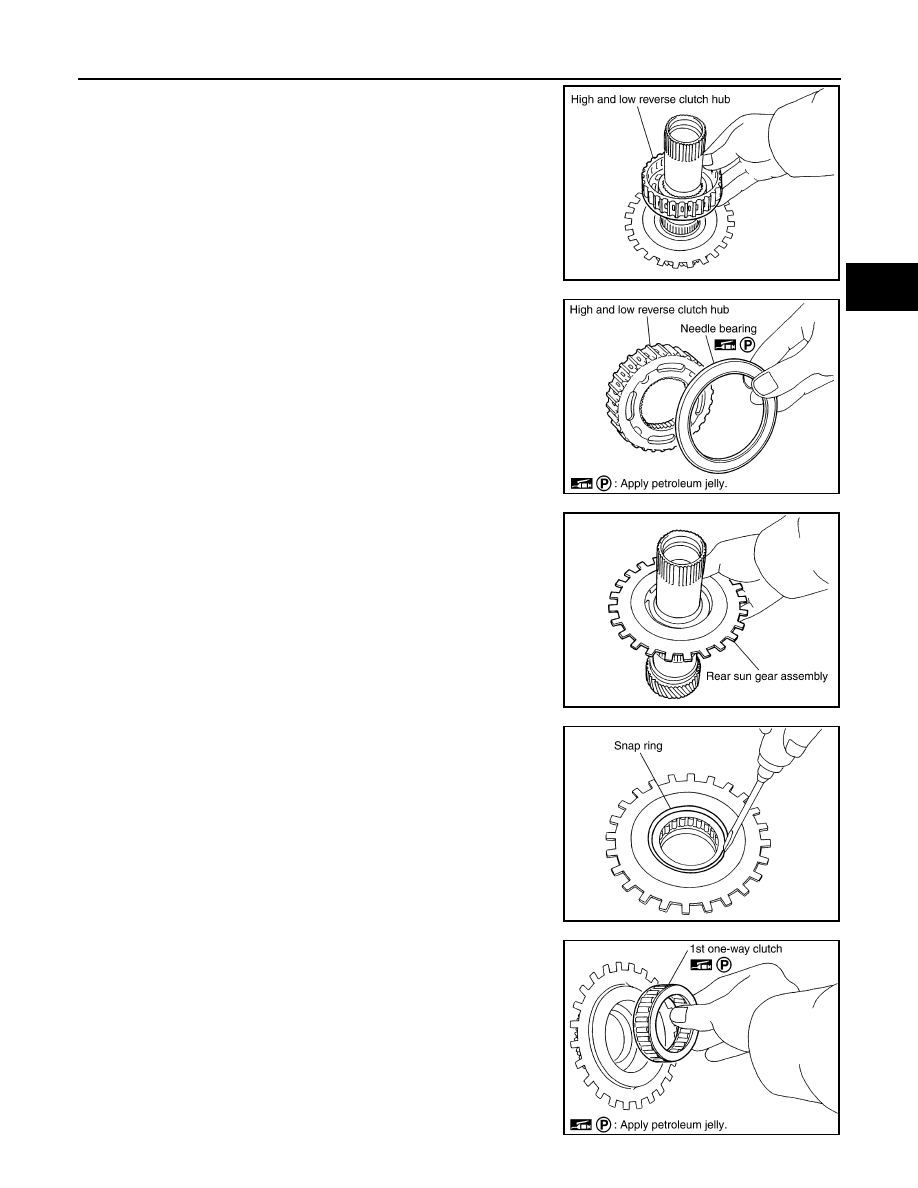

3.

Remove high and low reverse clutch hub from mid sun gear
assembly.

4.

Remove needle bearing from high and low reverse clutch hub.

5.

Remove rear sun gear assembly from mid sun gear assembly.

6.

Using a flat-bladed screwdriver, remove snap ring from rear sun
gear.

7.

Remove 1st one-way clutch from rear sun gear.

SCIA2856E

SCIA2857E

SCIA7018E

SCIA2859E

SCIA4633E

TM-322

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH HUB

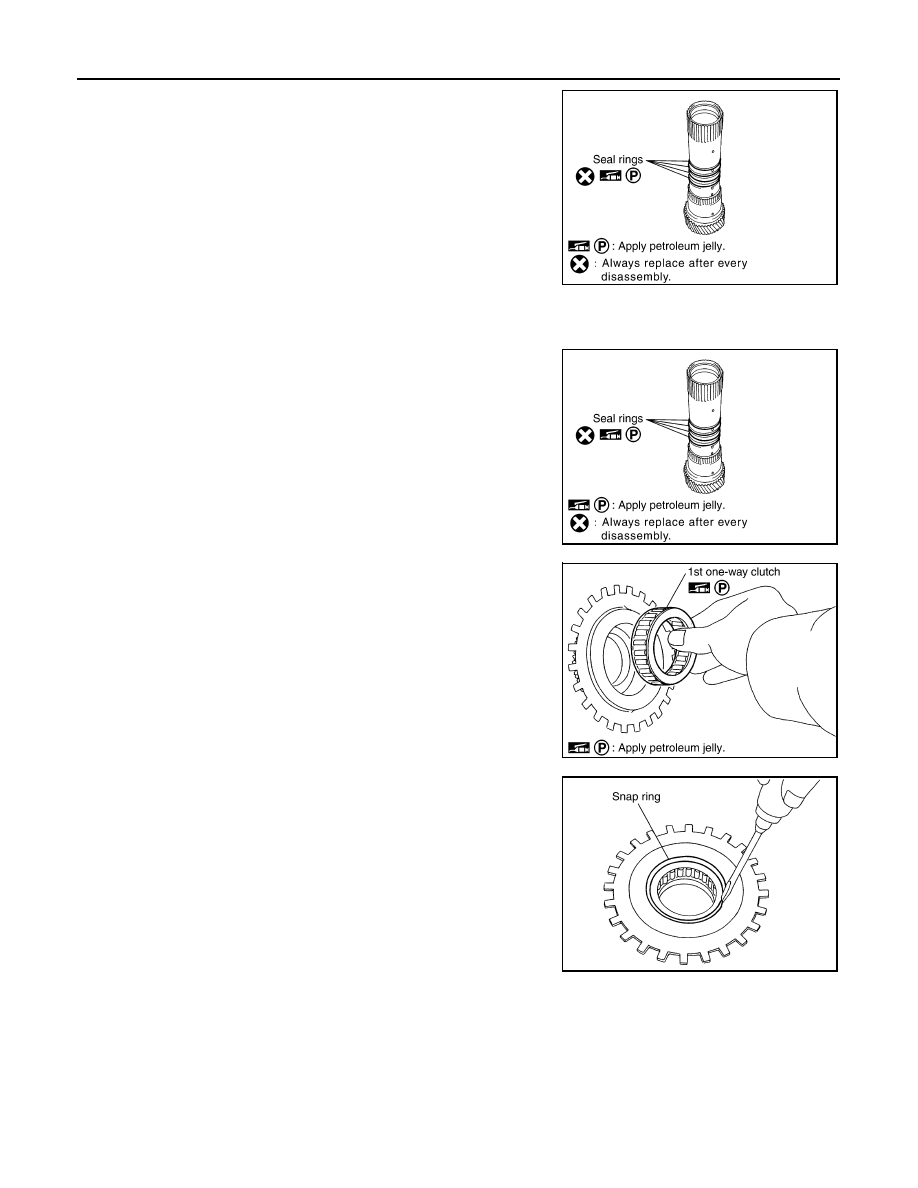

8.

Remove seal rings from mid sun gear.

Assembly

INFOID:0000000001672313

1.

Install seal rings to mid sun gear.

2.

Install 1st one-way clutch to rear sun gear.

3.

Using a flat-bladed screwdriver, install snap ring to rear sun
gear.

SCIA2861E

SCIA2861E

SCIA4633E

SCIA2859E

MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH HUB

TM-323

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

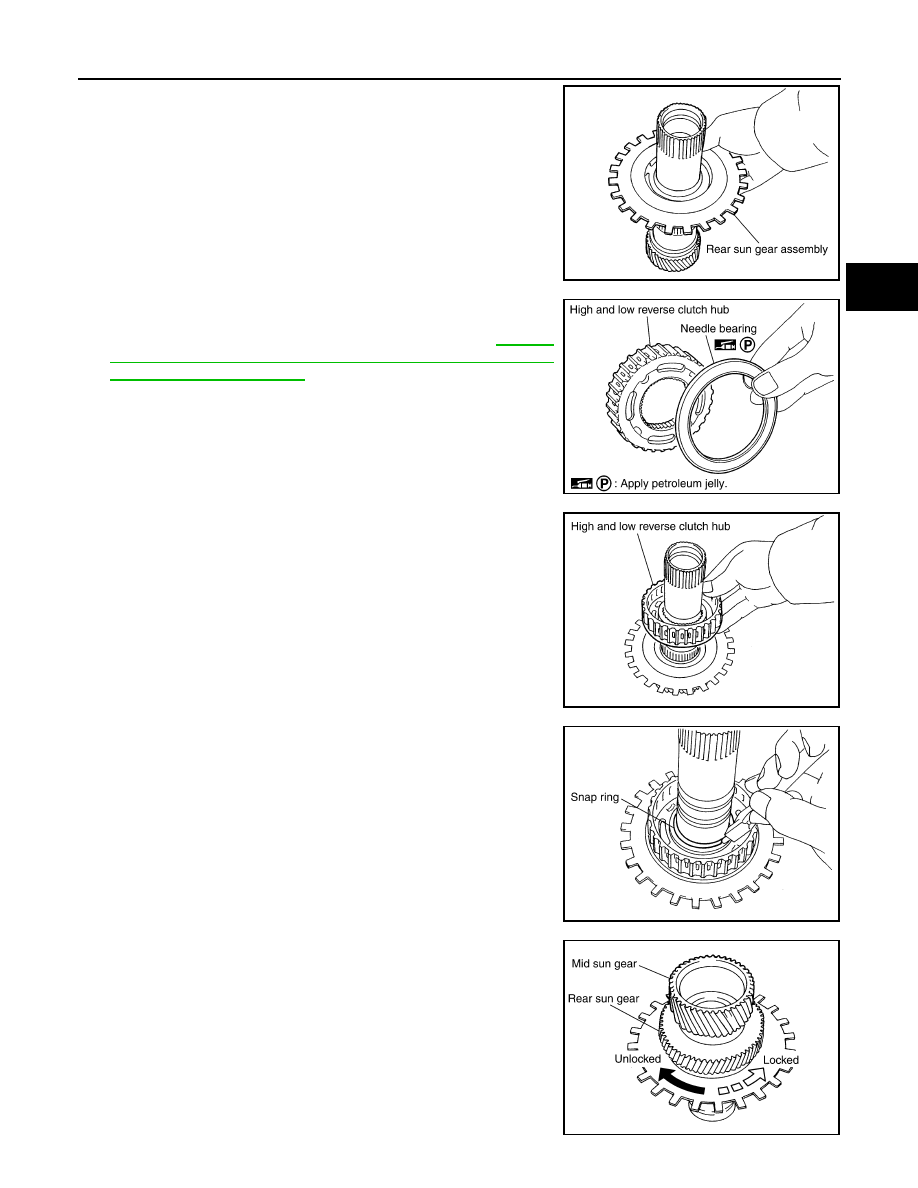

4.

Install rear sun gear assembly to mid sun gear assembly.

5.

Install needle bearing to high and low reverse clutch hub.

CAUTION:

Check the direction of needle bearing. Refer to

TM-272,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

6.

Install high and low reverse clutch hub to mid sun gear assem-
bly.

7.

Using pair of snap ring pliers, install snap ring to mid sun gear
assembly.

CAUTION:

Do not expand snap ring excessively.

8.

Check operation of 1st one-way clutch.

a.

Hold mid sun gear and turn rear sun gear.

b.

Check 1st one-way clutch for correct locking and unlocking
directions.

CAUTION:

If not as shown in the figure, check installation direction of
1st one-way clutch.

SCIA7018E

SCIA2857E

SCIA2856E

SCIA2855E

SCIA3132E

TM-324

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH HUB

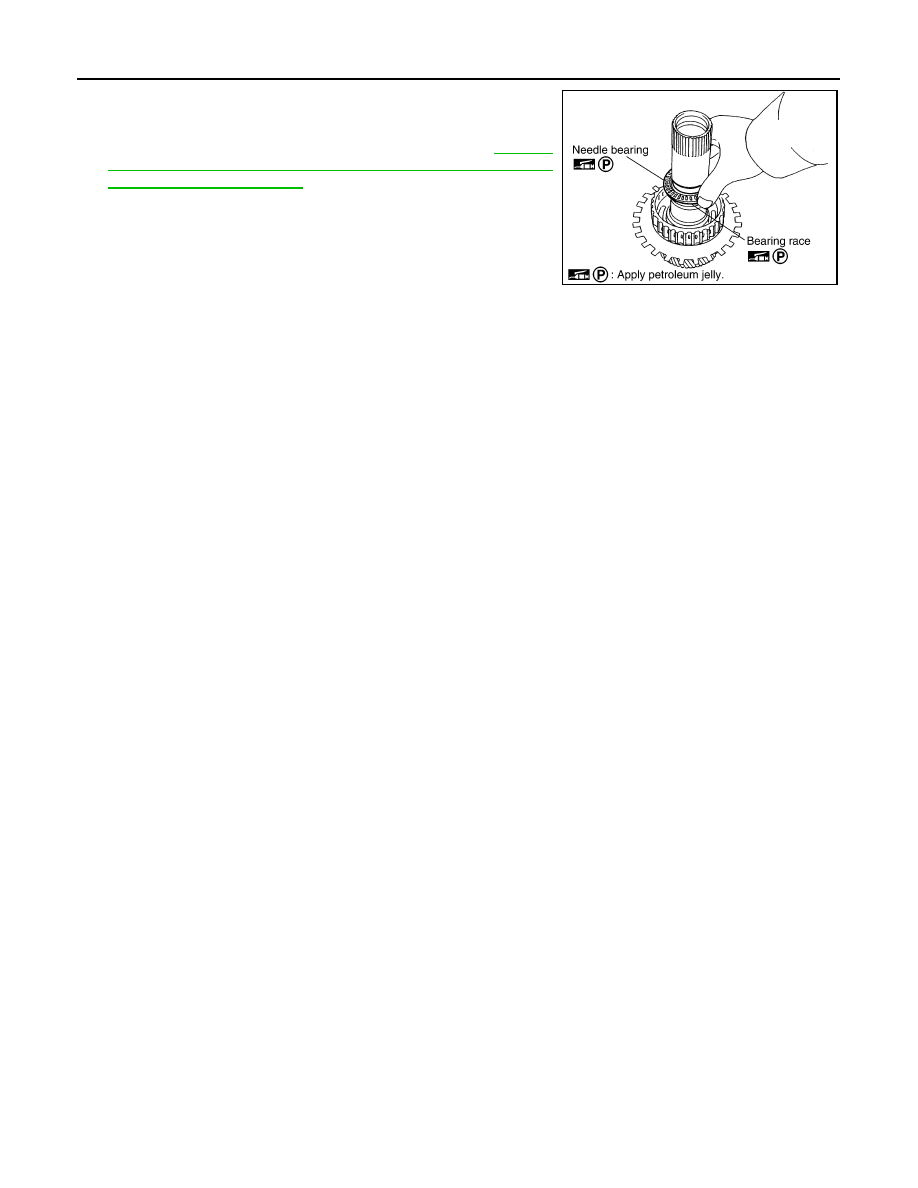

9.

Install needle bearing and bearing race to high and low reverse
clutch hub.

CAUTION:

Check the direction of needle bearing. Refer to

TM-272,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

Inspection

INFOID:0000000001672314

• High and Low Reverse Clutch Hub Snap Ring, Rear Sun Gear Snap Ring

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the snap ring.

• 1st One-way Clutch

Check frictional surface for wear or damage.

CAUTION:

If necessary, replace the 1st one-way clutch.

• Mid Sun Gear

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the mid sun gear.

• Rear Sun Gear

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the rear sun gear.

• High and Low Reverse Clutch Hub

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the high and low reverse clutch hub.

SCIA2854E
