FRONT SUN GEAR, 3RD ONE-WAY CLUTCH

TM-313

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FRONT SUN GEAR, 3RD ONE-WAY CLUTCH

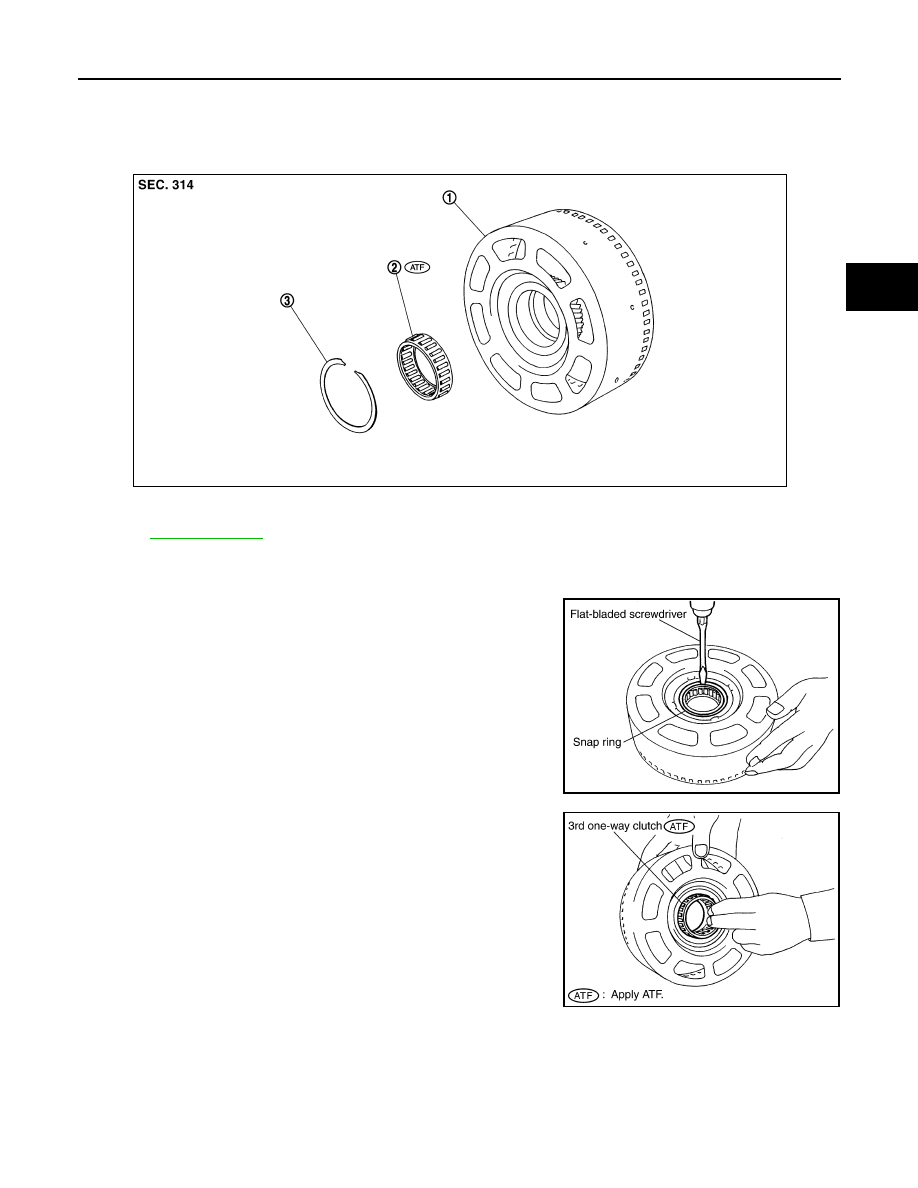

Exploded View

INFOID:0000000001672303

Disassembly

INFOID:0000000001672304

1.

Using a flat-bladed screwdriver, remove snap ring from front sun
gear.

2.

Remove 3rd one-way clutch from front sun gear.

1.

Front sun gear

2.

3rd one-way clutch

3.

Snap ring

Refer to

GI-4, "Components"

 for symbols in the figure.

SCIA8368E

SCIA3110E

SCIA3111E

TM-314

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

FRONT SUN GEAR, 3RD ONE-WAY CLUTCH

Assembly

INFOID:0000000001672305

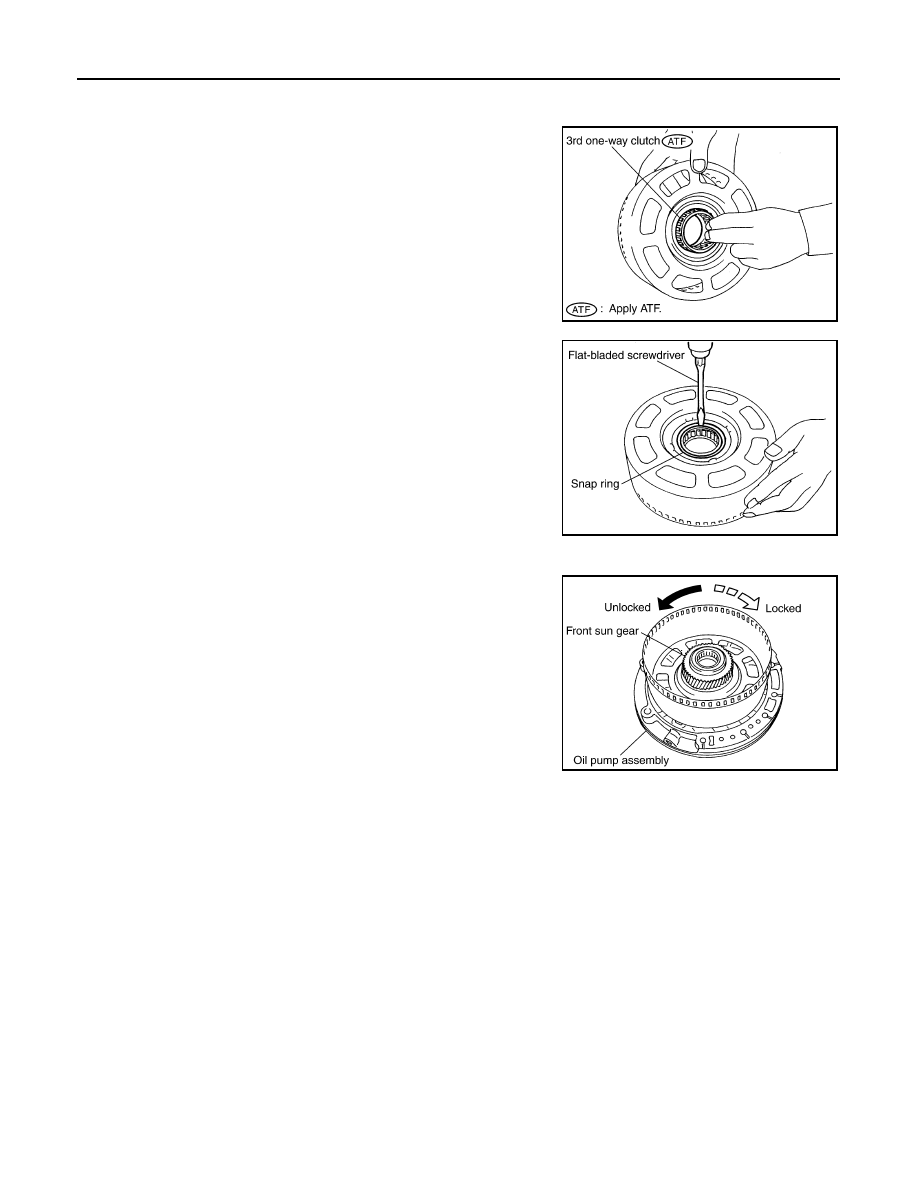

1.

Install 3rd one-way clutch in front sun gear.

2.

Using a flat-bladed screwdriver, install snap ring in front sun
gear.

3.

Check operation of 3rd one-way clutch.

a.

Hold oil pump assembly and turn front sun gear.

b.

Check 3rd one-way clutch for correct locking and unlocking
directions.

CAUTION:

If not as shown in figure, check installation direction of 3rd
one-way clutch.

Inspection

INFOID:0000000001672306

• 3rd One-way Clutch

Check frictional surface for wear or damage.

CAUTION:

If necessary, replace the 3rd one-way clutch.

• Front Sun Gear Snap Ring

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the snap ring.

• Front Sun Gear

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the front sun gear.

SCIA3111E

SCIA3110E

SCIA3131E

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

TM-315

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

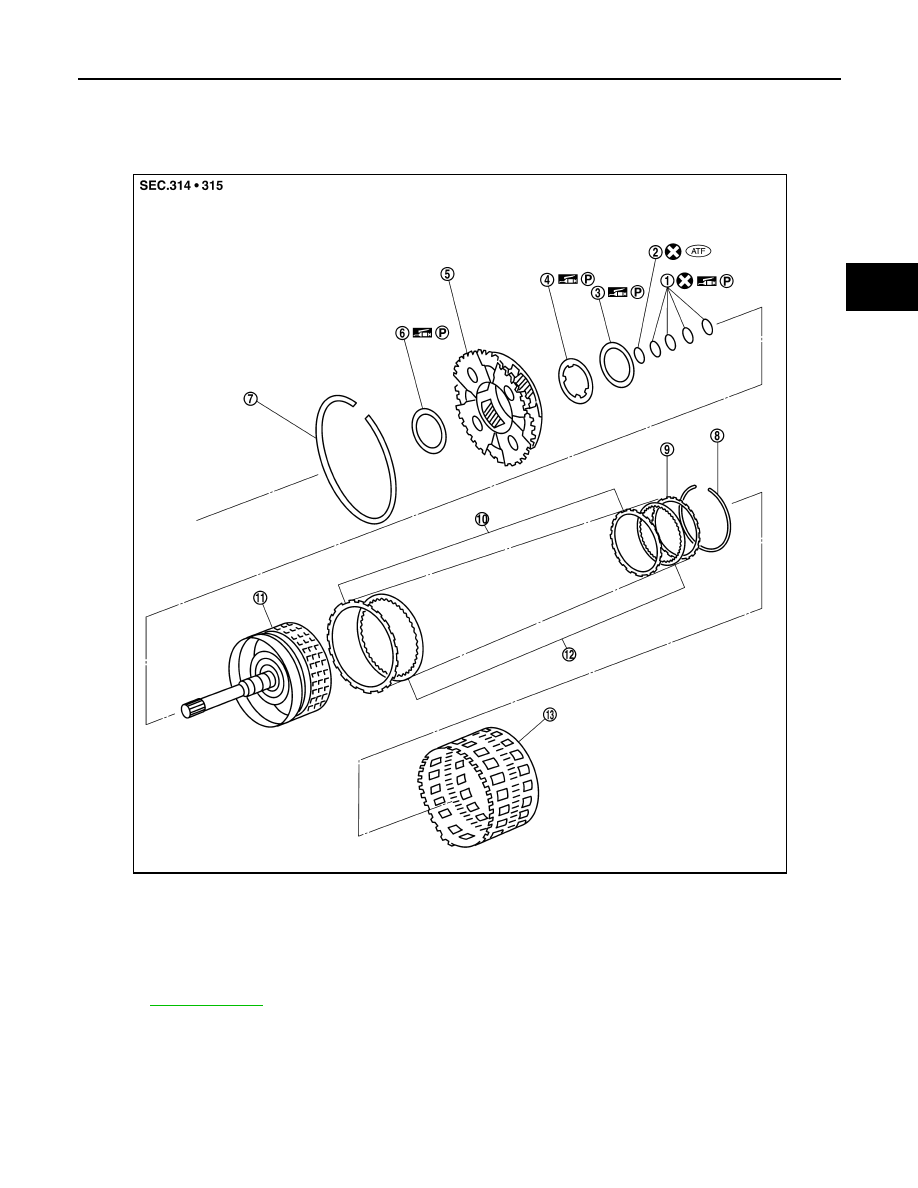

Exploded View

INFOID:0000000001672307

1.

Seal ring

2.

O-ring

3.

Needle bearing

4.

Bearing race

5.

Front carrier assembly

6.

Needle bearing

7.

Snap ring

8.

Snap ring

9.

Retaining plate

10.

Driven plate

11.

Input clutch drum

12. Drive plate

13.

Rear internal gear

Refer to

GI-4, "Components"

 for symbols in the figure.

SCIA6734E

TM-316

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

Disassembly

INFOID:0000000001672308

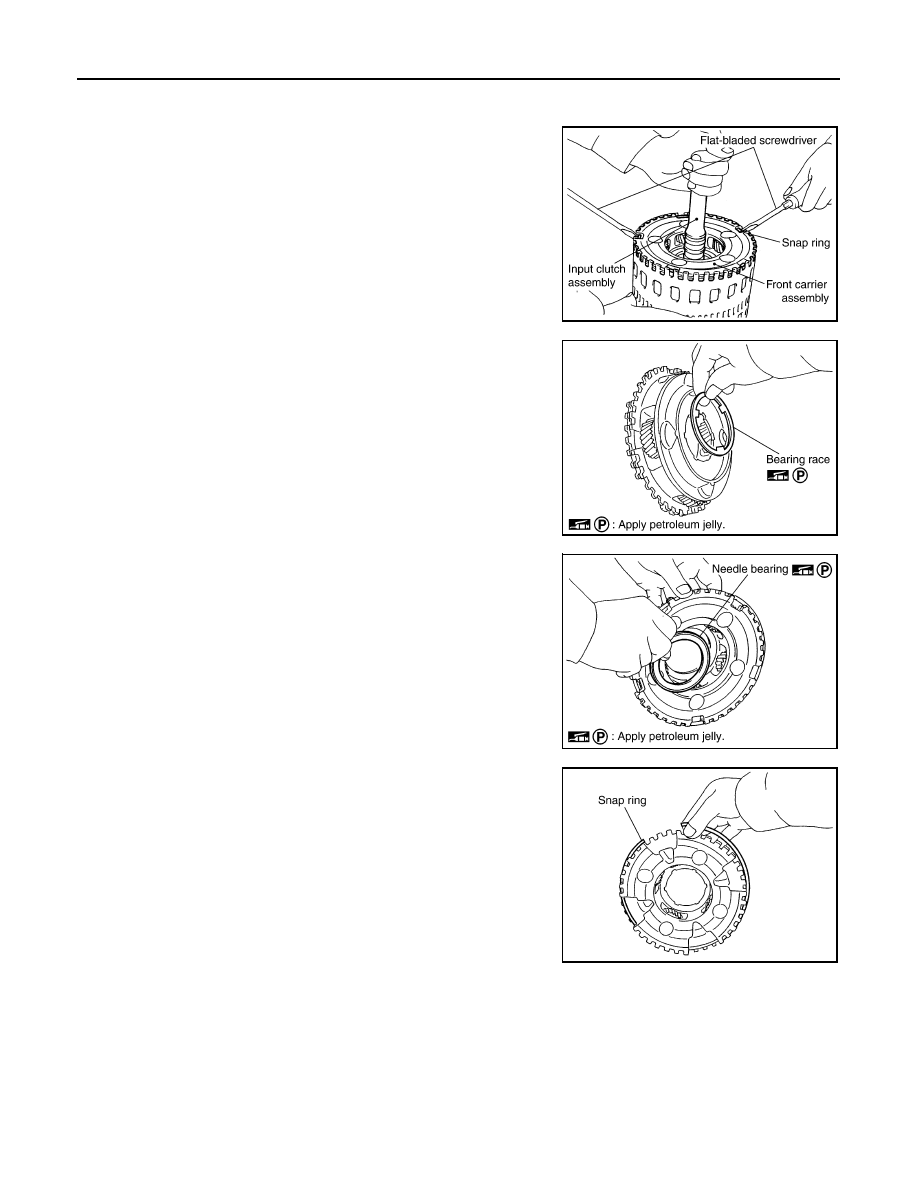

1.

Compress snap ring using 2 flat-bladed screwdrivers.

2.

Remove front carrier assembly and input clutch assembly from
rear internal gear.

3.

Remove front carrier assembly from input clutch assembly.

4.

Remove bearing race from front carrier assembly.

5.

Remove needle bearing from front carrier assembly.

6.

Remove snap ring from front carrier assembly.

CAUTION:

Do not expand snap ring excessively.

SCIA5339E

SCIA2847E

SCIA5233E

SCIA5476E
