TRANSMISSION ASSEMBLY

TM-309

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

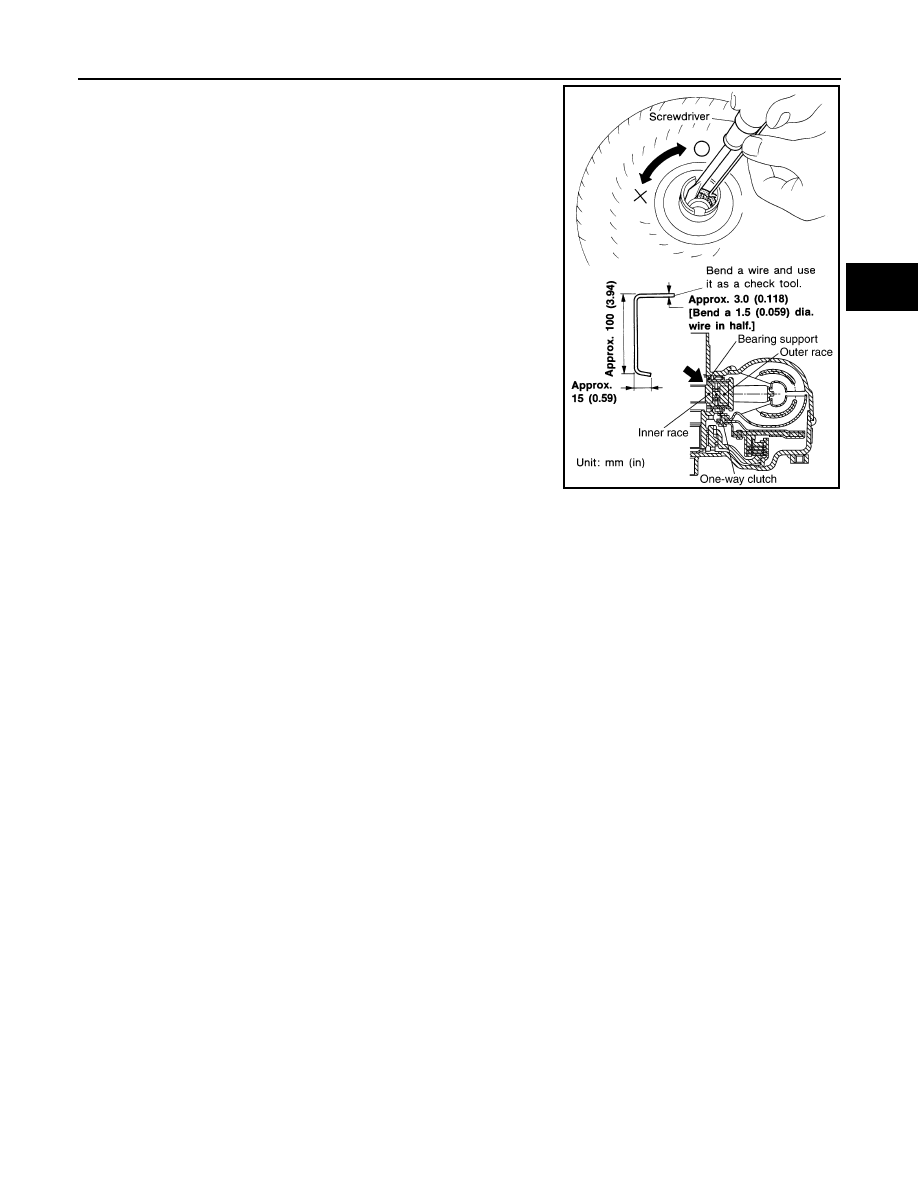

• Check torque converter one-way clutch using a check tool as

shown at figure.

1.

Insert a check tool into the groove of bearing support built into
one-way clutch outer race.

2.

When fixing bearing support with a check tool, rotate one-way
clutch spline using a screwdriver.

3.

Make sure that inner race rotates clockwise only. If not, replace
torque converter assembly.

SCIA3171E

TM-310

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

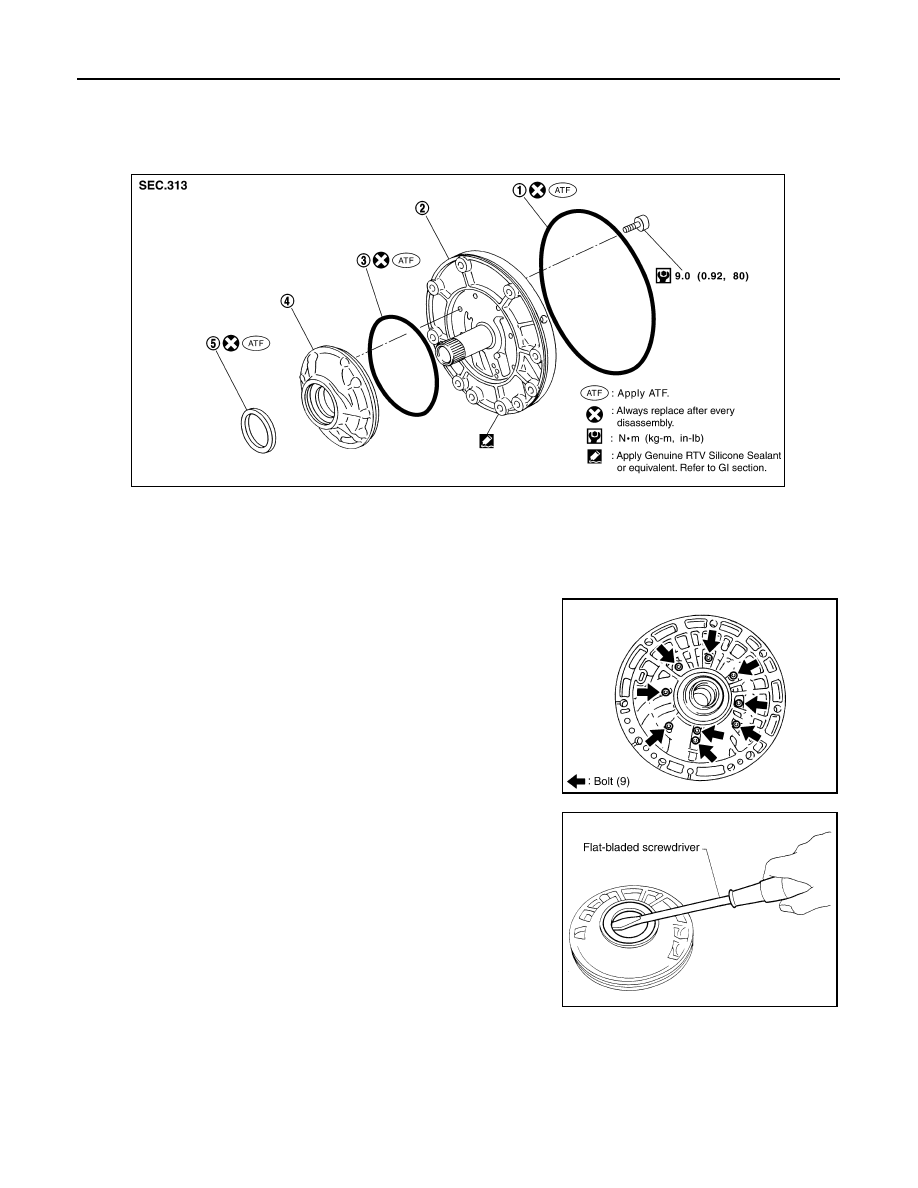

OIL PUMP

OIL PUMP

Exploded View

INFOID:0000000001672300

Disassembly

INFOID:0000000001672301

1.

Remove oil pump housing from oil pump cover.

2.

Remove oil pump housing oil seal using a flat-bladed screw-
driver.

CAUTION:

Be careful not to scratch oil pump housing.

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Oil pump housing oil seal

SCIA5227E

SCIA5228E

SCIA2840E

OIL PUMP

TM-311

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

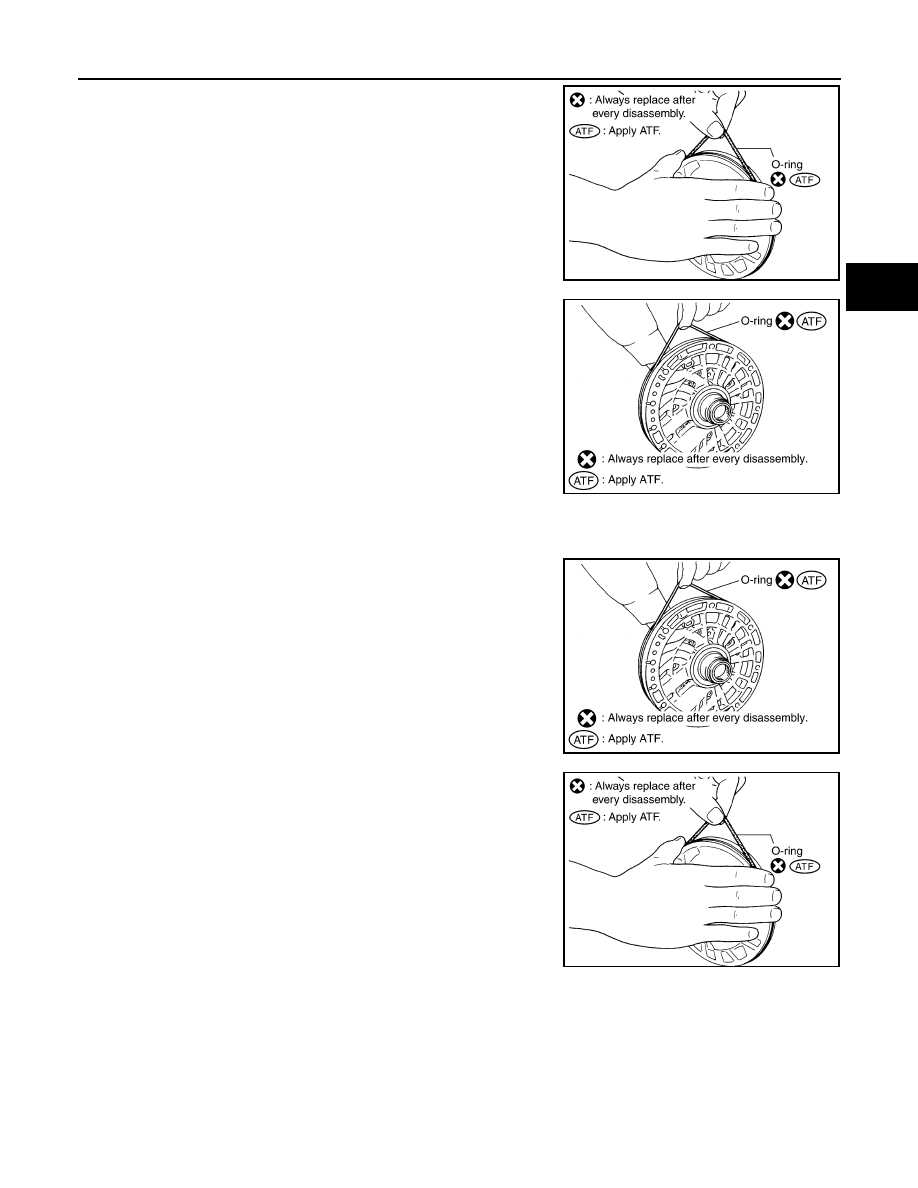

3.

Remove O-ring from oil pump housing.

4.

Remove O-ring from oil pump cover.

Assembly

INFOID:0000000001672302

1.

Install O-ring to oil pump cover.

2.

Install O-ring to oil pump housing.

SCIA2841E

SCIA5230E

SCIA5230E

SCIA2841E

TM-312

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

OIL PUMP

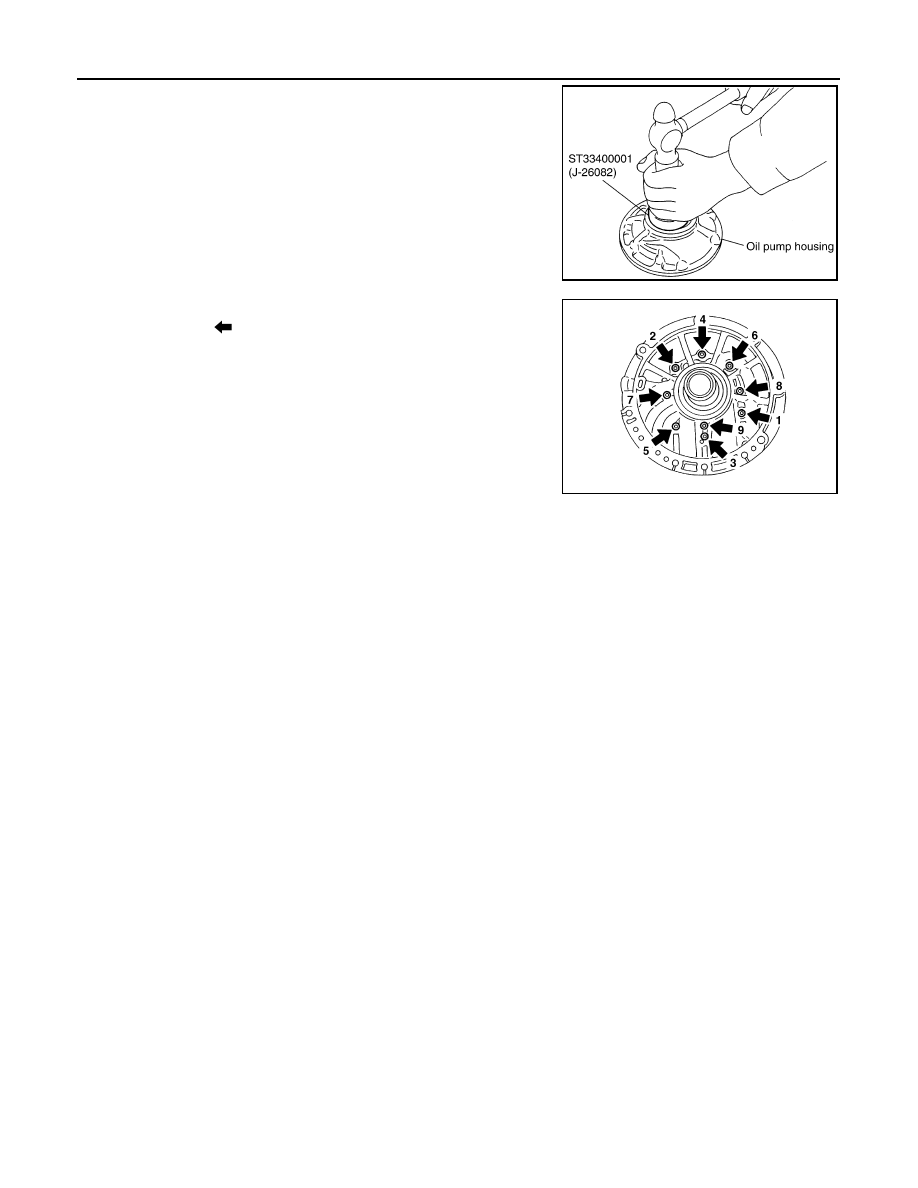

3.

Using the drift, install oil pump housing oil seal to the oil pump
housing until it is flush.

CAUTION:

• Do not reuse oil seal.
• Apply ATF to oil seal.

4.

Install oil pump housing to oil pump cover.

5.

Tighten bolts (

) to the specified torque in numerical order

shown in the figure after temporarily tightening them.

SCIA5313E

JSDIA0133ZZ
