TRANSMISSION ASSEMBLY

TM-301

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

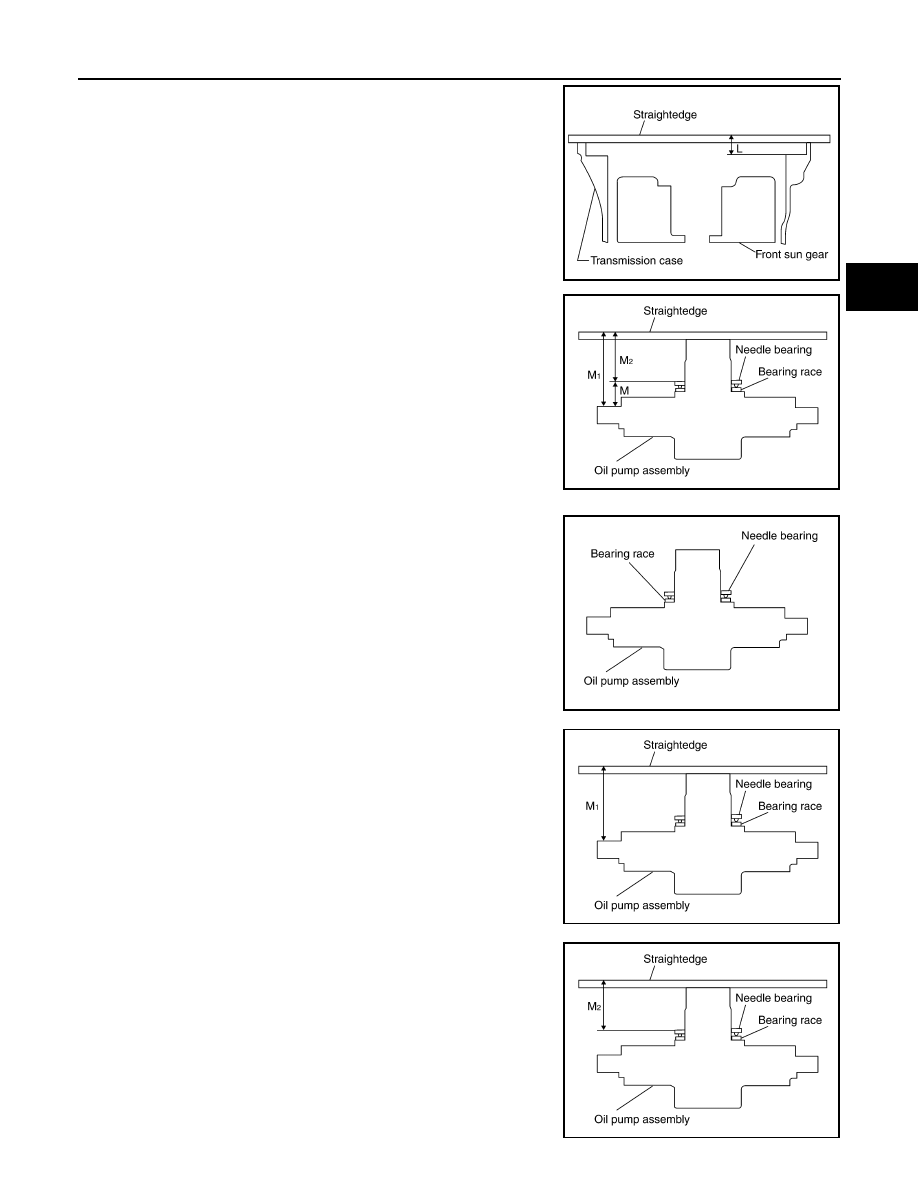

ii.

Measure dimension “L”.

iii.

Calculate dimension “J”.

b.

Measure dimensions “M

1

” and “M

2

” and then calculate dimen-

sion “M”.

i.

Place bearing race and needle bearing on oil pump assembly.

ii.

Measure dimension “M

1

”.

iii.

Measure dimension “M

2

”.

“J”

: Distance between oil pump fitting surface of
transmission case and needle bearing mating
surface of front sun gear.

J = K – L

SCIA5352E

SCIA3125E

SCIA3124E

SCIA3126E

SCIA3127E

TM-302

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

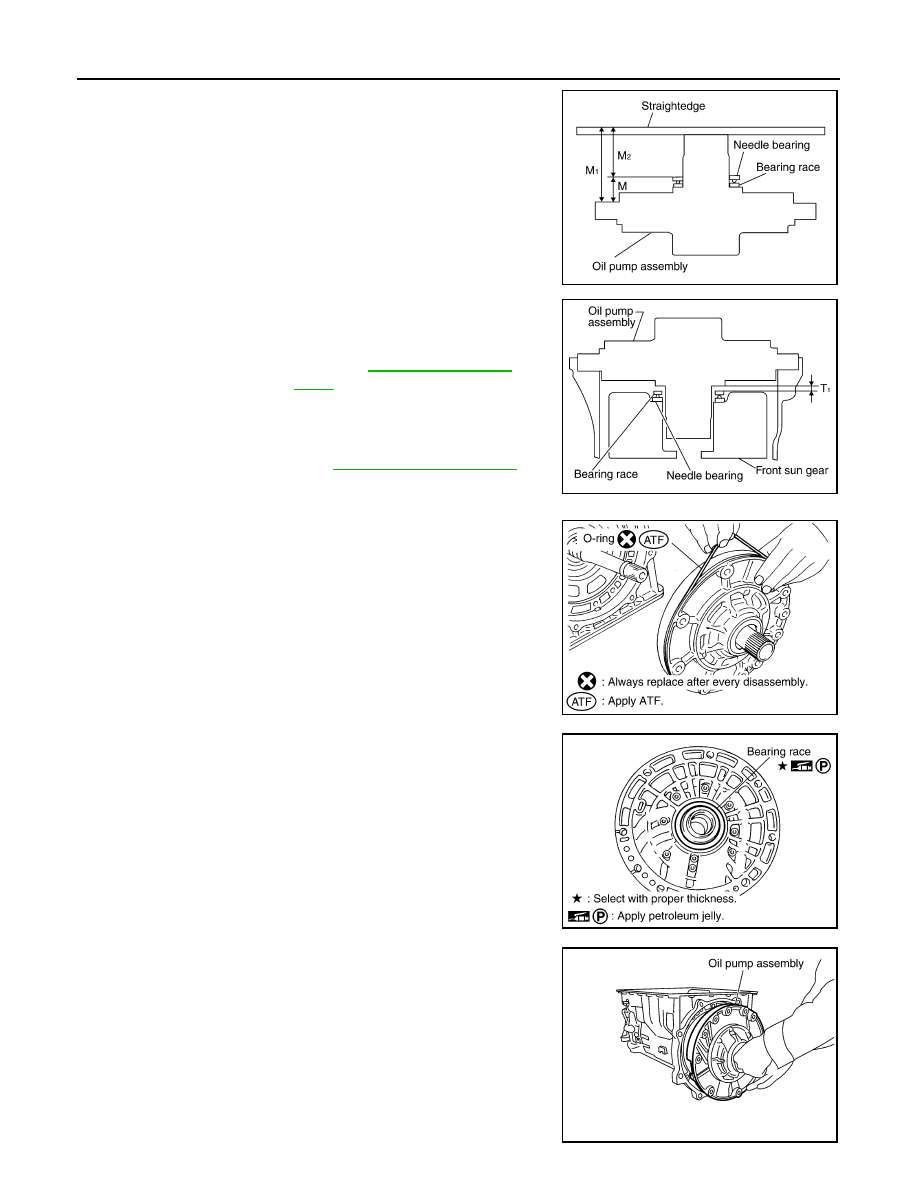

iv.

Calculate dimension “M”.

c.

Adjust total end play “T

1

”.

• Select proper thickness of bearing race so that total end play

is within specifications.

57. Install O-ring to oil pump assembly.

58. Install bearing race to oil pump assembly.

59. Install oil pump assembly in transmission case.

CAUTION:

Apply ATF to oil pump bearing.

“M”

: Distance between transmission case fitting
surface of oil pump and needle bearing on oil
pump.

M = M

1

– M

2

SCIA3125E

T

1

 = J – M

Total end play “T

1

: Refer to

TM-330, "Total End

Play"

.

Bearing races

: Refer to

TM-330, "Total End Play"

.

SCIA2810E

SCIA5172E

SCIA6529E

SCIA2811E

TRANSMISSION ASSEMBLY

TM-303

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

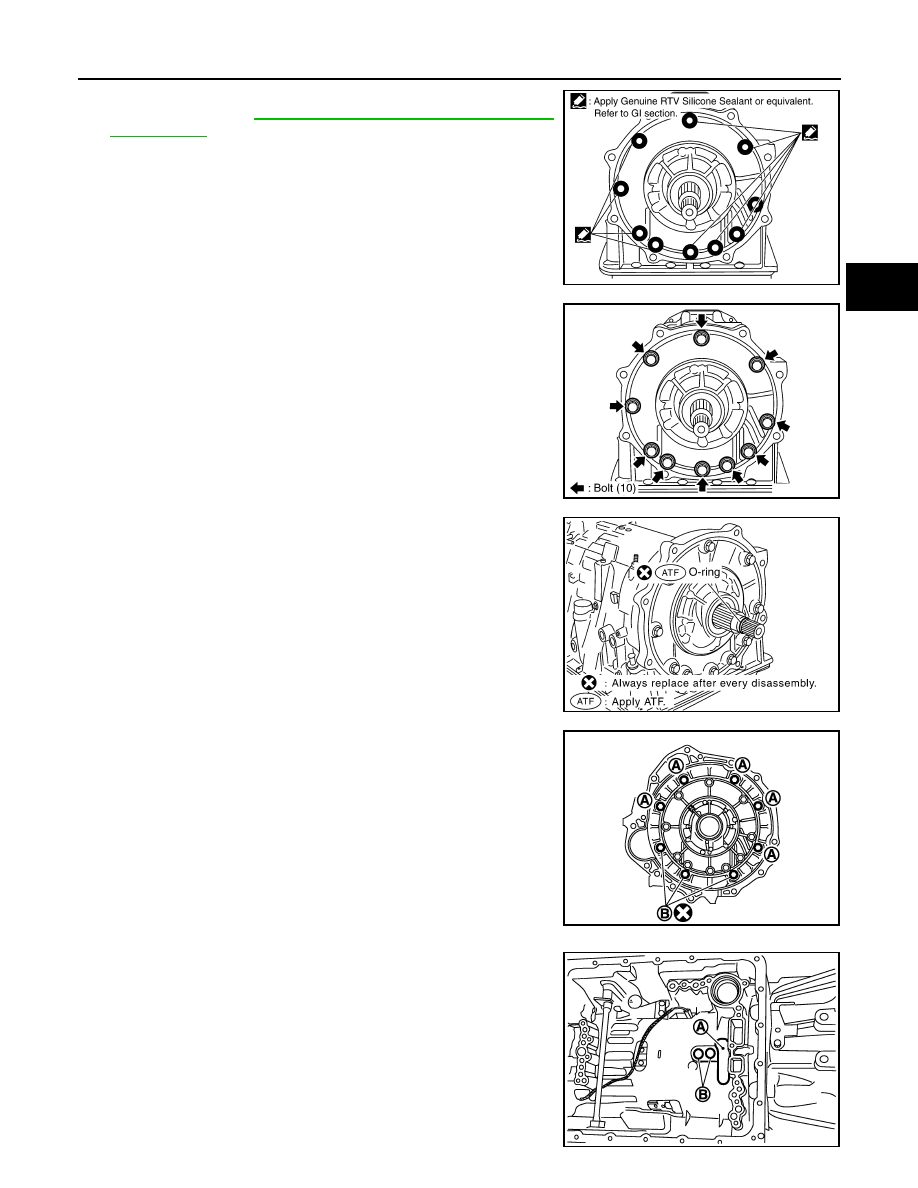

60. Apply recommended sealant (Genuine RTV Silicone Sealant or

equivalent. Refer to

GI-15, "Recommended Chemical Products

and Sealants"

.) to oil pump assembly as shown in the figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the oil pump mounting bolts and oil pump mounting
bolt mounting surfaces.

61. Tighten oil pump bolts to the specified torque.

CAUTION:

Apply ATF to oil pump bushing.

62. Install O-ring to input clutch assembly.

63. Install converter housing to transmission case, and then tighten

converter housing bolts (A) and self-sealing bolt (B) to the spec-
ified torque.

64. Make sure that brake band (A) does not close turbine revolution

sensor hole (B).

SCIA5321E

SCIA2300E

SCIA5011E

SCIA8085E

JPDIA0020ZZ

TM-304

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

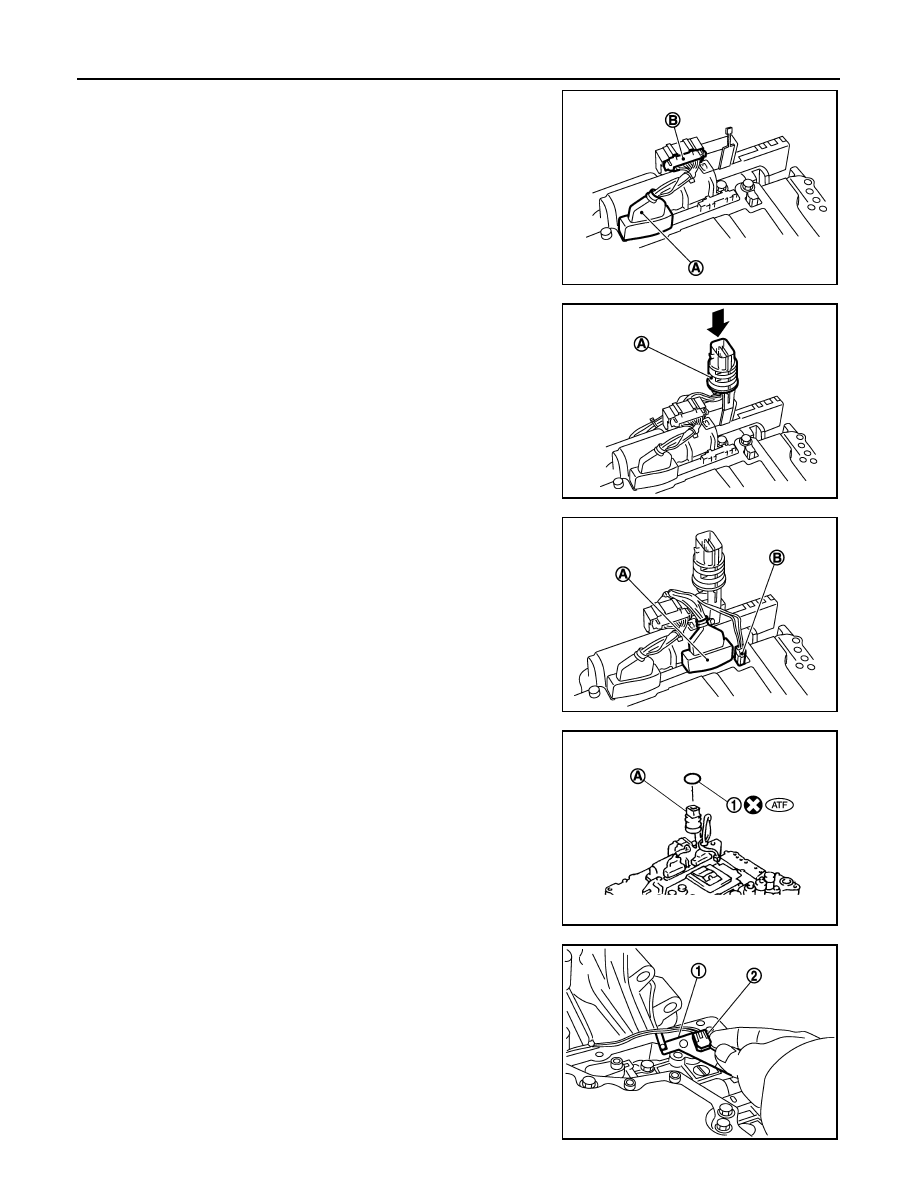

65. Connect TCM connector (A) and park/neutral position switch

connector (B).

66. Install A/T assembly harness connector (A) to control valve with

TCM.

67. Connect TCM connectors (A) and (B).

68. Install O-ring (1) to A/T assembly harness connector (A).

69. Install bracket (1) to A/T fluid temperature sensor 2 (2).

JPDIA0018ZZ

JPDIA0019ZZ

JPDIA0016ZZ

JPDIA0015ZZ

JPDIA0014ZZ
