REAR OIL SEAL

TM-253

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Inspection

INFOID:0000000001672271

INSPECTION AFTER INSTALLATION

Check A/T fluid leakage and A/T fluid level after completing installation. Refer to

TM-214, "Inspection"

.

TM-254

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

REVOLUTION SENSOR

REVOLUTION SENSOR

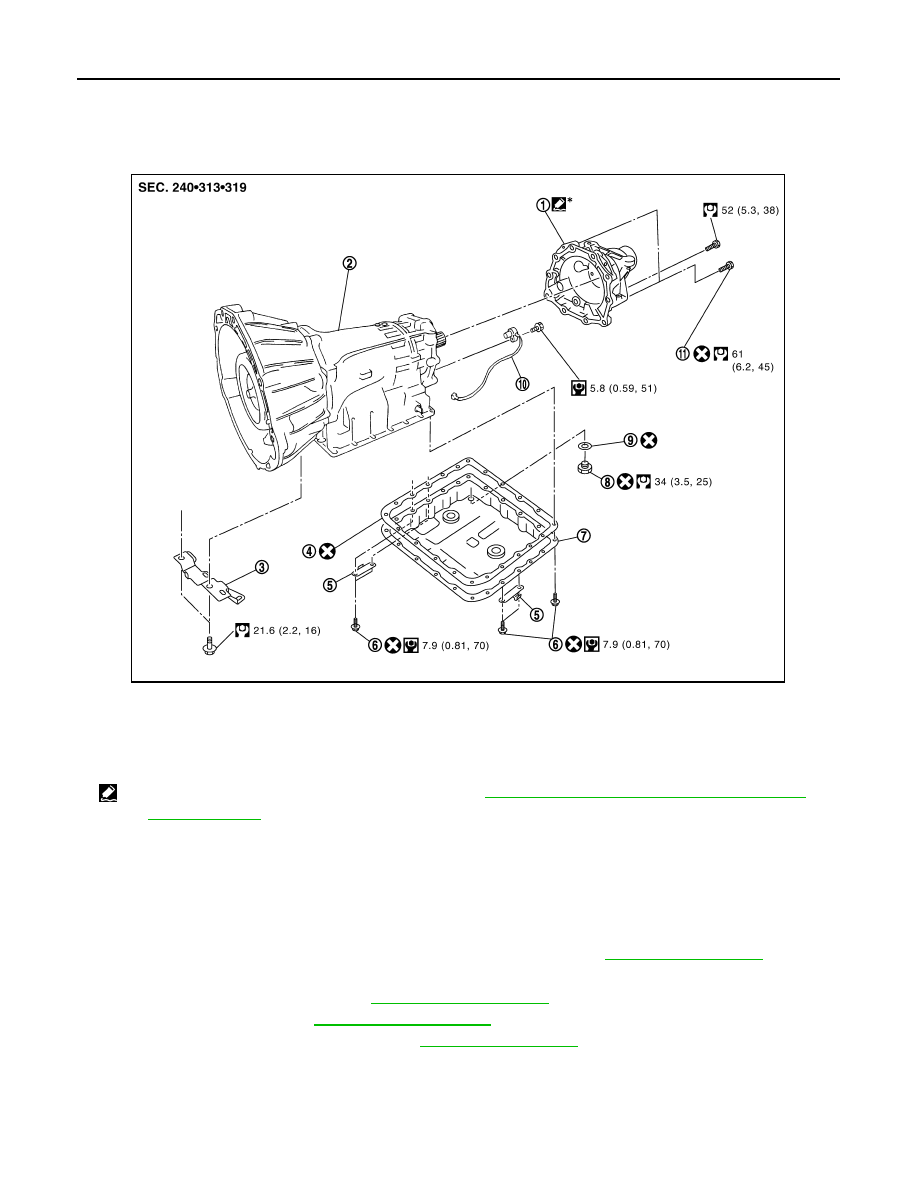

Exploded View

INFOID:0000000001672275

Removal and Installation

INFOID:0000000001672276

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Drain ATF through drain plug.

3.

Remove exhaust front tube and center muffler with power tool. Refer to

EX-5, "Exploded View"

.

4.

Remove heat insulator.

5.

Remove rear propeller shaft. Refer to

DLN-14, "Exploded View"

.

6.

Remove control rod. Refer to

TM-229, "Exploded View"

.

7.

Remove exhaust mounting bracket. Refer to

EX-5, "Exploded View"

.

1.

Rear extension

2.

A/T

3.

Bracket

4.

Oil pan gasket

5.

Clip

6.

Oil pan mounting bolt

7.

Oil pan

8.

Drain plug

9.

Drain plug gasket

10.

Revolution sensor

11.

Self-sealing bolt

*

: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

SCIA8271E

REVOLUTION SENSOR

TM-255

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

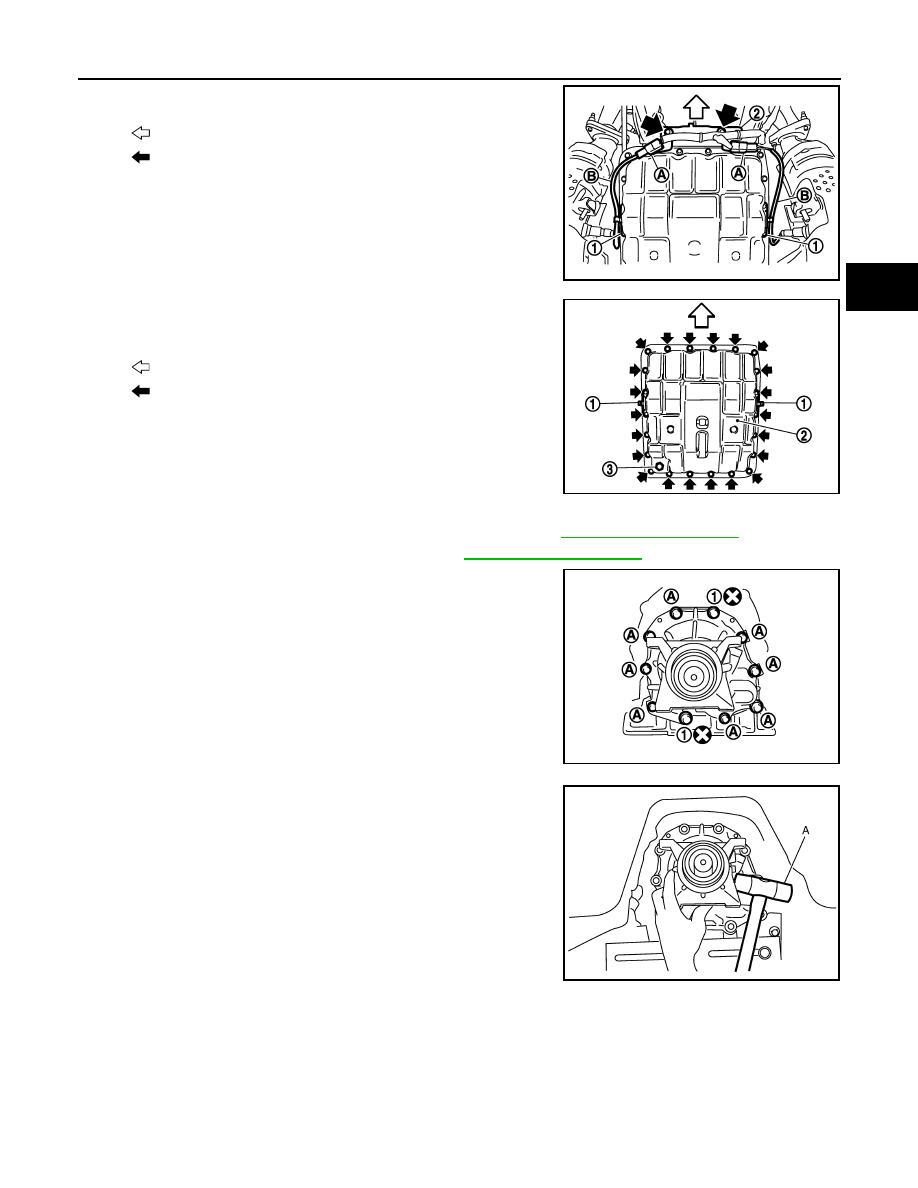

8.

Disconnect heated oxygen sensor 2 harness connectors (A).

9.

Remove heated oxygen sensor 2 harness (B) from clips (1).

10. Remove bracket (2) from transmission assembly.

11. Remove clips (1).

12. Remove oil pan (2) and oil pan gasket.

13. Support A/T assembly with a transmission jack.

CAUTION:

When setting transmission jack, place wooden blocks to
prevent from damaging control valve with TCM and trans-
mission case.

14. Remove rear engine mounting member with power tool. Refer to

TM-263, "Exploded View"

.

15. Remove engine mounting insulator (rear). Refer to

TM-263, "Exploded View"

.

16. Remove tightening bolts for rear extension assembly and trans-

mission case.

17. Tap rear extension assembly with a soft hammer (A).

: Vehicle front

: Bolt

SCIA8269E

3

: Drain plug

: Vehicle front

: Oil pan mounting bolt

1

: Self-sealing bolt

A

:  Bolt

SCIA8117E

JPDIA0026ZZ

JPDIA0027ZZ

TM-256

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

REVOLUTION SENSOR

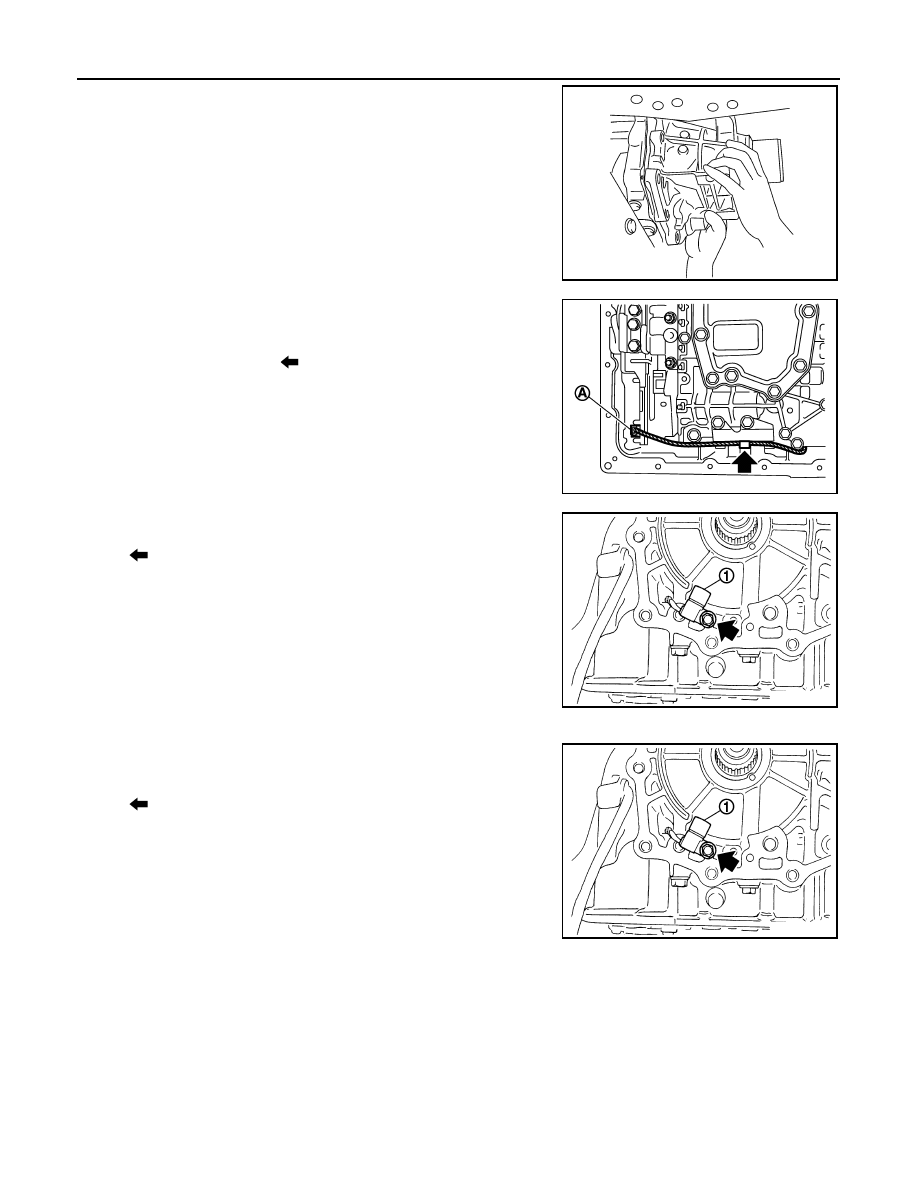

18. Remove rear extension assembly (with needle bearing) from

transmission case.

19. Disconnect revolution sensor connector (A).

CAUTION:

Be careful not to damage connector

20. Disengage terminal clip (

).

21. Remove revolution sensor (1) from transmission case.

CAUTION:

• Do not subject it to impact by dropping or hitting it.
• Do not disassemble.
• Do not allow metal filings, etc. to get on the sensor's front

edge magnetic area.

• Do not place in an area affected by magnetism.

INSTALLATION

1.

Install revolution sensor (1) in transmission case. Tighten a nec-
essary bolt for revolution sensor with specified torque.

CAUTION:

• Do not subject it to impact by dropping or hitting it.
• Do not disassemble.
• Do not allow metal filings, etc. to get on the sensor's front

edge magnetic area.

• Do not place in an area affected by magnetism.

SCIA3431E

JPDIA0011ZZ

: Bolt

JPDIA0041ZZ

: Bolt

JPDIA0041ZZ
