CONTROL VALVE WITH TCM

TM-237

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

5.

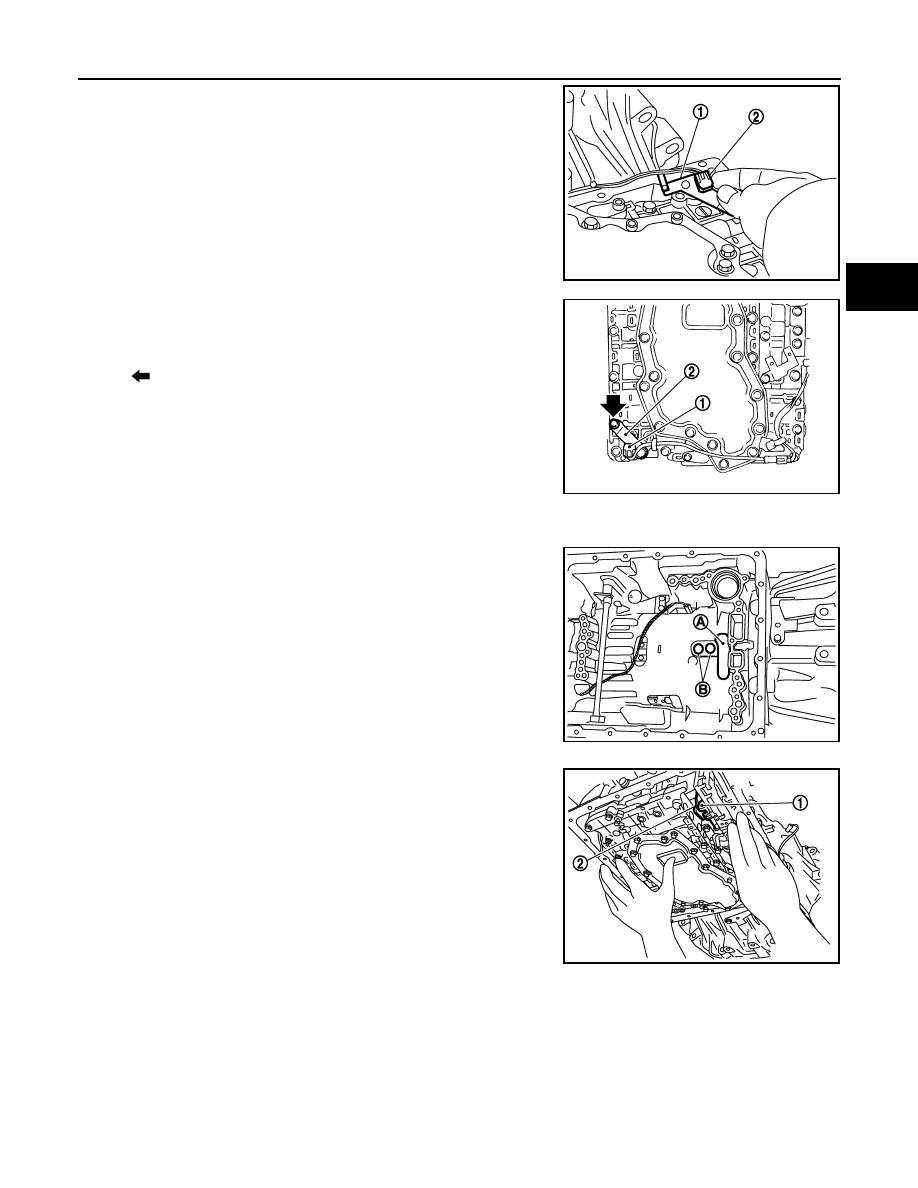

Install bracket (1) to A/T fluid temperature sensor 2 (2).

6.

Install A/T fluid temperature sensor 2 (1) with bracket (2) in con-
trol valve with TCM. Tighten A/T fluid temperature sensor 2 bolt
to the specified torque.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve with
TCM.

7.

Install control valve with TCM in transmission case.

CAUTION:

• Make sure that turbine revolution sensor securely installs

turbine revolution sensor hole (B).

• Hang down revolution sensor harness toward outside so

as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve (1) cutout is engaged

with manual plate (2) projection.

JPDIA0014ZZ

: Bolt

JPDIA0013ZZ

A

: Brake band

JPDIA0020ZZ

JPDIA0012ZZ

TM-238

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

CONTROL VALVE WITH TCM

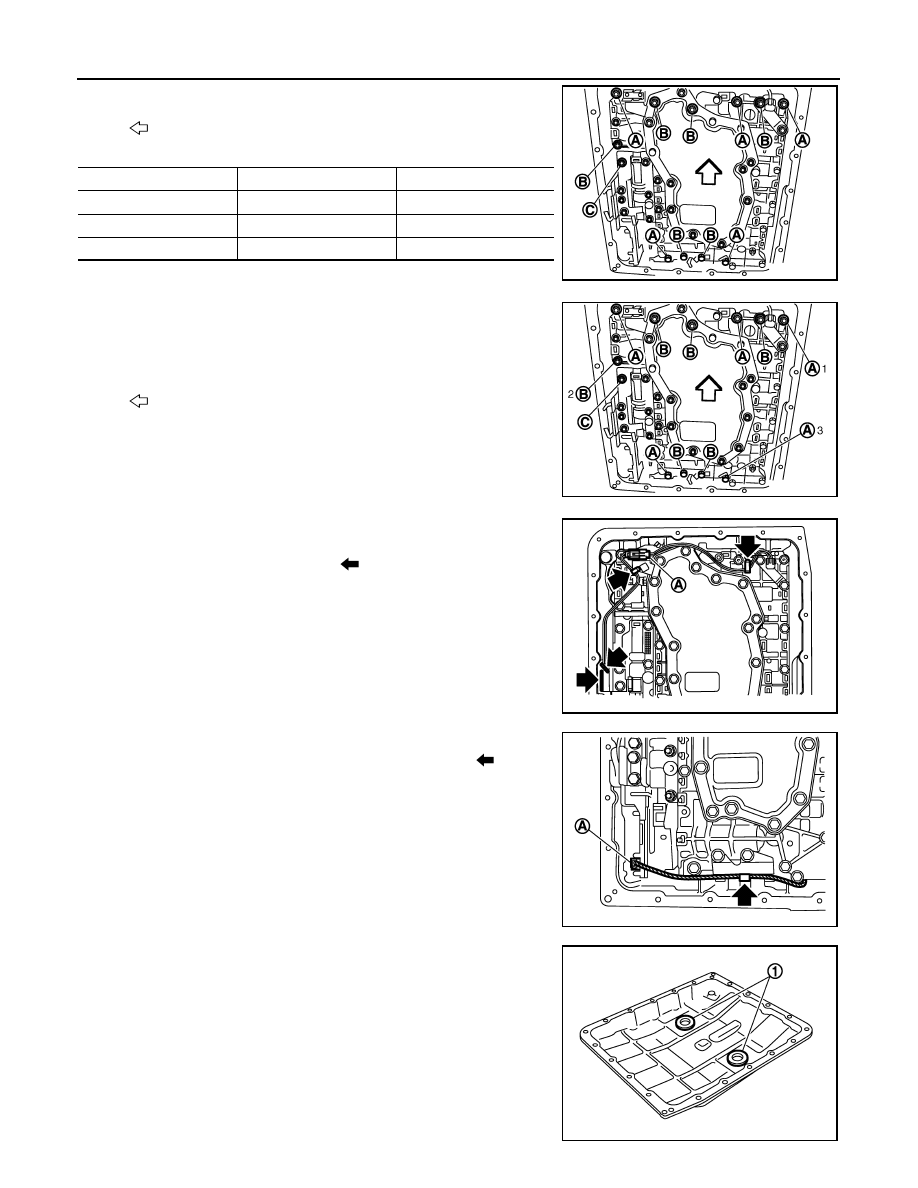

8.

Install bolts A, B and C in control valve with TCM.

9.

Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After
that tighten them in order (1

 2

 3), and then tighten other

bolts. Tighten control valve with TCM bolts to the specified
torque.

10. Connect A/T fluid temperature sensor 2 connector (A).

11. Engage terminal cord assembly and A/T fluid temperature sen-

sor 2 harness with terminal clips (

).

12. Connect revolution sensor connector (A).

13. Engage revolution sensor harness with terminal clip (

).

14. Install magnets (1) in oil pan.
15. Install oil pan gasket to oil pan.

CAUTION:

• Do not reuse oil pan gasket.
• Install it in the direction to align hole positions.
• Completely remove all moisture, oil and old gasket, etc.

from oil pan gasket mounting surface.

: Vehicle front

Bolt symbol

Length

mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

: Vehicle front

SCIA8075E

SCIA8124E

JPDIA0011ZZ

JPDIA0009ZZ

CONTROL VALVE WITH TCM

TM-239

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

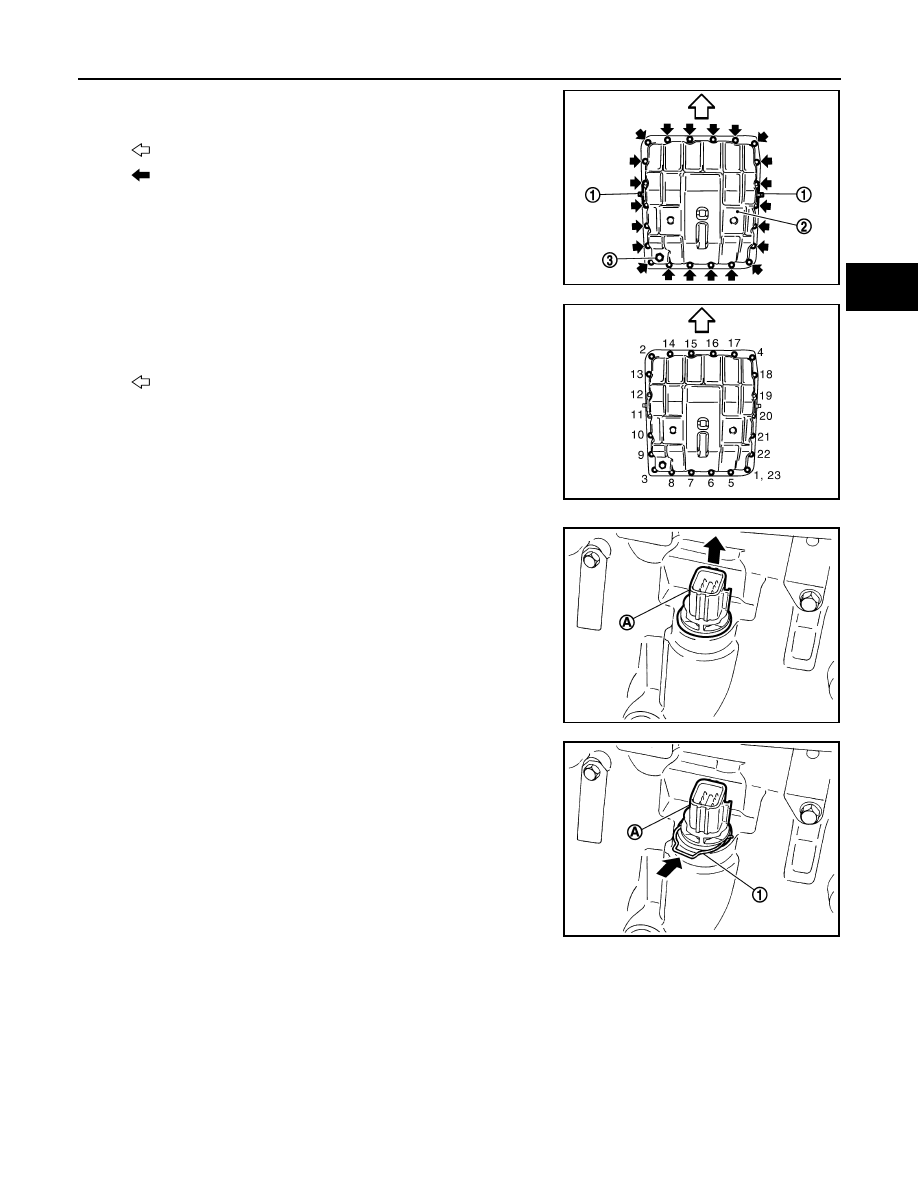

16. Install oil pan (2) (with oil pan gasket) and clips (1) to transmis-

sion case.

CAUTION:

• Install it so that drain plug (3) comes to the position as

shown in the figure.

• Be careful not to pinch harnesses.
• Completely remove all moisture, oil and old gasket, etc.

from oil pan mounting surface.

17. Tighten oil pan mounting bolts to the specified torque in numeri-

cal order shown in the figure after temporarily tightening them.
Tighten oil pan mounting bolts to the specified torque.

CAUTION:

Do not reuse oil pan mounting bolts.

18. Install drain plug to oil pan. Tighten drain plug to the specified

torque.

CAUTION:

Do not reuse drain plug gasket.

19. Pull up A/T assembly harness connector (A).

CAUTION:

Be careful not to damage connector.

20. Install snap ring (1) to A/T assembly harness connector (A).

21. Connect A/T assembly harness connector.

: Vehicle front

: Oil pan mounting bolt

: Vehicle front

SCIA8117E

JPDIA0021ZZ

JPDIA0022ZZ

JPDIA0023ZZ

TM-240

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

CONTROL VALVE WITH TCM

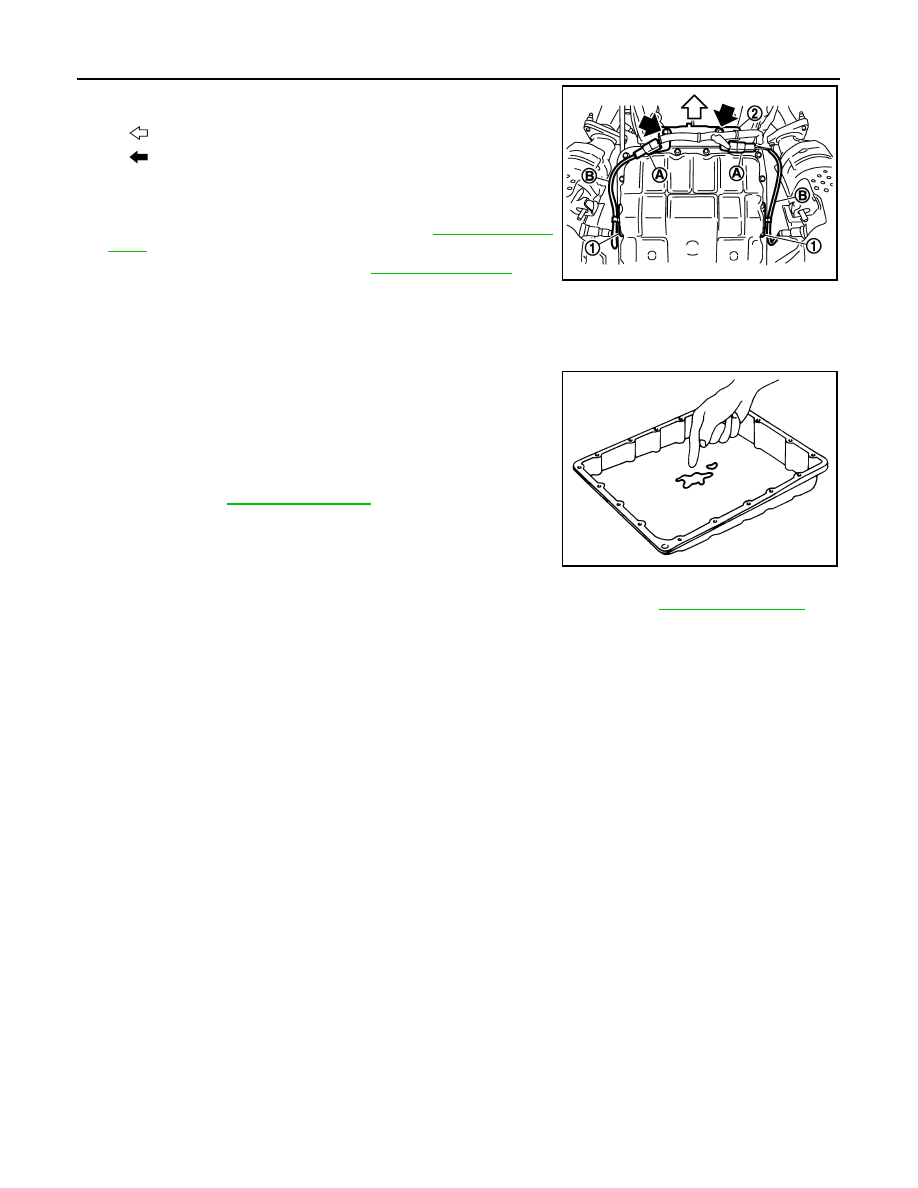

22. Install bracket (2) to transmission assembly.

23. Install heated oxygen sensor 2 harness (B) to clips (1).
24. Connect heated oxygen sensor 2 harness connector (A).

25. Install exhaust mounting bracket. Refer to

EX-5, "Exploded

View"

.

26. Pour ATF into A/T assembly. Refer to

TM-215, "Changing"

.

27. Connect the battery cable to the negative terminal.

Inspection

INFOID:0000000001672262

INSPECTION AFTER REMOVAL

Check foreign materials in oil pan to help determine causes of mal-
function. If the ATF is very dark, smells burned, or contains foreign
particles, the frictional material (clutches, band) may need replace-
ment. A tacky film that will not wipe clean indicates varnish build up.
Varnish can cause valves, servo, and clutches to stick and can
inhibit pump pressure.
• If frictional material is detected, perform A/T fluid cooler

cleaning. Refer to

TM-216, "Cleaning"

.

INSPCTION AFTER INSTALLATION

Check for A/T fluid leakage and A/T fluid level after completing installation. Refer to

TM-214, "Inspection"

.

: Vehicle front

: Bolt

SCIA8269E

SCIA5199E
