Infiniti G37 Coupe. Manual - part 1343





ROAD TEST

TM-225

< ON-VEHICLE MAINTENANCE >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

NO

>> Record the malfunction, GO TO 2.

2.

CHECK SHIFT-DOWN

During manual mode driving, is downshift from M5

 M4

 M3

 M2

 M1 performed?

 With CONSULT-III

Read the value of “GEAR” and “ENGINE SPEED” with “DATA MONITOR” mode.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Record the malfunction, GO TO 3.

3.

CHECK ENGINE BRAKE

Check engine brake.
Does engine braking effectively reduce speed in M1 position?

YES

>> Check malfunction phenomena to repair or replace malfunctioning part. Refer to

TM-188, "Symp-

tom Table"

.

NO

>> 1.

Record the malfunction.

2.

Check malfunction phenomena to repair or replace malfunctioning part. Refer to

TM-188,

"Symptom Table"

.

TM-226

< ON-VEHICLE MAINTENANCE >

[5AT: RE5R05A]

A/T POSITION

A/T POSITION

Inspection and Adjustment

INFOID:0000000001672244

INSPECTION

1.

Place selector lever in “P” position, and turn ignition switch ON (engine stop).

2.

Check that selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
check that selector lever can be shifted from “P” position only when brake pedal is depressed.

3.

Shift the selector lever and check for excessive effort, sticking, noise or rattle.

4.

Confirm that the selector lever stops at each position by feeling the engagement when it is moved through
all the positions. Check whether or not the actual position the selector lever matches the position shown
by the shift position indicator and the A/T body.

5.

The method of operating the lever to individual positions cor-
rectly is shown in the figure.

6.

When selector button is pressed in “P”, “R”, or “N” position with-
out applying forward/backward force to selector lever, check but-
ton operation for sticking.

7.

Confirm that the back-up lamps illuminate only when lever is
placed in the “R” position. Confirm that the back-up lamps does
not illuminate when selector lever is pushed against “R” position
in the “P” or “N” position.

8.

Confirm that the engine can only be started with the selector
lever in the “P” and “N” positions. (With selector lever in the “P”
position, engine can be started even when selector lever is
moved forward and backward.)

9.

Make sure that A/T is locked completely in “P” position.

10. When selector lever is set to manual shift gate, make sure that manual mode is displayed on combination

meter.
Shift the selector lever to “+” and “

” sides, and check that set shift position changes.

ADJUSTMENT

1.

Loosen nut (

) of pivot pin (1).

2.

Place PNP switch and selector lever in “P” position.

3.

While pressing lower lever (A) toward rear of vehicle (in “P” posi-
tion direction), tighten nut (

) to specified torque. Refer to

TM-

227, "Exploded View"

.

SCIA6760E

JSDIA0134ZZ

CONTROL DEVICE

TM-227

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

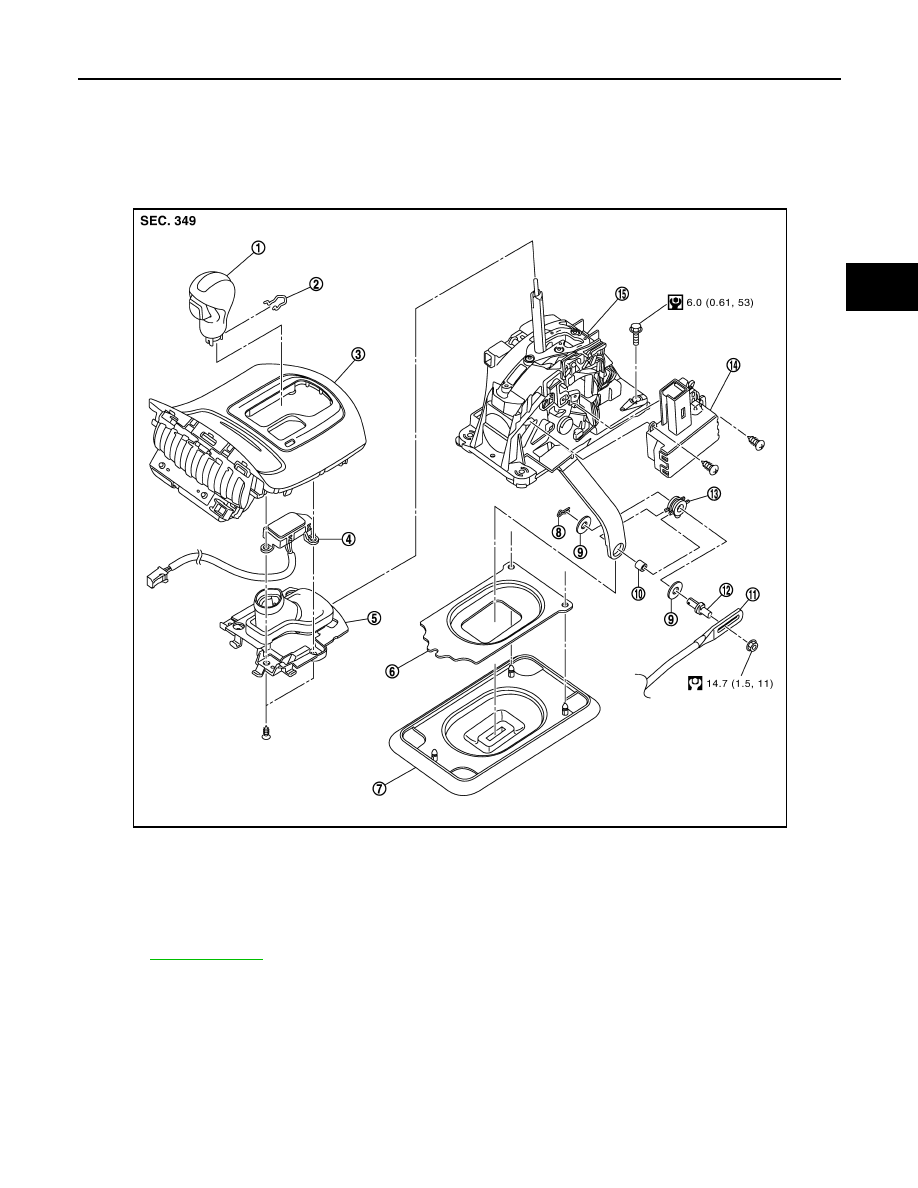

ON-VEHICLE REPAIR

CONTROL DEVICE

Exploded View

INFOID:0000000001672246

Removal and Installation

INFOID:0000000001672247

REMOVAL

1.

Disconnect lower lever of control device and control rod.

2.

Shift the selector lever to “N” position.

1.

Selector lever knob

2.

Lock pin

3.

Console finisher

4.

Selector lever position indicator

5.

Insert finisher

6.

Dust cover plate

7.

Dust cover

8.

Snap pin

9.

Plain washer

10.

Collar

11.

Control rod

12.

Pivot pin

13.

Insulator

14.

Shift lock unit

15.

Control device assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0001GB

TM-228

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

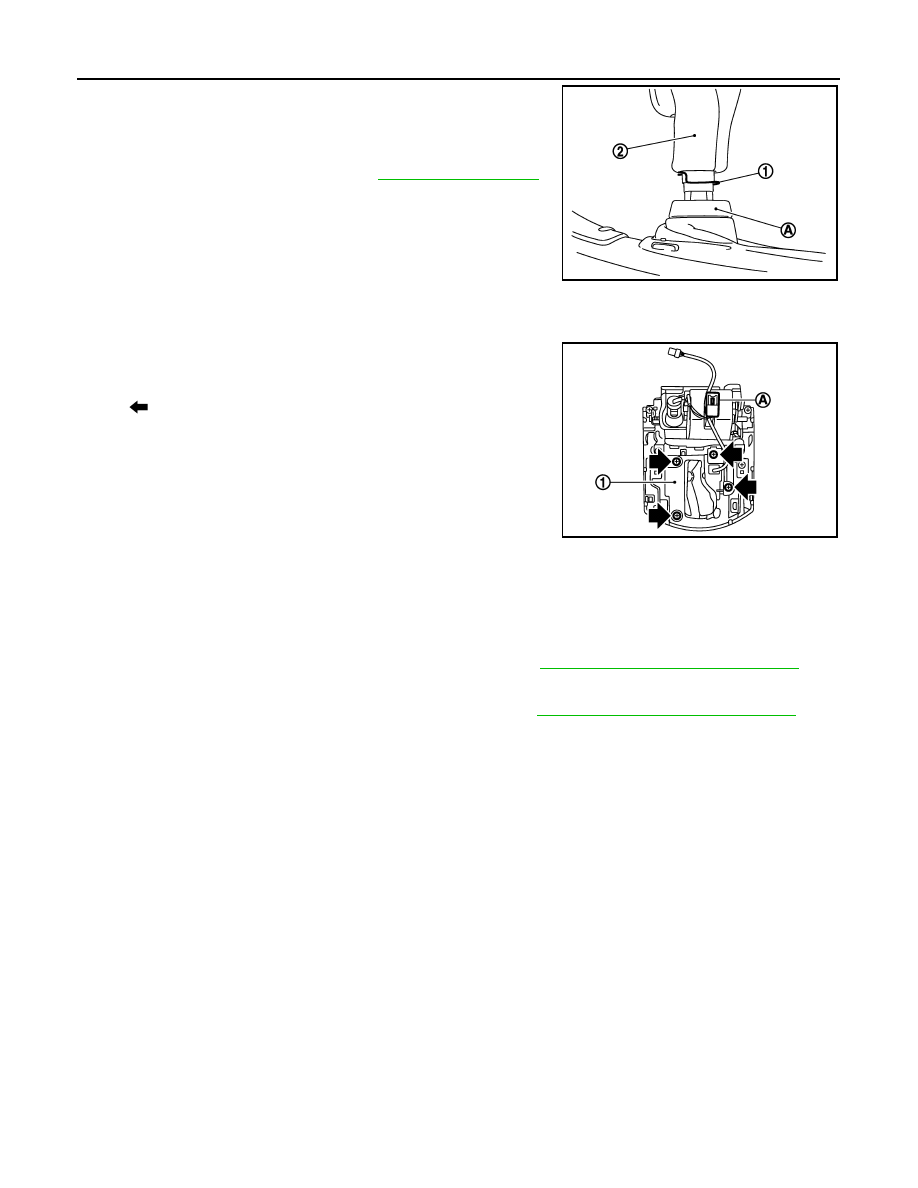

CONTROL DEVICE

3.

Remove knob cover (A) below selector lever downward.

4.

Pull lock pin (1) out of selector lever knob (2).

5.

Remove selector lever knob (2).

6.

Remove console finisher assembly, rear upper console assem-
bly and console front bracket. Refer to

IP-23, "Exploded View"

.

7.

Disconnect A/T device harness connector.

8.

Remove control device assembly.

9.

Remove the following parts if necessary.

a.

Selector lever position indicator

i.

Remove the cigarette lighter harness connector (A) from the
console finisher assembly.

ii.

Remove the insert finisher (1) from the console finisher.

iii.

Remove the selector lever position indicator.

b.

Shift lock unit

i.

Remove the shift lock unit from the control device assembly.

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000001672248

ADJUSTMENT AFTER INSTALLATION

Adjust the A/T positions after installing the control device. Refer to

TM-226, "Inspection and Adjustment"

.

INSPECTION AFTER INSTALLATION

Check the A/T positions after adjusting the A/T positions. Refer to

TM-226, "Inspection and Adjustment"

.

JPDIA0002ZZ

: Screw

JPDIA0050ZZ
