SHIFT LOCK SYSTEM

TM-169

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Component Function Check

INFOID:0000000001672213

1.

CHECK A/T SHIFT LOCK OPERATION

1.

Turn ignition switch ON.

2.

Shift the selector lever to the “P” position.

3.

Attempt to shift the selector lever to any other position with the brake pedal released.

Can the selector lever be shifted to any other position?

JCDWA0128GB

TM-170

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

SHIFT LOCK SYSTEM

YES

>> Go to

TM-170, "Diagnosis Procedure"

.

NO

>> GO TO 2.

2.

CHECK A/T SHIFT LOCK OPERATION

Attempt to shift the selector lever to any other position with the brake pedal depressed.

Can the selector lever be shifted to any other position?

YES

>> INSPECTION END

NO

>> Go to

TM-170, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001672214

1.

CHECK SELECTOR LEVER POSITION

Check the selector lever position for damage. Refer to

TM-226, "Inspection and Adjustment"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Adjust control linkage. Refer to

TM-226, "Inspection and Adjustment"

.

2.

CHECK POWER SOURCE

1.

Turn ignition switch OFF.

2.

Disconnect shift lock relay.

3.

Check voltage between shift lock relay harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 7.

NO-1

>> When pressing the brake pedal, the voltage is 0 V: GO TO 3.

NO-2

>> When releasing the brake pedal, the voltage is battery voltage: GO TO 5.

3.

CHECK POWER SOURCE

1.

Disconnect stop lamp switch connector.

2.

Check voltage between stop lamp switch vehicle side harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>>

Check the following. If NG, repair or replace damaged parts.

• 10 A fuse [No. 7, located in the fuse block (J/B)]
• Harness for short to ground or open between battery and stop lamp switch vehicle side harness

connector terminal 1

• Harness for short to ground between battery and ICC brake hold relay vehicle side harness con-

nector terminal 3. (With ICC)

4.

CHECK STOP LAMP SWITCH

Check stop lamp switch. Refer to

TM-172, "Component Inspection (Stop lamp switch)"

.

Is the inspection result normal?

YES

>>

Check the following. If NG, repair or replace damaged parts.

• Harness for short to ground or open between stop lamp switch vehicle side harness connector

terminal 2 and shift lock relay vehicle side harness connector terminal 2.

• Harness for short to ground between stop lamp switch vehicle side harness connector terminal

2 and ICC brake hold relay vehicle side harness connector terminal 5. (With ICC)

NO

>> Repair or replace damaged parts.

Shift lock relay harness connector

Ground

Condition

Voltage (Approx.)

Connector

Terminal

E52

2

Depressed brake pedal.

Battery voltage

Released brake pedal.

0 V

Stop lamp switch vehicle side harness connector

Ground

Voltage (Approx.)

Connector

Terminal

E110

1

Battery voltage

SHIFT LOCK SYSTEM

TM-171

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

5.

CHECK STOP LAMP SWITCH

Check stop lamp switch. Refer to

TM-172, "Component Inspection (Stop lamp switch)"

.

Is the inspection result normal?

YES-1 >> Without ICC: Repair or replace harness between stop lamp switch and shift lock relay.
YES-2 >> With ICC: GO TO 6.
NO

>> Repair or replace damaged parts.

6.

CHECK DTC WITH ICC

With CONSULT-III

Check the DTC of “ICC”. Refer to

CCS-23, "CONSULT-III Function (ICC)"

.

Is any malfunction detected?

YES

>> Check the DTC detected item. Refer to

CCS-23, "CONSULT-III Function (ICC)"

.

NO

>> Repair or replace harness between stop lamp switch and shift lock relay.

7.

CHECK GROUND CIRCUT

Check continuity between shift lock relay vehicle side harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair or replace damaged parts.

8.

CHECK SHIFT LOCK RELAY

Check shift lock relay. Refer to

TM-172, "Component Inspection (Shift lock relay)"

.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace damaged parts.

9.

CHECK POWER SOURCE

1.

Turn ignition switch ON.

2.

Check voltage between shift lock relay vehicle side harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>>

Check the following. If NG, repair or replace damaged parts.

• 10 A fuse [No. 3, located in the fuse block (J/B)]
• Harness for short to ground or open between ignition switch and shift lock relay vehicle side har-

ness connector terminal 5

10.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect A/T device connector.

3.

Check continuity between A/T device vehicle side harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 11.

Shift lock relay vehicle side harness connector

Ground

Continuity

Connector

Terminal

E52

1

Existed

Shift lock relay vehicle side harness connector

Ground

Voltage (Approx.)

Connector

Terminal

E52

5

Battery voltage

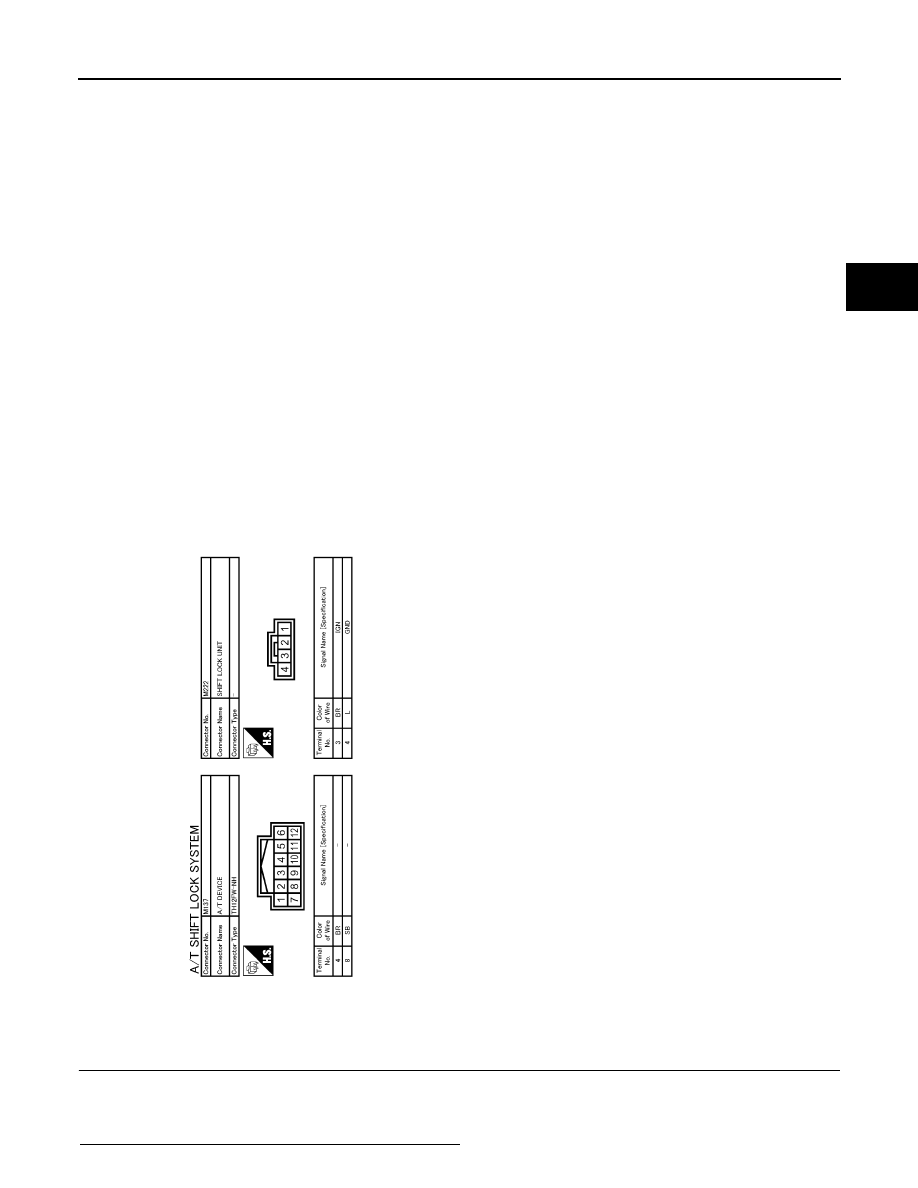

A/T device vehicle side harness connector

Ground

Continuity

Connector

Terminal

M137

4

Existed

TM-172

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

SHIFT LOCK SYSTEM

NO

>> Repair or replace damaged parts.

11.

CHECK SHIFT LOCK SOLENOID

Check shift lock solenoid. Refer to

TM-172, "Component Inspection (Shift lock solenoid)"

.

Is the inspection result normal?

YES

>>

Check the following. If NG, repair or replace damaged parts.

• Harness for short to ground, short to power or open between shift lock relay vehicle side har-

ness connector terminal 3 and A/T device vehicle side harness connector terminal 8

• Harness for short to ground, short to power or open between A/T device harness conductor ter-

minal 8 and shift lock unit harness connector terminal 3

• Harness for open between A/T device harness conductor terminal 4 and shift lock unit harness

connector terminal 4

NO

>> Repair or replace damaged parts.

Component Inspection (Shift lock solenoid)

INFOID:0000000001672215

1.

CHECK SHIFT LOCK SOLENOID

1.

Remove shift lock unit. Refer to

TM-227, "Exploded View"

.

2.

Apply voltage to terminals 3 and 4 of shift lock unit connector, and then check that shift lock solenoid is
activated.

CAUTION:

Connect the fuse between the terminals when applying the voltage.

Can the lock plate be moved up and down?

YES

>> INSPECTION END

NO

>> Replace shift lock unit. Refer to

TM-227, "Exploded View"

Component Inspection (Shift lock relay)

INFOID:0000000001672216

1.

CHECK SHIFT LOCK RELAY

Check continuity between shift lock relay terminal 3 and 5.

CAUTION:

Connect the fuse between the terminals when applying the voltage.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace shift lock relay.

Component Inspection (Stop lamp switch)

INFOID:0000000001672217

1.

CHECK STOP LAMP SWITCH

Check continuity between stop lamp switch connector terminal 1 and 2.

(+) (fuse)

(

)

Condition

Status

Shift lock unit connector

Connector

Terminal

Connector

Terminal

M222

3

M222

4

Apply 12 V direct
current between ter-
minals 3 and 4.

Shift lock solenoid
operates

Shift lock relay connector

Condition

Continuity

Connector

Terminal

E52

3

5

Apply 12 V direct current
between terminals 1 and
2.

Existed

OFF

Not existed
