SHIFT POSITION INDICATOR CIRCUIT

TM-165

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT POSITION INDICATOR CIRCUIT

Description

INFOID:0000000001672208

TCM transmit the switch signals to unified meter and A/C amp. by CAN communication line. Then manual
mode switch position is indicated on the shift position indicator.

Component Function Check

INFOID:0000000001672209

1.

CHECK A/T INDICATOR

1.

Start the engine.

2.

Drive vehicle in the manual mode, and confirm that the actual gear position and the meter's indication of
the position mutually coincide when the selector lever is shifted to the “UP (+ side)” or “DOWN (

 side)”

side (1st

 5th gear).

 Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

TM-165, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001672210

1.

CHECK INPUT SIGNALS

 With CONSULT-III

1.

Start the engine.

2.

Select “GEAR” on “DATA MONITOR” and read out the value.

3.

Drive vehicle in the manual mode, and confirm that the actual gear position and the meter's indication of
the position mutually coincide when the selector lever is shifted to the “UP (+ side)” or “DOWN (

 side)”

side (1st

 5th gear).

 Is the inspection result normal?

YES

>> INSPECTION END

NO-1

>>

The actual gear position does not change, or shifting into the manual mode is not possible (no
gear shifting in the manual mode possible). Or the shift position indicator is not indicated.

• Check manual mode switch. Refer to

TM-161, "Component Inspection (Manual Mode Switch)"

.

• Check A/T main system (Fail-safe function actuated).
- Perform “SELF-DIAG RESULTS” mode for “TRANSMISSION”. Refer to

TM-112, "CONSULT-III

Function (TRANSMISSION)"

.

NO-2

>>

The actual gear position changes, but the shift position indicator is not indicated.

• Perform “SELF-DIAG RESULTS” mode for “TRANSMISSION”. Refer to

TM-112, "CONSULT-III

Function (TRANSMISSION)"

.

NO-3

>>

The actual gear position and the indication on the shift position indicator do not coincide.

• Perform “SELF-DIAG RESULTS” mode for “TRANSMISSION”. Refer to

TM-112, "CONSULT-III

Function (TRANSMISSION)"

.

NO-4

>>

Only a specific position or positions is/are not indicated on the shift position indicator.

• Check the unified meter and A/C amp. Refer to

MWI-4, "Work flow"

.

TM-166

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

SHIFT LOCK SYSTEM

SHIFT LOCK SYSTEM

Description

INFOID:0000000001672211

Shift lock system circuit consists of the following part.

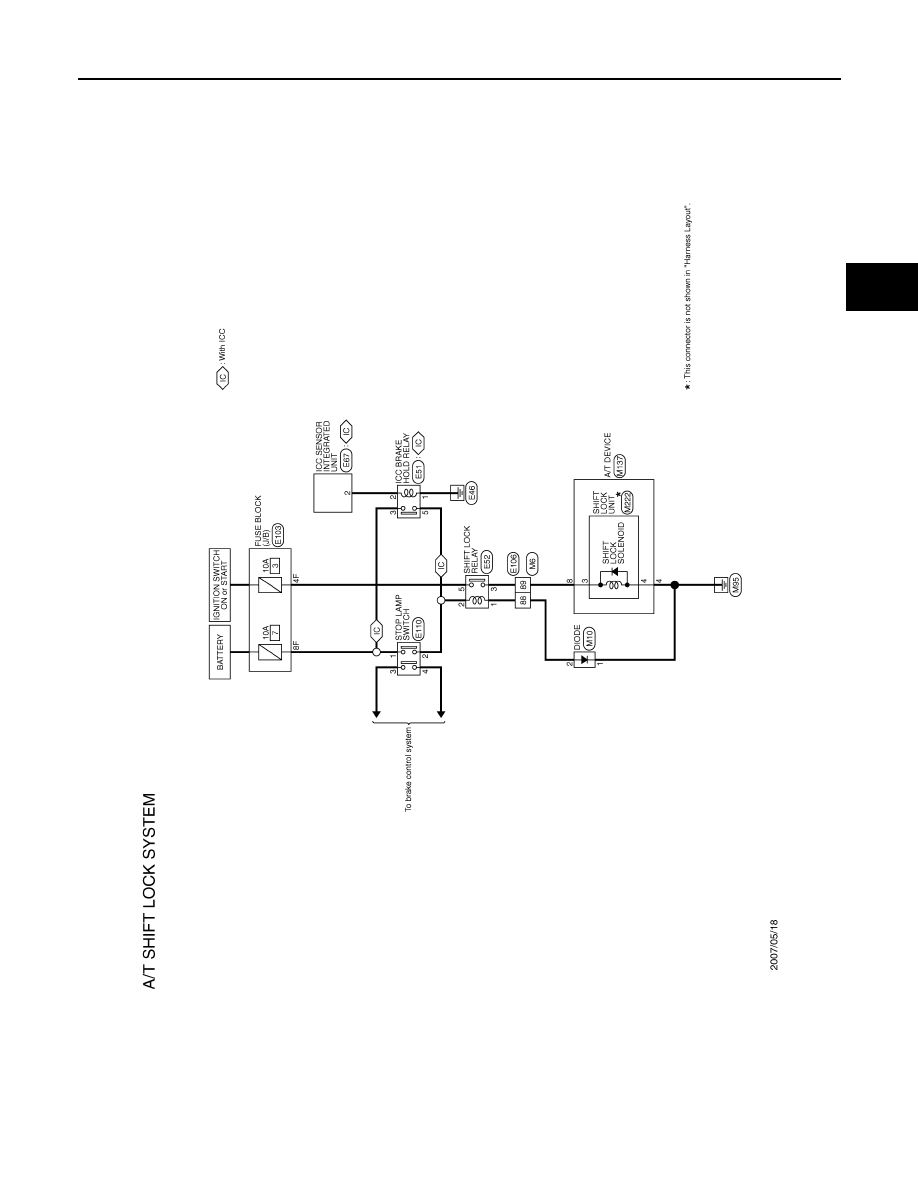

Wiring Diagram - A/T SHIFT LOCK SYSTEM -

INFOID:0000000001672212

Click here to view the eWD.

Component

Function

Shift lock solenoid

Activated by the ignition switch and stop lamp signals, it holds the relative positions of sliders A and
B.

Shift lock relay

Current flow to stop lamp switch allows shift lock solenoid contact ON, and then power is applied to
shift lock solenoid.

Stop lamp switch

Depressing the brake pedal turns ON the stop lamp switch and energizes the shift lock relay.

SHIFT LOCK SYSTEM

TM-167

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

JCDWA0126GB

TM-168

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

SHIFT LOCK SYSTEM

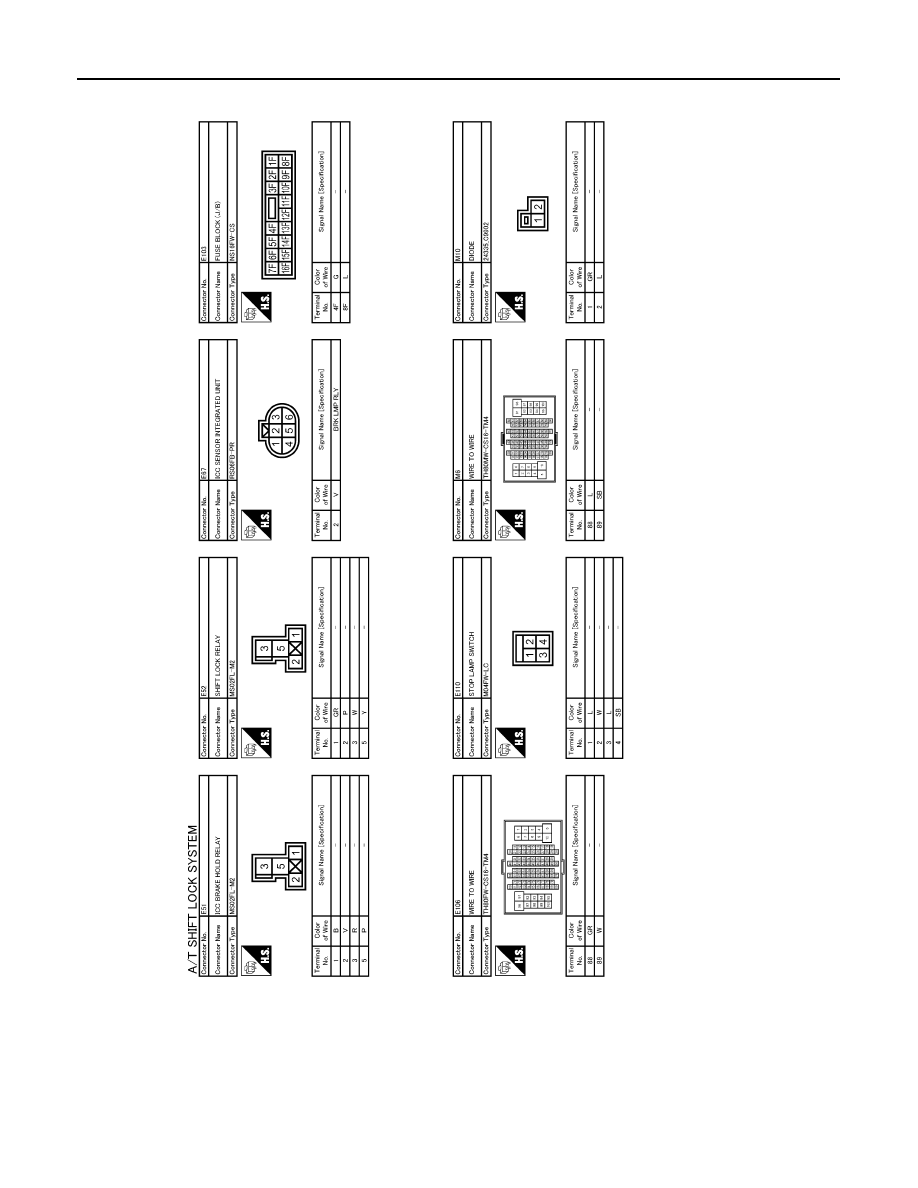

JCDWA0127GB
