REAR OIL SEAL

TM-17

< ON-VEHICLE REPAIR >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ON-VEHICLE REPAIR

REAR OIL SEAL

Exploded View

INFOID:0000000001732870

Refer to

TM-29, "Exploded View"

.

Removal and Installation

INFOID:0000000001732871

REMOVAL

1.

Remove propeller shaft assembly. Refer to

DLN-7, "Removal and Installation"

.

2.

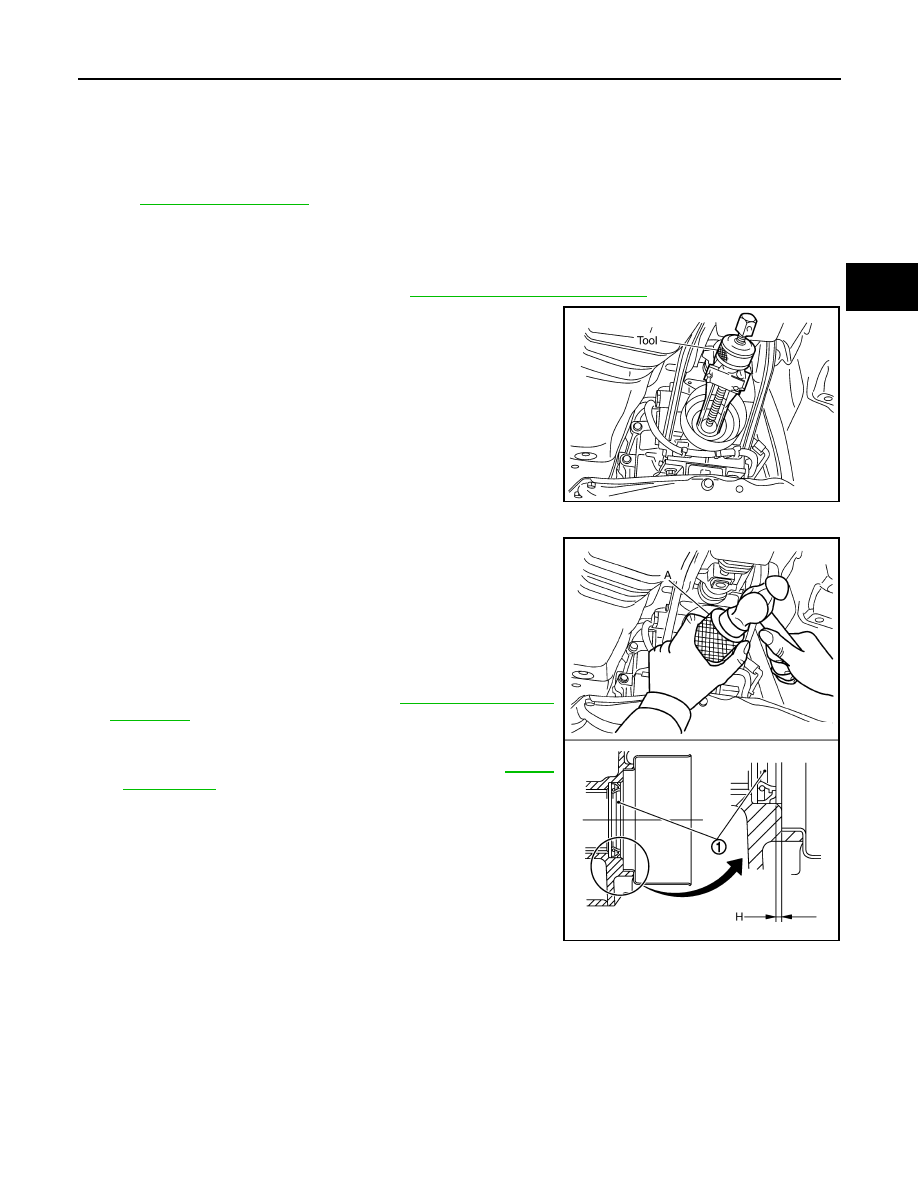

Remove rear oil seal using a puller [SST: KV381054S0 (J-
34286)].

INSTALLATION

1.

Apply multi-purpose grease to lip of rear oil seal (1). Drive in rear
oil seal to rear extension using the drift (A) [SST: ST33400001
(J-26082)].

CAUTION:

• Never reuse rear oil seal.
• When installing, never incline rear oil seal.

2.

Install propeller shaft assembly. Refer to

DLN-7, "Removal and

Installation"

.

CAUTION:

• If lubricant leak has occurred during the repair work,

check oil level after finishing work. Refer to

TM-16,

"Inspection"

.

PCIB0194E

Dimension “H”

: 1.2 - 2.2 mm (0.047 - 0.087 in)

JPDIC0032ZZ

TM-18

< ON-VEHICLE REPAIR >

[6MT: FS6R31A]

SHIFT CONTROL

SHIFT CONTROL

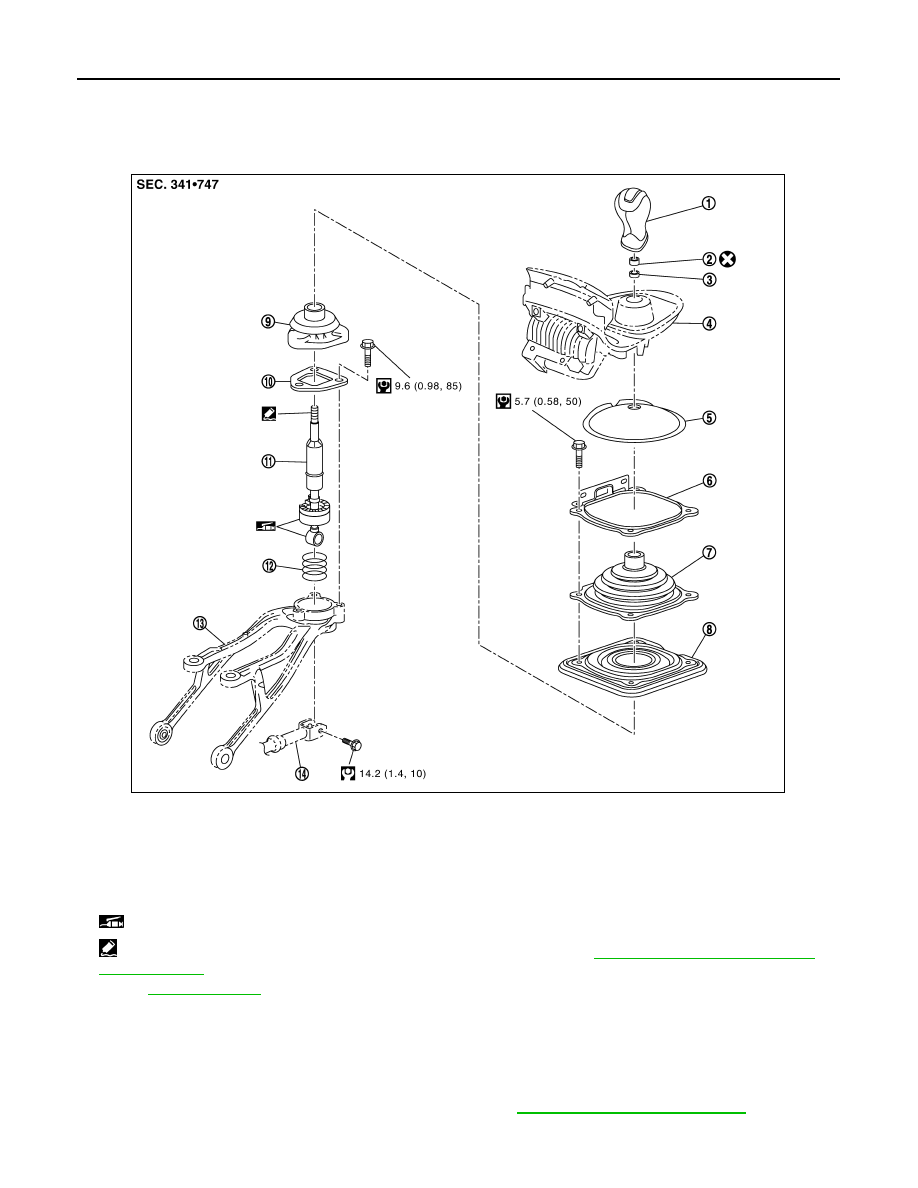

Exploded View

INFOID:0000000001732872

Removal and Installation

INFOID:0000000001732873

REMOVAL

1.

Remove shift knob with the following procedure.

a.

Release metal clips on console finisher assembly. Refer to

IP-24, "Removal and Installation"

.

1.

Shift knob

2.

Insulator

3.

Seat

4.

Console finisher assembly

5.

Felt

6.

Hole cover

7.

Control lever boot B

8.

Hole insulator

9.

Control lever boot A

10. Guide plate

11.

Control lever assembly

12. Control lever spring

13. Control lever housing

14. Control rod

: Apply multi-purpose grease.

: Apply Genuine Medium Strength Thread Locking Sealant or an equivalent. Refer to

GI-15, "Recommended Chemical Prod-

ucts and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIC0342GB

SHIFT CONTROL

TM-19

< ON-VEHICLE REPAIR >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

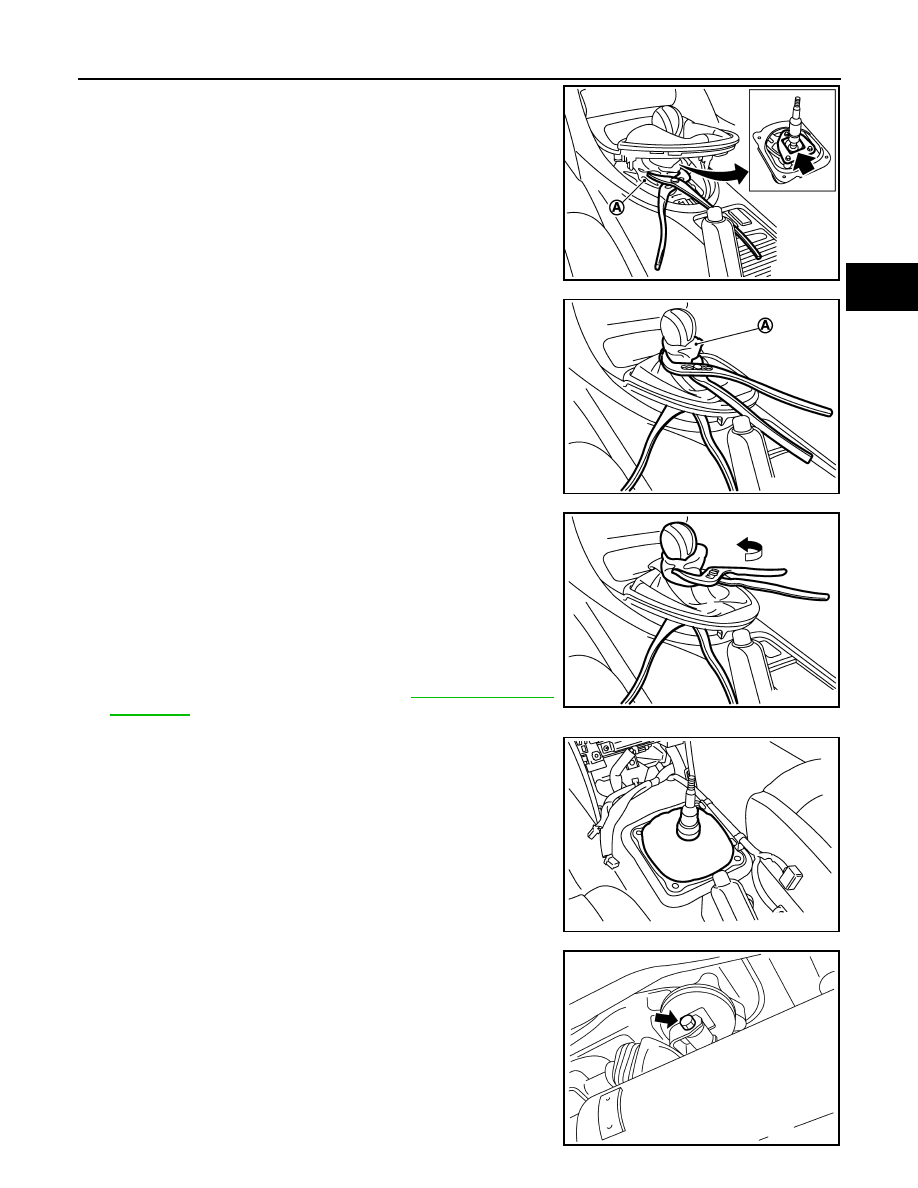

b.

Lift console finisher assembly and then set a suitable pliers to
control lever assembly.

CAUTION:

Put waste cloth (A) between a suitable pliers and control
lever assembly to avoid damaging control lever assembly.

c.

Set a suitable pliers to shift knob.

CAUTION:

Put waste cloth (A) between a suitable pliers and shift knob
to avoid damaging shift knob.

d.

Keeping control lever assembly in place with a suitable pliers,
loosen shift knob with a suitable pliers.
NOTE:
Remove shift knob from control lever assembly keeping a suit-
able pliers in place because a certain power to turn shift knob is
still necessary even after adhesive is peeled.

e.

Remove shift knob from control lever assembly.

2.

Remove insulator and seat from control lever assembly.

3.

Remove console finisher assembly.

4.

Remove center console assembly. Refer to

IP-24, "Removal and

Installation"

.

5.

Remove felt.

6.

Release boot from control lever housing. Then remove control
rod mounting bolt and then separate control lever assembly and
control rod.

JPDIC0002ZZ

JPDIC0003ZZ

JPDIC0004ZZ

JPDIC0005ZZ

SCIA2561J

TM-20

< ON-VEHICLE REPAIR >

[6MT: FS6R31A]

SHIFT CONTROL

7.

Remove hole cover mounting bolts and then remove hole cover.

8.

Remove control lever boot B and hole insulator.

9.

Remove control lever boot A.

10. Remove guide plate mounting bolts and then remove control

lever assembly and control lever spring from control lever hous-
ing.

CAUTION:

Restrain guide plate while doing this because there is a
danger control lever assembly will fly out of control lever
housing.

INSTALLATION

1.

Set control lever spring, control lever assembly, and guide plate to control lever housing and then tempo-
rarily tightening guide plate mounting bolts.

CAUTION:

Restrain guide plate while doing this because there is a danger control lever assembly will fly out
of control lever housing.

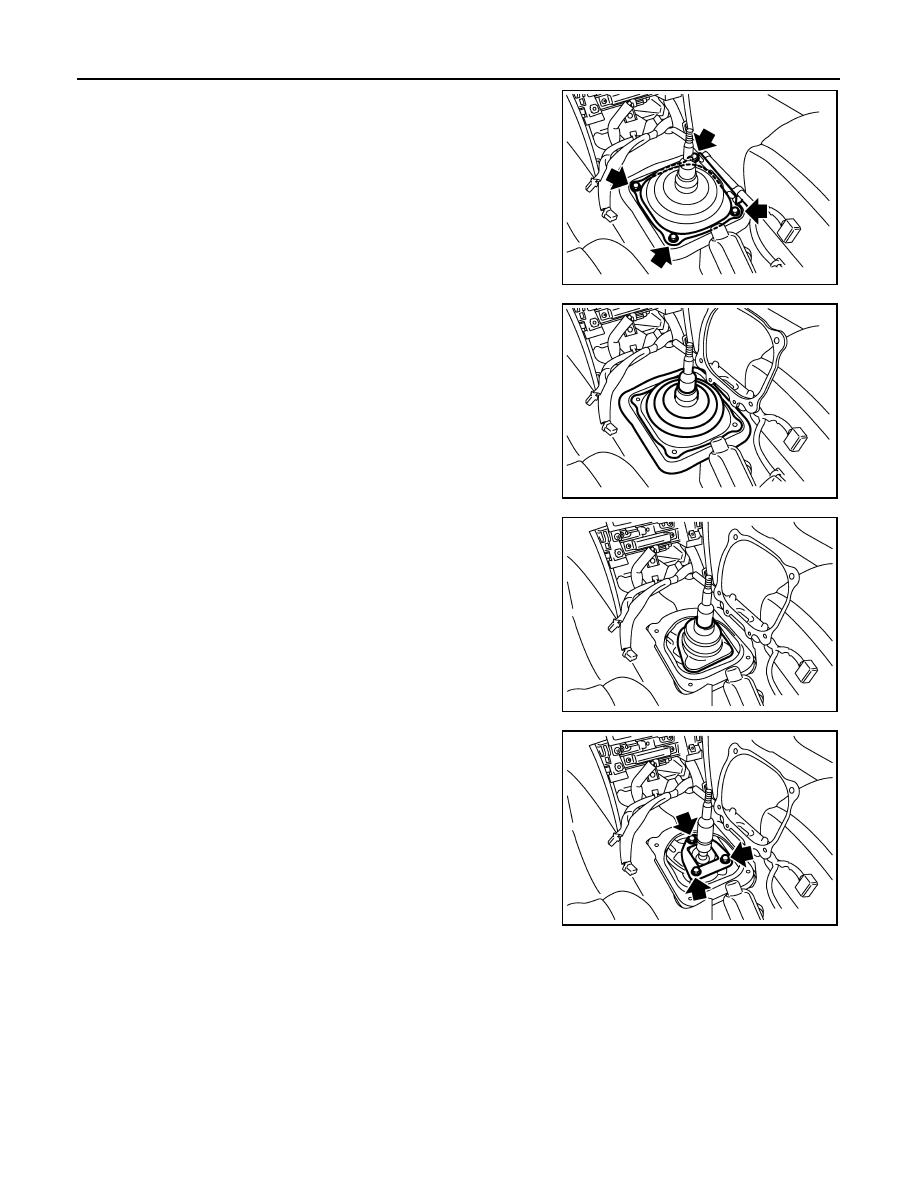

JPDIC0006ZZ

JPDIC0007ZZ

JPDIC0008ZZ

JPDIC0009ZZ
