Infiniti G37 Coupe. Manual - part 1236





ST-44

< ON-VEHICLE REPAIR >

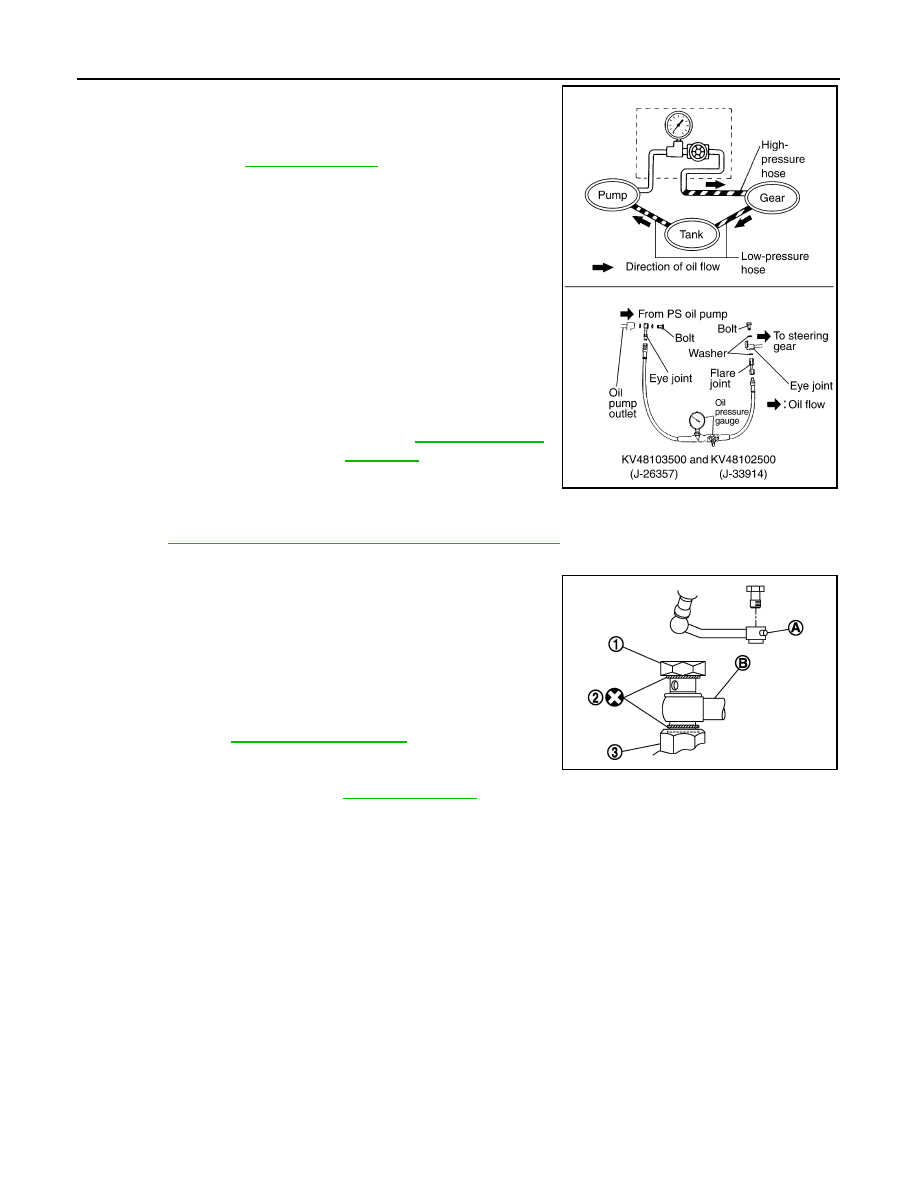

POWER STEERING OIL PUMP

1.

Connect the oil pressure gauge [SST: KV48103500 (J-26357)]
and the oil pressure gauge adapter [SST: KV48102500 (J-
33914)] between oil pump discharge connector and high-pres-
sure hose. Bleed air from the hydraulic circuit while opening
valve fully. Refer to

ST-10, "Inspection"

.

2.

Start engine. Run engine until oil temperature reaches 50 to
80

°

C (122 to 176

°

F).

CAUTION:

• Leave the valve of the oil pressure gauge fully open while

starting and running engine. If engine is started with the
valve closed, the hydraulic pressure in oil pump goes up
to the relief pressure along with unusual increase of oil
temperature.

• Be sure to keep hose clear of belts and other parts when

engine is started.

3.

Fully close the oil pressure gauge valve with engine at idle and
measure the relief oil pressure.

CAUTION:

Never keep valve closed for 10 seconds or longer.

4.

Open the valve slowly after measuring. Repair oil pump if the relief oil pressure is outside the standard.
Refer to

ST-41, "SPORT MODELS : Disassembly and Assembly"

.

5.

Disconnect the oil pressure gauge from hydraulic circuit.

6.

When installing eye bolt (1) and copper washer (2) to oil pump
(3), refer to the figure.

CAUTION:

• Never reuse copper washer.
• Apply power steering fluid or equivalent to around copper

washer, then install eye-bolt.

• Install eye-bolt with eye-joint (assembled to high pressure

hose) (B) protrusion (A) facing with pump side cutout, and
then tighten it to the specified torque after tightening by
hand. Refer to

ST-45, "Exploded View"

.

• Securely insert harness connector to pressure sensor.

7.

Check fluid level, fluid leakage and air bleeding hydraulic sys-
tem after the installation. Refer to

ST-10, "Inspection"

.

BEFORE DISASSEMBLY

Disassemble oil pump only when the following malfunctions occur.
• If oil leakage is found on oil pump.
• Oil pump pulley is damaged or deformed.
• Performance of oil pump is low.

AFTER DISASSEMBLY

Body Assembly and Rear Cover Inspection

• Check body assembly and rear cover for internal damage. Replace rear cover if it is damaged. Replace oil

pump assembly if body assembly is damaged.

Cartridge Assembly Inspection

• Check cam ring, rotor and vane for damage. Replace cartridge assembly if there are.

Side Plate Inspection

• Check side plate for damage. Replace side plate if there are.

Flow Control Valve Inspection

• Check flow control valve and spring for damage. Replace if there are.

Standard

Relief oil pressure

: Refer to

ST-49, "Relief Oil

Pressure"

.

SGIA0915E

SGIA1379E

HYDRAULIC LINE

ST-45

< ON-VEHICLE REPAIR >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

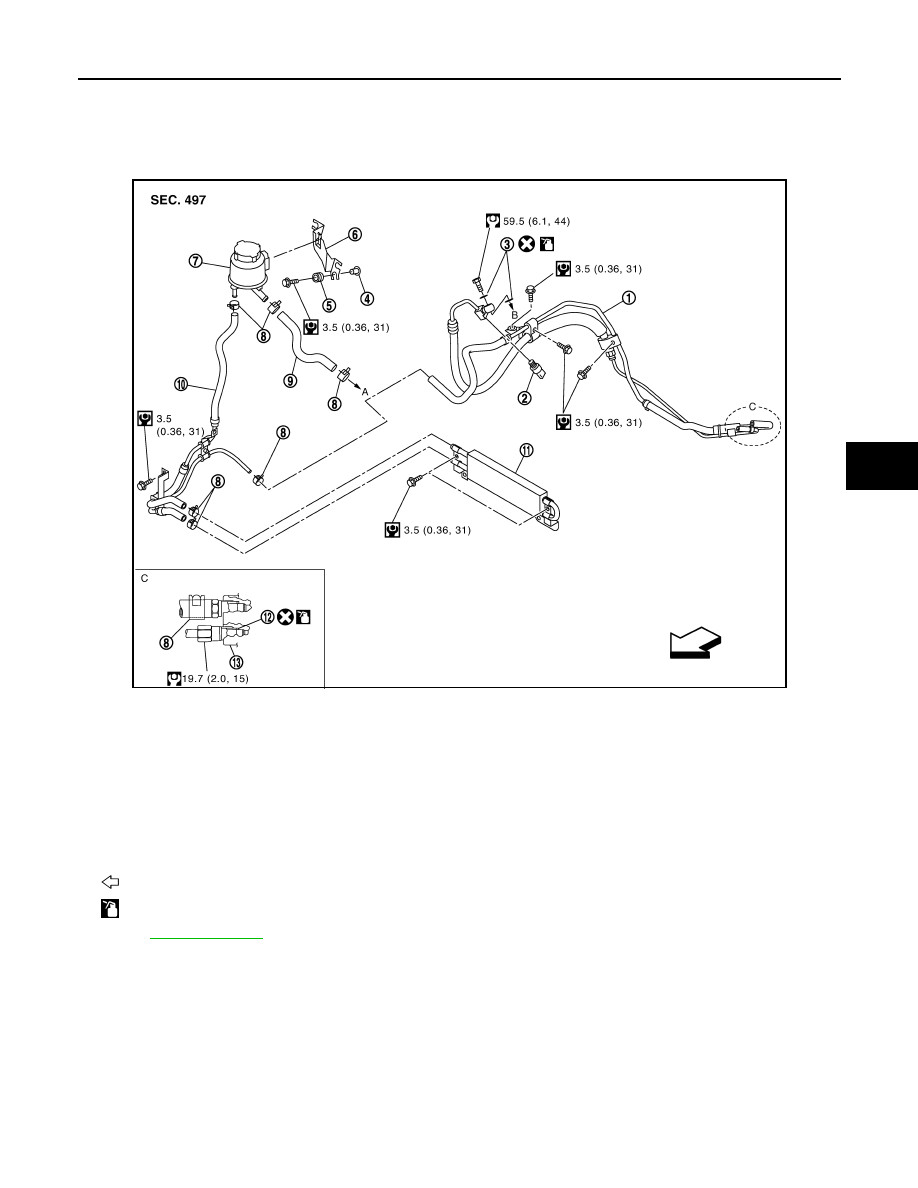

HYDRAULIC LINE

Exploded View

INFOID:0000000001666252

Except for sport models

JSGIA0045GB

1.

High pressure piping and low pres-
sure piping

2.

Pressure sensor

3.

Copper washer

4.

Collar

5.

Bushing

6.

Reservoir tank bracket

7.

Reservoir tank

8.

Clamp

9.

Suction hose

10. Return hose

11.

Oil cooler

12. O-ring

13. Gear-sub assembly

A.

To power steering oil pump suction hose.

B.

To power steering oil pump.

: Vehicle front

: Apply power steering fluid.

Refer to

GI-4, "Components"

 for symbols not described on the above.

ST-46

< ON-VEHICLE REPAIR >

HYDRAULIC LINE

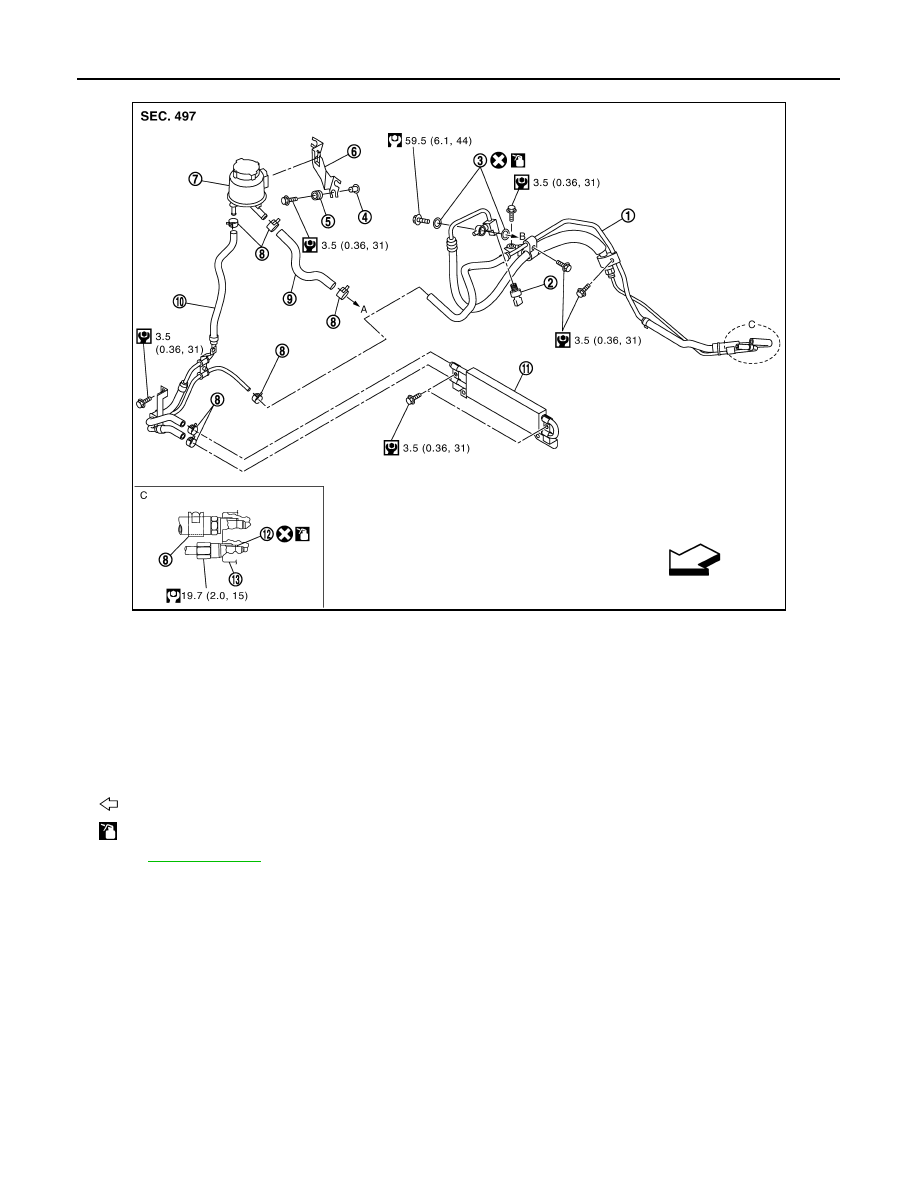

Sport models

JSGIA0044GB

1.

High pressure piping and low pres-
sure piping

2.

Pressure sensor

3.

Copper washer

4.

Collar

5.

Bushing

6.

Reservoir tank bracket

7.

Reservoir tank

8.

Clamp

9.

Suction hose

10. Return hose

11.

Oil cooler

12. O-ring

13. Gear-sub assembly

A.

To power steering oil pump suction hose.

B.

To power steering oil pump.

: Vehicle front

: Apply power steering fluid.

Refer to

GI-4, "Components"

 for symbols not described on the above.

SERVICE DATA AND SPECIFICATIONS (SDS)

ST-47

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

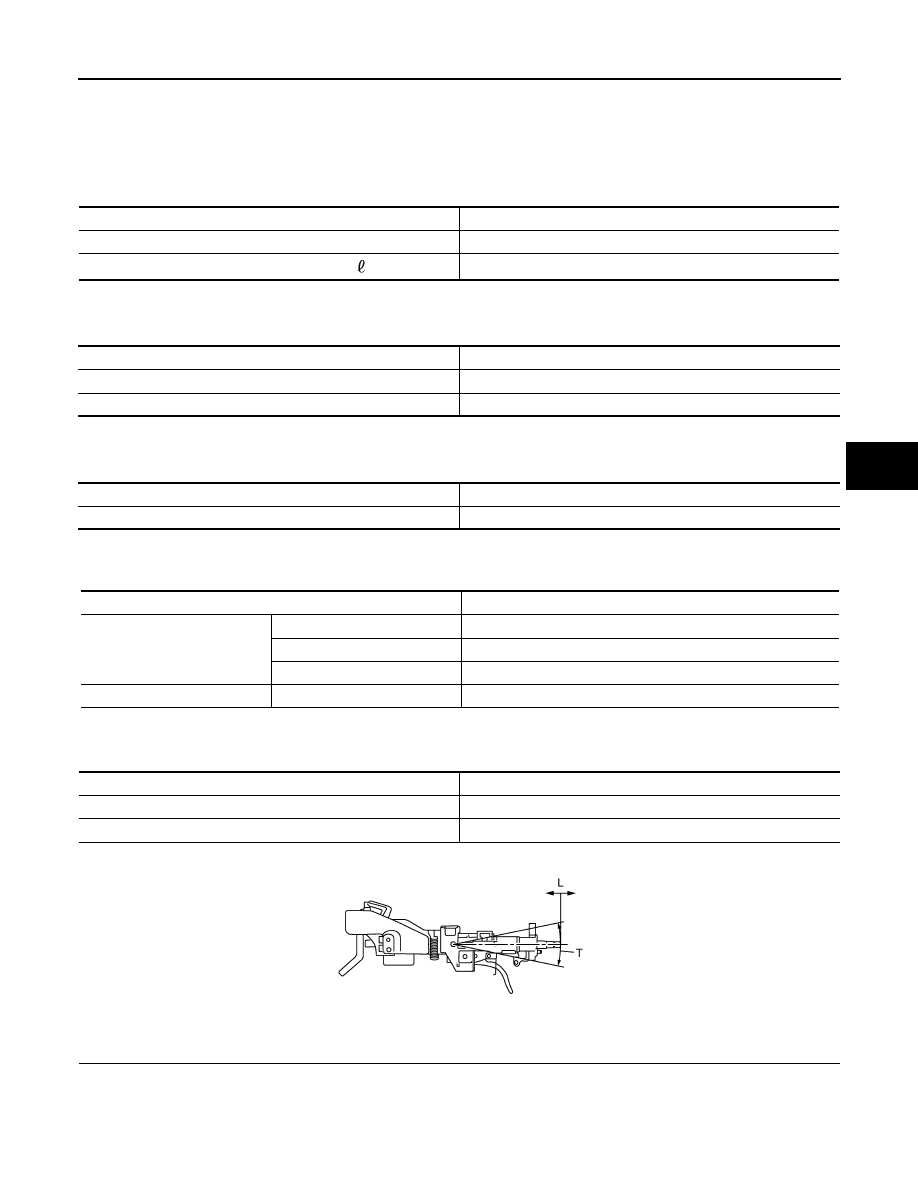

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000001666254

Steering Wheel Axial End Play and Play

INFOID:0000000001666255

Unit: mm (in)

Steering Wheel Turning Force

INFOID:0000000001666256

Unit: N·m (kg-m, in-lb)

Steering Angle

INFOID:0000000001666257

Unit: Degree minute (Decimal degree)

Steering Column Operating Range

INFOID:0000000001666258

Applied model

VQ37HR

Steering gear model

PR26AF

Fluid capacity (Approx.)

 (US qt, lmp qt)

1.0 (1-1/8, 7/8)

Item

Standard

Steering wheel axial end play

0 (0)

Steering wheel play on the outer circumference

0 – 35 (0 – 1.38)

Item

Standard

Steering wheel turning force

7.45 (0.76, 66)

Item

Standard

Inner wheel

Minimum

36

°

45

 (36.8

°

)

Nominal

39

°

45

 (39.8

°

)

Maximum

40

°

45

 (40.8

°

)

Outer wheel

Nominal

33

°

30

 (33.5

°

)

Item

Standard

Tilt operating range “T”

65 mm (2.56 in)

Telescopic operating range “L”

47 mm (1.85 in)

Manual Models

JSGIA0033ZZ
