ST-24

< ON-VEHICLE REPAIR >

LOWER SHAFT

WITH 4WAS : Inspection

INFOID:0000000001666234

• Check the sliding range of the lower shaft (with 4WAS front actua-

tor).

CAUTION:

Check the sliding range (A) (between the extended position
and the contracted position) of the lower shaft (with 4WAS
front actuator).

• Check each part of lower shaft (4WAS front actuator) for damage

or other malfunctions. Replace if there are.

WITH 4WAS : Disassembly and Assembly

INFOID:0000000001666235

DISASSEMBLY

CAUTION:

Never rotate the 4WAS front actuator and the spiral cable counterclockwise (actuator upper side).
1.

Remove the collar.

2.

Remove the slide shaft.

3.

Remove the clamp (lower) and the hole cover seal (lower) from the hole cover (lower).

4.

Remove the hole cover (lower) from the hole cover.

5.

Remove the clamp, the hole cover seal and the 4WAS front actuator from the hole cover.

ASSEMBLY

1.

Perform the spiral cable neutral adjustment as per the following procedure.

a.

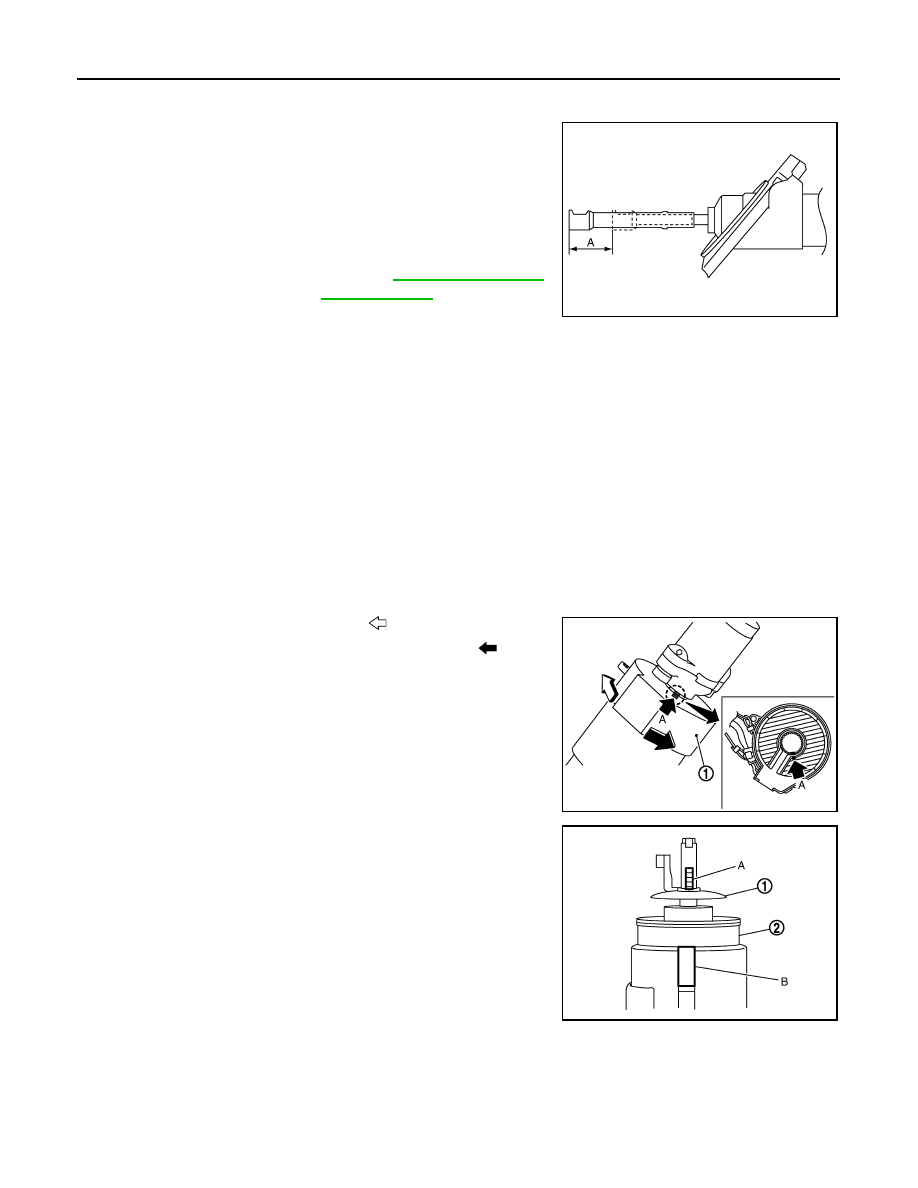

Rotate the spiral cable (1) clockwise (

) slowly until it stops.

b.

Rotate the spiral cable 2.5 turning counterclockwise (

) slowly.

Align the spiral cable with the notch (A).
NOTE:
The spiral cable turns approximately 5 turning in maximum.

2.

Install the 4WAS front actuator and the hole cover seal to the
hole cover, and install the clamp to the hole cover.

CAUTION:

• Assemble the clamp so as not to misalign the spiral cable

position.

• Never reuse the clamp.

3.

Install the collar (1) to the 4WAS front actuator. Do not misalign
the positions (A) and (B).

CAUTION:

Never damage the collar (1) and the hole cover (2).

4.

Assemble the actuator harness to the hole cover.

Standard

Sliding range

: Refer to

ST-48, "Lower Shaft

Sliding Range"

.

JSGIA0088ZZ

JSGIA0089ZZ

JSGIA0090ZZ

LOWER SHAFT

ST-25

< ON-VEHICLE REPAIR >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

5.

Install the hole cover (lower) to the hole cover.

CAUTION:

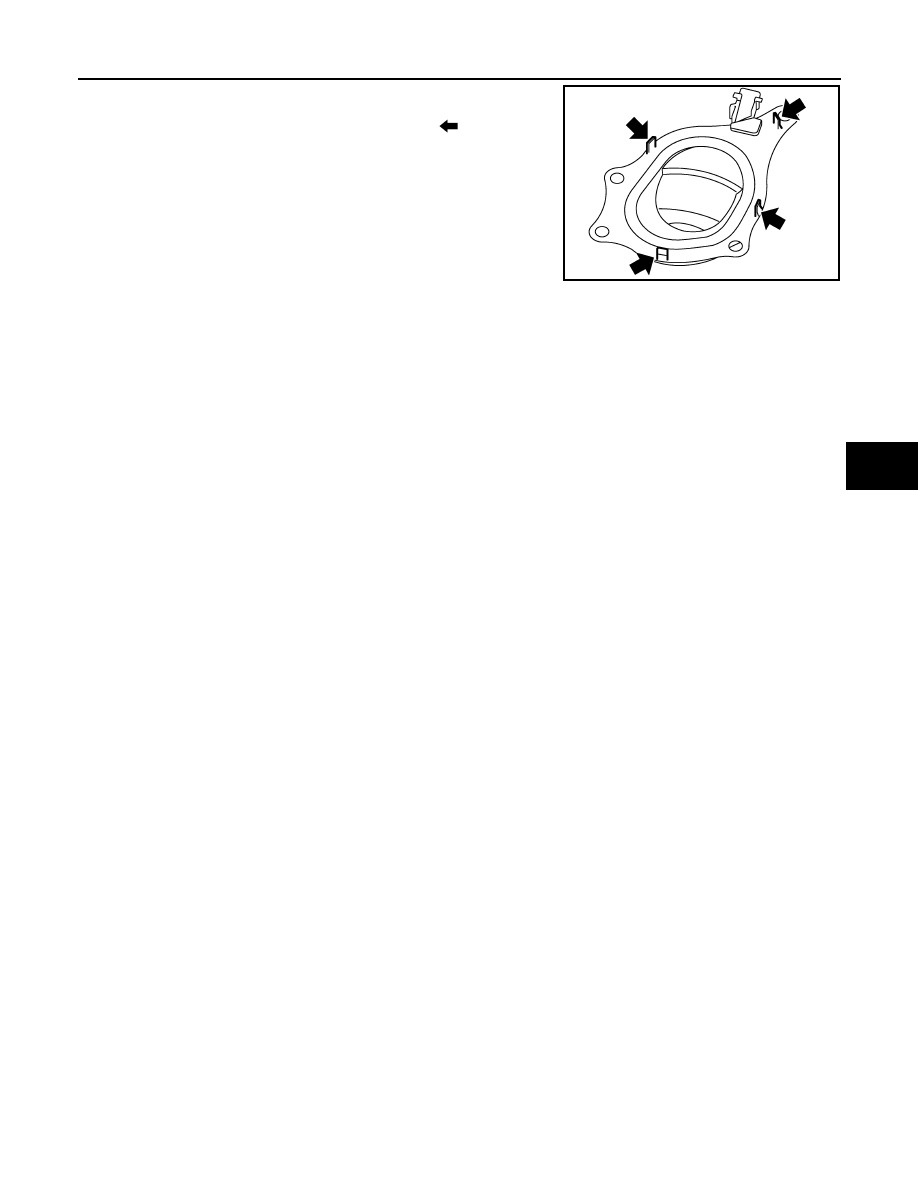

Assemble the 4 hole cover (lower) pawls (

) to the hole

cover securely.

6.

Install the hole cover seal (lower) to the hole cover (lower), and
install the clamp (lower).

CAUTION:

Never reuse the clamp (lower).

7.

Install the slide shaft to the actuator.

CAUTION:

Never reuse the bolt.

JSGIA0091ZZ

ST-26

< ON-VEHICLE REPAIR >

STEERING GEAR AND LINKAGE

STEERING GEAR AND LINKAGE

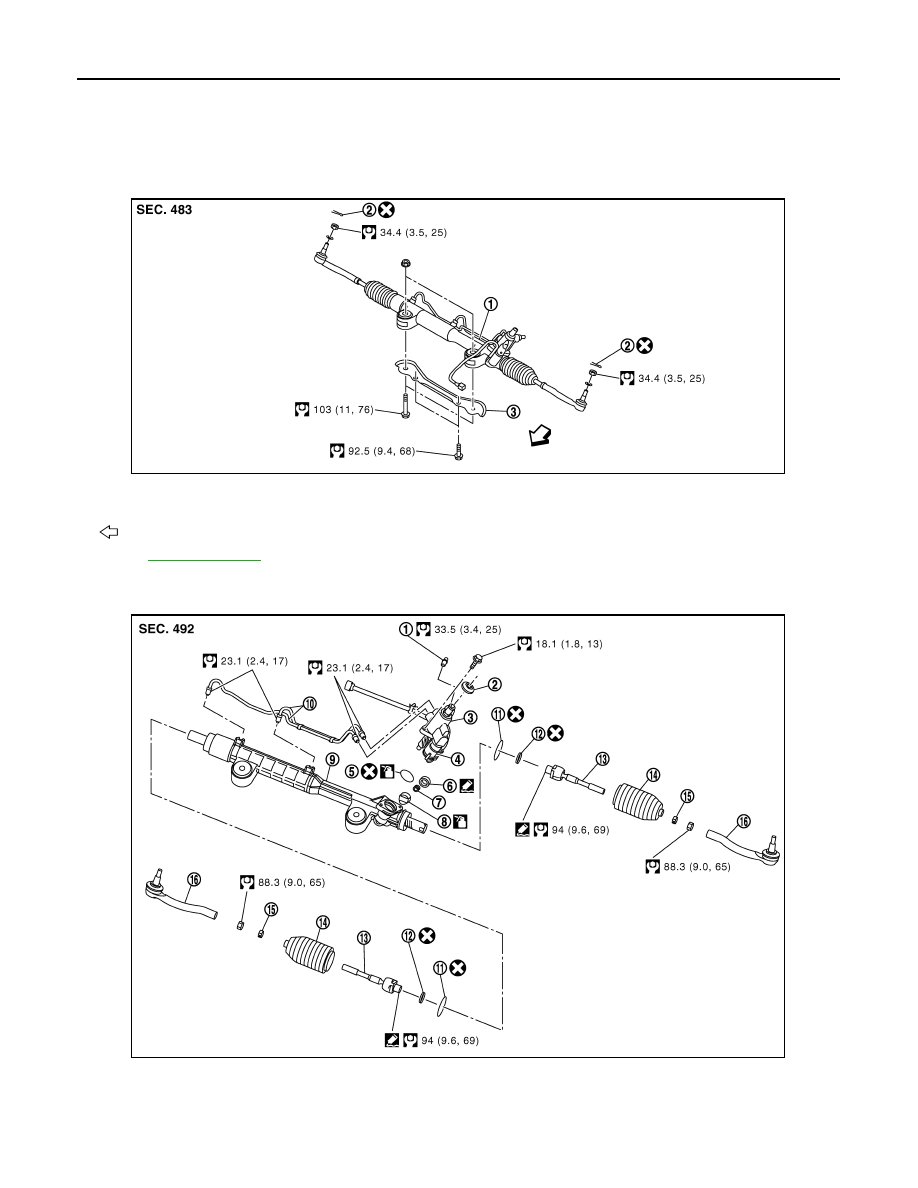

Exploded View

INFOID:0000000001666236

REMOVAL AND INSTALLATION

DISASSEMBLY AND ASSEMBLY

1.

Steering gear assembly

2.

Cotter pin

3.

Rack stay

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JSGIA0038GB

1.

Low pressure piping

2.

Rear cover cap

3.

Gear-sub assembly

4.

Power steering solenoid valve

5.

O-ring

6.

Adjusting screw

7.

Spring

8.

Retainer

9.

Gear housing assembly

JSGIA0099GB

STEERING GEAR AND LINKAGE

ST-27

< ON-VEHICLE REPAIR >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

Removal and Installation

INFOID:0000000001666237

REMOVAL

1.

Set vehicle to the straight-ahead position.

2.

Perform 4WAS front actuator neutral position adjustment. Refer to

STC-27, "4WAS FRONT ACTUATOR

NEUTRAL POSITION ADJUSTMENT : Description"

. (4WAS models)

3.

Remove tires with a power tool.

4.

Remove front suspension member stay. Refer to

FSU-21, "Exploded View"

.

5.

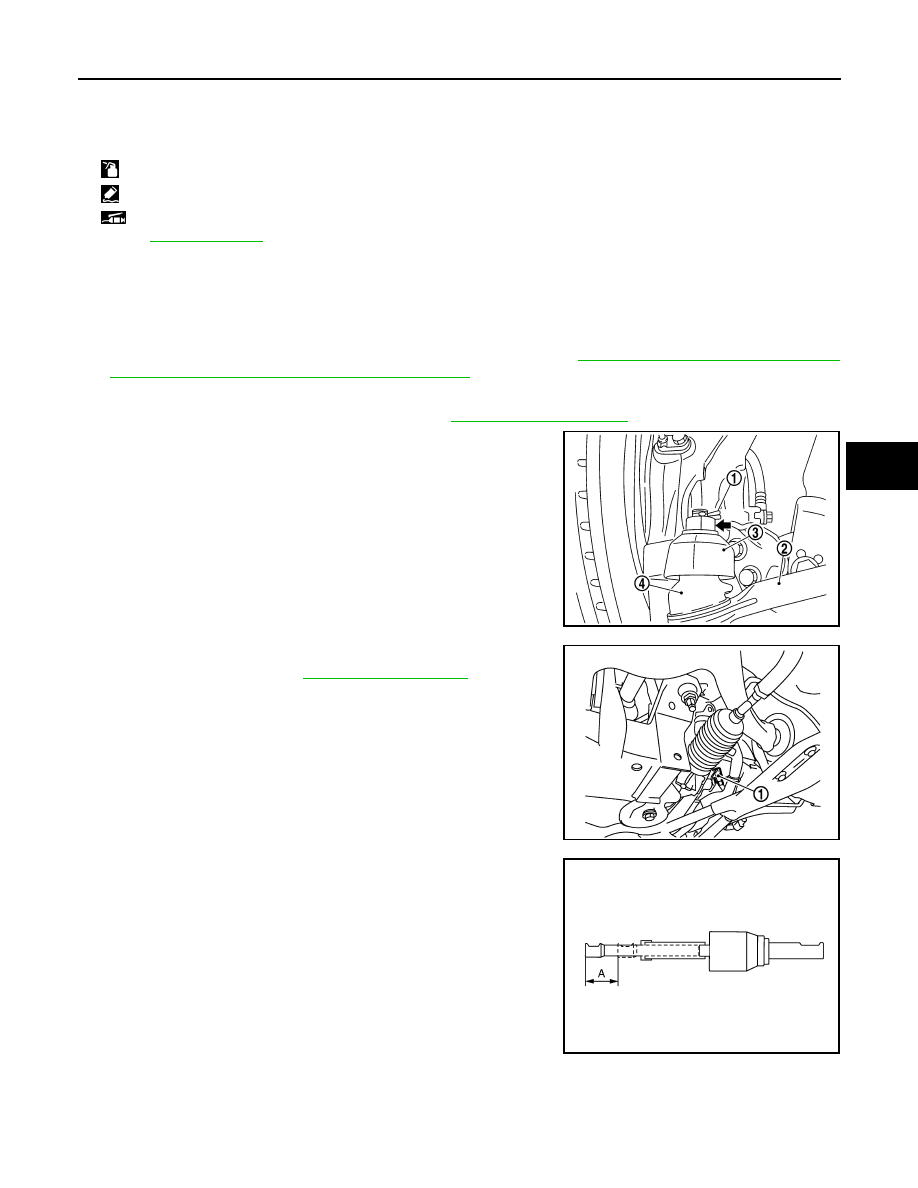

Remove cotter pin (1), and then loosen the nut.

6.

Remove steering outer socket (2) from steering knuckle (3) so
as not to damage ball joint boot (4) using suitable ball joint
remover.

CAUTION:

Temporarily tighten the nut to prevent damage to threads
and to prevent the ball joint remover from suddenly coming
off.

7.

Remove high pressure piping and low pressure piping of
hydraulic piping, and then drain power steering fluid.

8.

Remove power steering solenoid valve harness connector (1).

9.

Remove rack stay. Refer to

ST-26, "Exploded View"

.

10. Remove lower joint fixing bolt (steering gear side).

11. Separate the lower shaft from the steering gear assembly by

sliding the side shaft (A: sliding range).

CAUTION:

Spiral cable may be cut if steering wheel turns while sepa-
rating steering column assembly and steering gear assem-
bly. Be sure to secure steering wheel using string to avoid
turning.

12. Remove steering gear assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

10. Cylinder tubes

11.

Boot clamp (stainless wire)

12. Lock plate

13. Inner socket

14. Boot

15. Boot clamp

16. Outer socket

: Apply power steering fluid.

: Apply Genuine Liquid Gasket, Three Bond 1111B or equivalent.

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

SGIA1183E

JSGIA0040ZZ

JSGIA0035ZZ
