Infiniti G37 Coupe. Manual - part 1123





SE-160

< ON-VEHICLE REPAIR >

REAR SEAT

REAR SEAT

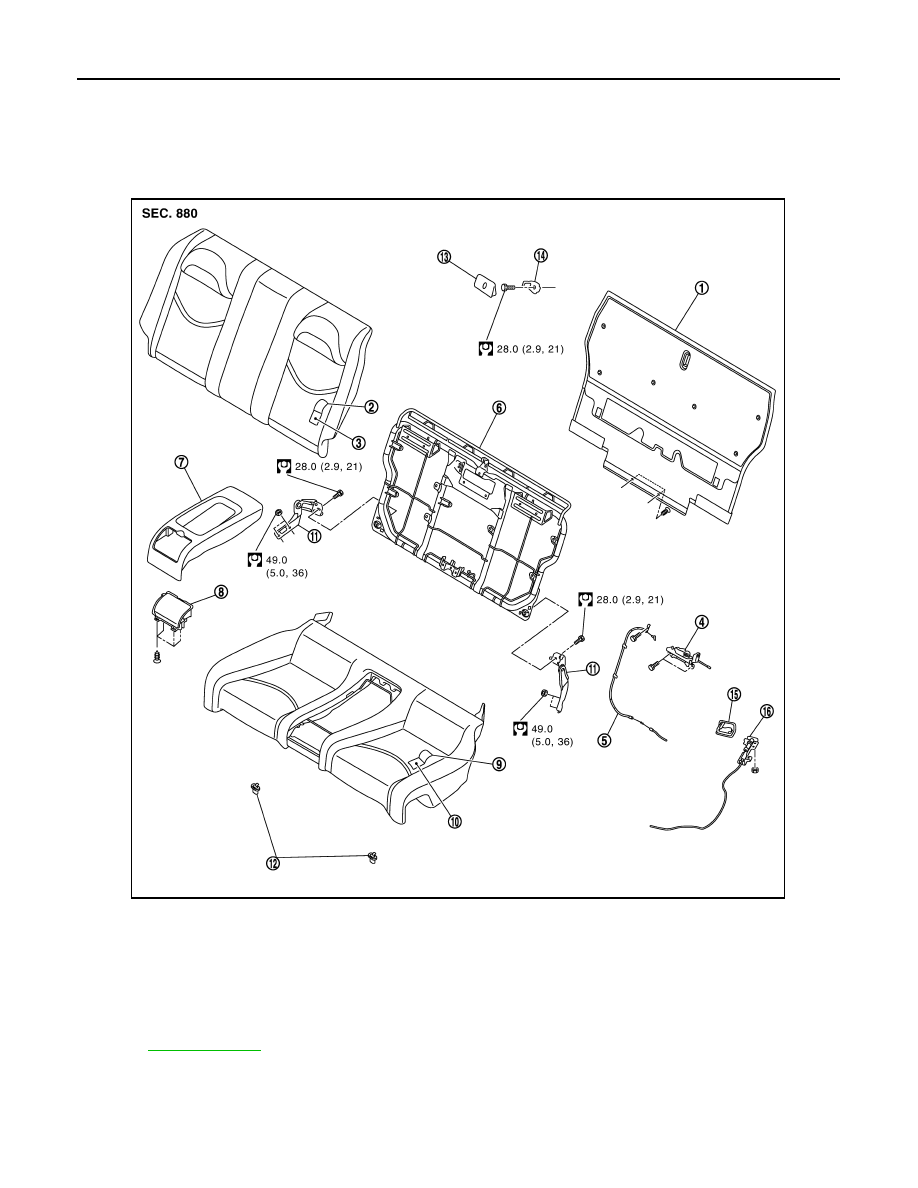

Exploded View

INFOID:0000000001694184

REAR SEAT

Removal and Installation

INFOID:0000000001694185

REMOVAL

CAUTION:

1.

Seatback board

2.

Seatback trim

3.

Seatback pad

4.

Seatback lock assembly

5.

Seatback lock cable

6.

Seatback frame

7.

Center tray

8.

Cup holder

9.

Seat cushion trim

10. Seat cushion pad

11.

Seatback side bracket

12. Seat cushion hook

13. Seat striker cover

14. Seat striker

15. Seat control lever escutcheon

16. Seatback control cable

Refer to

GI-4, "Components"

 for symbols in the figure.

JMJIA0925GB

REAR SEAT

SE-161

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the seat cushion.
• Pull the seat cushion up, and then remove the seat cushion

from the seat cushion hook.

• Remove the seat cushion from the vehicle.

2.

Remove the seatback.
• Remove the seatback control cable. Refer to

SE-163, "Removal and Installation"

.

• Remove the seatback mounting bolt.
• Remove the seatback frame the vehicle.

3.

Remove the seatback side bracket.
• Remove the seatback side bracket mounting nuts.
• Remove the seatback side bracket from the vehicle.

4.

Remove the seat striker.
• Remove the seat striker cover.
• Remove the seat striker mounting bolt.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

Disassembly and Assembly

INFOID:0000000001694186

SEATBACK

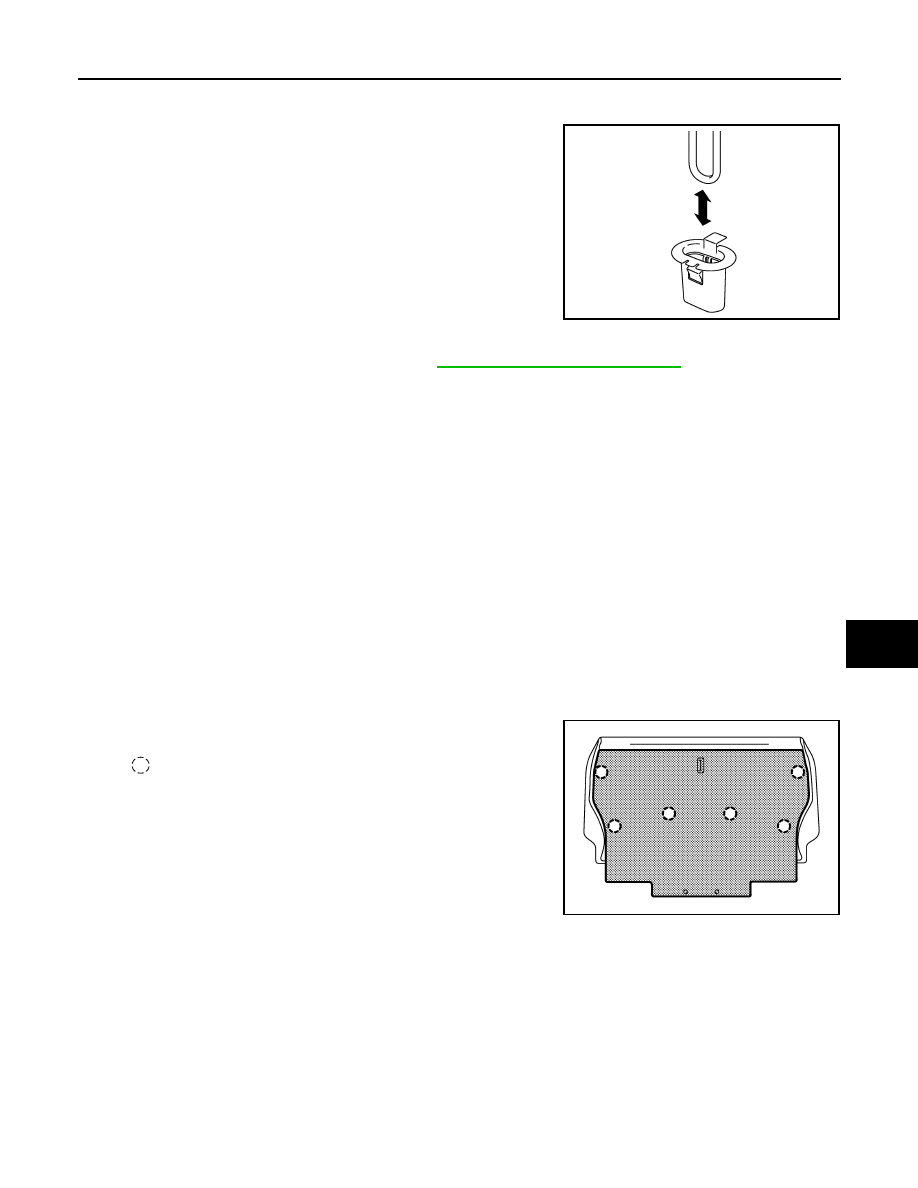

Disassembly

1.

Remove the seatback board.
Remove the clip.

2.

Remove the seatback trim and seatback pad.
• Remove the hog rings, and remove the seatback retainer.
• Remove the hog rings to separate the seatback trim and seatback pad.

3.

Remove the seatback lock cable.
• Remove the mounting bolt and cable clamp.
• Remove the seatback lock cable from the seatback frame.

4.

Remove the seatback lock assembly.
• Remove the seatback lock assembly mounting bolt.
• Remove the seatback lock assembly from the seatback frame.

Assembly

Assemble in the reverse order of disassembly.

PIIB8352J

: Clip

JMJIA0941ZZ

SE-162

< ON-VEHICLE REPAIR >

REAR SEAT

CAUTION:

Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with
the seatback frame.

SEAT CUSHION

Disassembly

1.

Remove the center tray.
• Remove the clip (A) from the seat cushion backside, and then

remove pawls when pulling the center tray (1).

• Remove the center tray from the seat cushion assembly.

2.

Remove the seat cushion trim and seat cushion pad.
Remove the hog rings to separate the seat cushion trim and seat cushion pad.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord
with the seat cushion pad wire.

JMJIA0944ZZ

SEATBACK CONTROL CABLE

SE-163

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SEATBACK CONTROL CABLE

Exploded View

INFOID:0000000001838109

Refer to

SE-160, "Exploded View"

.

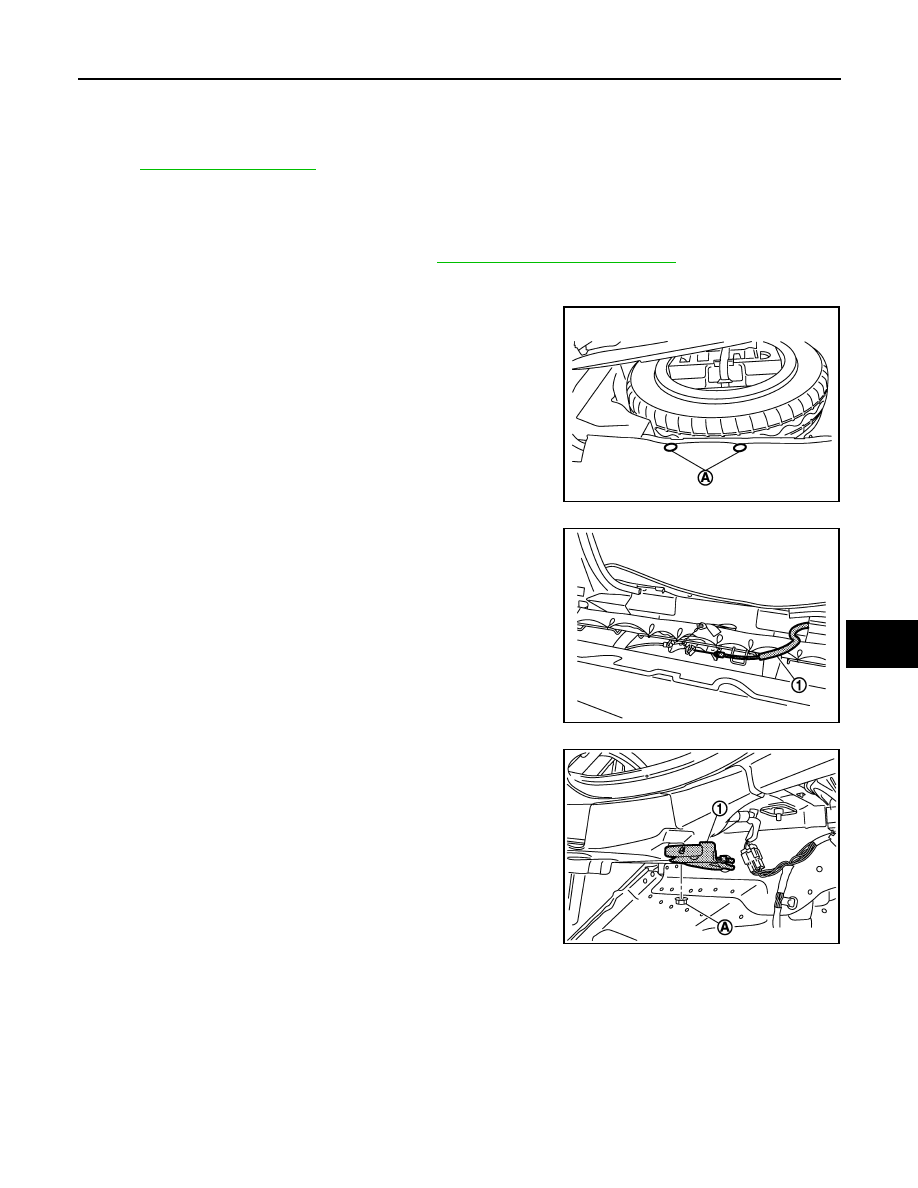

Removal and Installation

INFOID:0000000001838111

REMOVAL

1.

Remove the trunk front finisher upper. Refer to

INT-27, "Removal and Installation"

.

2.

Remove the seatback control cable.
• Fold the seatback before.
• Remove the clip (A), and then pull up the seatback lower part.

• Remove the seatback control cable (1) from the seatback

frame.

• Remove the seatback control cable mounting nut (A).
• Remove the seatback control cable (1) from the vehicle.

INSTALLATION

Install in the reverse order of removal.

JMJIA0942ZZ

JMJIA0943ZZ

JMJIA0926ZZ
