Infiniti G37 Coupe. Manual - part 1121





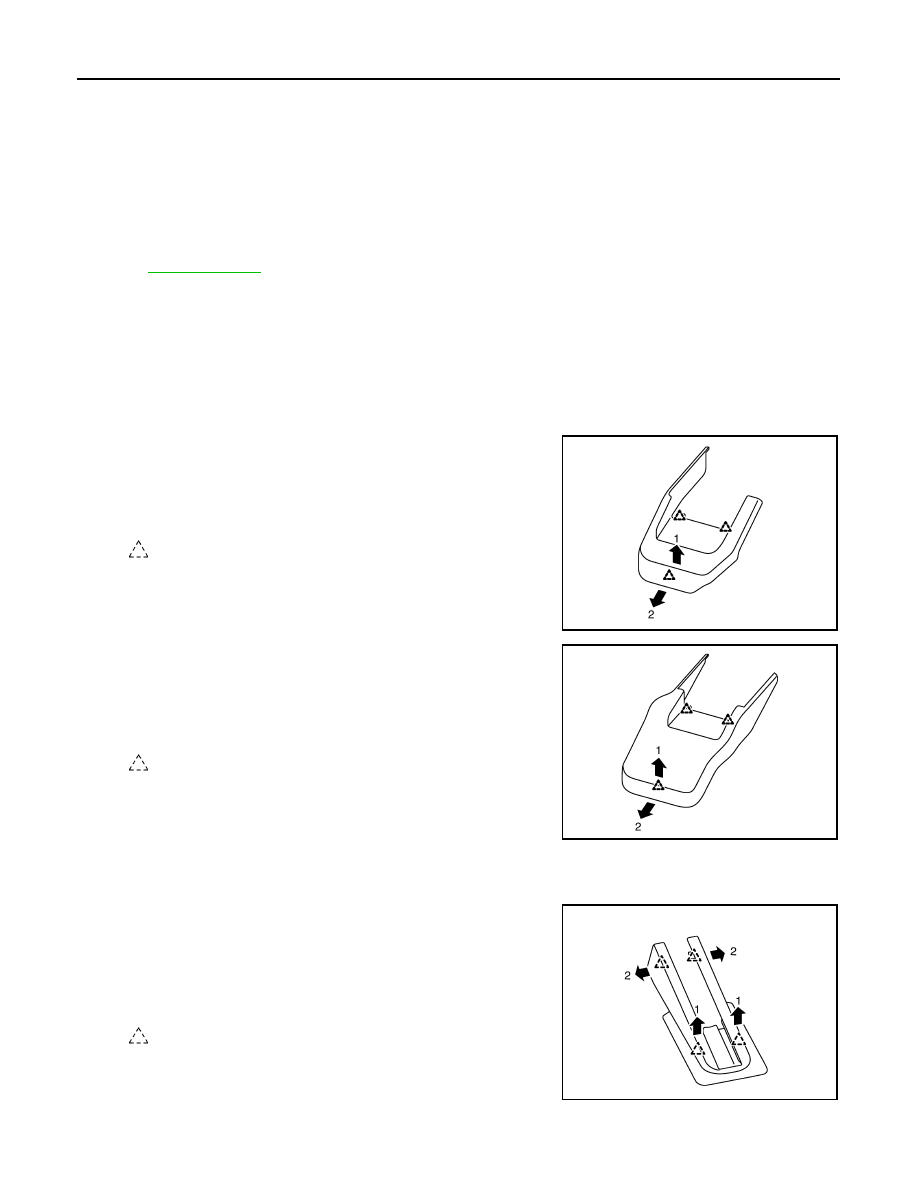

SE-152

< ON-VEHICLE REPAIR >

FRONT SEAT

Removal and Installation

INFOID:0000000001694182

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the headrest.

2.

Remove the front slide cover.

a.

Front outer slide cover
• Slide the seat to the rearmost position.
• Pull up the front edge of the front slide cover to release the

pawls.

• Slide the front slide cover forward to release the pawls.

b.

Front inner slide cover
• Slide the seat to the rearmost position.
• Pull up the front edge of the front slide cover to release the

pawls.

• Slide the front slide cover forward to release the pawls.

3.

Remove the mounting bolts on the front side of the front seat.

4.

Remove the rear slide cover.

a.

Rear outer slide cover
• Slide the seat to the foremost position.
• Pull up the rear edge of the rear outer slide cover to release

the pawls.

• Open the front end of the rear outer slide cover to release the

pawls.

25. Reclining device outer cover (out-

side)

26. Reclining device outer cover (inside) 27. Reclining device inner cover (out-

side)

28. Reclining device inner cover (inside) 29. Push nut

30. Walk-in lever

31. Reclining device wire

32. Slide switch (seatback)

33. Reclining and slide relay

34. Seatback frame

35. Seat cushion front finisher

36. Seat belt buckle

37. Seat cushion pad (front)

38. Seat slide outer finisher (outside)

39. Seat slide outer finisher (inside)

40. Seat slide inner finisher

41. Seat control unit

42. Seat harness

43. Seat cushion assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

:Pawl

JMJIA0929ZZ

:Pawl

JMJIA0927ZZ

:Pawl

JMJIA0005ZZ

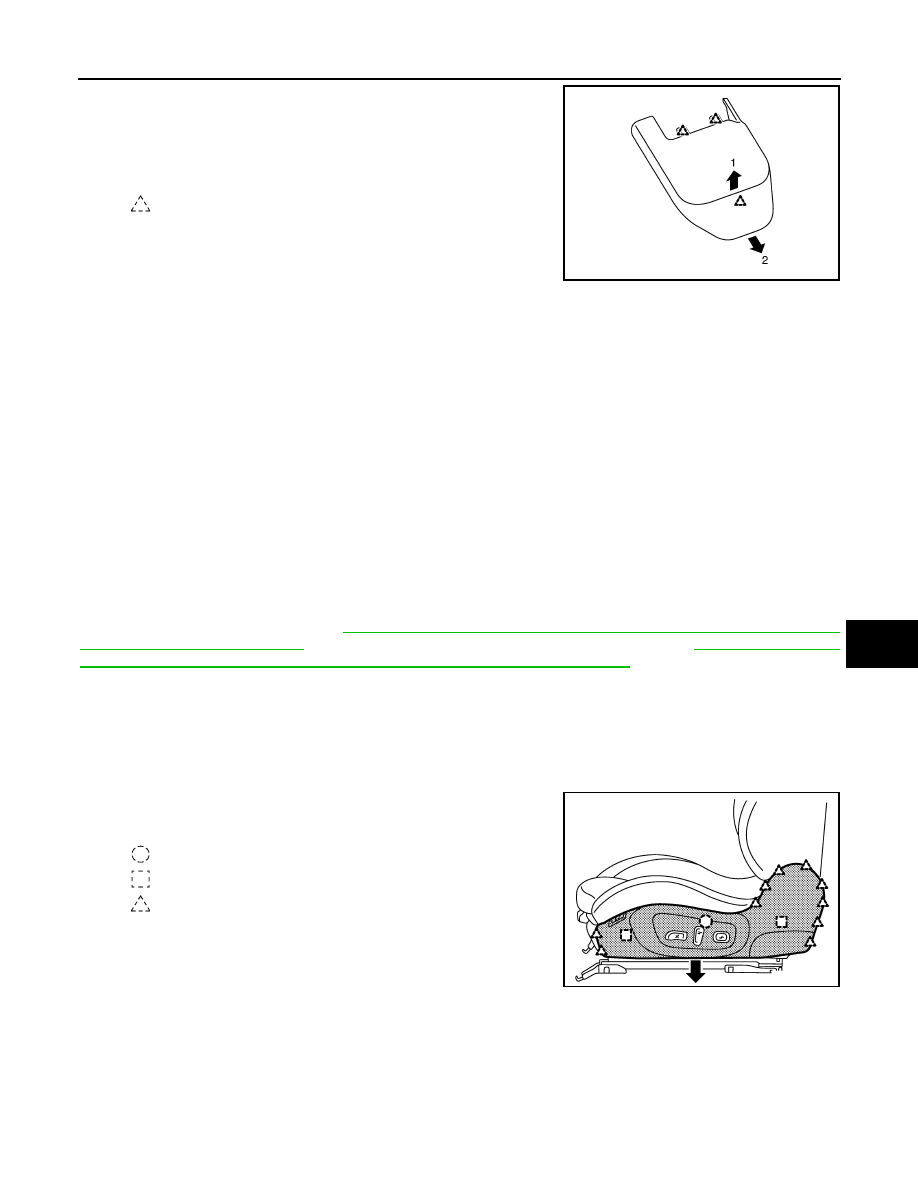

FRONT SEAT

SE-153

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

b.

Rear inner slide cover
• Slide the seat to the foremost position.
• Pull up the rear edge of the rear inner slide cover to release

the pawls.

• Slide the rear inner slide cover rearward to release the pawls.

5.

Remove the mounting bolts on the rear side of the front seat.

6.

Set seatback in a standing position.

7.

Disconnect harness connector under the seat and remove harness securing clips.

CAUTION:

Before removal, turn ignition switch OFF, disconnect both battery cables, and then wait for at least
3 minutes.

8.

Remove seat from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Before installation, turn ignition switch OFF, disconnect both battery cables, and then wait for at

least 3 minutes.

• Clamp the harness in position.
NOTE:
After installing the front seat, perform additional service when removing battery negative terminal.(With auto-
matic drive positioner model) Refer to

ADP-9, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGA-

TIVE TERMINAL : Description"

. (Without automatic drive positioner model) Refer to

SE-7, "ADDITIONAL

SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

Disassembly and Assembly

INFOID:0000000001694183

SEATBACK

Disassembly

1.

Remove the seat cushion outer finisher.
• Remove the metal clips, clips and pawls, and then pull out seat

cushion outer finisher.

• Disconnect the seat control switch, lumbar support switch and

side support switch harness connector.

• Remove the seat cushion outer finisher inside (front, rear).

:Pawl

JMJIA0928ZZ

: Clip

: Metal clip

: Pawl

JMJIA0937ZZ

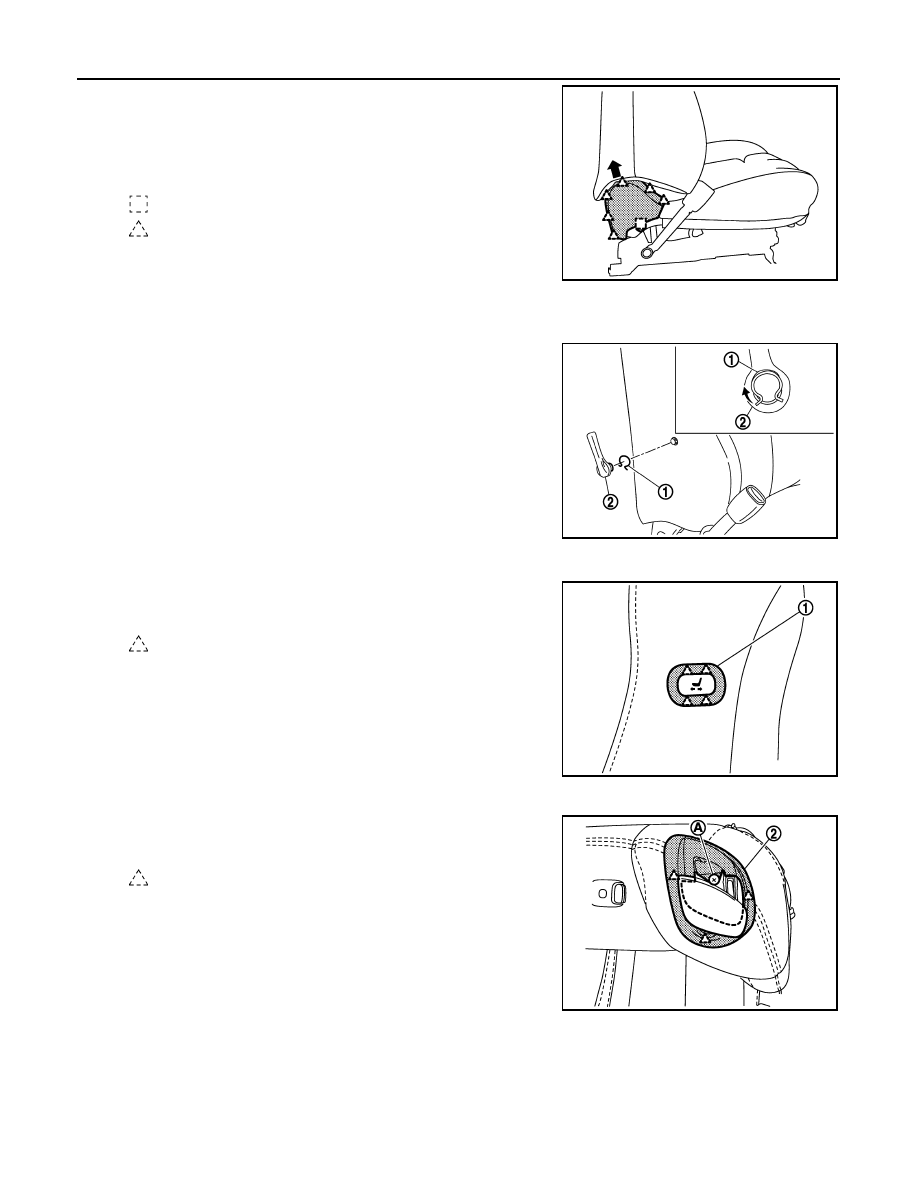

SE-154

< ON-VEHICLE REPAIR >

FRONT SEAT

2.

Remove the seat cushion inner finisher.
• Remove the seat cushion inner finisher inside (front, rear) by

releasing the metal clip and pull it up together with the cover.

• Remove the seat cushion inner finisher inside (front, rear) from

the seat cushion inner finisher by releasing the pawls.

3.

Remove the lumbar support lever knob.(Manual lumbar support model only.)
Pull snap ring (1) upward, and remove lumbar support lever
knob (2) from seatback frame.Using a hook and pick tool.

4.

Remove the seatback trim and seatback pad.
• Remove the pawls, and then pull out slide switch escutcheon

(1).

• Remove the walk-in lever cap.
• Remove the screw (A) and pawls, and then walk-in lever

upper escutcheon (2).

: Metal clip

: Pawl

JMJIA0938ZZ

JMJIA0252ZZ

: Pawl

JMJIA0930ZZ

: Pawl

JMJIA0931ZZ

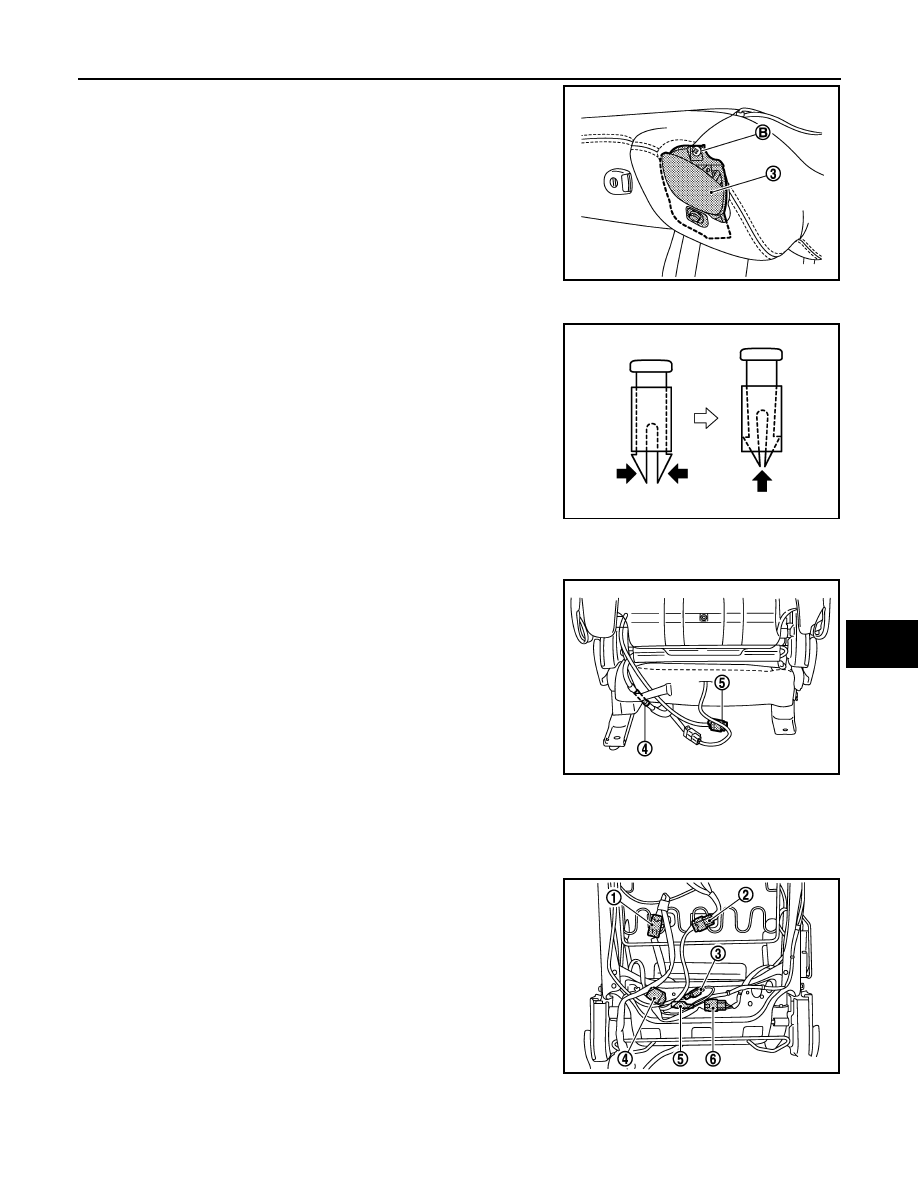

FRONT SEAT

SE-155

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Remove the screw (B), and then pull the seatback trim from

the walk-in lever (3) and walk-in lever lower escutcheon.

• Remove the seatback retainer, and then open the fastener.
• Remove the headrest holder.

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

• Remove the seatback lower panel.
• Remove the side air bag module. Refer to .
• Remove the side support hose joint (4) located backside the

seat cushion.(Side support model only.)

• Disconnect the seatback heater unit harness connector (5).

• Remove the seatback trim and seatback pad from the seatback frame.
• Remove the hog rings, and separate the seatback trim and seatback pad.

5.

Remove the seatback silencer.

6.

Disconnect the harness connectors.
• Disconnect the side support unit harness connector (1) and

remove the harness clamp.(Side support model only.)

• Disconnect the reclining and slide relay harness connector (2)

and remove the harness clamp.

• Disconnect the power walk-in switch harness connector (3).
• Disconnect the forward switch harness connector (4).
• Disconnect the lumbar support motor harness connector (5)

and remove the harness clamp.(Power lumbar support model
only.)

• Disconnect the reclining motor harness connector (6) and

remove the harness clamp.

• Disconnect the slide switch (seatback) harness connector.

(Passenger's seat only)

7.

Remove the side support bag and unit.(Side support model only.)

JMJIA0932ZZ

PIIB4084J

JMJIA0933ZZ

JMJIA0934ZZ
