Special Service Tool

INFOID:0000000001694178

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000001694179

Tool number
(Kent-Moore No.)
Tool name

Description

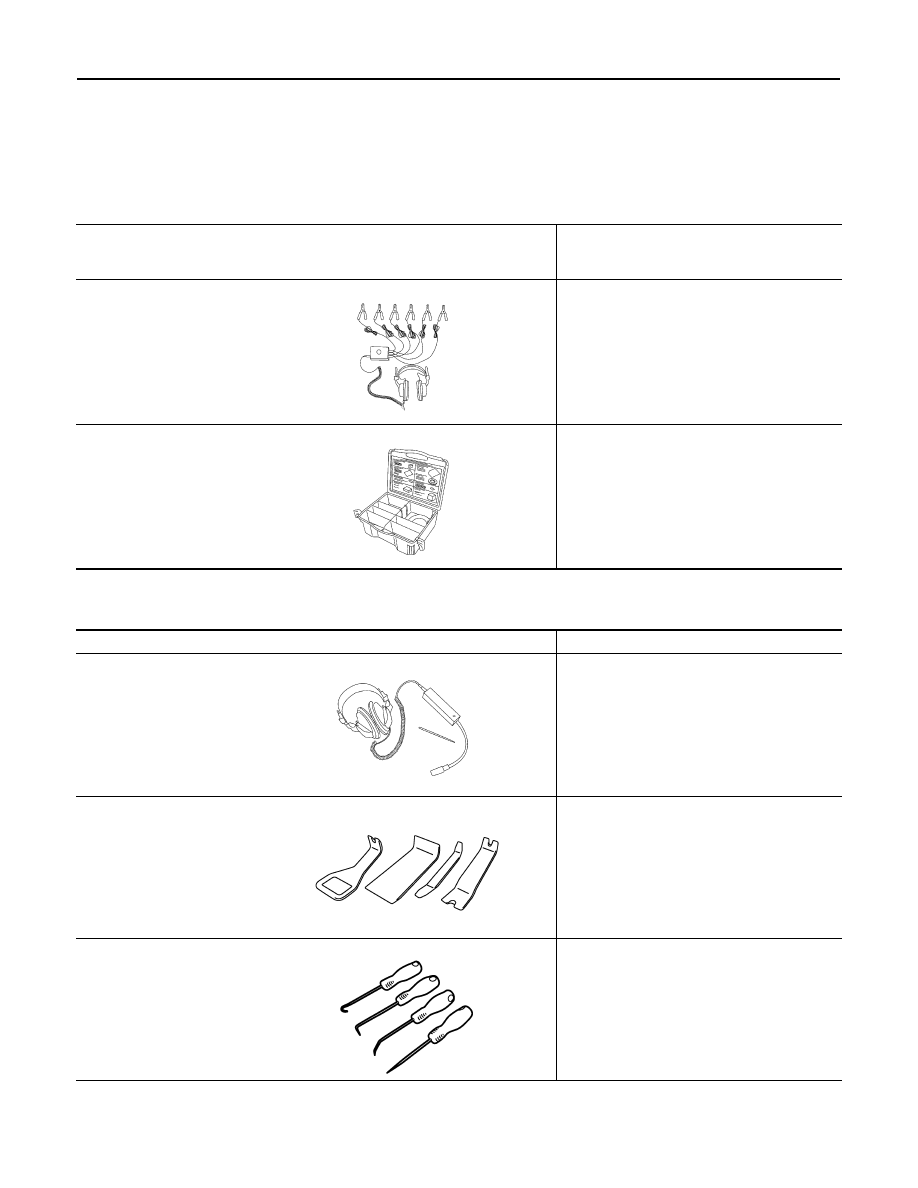

(J39570)
Chassis ear

Locating the noise

(J43980)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove the clips, pawls and metal clips

Hook and pick tool

Remove the snap pins

SIIA0995E

PIIB7923J

JMJIA0490ZZ

FRONT SEAT

SE-149

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ON-VEHICLE REPAIR

FRONT SEAT

Exploded View

INFOID:0000000001694181

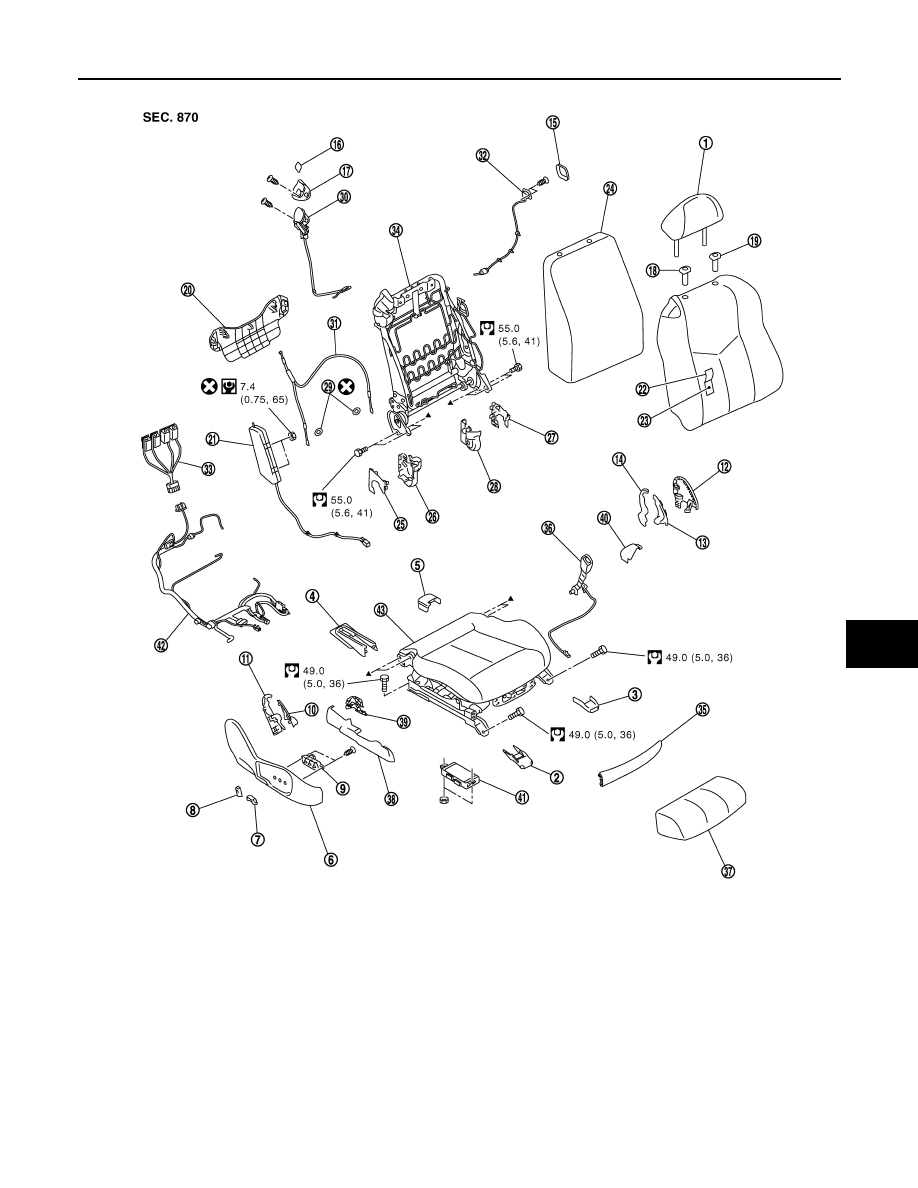

DRIVER'S SEAT

JMJIA1021GB

SE-150

< ON-VEHICLE REPAIR >

FRONT SEAT

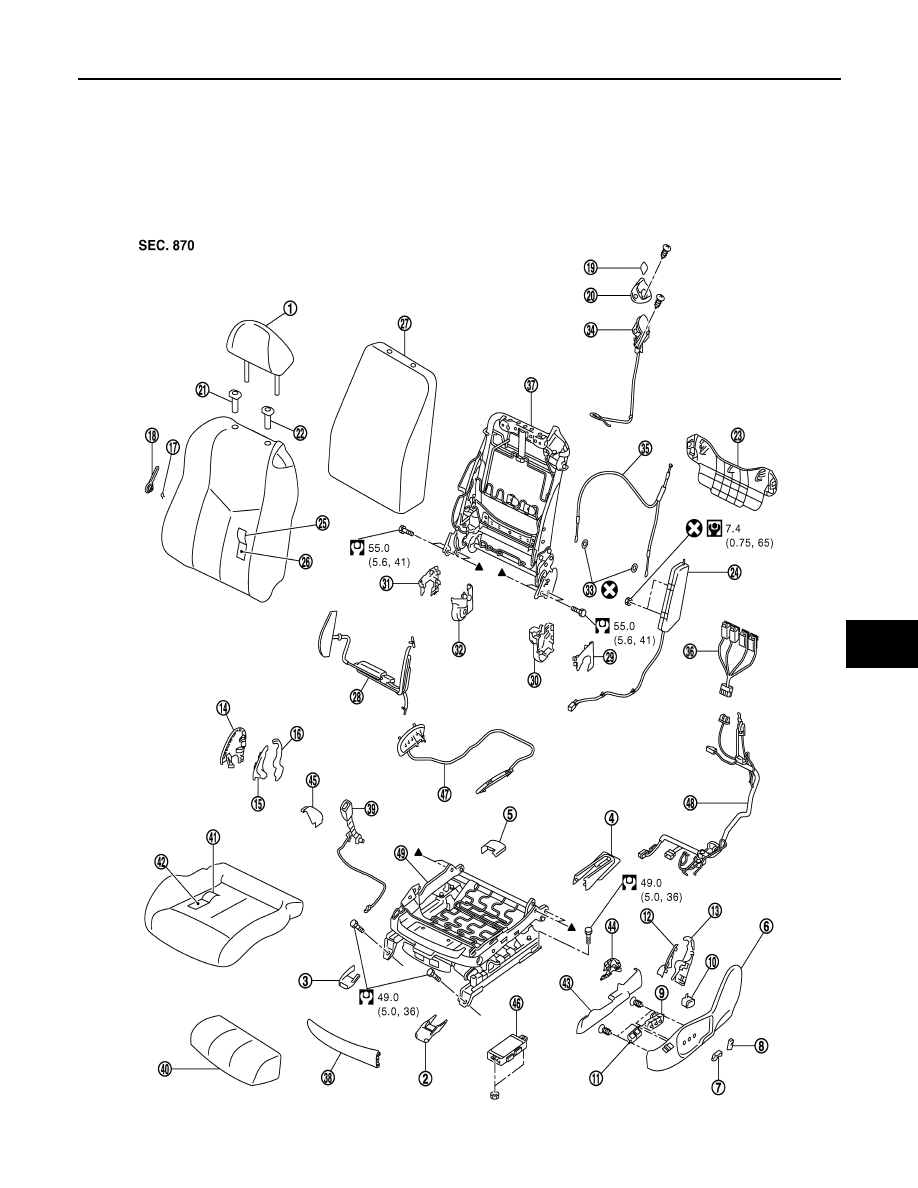

PASSENGER'S SEAT

1.

Headrest

2.

Front outer slide cover

3.

Front inner slide cover

4.

Rear outer slide cover

5.

Rear inner slide cover

6.

Seat cushion outer finisher

7.

Seat slide and lifter switch knob

8.

Seat reclining switch knob

9.

Seat control switch

10. Lumbar support switch

11.

Side support switch

12. Seat cushion outer finisher inside

(front)

13. Seat cushion outer finisher inside

(rear)

14. Seat cushion inner finisher

15. Seat cushion inner finisher inside

(front)

16. Seat cushion inner finisher inside

(rear)

17. Snap ring

18. Lumbar support lever knob

19. Walk-in lever cap

20. Walk-in lever upper escutcheon

21. Headrest holder (free)

22. Headrest holder (locked)

23. Seatback lower panel

24. Side air bag module

25. Seatback trim

26. Seatback pad

27. Seatback silencer

28. Seatback side support bag and unit

29. Reclining device outer cover (out-

side)

30. Reclining device outer cover (inside)

31. Reclining device inner cover (out-

side)

32. Reclining device inner cover (inside) 33. Push nut

34. Walk-in lever

35. Reclining device wire

36. Reclining and slide relay

37. Seatback frame

38. Seat cushion front finisher

39. Seat belt buckle

40. Seat cushion pad (front)

41. Seat cushion trim

42. Seat cushion pad

43. Seat slide outer finisher (outside)

44. Seat slide outer finisher (inside)

45. Seat slide inner finisher

46. Seat control unit

47. Seat cushion side support bag

48. Seat harness

49. Seat cushion frame

Refer to

GI-4, "Components"

 for symbols in the figure.

FRONT SEAT

SE-151

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Headrest

2.

Front outer slide cover

3.

Front inner slide cover

4.

Rear outer slide cover

5.

Rear inner slide cover

6.

Seat cushion outer finisher

7.

Seat slide and lifter switch knob

8.

Seat reclining switch knob

9.

Seat control switch

10. Seat cushion outer finisher inside

(front)

11.

Seat cushion outer finisher inside
(rear)

12. Seat cushion inner finisher

13. Seat cushion inner finisher inside

(front)

14. Seat cushion inner finisher inside

(rear)

15. Slide switch escutcheon

16. Walk-in lever cap

17. Walk-in lever upper escutcheon

18. Headrest holder (free)

19. Headrest holder (locked)

20. Seatback lower panel

21. Side air bag module

22. Seatback trim

23. Seatback pad

24. Seatback silencer

JMJIA1022GB
