Infiniti G37 Coupe. Manual - part 1061





GLASS LID

RF-69

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

GLASS LID

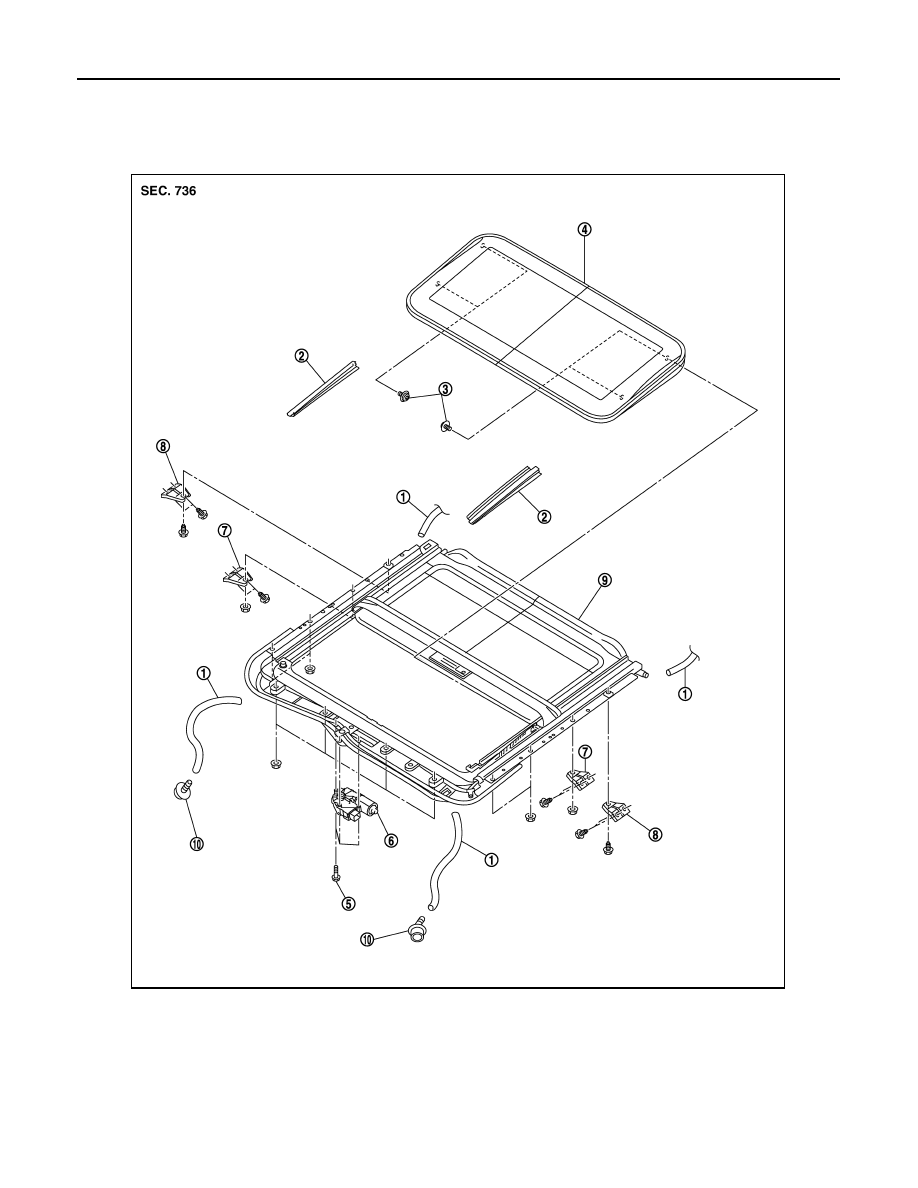

Exploded View

INFOID:0000000001746922

1.

Drain hose

2.

Side trim

3.

TORX bolt

4.

Glass lid

5.

TORX bolt

6.

Sunroof motor assembly

7.

Front sunroof bracket (LH/RH)

8.

Rear sunroof bracket (LH/RH)

9.

Sunroof unit assembly

10. Drain connector

JMKIA1266ZZ

RF-70

< ON-VEHICLE REPAIR >

GLASS LID

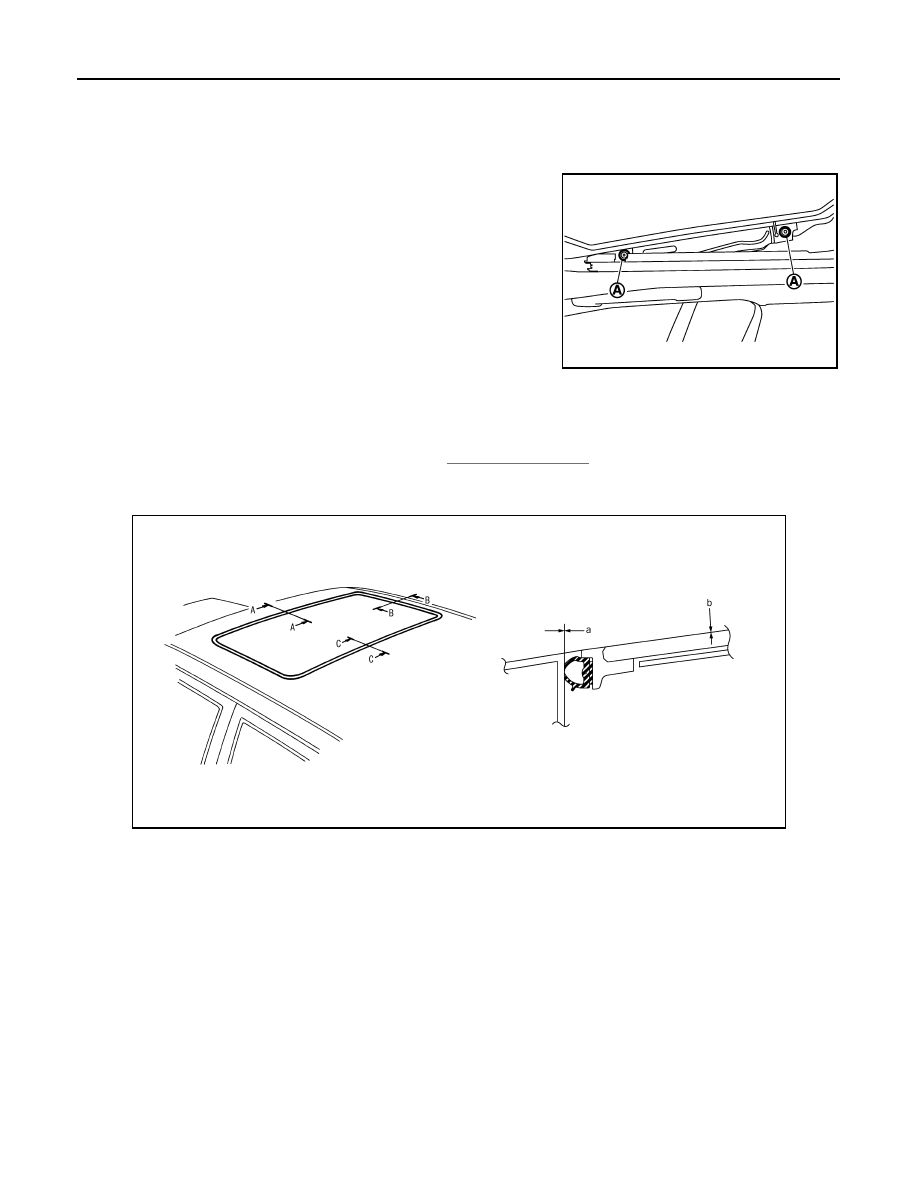

Removal and Installation

INFOID:0000000001746923

REMOVAL

1.

Remove the side trim.

2.

Remove the TORX bolt (A) and remove glass lid.

INSTALLATION

CAUTION:

After installing the glass lid, peform the leak test and check thet there is no malfunction.
NOTE:
After installation carry out fitting adjustment. Refer to

RF-70, "Adjustment"

.

Install in the reverse order of removal.

Adjustment

INFOID:0000000001826295

Lid Weatherstrip Overlap Adjustment and Surface Mismatch Adjustment

1.

Tilt up glass lid, and then remove side trim.

2.

After loosening glass lid from TORX bolts (left and right), tilt down glass lid.

3.

Adjust glass lid from outside of vehicle so it resembles “A – A”“B – B” "C – C" as shown in the figure.

4.

To prevent glass lid from moving after adjustment, first tighten the TORX bolts of front left, and then
tighten the TORX bolts of rear right.

5.

Tighten remaining TORX bolts, being careful to prevent glass lid from moving.

6.

Tilt glass lid up and down several times to check that it moves smoothly.

NOTE:

JMKIA0029ZZ

PIIB3117J

a

b

A – A

0.6 - 2.2 mm (0.024 - 0.087 in)

-2.3 - 0.7 mm (-0.091 - 0.028 in)

B – B

0.6 - 2.2 mm (0.024 - 0.087 in)

-2.3 - 0.7 mm (-0.091 - 0.028 in)

C – C

0.6 - 2.2 mm (0.024 - 0.087 in)

-2.3 - 0.7 mm (-0.091 - 0.028 in)

GLASS LID

RF-71

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

After adjustment the sunroof unit assembly, perform additional service. Refer to

RF-4, "ADDITIONAL SER-

VICE WHEN REPLACING CONTROL UNIT : Description"

.

RF-72

< ON-VEHICLE REPAIR >

SUNROOF MOTOR ASSEMBLY

SUNROOF MOTOR ASSEMBLY

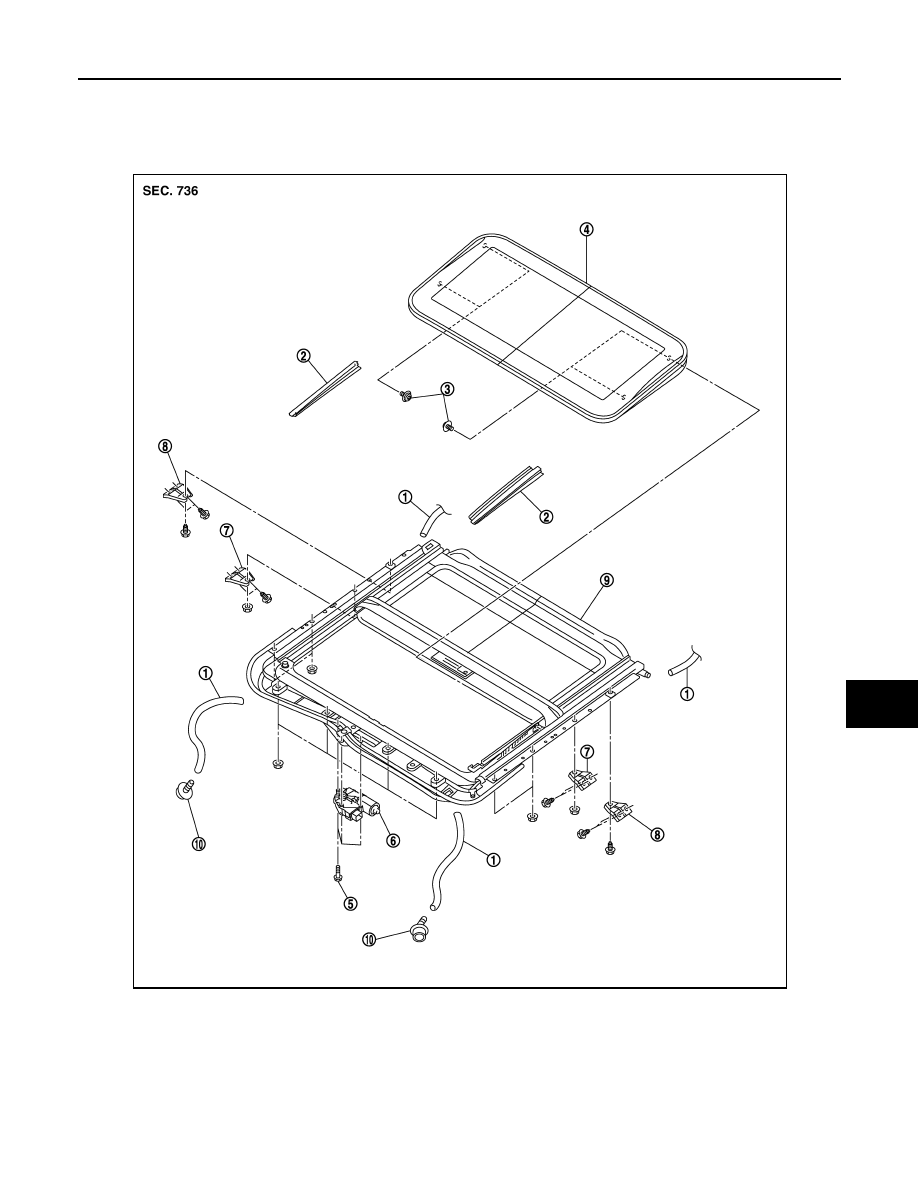

Exploded View

INFOID:0000000001837520

1.

Drain hose

2.

Side trim

3.

TORX bolt

4.

Glass lid

5.

TORX bolt

6.

Sunroof motor assembly

7.

Front sunroof bracket (LH/RH)

8.

Rear sunroof bracket (LH/RH)

9.

Sunroof unit assembly

10. Drain connector

JMKIA1266ZZ
