Infiniti G37 Coupe. Manual - part 99

AV

DIAGNOSIS SYSTEM (TEL ADAPTER UNIT)

AV-149

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

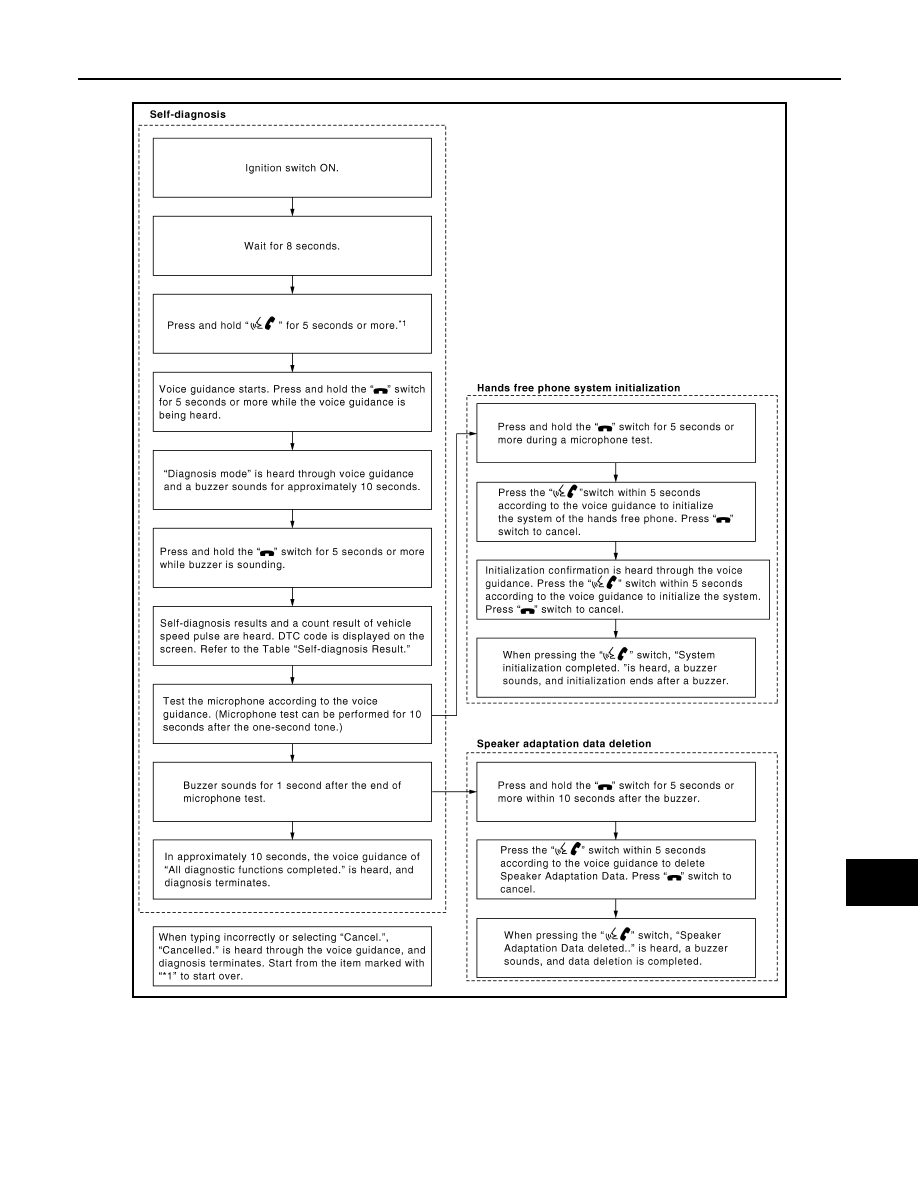

FLOW CHART OF TROUBLE DIAGNOSIS

JSNIA0169GB

AV-150

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

U1000 CAN COMM CIRCUIT

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000001559231

CAN (Controller Area Network) is a serial communication line for real-time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independently). In CAN communication, control units are connected with 2
communication lines (CAN-H, CAN-L) allowing a high rate of information transmission with less wiring. Each
control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart. Refer to

LAN-25, "CAN System Specification Chart"

.

DTC Logic

INFOID:0000000001559232

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000001559233

1.

PERFORM SELF-DIAGNOSTIC

1.

Turn ignition switch ON and wait for 2 seconds or more.

2.

Check “Self Diagnostic Result” of “MULTI AV”.

Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to “LAN system”. Refer to

LAN-16, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to GI section. Refer to

GI-38, "Intermittent Incident"

.

DTC

Display contents of CON-

SULT-III

Diagnostic item is detected when ...

Probable malfunction location

U1000

CAN COMM CIRCUIT

AV control unit is not transmitting or receiving
CAN communication signal for 2 seconds or
more.

CAN communication system.

AV

U1010 CONTROL UNIT (CAN)

AV-151

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U1010 CONTROL UNIT (CAN)

Description

INFOID:0000000001559241

Initial diagnosis of AV control unit.

DTC Logic

INFOID:0000000001559242

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000001559243

1.

REPLACE AV CONTROL UNIT

When DTC U1010 is detected, replace AV control unit.

>> INSPECTION END

DTC

Display contents of CON-

SULT-III

Diagnostic item is detected when ...

Probable malfunction location

U1010

CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detected.

AV control unit.

AV-152

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

U1310 AV CONTROL UNIT

U1310 AV CONTROL UNIT

Description

INFOID:0000000001559004

Replace the AV control unit if this DTC is displayed. Refer to

AV-343, "Exploded View"

.

DTC Logic

INFOID:0000000001559005

Part name

Description

AV CONTROL UNIT

• It is the master unit of the MULTI AV system, and it is connected to each control

unit by communication. It operates each system according to communication
signals from the AV control unit.

• AV control unit includes audio function and vehicle information function.
• It is connected to ECM and unified meter and A/C amp via CAN communica-

tion to obtain necessary information for the vehicle information function.

• It is connected to BCM via CAN communication transmitting/receiving for the

vehicle settings function.

• It inputs the illumination signals that are required for the display dimming con-

trol.

• It inputs the signals for driving status recognition (vehicle speed, reverse and

parking brake).

• Auxiliary image signal is input from the auxiliary input jacks.

DTC

Display contents of

CONSULT-III

DTC Detection Condition

Action to take

U1310

CONTROL UNIT (AV)
[U1310]

An initial diagnosis error is detected in AV communication
circuit.

Replace AV control unit.
