Infiniti G37 Coupe. Manual - part 90

AV

TWEETER

AV-113

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TWEETER

Exploded View

INFOID:0000000001559203

Removal and Installation

INFOID:0000000001559204

REMOVAL

1.

Remove door finisher. Refer to

INT-11, "Exploded View"

.

2.

Remove the tweeter from the door finisher.

INSTALLATION

Install in the reverse order of removal.

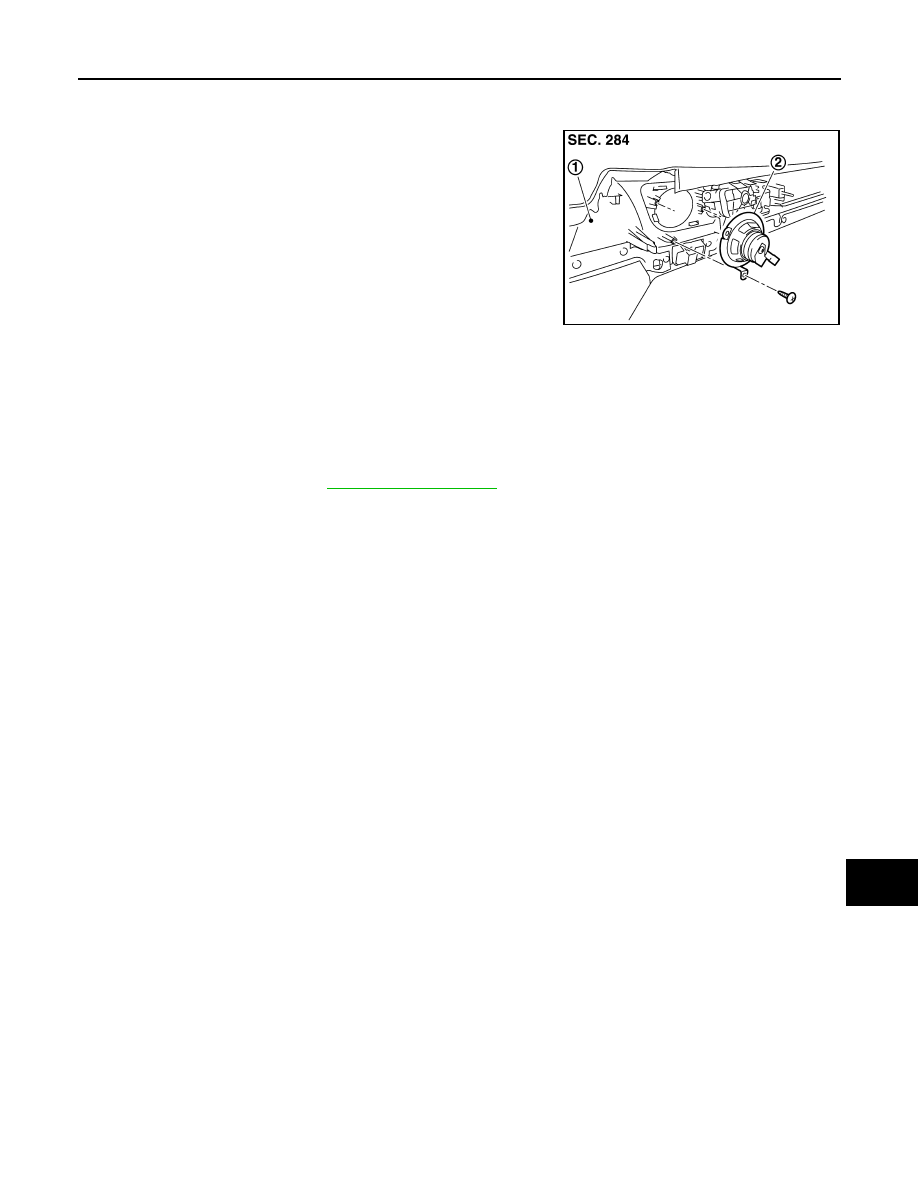

JPNIA0473ZZ

1.

Door finisher

2.

Tweeter

AV-114

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

ANTENNA AMP.

ANTENNA AMP.

Exploded View

INFOID:0000000001605602

Removal and Installation

INFOID:0000000001605603

REMOVAL

1.

Remove back pillar garnish LH. Refer to

INT-14, "Exploded View"

.

2.

Remove antenna amp. from rear pillar LH.

INSTALLATION

Install in the reverse order of removal.

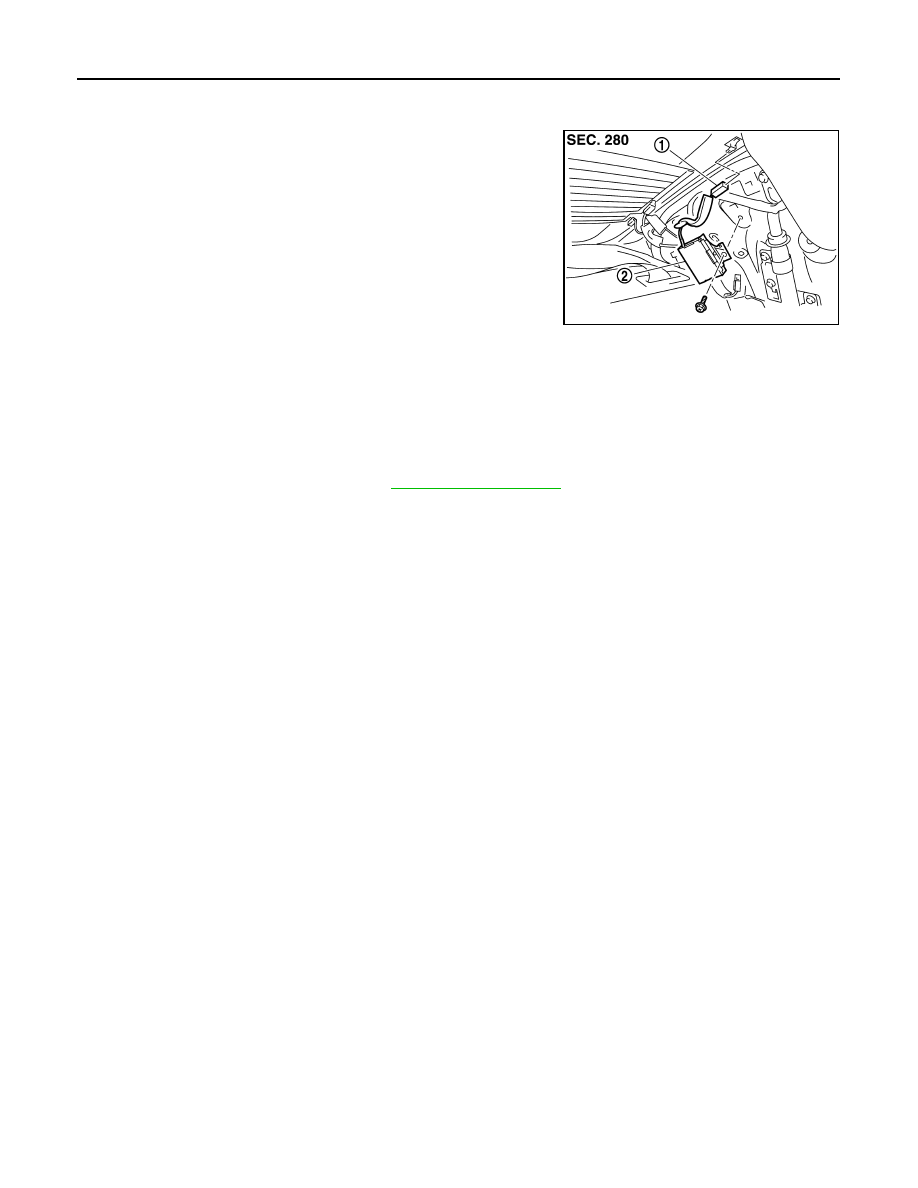

JSNIA0123ZZ

1.

AM-FM main connector

2.

Antenna amp.

AV

SATELLITE RADIO TUNER

AV-115

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO TUNER

Exploded View

INFOID:0000000001686031

Removal and Installation

INFOID:0000000001686032

REMOVAL

1.

Remove trunk floor spacer RH. Refer to

INT-27, "Exploded View"

.

2.

Remove nuts (A) from the trunk room RH, and satellite radio
tuner (1) from trunk room side.

INSTALLATION

Install in the reverse order of removal.

1.

Bracket (front)

2.

Satellite radio tuner

3.

Bracket (rear)

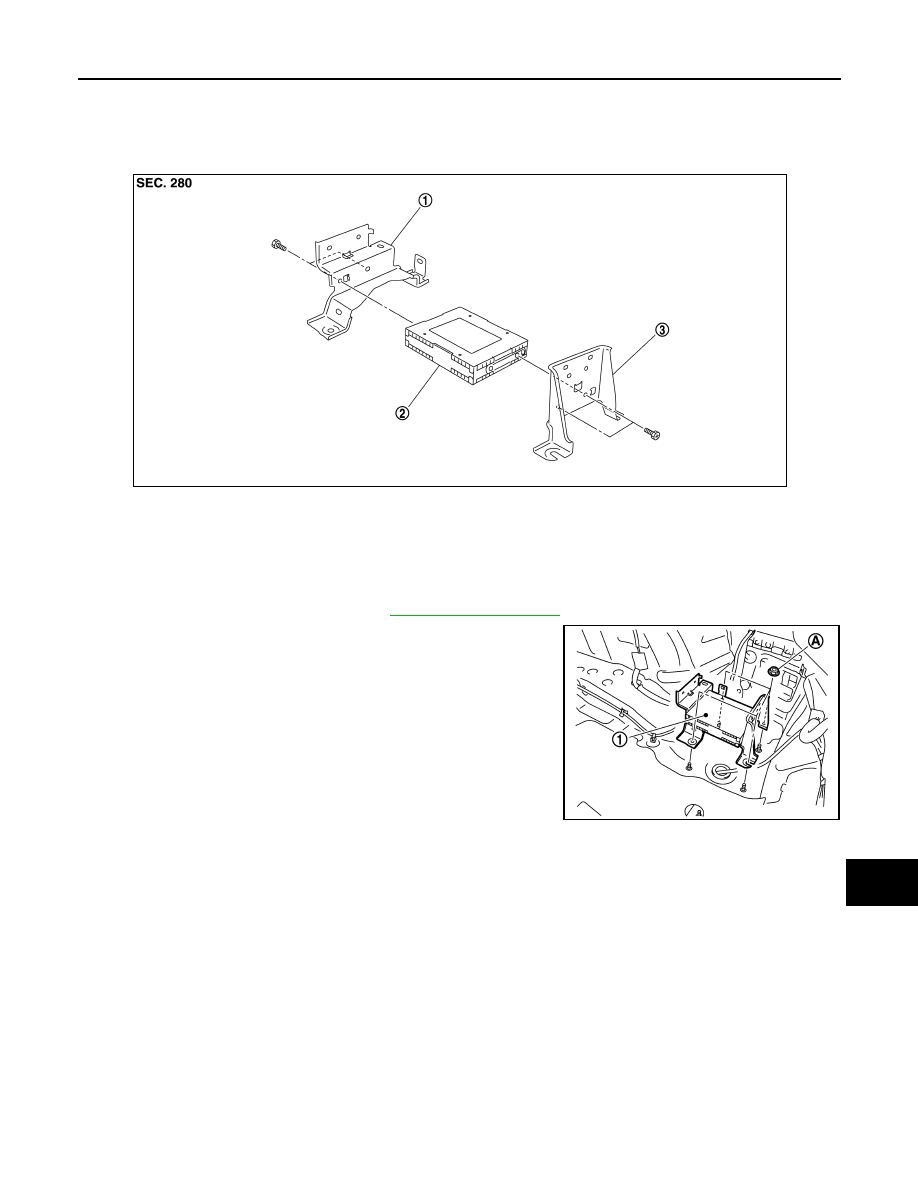

JPNIA0504ZZ

JPNIA0475ZZ

AV-116

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

Exploded View

INFOID:0000000001686033

Removal and Installation

INFOID:0000000001686034

REMOVAL

1.

Remove headlining assembly (rear) to secure work space between vehicle and headlining. Refer to

INT-

21, "NORMAL ROOF : Exploded View"

 [with normal roof]

INT-24, "SUNROOF : Exploded View"

 [with sun-

roof].

2.

Remove nuts, and then remove satellite radio antenna from roof panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be careful about tightening torque. Antenna sensitivity becomes poor, and when it is excessive, roof
panel may be deformed, when roof antenna mounting nut tightening torque is loose.

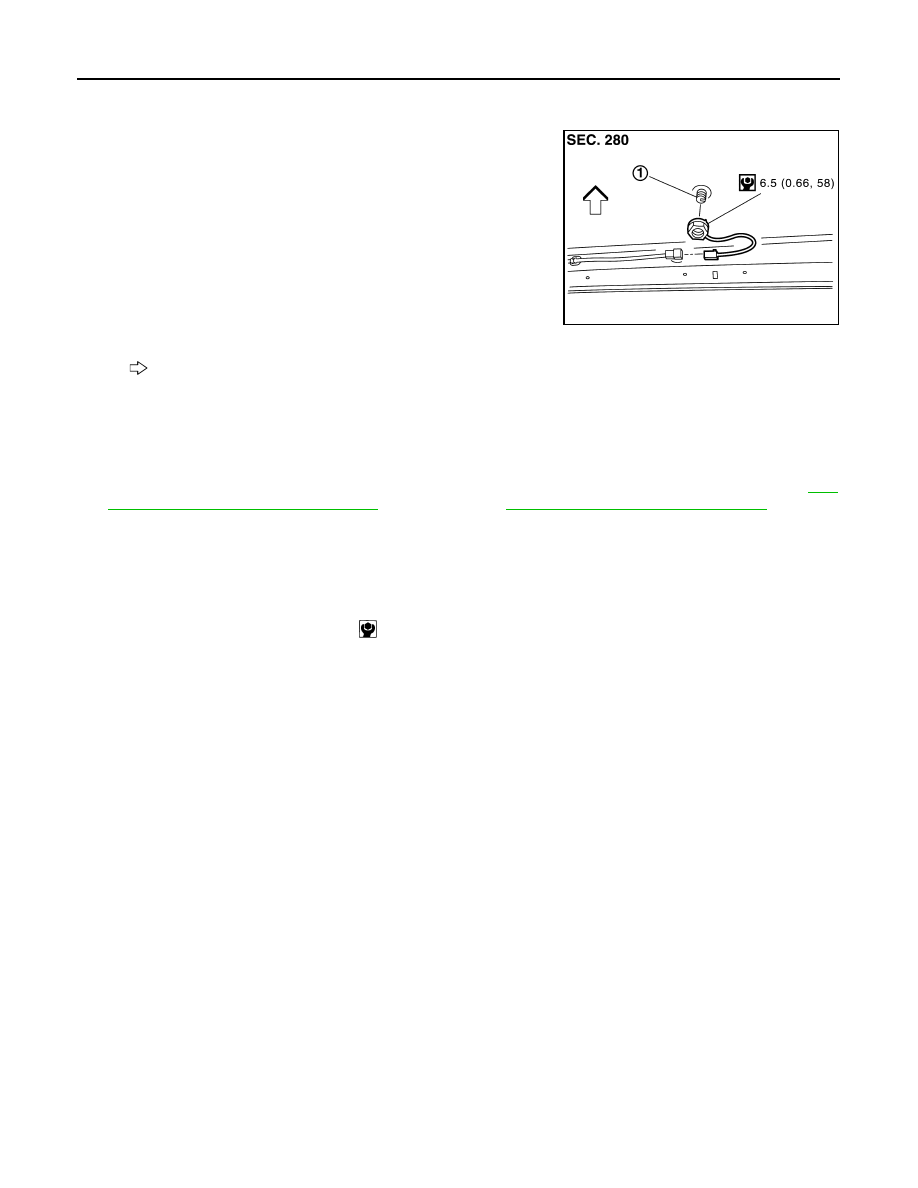

JPNIA0476ZZ

:

Vehicle front

1.

Satellite radio antenna

Roof antenna mounting nut

 : 6.5 N·m (0.66 kg-m, 58 in-lb)
