Infiniti G37 Coupe. Manual - part 89

AV

AV CONTROL UNIT

AV-109

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ON-VEHICLE REPAIR

AV CONTROL UNIT

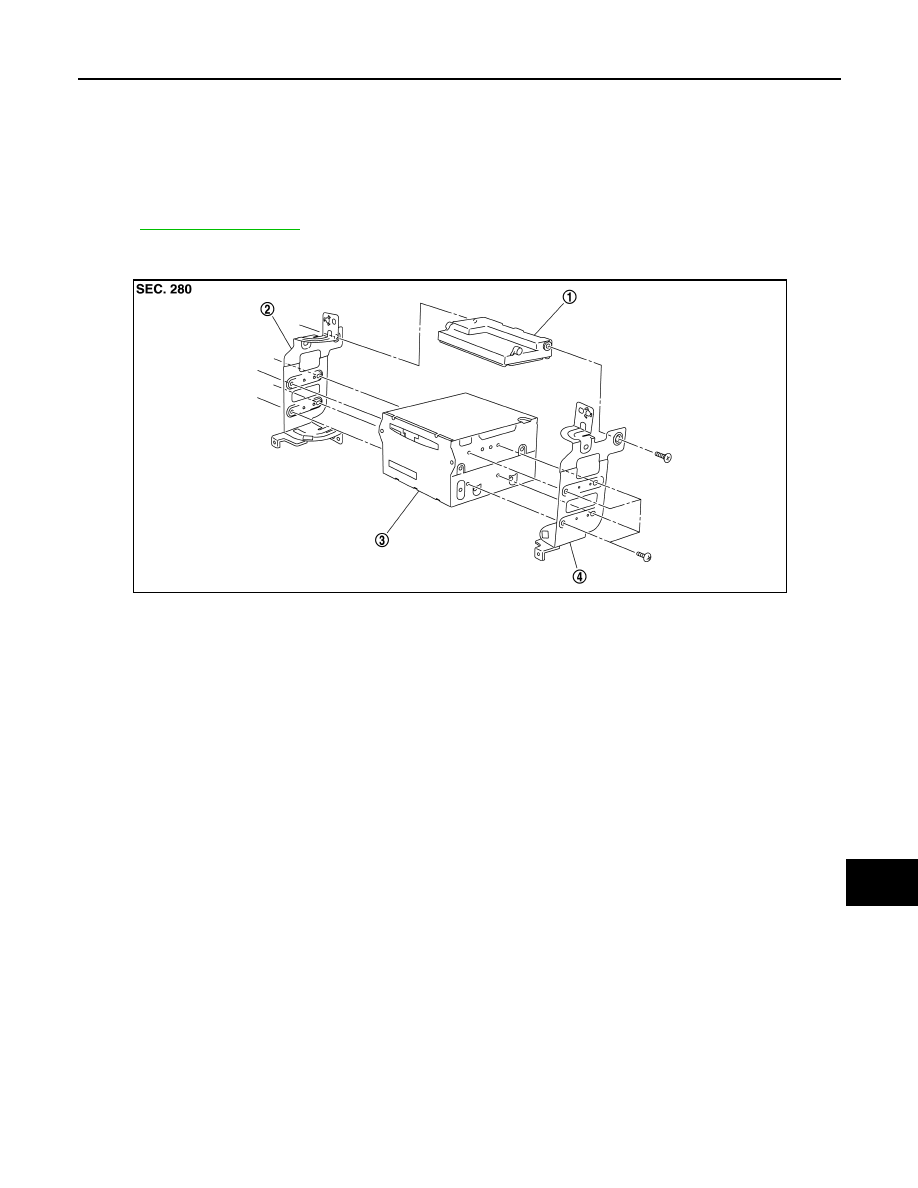

Exploded View

INFOID:0000000001605609

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001605610

REMOVAL

1.

Remove Display unit.

2.

Remove AV control unit with a unified meter and A/C amp. as a single unit from the body.

3.

Remove bracket screws, and then remove AV control unit.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Since AV control unit connector and unified meter and A/C amp. connector have the same form, be
careful not to insert them wrongly.

1.

Unified meter and A/C amp.

2.

Bracket LH

3.

AV control unit

4.

Bracket RH

JPNIA0470ZZ

AV-110

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

DISPLAY UNIT

DISPLAY UNIT

Exploded View

INFOID:0000000001684405

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000001684406

REMOVAL

1.

Remove cluster lid D. Refer to

IP-11, "Exploded View"

.

2.

Remove display unit with bracket as a single unit.

INSTALLATION

Install in the reverse order of removal.

AV

DOOR SPEAKER

AV-111

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DOOR SPEAKER

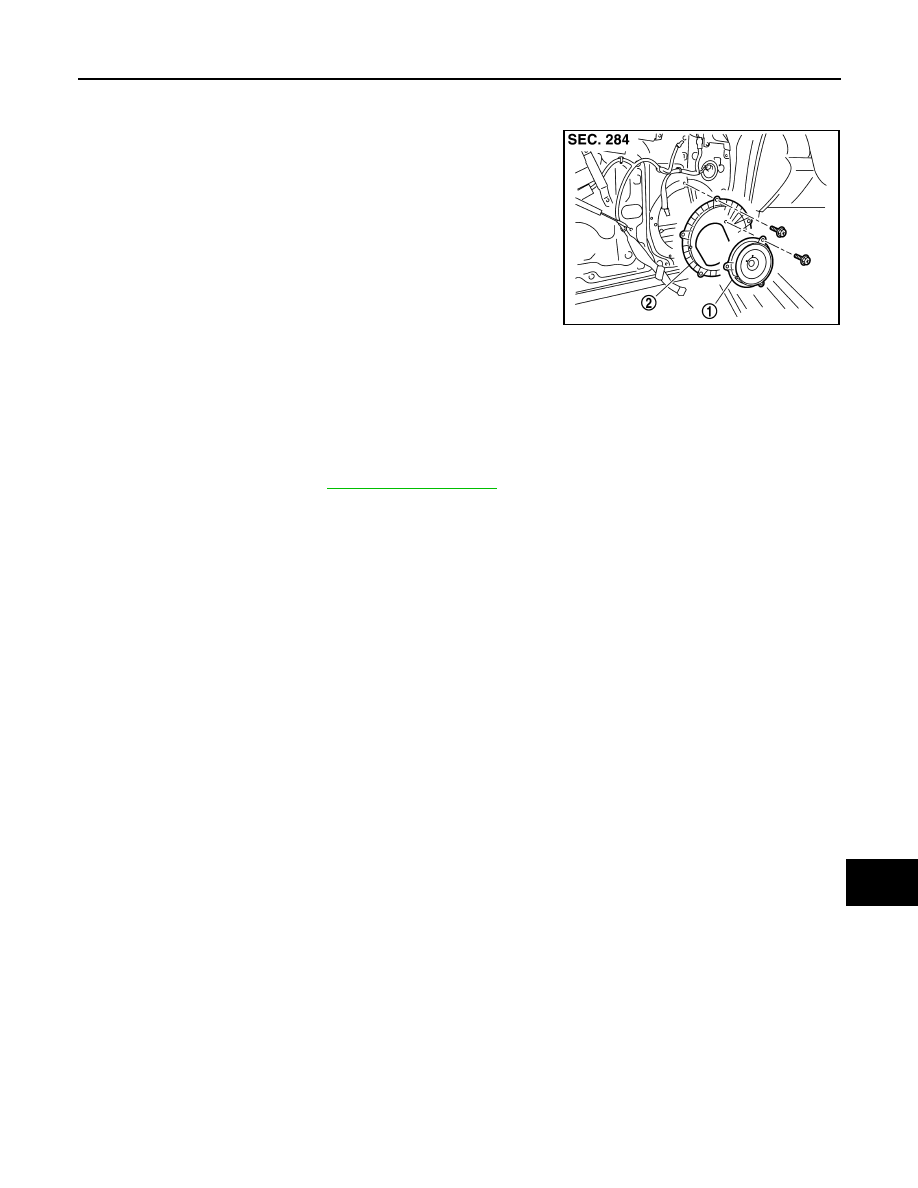

Exploded View

INFOID:0000000001559199

Removal and Installation

INFOID:0000000001559200

REMOVAL

1.

Remove door finisher. Refer to

INT-11, "Exploded View"

.

2.

Remove the door speaker from speaker bracket.

INSTALLATION

Install in the reverse order of removal.

JPNIA0471ZZ

1.

Door speaker

2.

Speaker bracket

AV-112

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

REAR SPEAKER

REAR SPEAKER

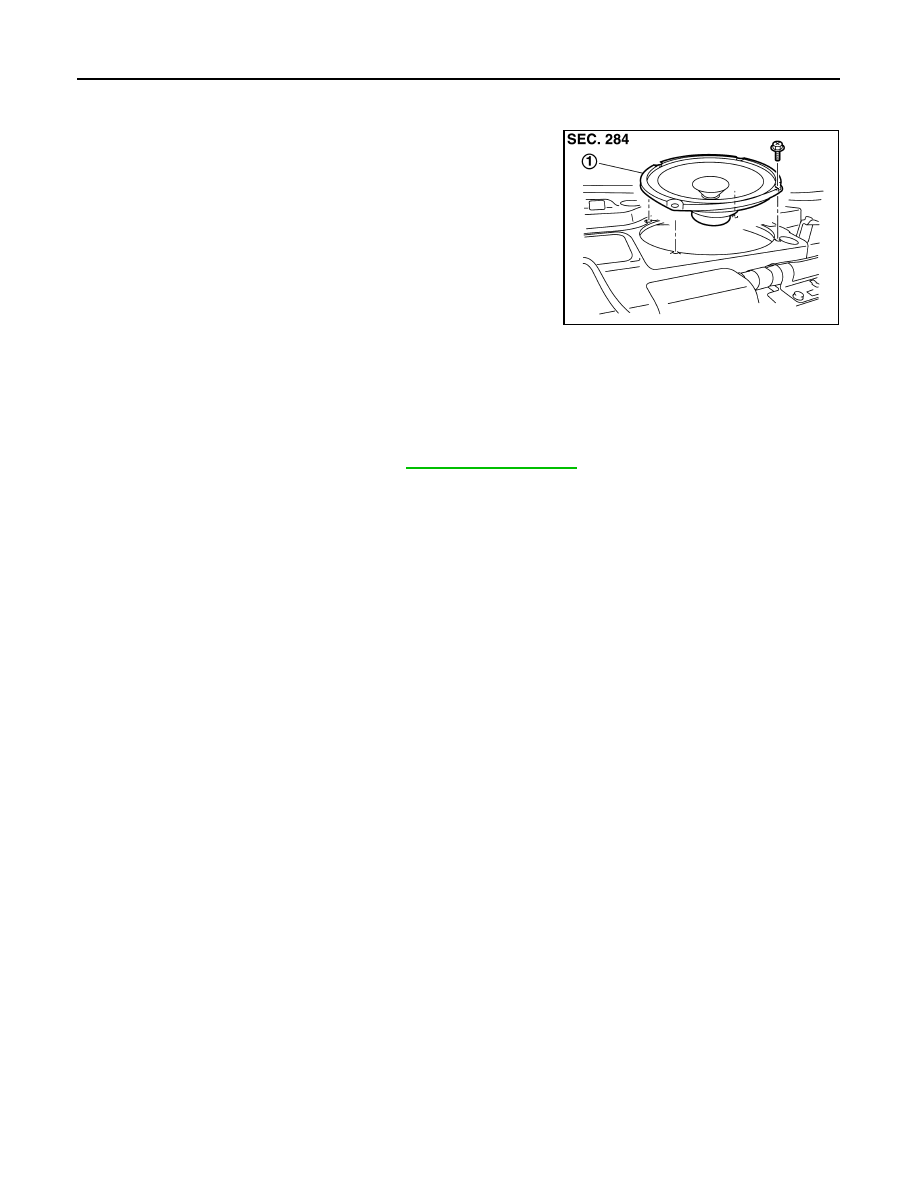

Exploded View

INFOID:0000000001684407

Removal and Installation

INFOID:0000000001684408

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

INT-17, "Exploded View"

.

2.

Remove rear speaker from rear parcel shelf.

INSTALLATION

Install in the reverse order of removal.

JPNIA0472ZZ

1.

 Rear speaker
