Infiniti G37 Coupe. Manual - part 60





ADP-234

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000001693799

The following symptoms are normal operations, and they do not indicate a malfunction.

Symptom

Cause

Action to take

Reference page

Seat synchronization function
does not operate.

The synchronization function will not op-
erate if the steering (tilt, telescopic) or the
door mirror moves to the operating end
while the seat synchronization function is
operating.

Perform the memory

function

or

drive the vehicle at

more than

 7km/h (4 MPH).

ADP-24

Seat adjustment load has exceed any of
the volumes below.
• Seat sliding: 76 mm
• Seat reclining: 9.1 degrees
• Seat lifting (rear): 20 mm

Side support or lumbar support
does not perform memory opera-
tion.

The side support and the lumbar support
are controlled independently with no link
to the automatic drive positioner system.

Side support:

SE-23

Lumbar support:

SE-25

Memory function, power walk-in
function, seat synchronization
function, or Intelligent Key inter-
lock function does not operate.

The operating conditions are not fulfilled.

Fulfill the operation

conditions.

Memory function:

ADP-29

Power walk-in function:

ADP-39



Seat synchronization

function:

ADP-24

Intelligent Key interlock

function:

ADP-34

PRECAUTIONS

ADP-235

< PRECAUTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001911673

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Service

INFOID:0000000001693801

• When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent

scratches.

• Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to oil or

damage them.

• Apply sealing compound where necessary when installing parts.
• When applying sealing compound, be careful that the sealing compound does not protrude from parts.
• When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust preven-

tion measures.

Work

INFOID:0000000001693802

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and keep them.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After re-installation is completed, be sure to check that each part works normally.
• Follow the steps below to clean components.
- Water soluble foul: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the

fouled area.
Then rub with a soft and dry cloth.

- Oily foul: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the fouled area.
Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with
a soft and dry cloth.

• Do not use organic solvent such as thinner, benzene, alcohol, and gasoline.
• For genuine leather seats, use a genuine leather seat cleaner.

ADP-236

< ON-VEHICLE REPAIR >

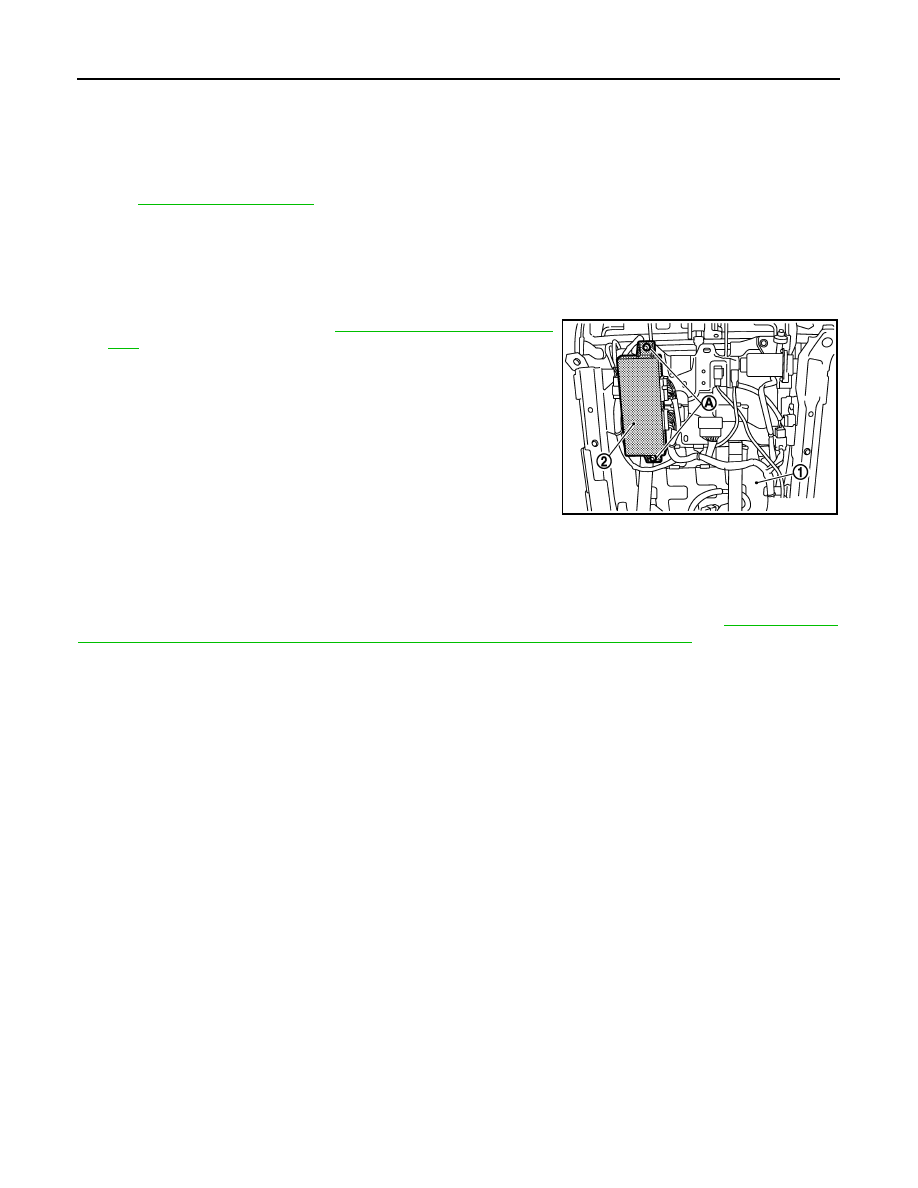

DRIVER SEAT CONTROL UNIT

ON-VEHICLE REPAIR

DRIVER SEAT CONTROL UNIT

Exploded View

INFOID:0000000001693804

Refer to

SE-149, "Exploded View"

.

Removal and Installation

INFOID:0000000001693805

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove driver seat (1). Refer to

SE-152, "Removal and Installa-

tion"

.

2.

Remove mounting bolts (A).

3.

Remove driver seat control unit (2).

INSTALLATION

Install in reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing driver seat, perform additional service when replacing control unit. Refer to

ADP-10, "ADDI-

TIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

JMJIA0230ZZ

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

ADP-237

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

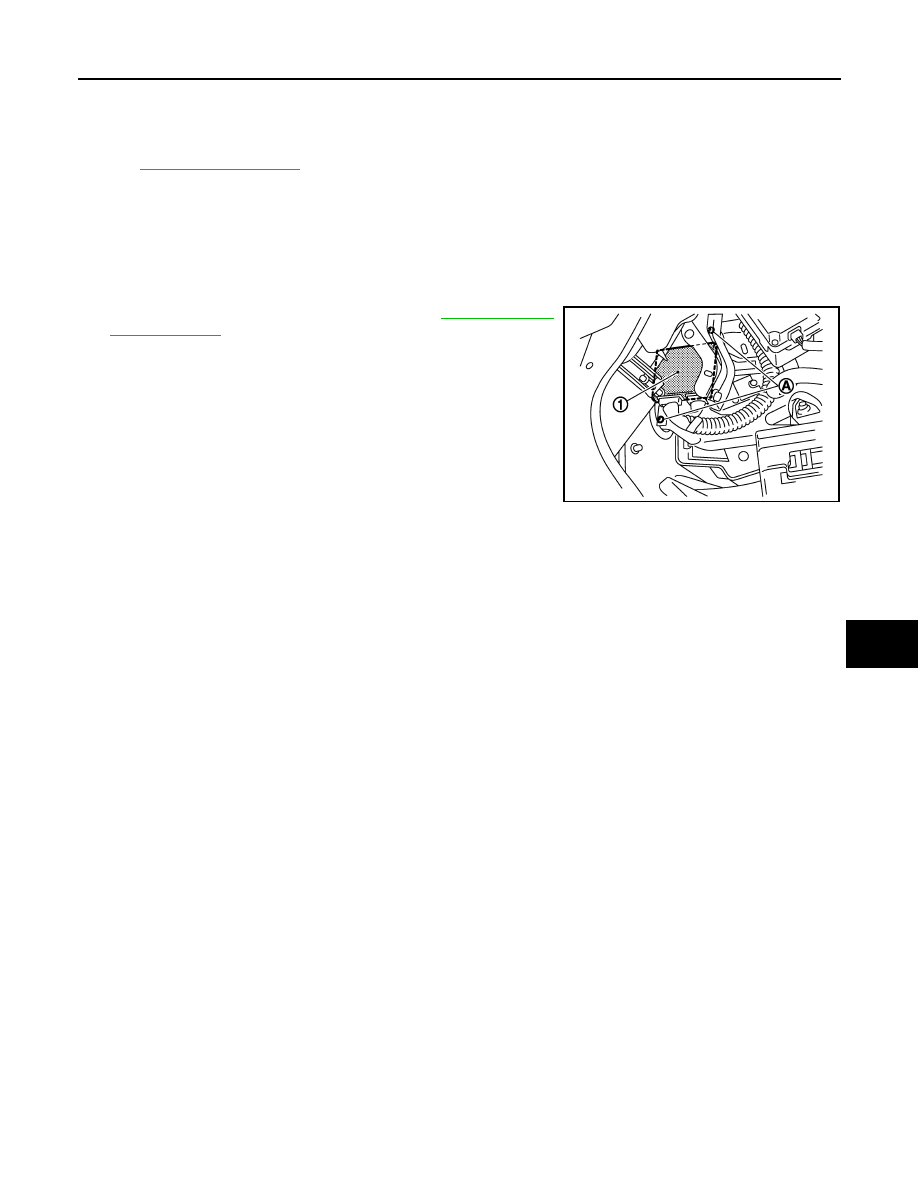

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Exploded View

INFOID:0000000001693806

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000001693807

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove battery negative terminal.

2.

Remove instrument driver lower panel. Refer to

IP-12, "Removal

and Installation"

.

3.

Remove screws (A).

4.

Remove automatic drive positioner control unit (1).

INSTALLATION

Install in reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.

JMJIA0198ZZ
