Infiniti G37 Coupe. Manual - part 7





ADP-22

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

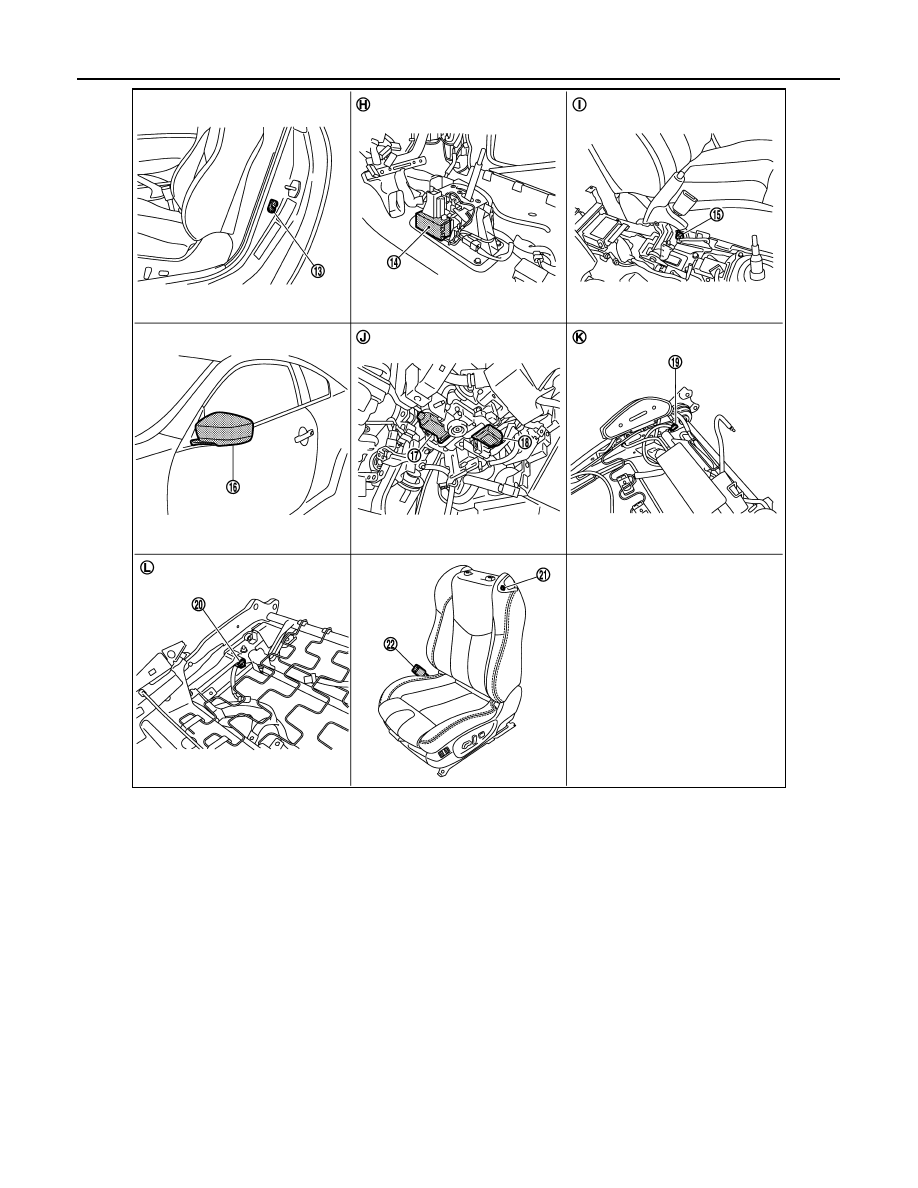

JMJIA0844ZZ

13. Driver side door switch B16

14. A/T device (detention switch) M137

15. Parking brake switch B14

16. Door mirror (driver side) D3

17. Telescopic motor M49

18. Tilt motor M49

19. Forward switch B512

20. Sliding limit switch B514

21. Power walk-in switch B513

22.

Seat belt buckle switch (driver side)
B13

H.

View with center console assembly
is removed.

I.

View with center console assembly
is removed.

J.

View with instrument driver lower
panel is removed.

K.

View with seat back pad is removed. L.

View with seat cushion pad is re-
moved.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-23

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

MANUAL FUNCTION : Component Description

INFOID:0000000001693623

CONTROL UNITS

INPUT PARTS

Switches

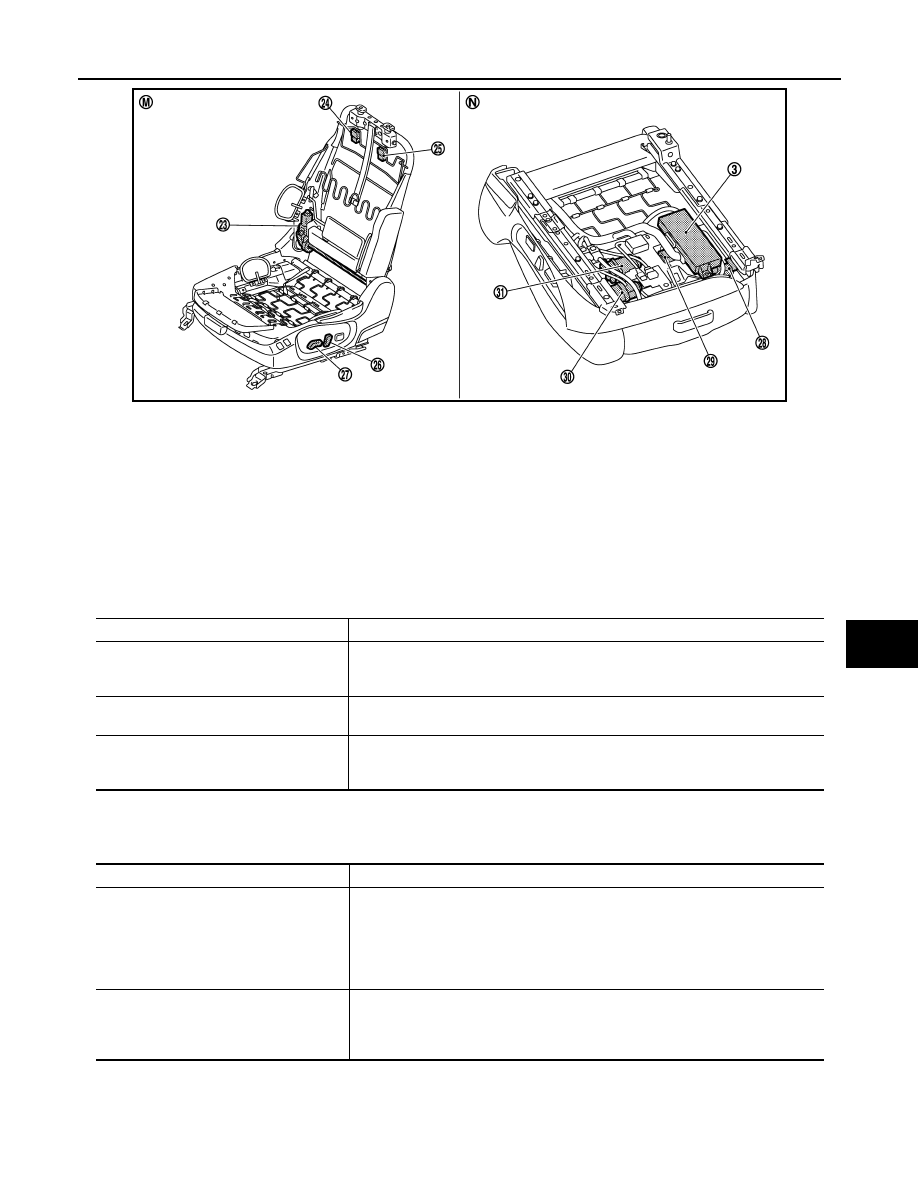

JMJIA0845ZZ

23. Reclining motor B523

24. Reclining relay (backward) B520

25. Reclining relay (forawrd) B519

26.

Reclining switch
(Power seat switch B510)

27.

Sliding, lifting switch
(Power seat switch B510)

28. Sliding sensor B526

29. Lifting motor (front) B527

30. Sliding motor B525

31. Lifting motor (rear) B529

M.

View with seat cushion pad and seat-
back pad are removed.

N.

Backside of seat cushion

Item

Function

Driver seat control unit

• Operates the specific seat motor with the signal from the power seat switch.
• Transmits the ignition switch signal (ACC/ON) via UART communication to the

automatic drive positioner control unit.

Automatic drive positioner control unit

Operates the specific motor with the signal from tilt & telescopic switch or door mir-
ror remote control switch.

BCM

Recognizes the following status and transmits it to the driver seat control unit via
CAN communication.
• Ignition position: ACC/ON

Item

Function

Power seat switch

The following switch is installed.
• Reclining switch
• Lifting switch (front)
• Lifting switch (rear)
• Sliding switch
The specific parts can be operated with the operation of each switch.

Tilt & telescopic switch

The following switch is installed.
• Tilt switch
• Telescopic switch
The specific parts can be operated with the operation of each switch.

ADP-24

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

Sensors

OUTPUT PARTS

SEAT SYNCHRONIZATION FUNCTION

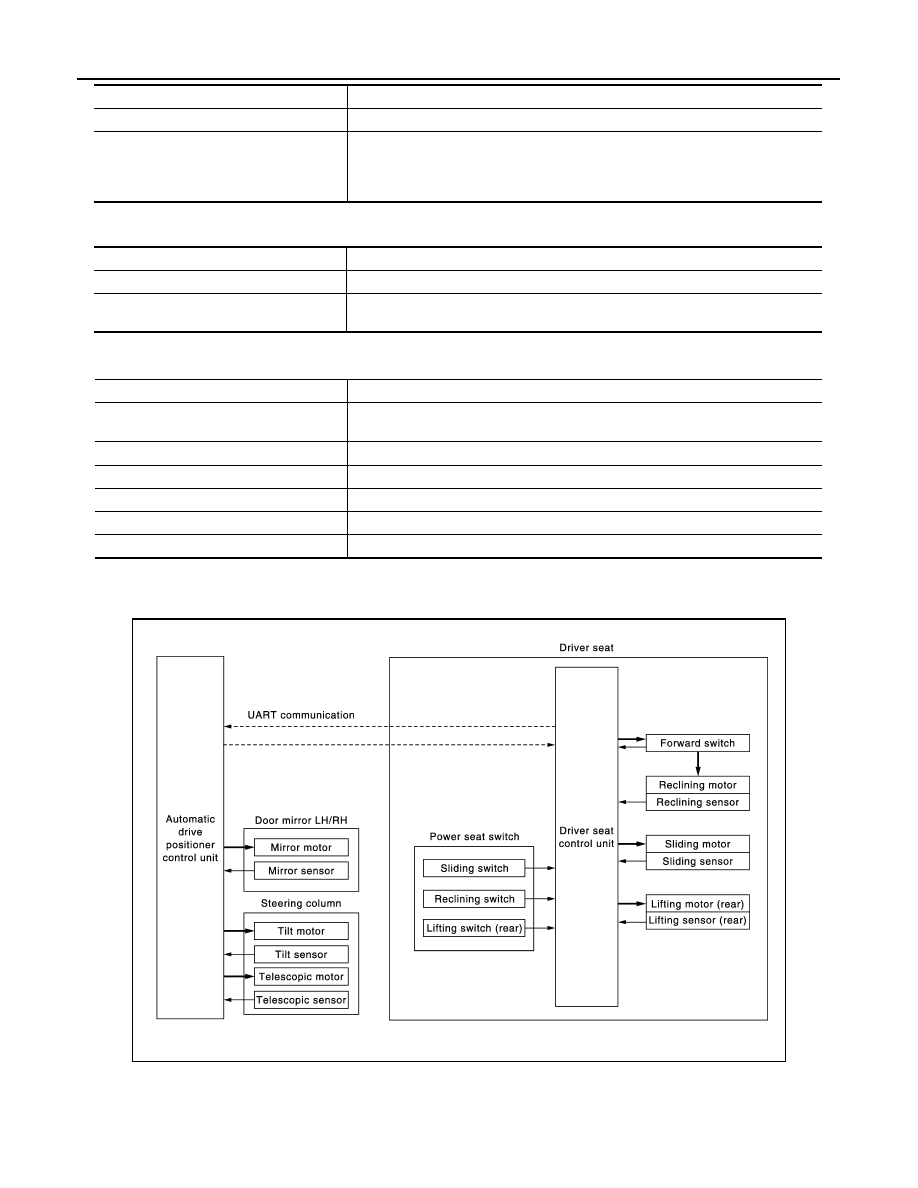

SEAT SYNCHRONIZATION FUNCTION : System Diagram

INFOID:0000000001693624

SEAT SYNCHRONIZATION FUNCTION : System Description

INFOID:0000000001693625

OUTLINE

Forward switch

Detect folded down or folded up of the seat back.

Door mirror remote control switch

The following switch is installed.
• Mirror switch
• Changeover switch
The specific parts can be operated with the operation of each switch.

Item

Function

Item

Function

Tilt & telescopic sensor

Detect the upward/downward & forward/backward position of steering column.

Door mirror sensor
(driver side / passenger side)

Detect the upward/downward and leftward/rightward position of outside mirror face.

Item

Function

Door mirror motor
(driver side/passenger side)

Move the outside mirror face upward/downward and leftward/rightward.

Tilt & telescopic motor

Move the steering column upward/downward and forward/backward.

Lifting motor (front)

Move the seat lifter (front) upward/downward.

Lifting motor (rear)

Move the seat lifter (rear) upward/downward.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat forward/backward.

JMJIA0918GB

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-25

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

The steering column position and door mirror position is adjusted to the position automatically according to the
direction and distance of seat movement when performing the manual operation of sliding, reclining or lifting
(rear). This function saves adjusting the mirror and steering column when adjusting the seat.
NOTE:
Seat synchronization function can change the setting by operating the set switch.
For the system setting procedure. Refer to

ADP-12, "SYSTEM SETTING : Description"

.

OPERATION PROCEDURE

1.

Turn ignition switch ON.

2.

Adjust seat position [sliding, reclining, lifting (rear)].

3.

The steering and outside mirror is adjusted automatically.

NOTE:
• The seat synchronization function will not operate if seat adjusting value is more than limit value.

• The seat synchronization function will not operate if the steering column or door mirror moves to the operat-

ing end while this function is operating. Perform memory function or drive the vehicle at vehicle speed of 7
km/h or more once to activate this function again.

• If the seat position is uncomfortable after the adjustment, seat position can be adjusted easily by memory

operation.

OPERATION CONDITION

Satisfy all of the following items. The seat synchronization function is not performed if these items are not sat-
isfied.

DETAIL FLOW

When performing the sliding, reclining or lifting (rear) operation in manual function, the driver seat control unit
performs the seat synchronization function as follows.

Item

Limit value

Seat sliding

76 mm

Seat reclining

9.1 degrees

Seat lifter (rear)

20 mm

Item

Request status

System initialization

Done

System setting

ON

Ignition position

ON

Seat back

Folded up

A/T selector lever (A/T models)

P position

Parking break (M/T models)

Applied

Switch inputs
• Power seat switch
• Tilt & telescopic switch
• Door mirror remote control switch
• Set switch
• Memory switch

OFF

(Not operated)

Order

Input

Output

Control unit condition

1

Sensors
[Sliding, reclining, lifting
(rear)]

The driver seat control unit judges the direction and distance of
seat movement according to the signal input from each seat sen-
sor during manual operation.

2

Motors
(Tilt, telescopic, out-
side mirror)

Driver seat control unit requests the operation to position accord-
ing to the direction and distance of seat movement to the automat-
ic drive positioner control unit via UART communication. The
automatic drive positioner control unit operates each motor.

Sensors
(Tilt, telescopic, outside
mirror)

Driver seat control unit stops the operation of each motor when the
value of each sensor that is input to automatic drive positioner con-
trol unit via UART communication reaches the target address.
