PB-6

< ON-VEHICLE MAINTENANCE >

PARKING BRAKE SHOE

PARKING BRAKE SHOE

Inspection

INFOID:0000000000958483

Rotate the disc rotor and check for any drag.

PARKING BRAKE CONTROL

PB-7

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

ON-VEHICLE REPAIR

PARKING BRAKE CONTROL

PEDAL TYPE

PEDAL TYPE : Exploded View

INFOID:0000000000958484

PEDAL TYPE : Removal and Installation

INFOID:0000000000958485

REMOVAL

1.

Remove rear tires with power tool.

2.

Remove instrument driver lower panel. Refer to

IP-12, "Removal and Installation"

.

3.

Disconnect parking brake switch harness connector.

4.

Remove adjusting nut and loosen front cable.

5.

Remove device assembly.

6.

Remove center console. Refer to

IP-12, "Removal and Installation"

.

7.

Remove the heat insulator and center muffler. Refer to

EX-5, "Removal and Installation"

.

8.

Separate front cable from rear cable, and remove front cable.

9.

Remove parking brake shoe, and remove rear cable from toggle lever. Refer to

PB-9, "Removal and

Installation"

.

10. Remove rear cable mounting bolts and nuts, pull out rear cable from vehicle.

1.

Return spring

2.

Stopper rubber

3.

Device assembly

4.

Pedal pad

5.

Adjusting nut

6.

Parking brake switch

7.

Lock plate

8.

Front cable

9.

Equalizer

10. Spring

11. Pin

12. Rear cable (LH)

13. Rear cable (RH)

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIB0004GB

PB-8

< ON-VEHICLE REPAIR >

PARKING BRAKE CONTROL

INSTALLATION

Install in the reverse order of the removal.

PEDAL TYPE : Adjustment

INFOID:0000000000958486

ADJUSTMENT AFTER INSTALLATION

Adjust the parking brake pedal stroke. Refer to

PB-3, "PEDAL TYPE : Inspection and Adjustment"

.

LEVER TYPE

LEVER TYPE : Exploded View

INFOID:0000000000958487

LEVER TYPE : Removal and Installation

INFOID:0000000000958488

RMOVAL

1.

Remove rear tires with power tool.

2.

Remove center console. Refer to

IP-12, "Removal and Installation"

.

3.

Disconnect parking brake switch harness connector.

4.

Remove adjusting nut and loosen front cable.

5.

Remove device assembly.

6.

Remove the heat insulator and center muffler. Refer to

EX-5, "Removal and Installation"

.

7.

Separate front cable from rear cable, and remove front cable.

8.

Remove parking brake shoe, and remove rear cable from toggle lever. Refer to

PB-9, "Removal and

Installation"

.

9.

Remove rear cable mounting bolts and nuts, pull out rear cable from vehicle.

INSTALLATION

Install in the reverse order of the removal.

LEVER TYPE : Adjustment

INFOID:0000000000958489

ADJUSTMENT AFTER INSTALLATION

Adjust the parking brake lever stroke. Refer to

PB-4, "LEVER TYPE : Inspection and Adjustment"

.

1.

Adjusting nut

2.

Device assembly

3.

Front cable

4.

Rear cable (LH)

5.

Rear cable (RH)

6.

Pin

 : Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIB0005GB

PARKING BRAKE SHOE

PB-9

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

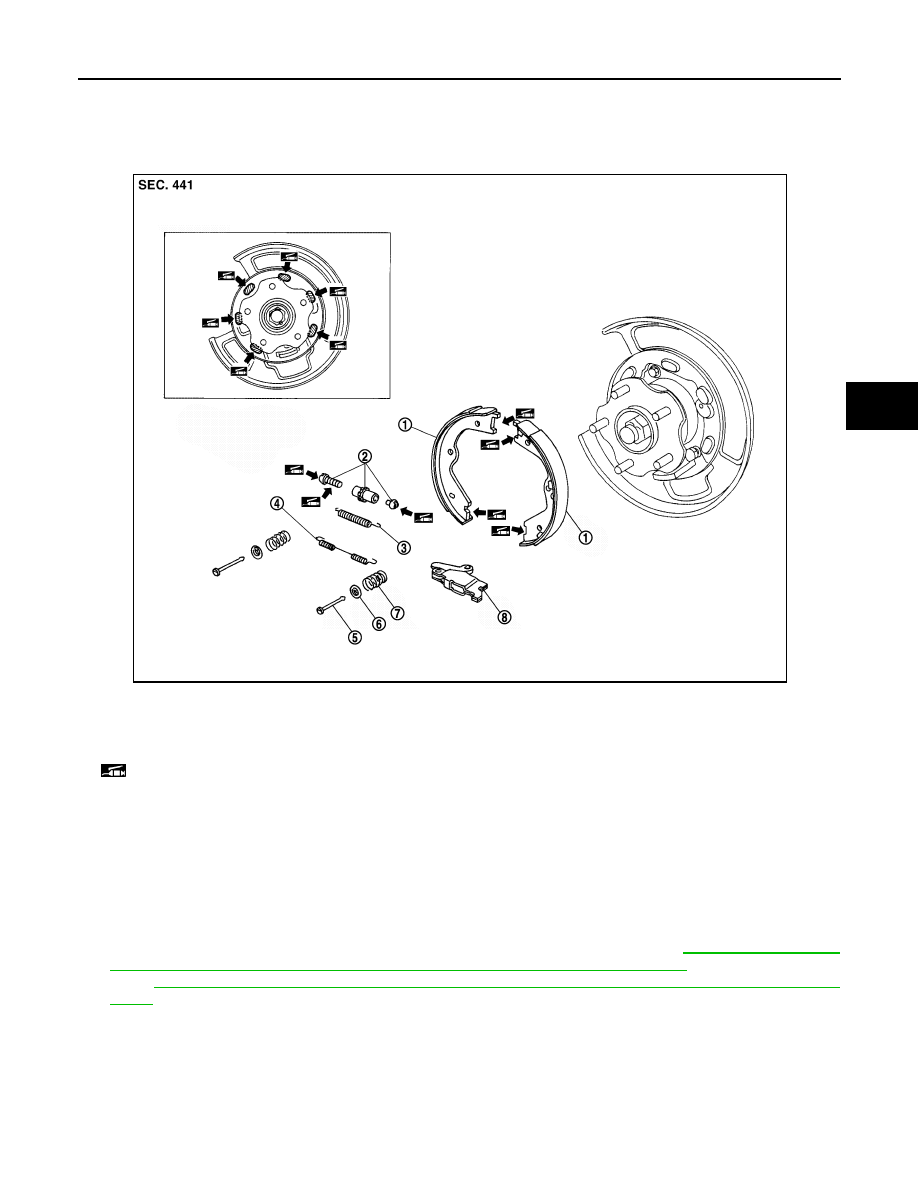

PARKING BRAKE SHOE

Exploded View

INFOID:0000000000958490

Removal and Installation

INFOID:0000000000958491

REMOVAL

WARNING:

Clean any dust from the brake shoes and brake plates with a vacuum dust collector. Never blow with
compressed air.
1.

Remove rear tires with power tool.

2.

Remove disc rotor with parking brake completely in the released position. Refer to

BR-53, "BRAKE CALI-

PER ASSEMBLY (FRONT CALIPER 1 PISTON TYPE) : Removal and Installation"

 (front caliper 1 piston

type),

BR-57, "BRAKE CALIPER ASSEMBLY (FRONT CALIPER 2 PISTON TYPE) : Removal and Instal-

lation"

 (front caliper 2 piston type).

CAUTION:

• Put matching marks on the disc rotor and the wheel hub and bearing assembly when reusing the

disc rotor.

• Never drop disc rotor.

3.

If disc rotor cannot be removed, remove as follows:

a.

Fix the disc rotor with wheel nuts and remove the adjusting hole plug.

1.

Brake shoe

2.

Adjuster

3.

Adjuster spring

4.

Return spring

5.

Anti-rattle pin

6.

Retainer

7.

Anti-rattle spring

8.

Toggle lever

 : Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease.

JPFIB0006ZZ
