IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

MWI-139

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

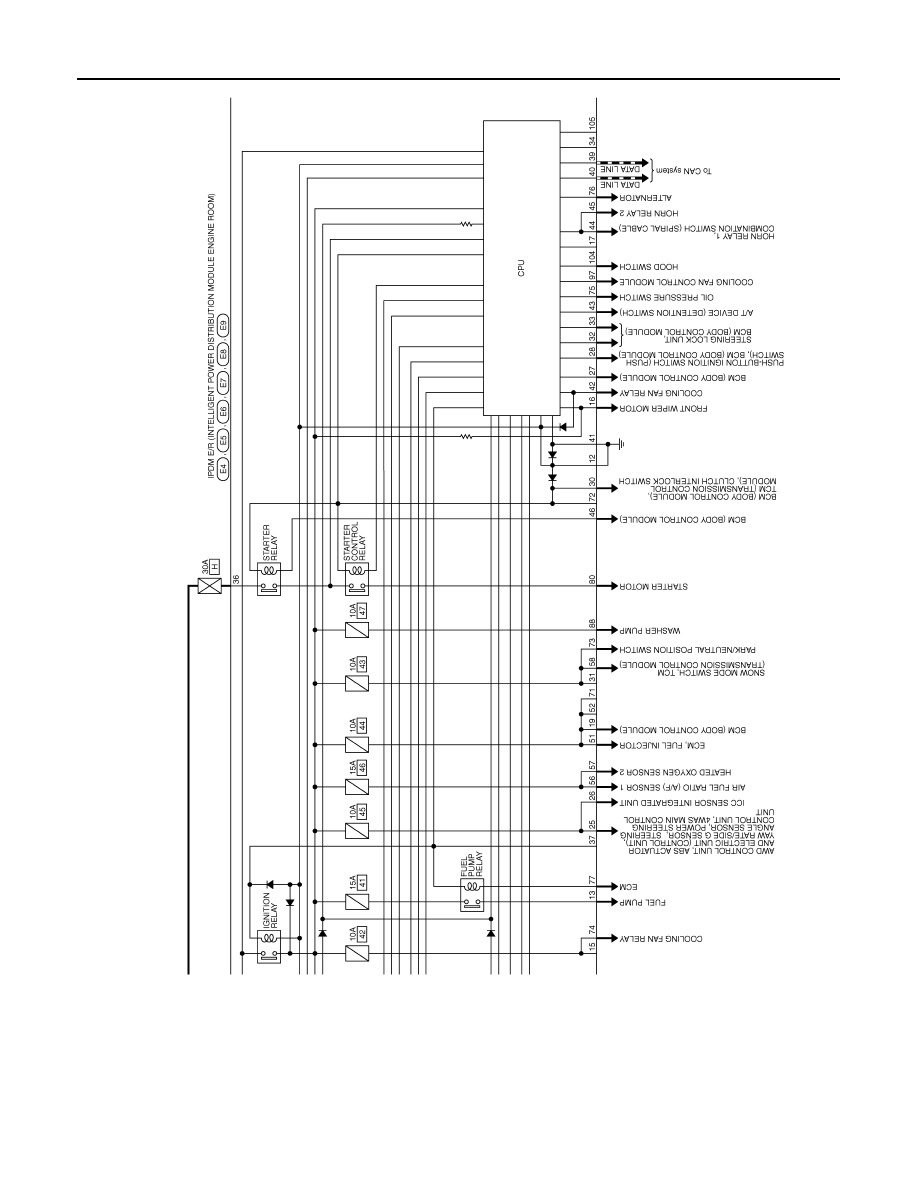

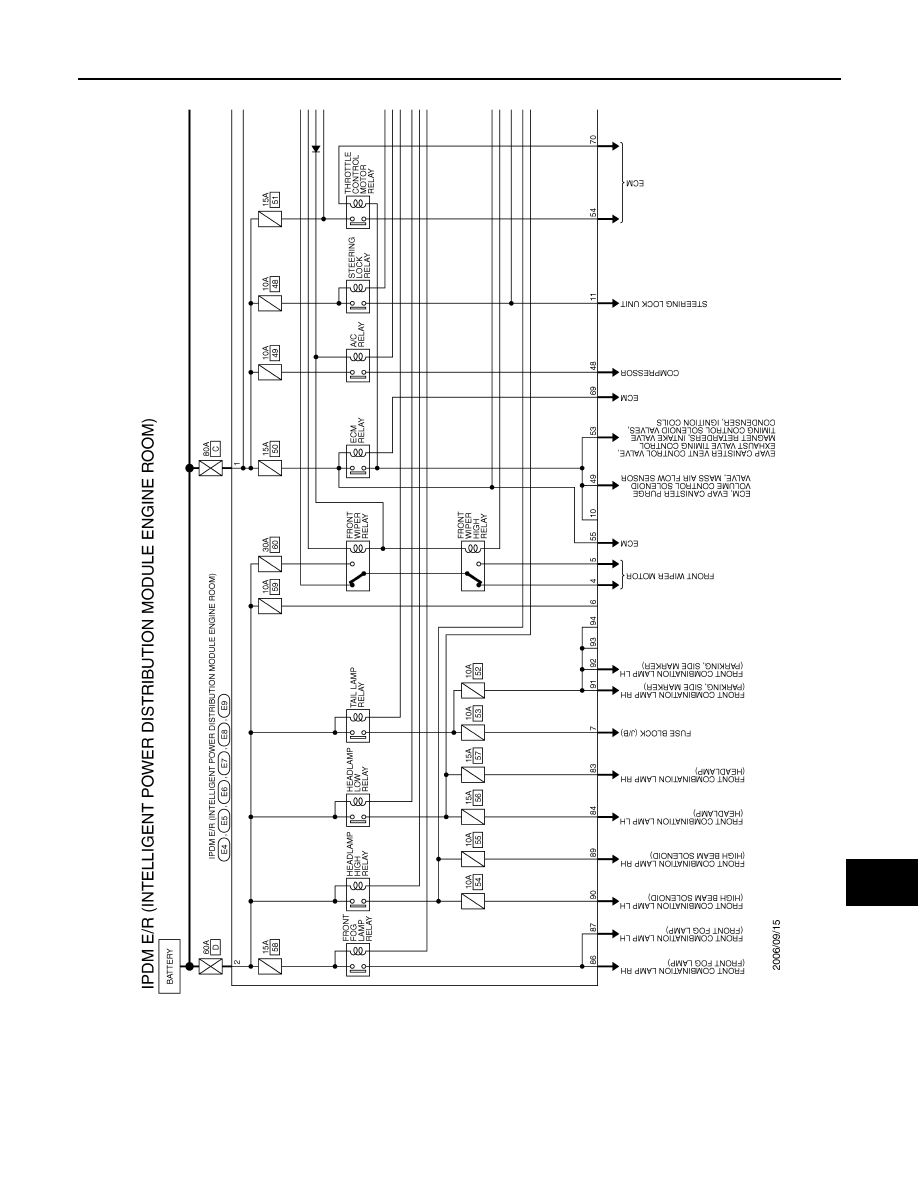

Wiring Diagram — IPDM E/R —

INFOID:0000000000964432

JCMWA0017GB

MWI-140

< ECU DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

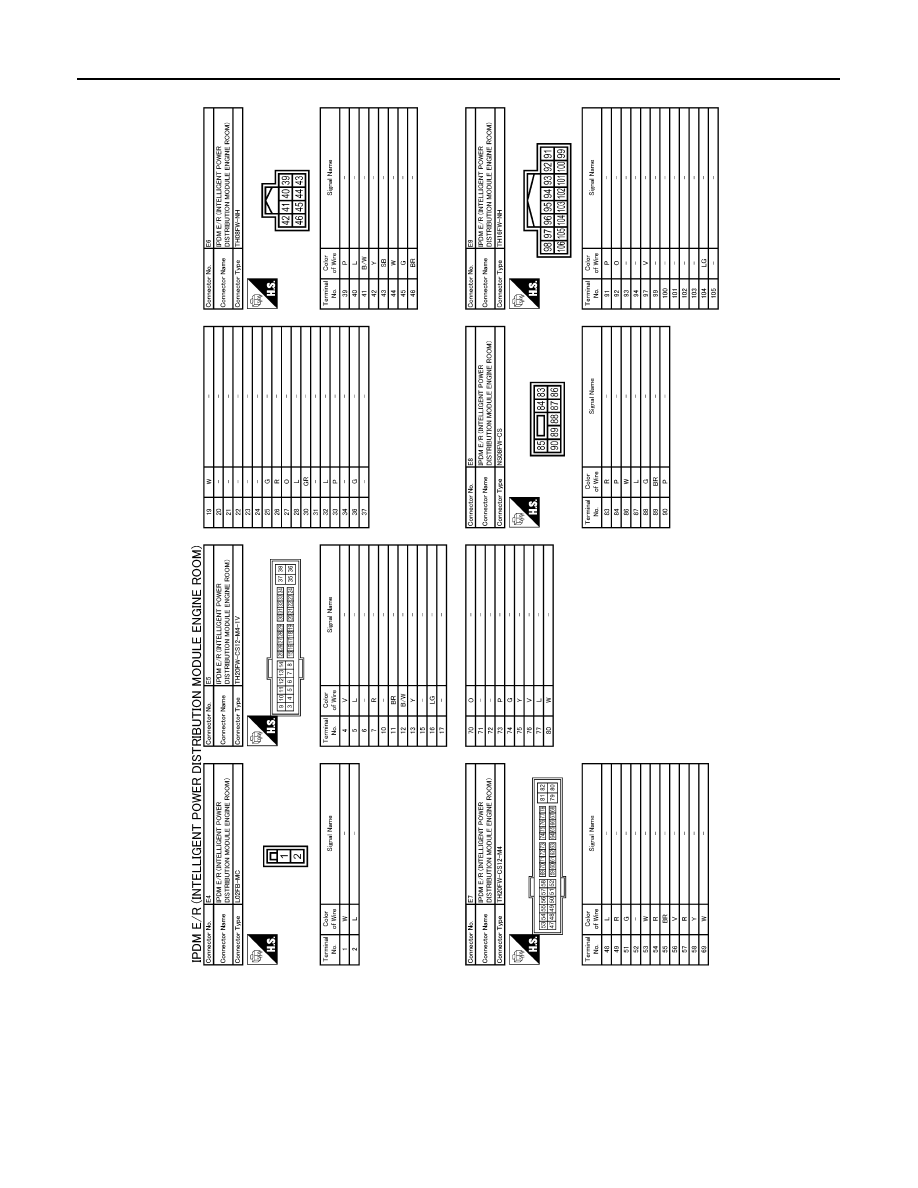

JCMWA0018GB

MWI

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

MWI-141

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

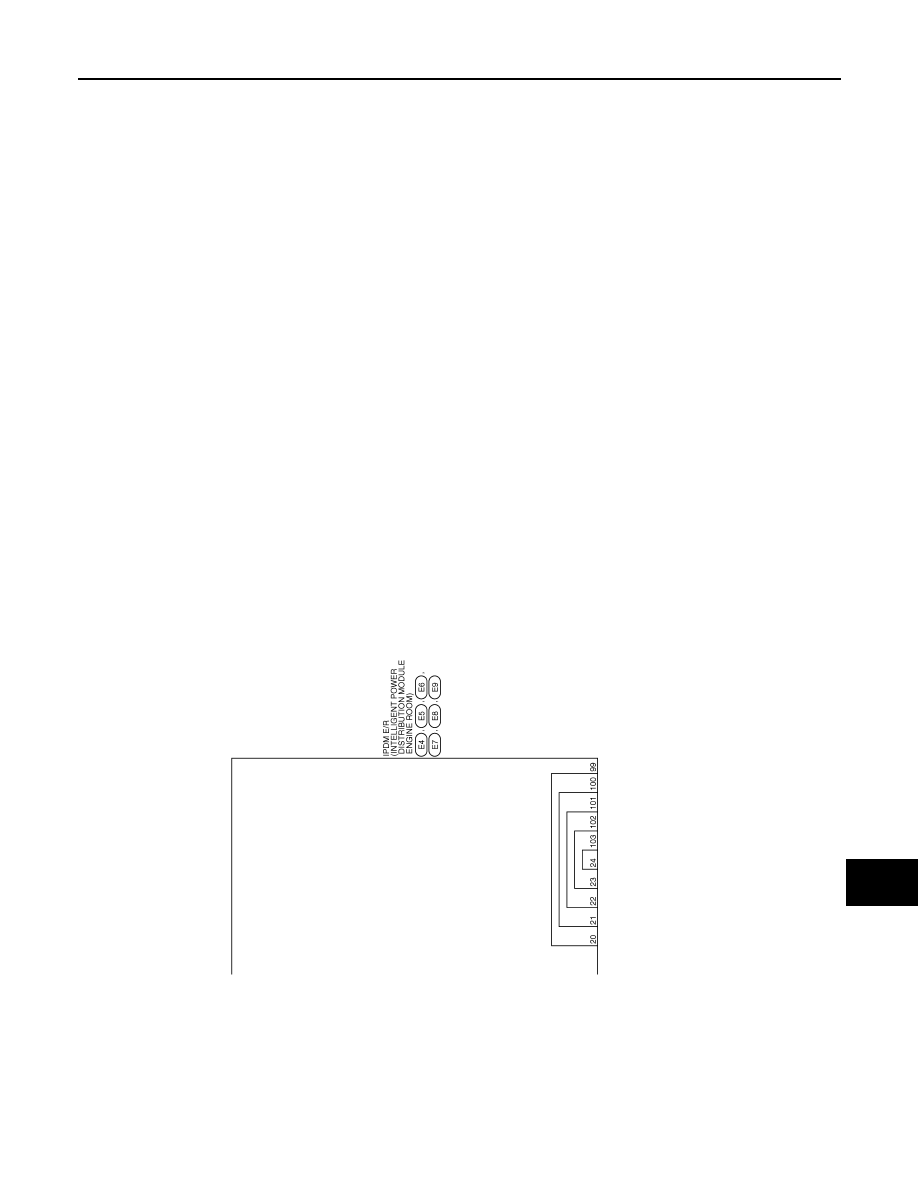

JCMWA0019GB

MWI-142

< ECU DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Fail Safe

INFOID:0000000000964433

CAN COMMUNICATION CONTROL

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With ECM

JCMWA0020GB
