Infiniti G35 (V35) Sedan. Manual - part 958





MWI

PARKING BRAKE SWITCH SIGNAL CIRCUIT

MWI-59

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

PARKING BRAKE SWITCH SIGNAL CIRCUIT

Description

INFOID:0000000000964409

Transmits the parking brake switch signal to the combination meter.

Diagnosis Procedure (A/T model)

INFOID:0000000000964410

1.

CHECK COMBINATION METER INPUT SIGNAL

1.

Turn ignition switch ON.

2.

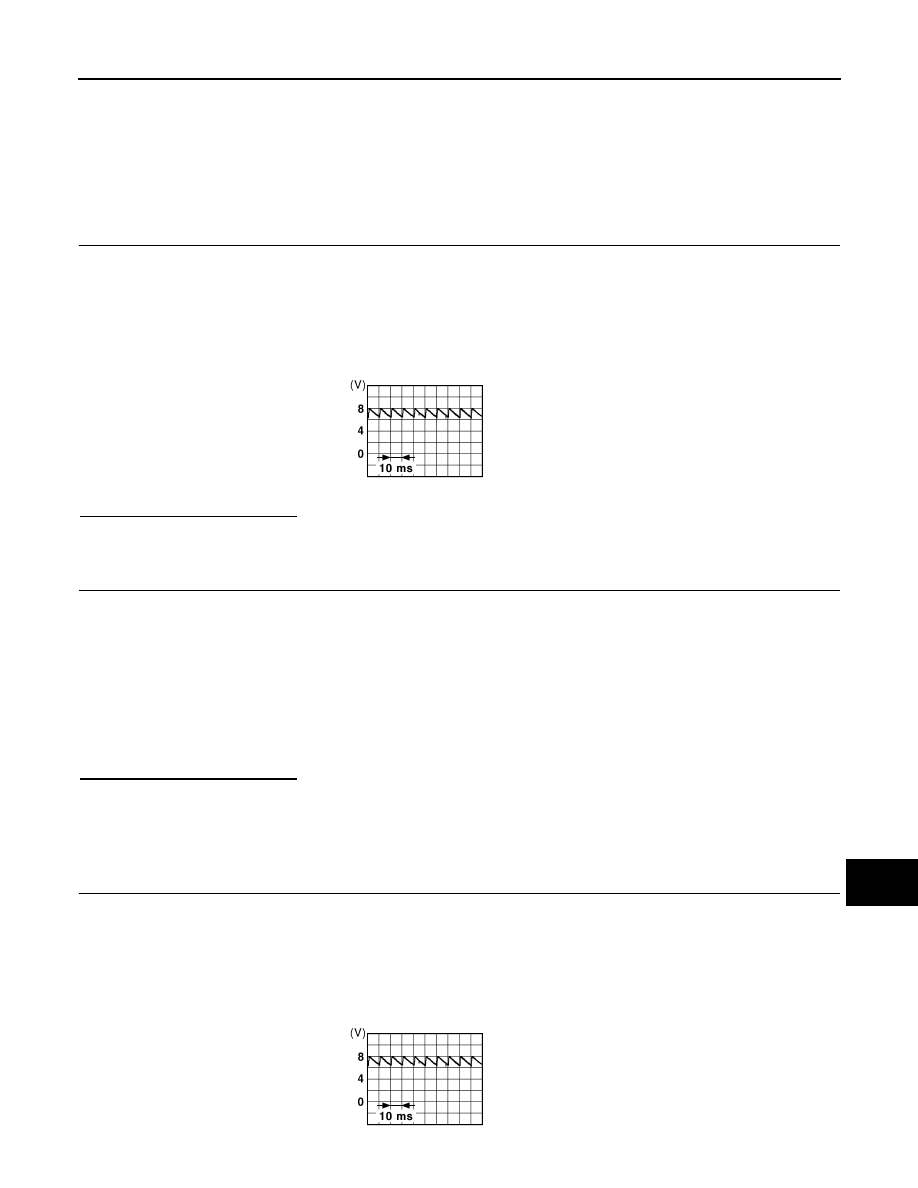

Check the voltage and waveform between combination meter harness connector M53 terminal 27 and
ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK PARKING BRAKE SWITCH SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and parking brake switch connector.

3.

Check continuity between combination meter harness connector M53 terminal 27 and parking brake
switch harness connector E107 terminal 1.

4.

Check continuity between combination meter harness connector M53 terminal 27 and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Diagnosis Procedure (M/T model)

INFOID:0000000000964411

1.

CHECK COMBINATION METER INPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check the voltage and waveform between combination meter harness connector M53 terminal 27 and
ground.

27 - Ground

Parking brake ON :

Approx. 0 V

Parking brake OFF :

JSNIA0007GB

27 - 1

: Continuity should exist.

27 - Ground

: Continuity should not exist.

27 - Ground

Parking brake ON :

Approx. 0 V

Parking brake OFF :

JSNIA0007GB

MWI-60

< COMPONENT DIAGNOSIS >

PARKING BRAKE SWITCH SIGNAL CIRCUIT

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK PARKING BRAKE SWITCH SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and parking brake switch connector.

3.

Check continuity between combination meter harness connector M53 terminal 27 and parking brake
switch harness connector B14 terminal 1.

4.

Check continuity between combination meter harness connector M53 terminal 27 and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000000964412

1.

CHECK PARKING BRAKE SWITCH

Check parking brake switch. Refer to

BRC-69, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace parking brake switch.

27 - 1

: Continuity should exist.

27 - Ground

: Continuity should not exist.

MWI

WASHER LEVEL SWITCH SIGNAL CIRCUIT

MWI-61

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

WASHER LEVEL SWITCH SIGNAL CIRCUIT

Description

INFOID:0000000000964413

Transmits the washer level switch signal to the combination meter.

Diagnosis Procedure

INFOID:0000000000964414

1.

CHECK WASHER LEVEL SWITCH SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and washer level switch connector.

3.

Check continuity between combination meter harness connector M53 terminal 31 and washer level switch
harness connector E32 terminal 1.

4.

Check continuity between combination meter harness connector M53 terminal 31 and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000000964415

1.

CHECK WASHER LEVEL SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect washer level switch connector.

3.

Check washer level switch.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace washer level switch. Refer to

WW-81, "Removal and Installation"

.

31 - 1

: Continuity should exist.

31 - Ground

: Continuity should not exist.

Terminal

Washer level switch

Continuity

1 - 2

ON

Yes

OFF

No

MWI-62

< COMPONENT DIAGNOSIS >

COMPASS

COMPASS

Wiring Diagram —  COMPASS —

INFOID:0000000000964416

JCNWA0012GB
