SPEEDOMETER : Component Parts Location

INFOID:0000000000964332

SPEEDOMETER : Component Description

INFOID:0000000000964333

JSNIA0042ZZ

1.

Unified meter and A/C amp.

2.

BCM

3.

IPDM E/R

4.

Oil pressure switch

5.

Ambient sensor

6.

Combination meter

7.

Fuel level sensor unit (main)

8.

Fuel level sensor unit and fuel pump
(sub)

A.

Behind cluster lid C

B.

2WD [oil pan (upper) RH side]

C.

AWD (oil filter bracket part)

D.

Condenser (front)

E.

Rear seat (lower right)

F.

Rear seat (lower left)

Unit

Description

Combination meter

Indicates the vehicle speed according to the vehicle speed signal received from the unified meter
and A/C amp. by means of communication line.

Unified meter and A/C amp.

Transmits the vehicle speed signal received from ABS actuator and electric unit (control unit) with
CAN communication line to the combination meter by means of communication line.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the unified meter and A/C amp. with CAN communication
line.

MWI-12

< FUNCTION DIAGNOSIS >

METER SYSTEM

TACHOMETER

TACHOMETER : System Diagram

INFOID:0000000000964334

TACHOMETER : System Description

INFOID:0000000000964335

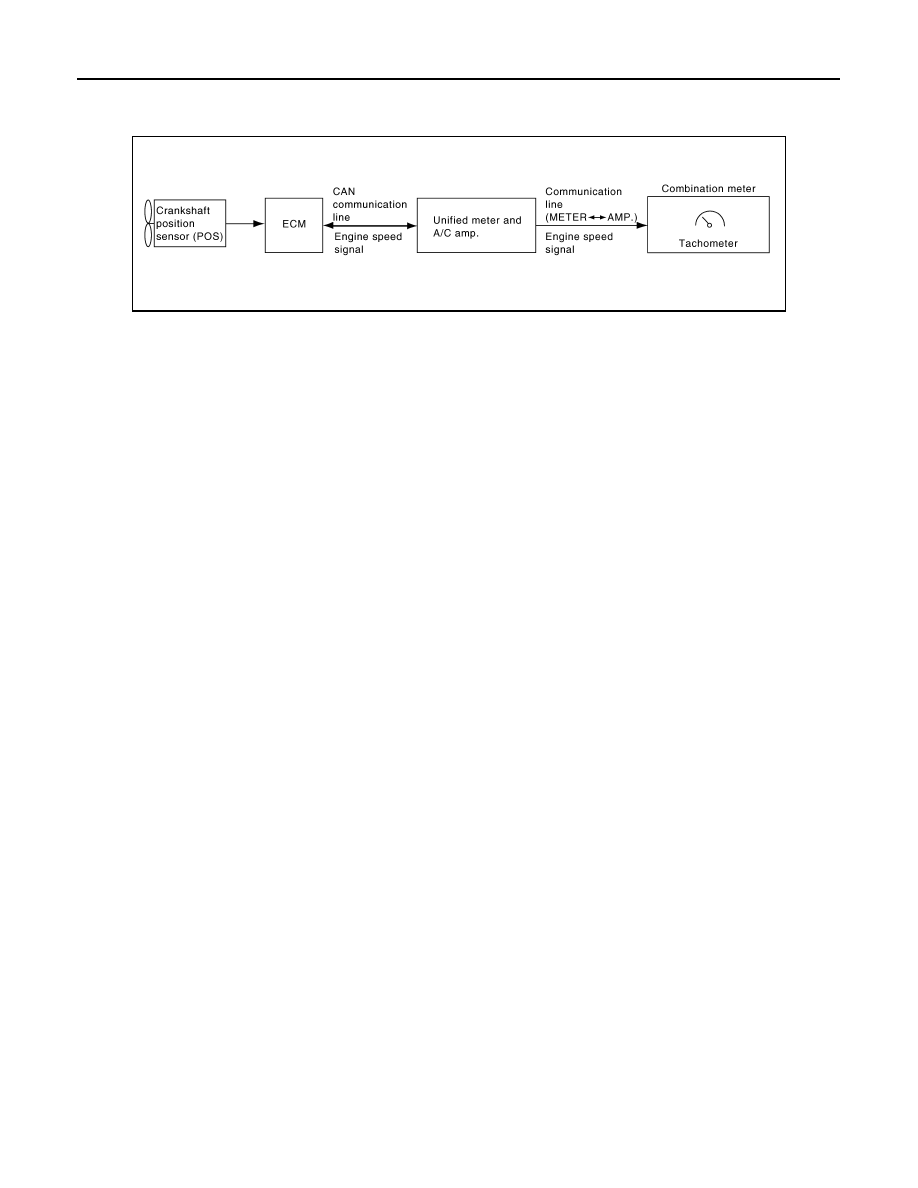

• ECM converts the pulse signal provided by the crankshaft position sensor to an engine speed signal and

transmits it to the unified meter and A/C amp. with CAN communication line.

• Unified meter and A/C amp. transmits engine speed signal to combination meter with communication line.
• The unified meter and A/C amp. receives the engine speed signal from ECM with CAN communication line

and transmits it to the combination meter by means of communication line.

• Combination meter converses engine speed signal to the angle signal, and commands to tachometer.

JSNIA0160GB

MWI

METER SYSTEM

MWI-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

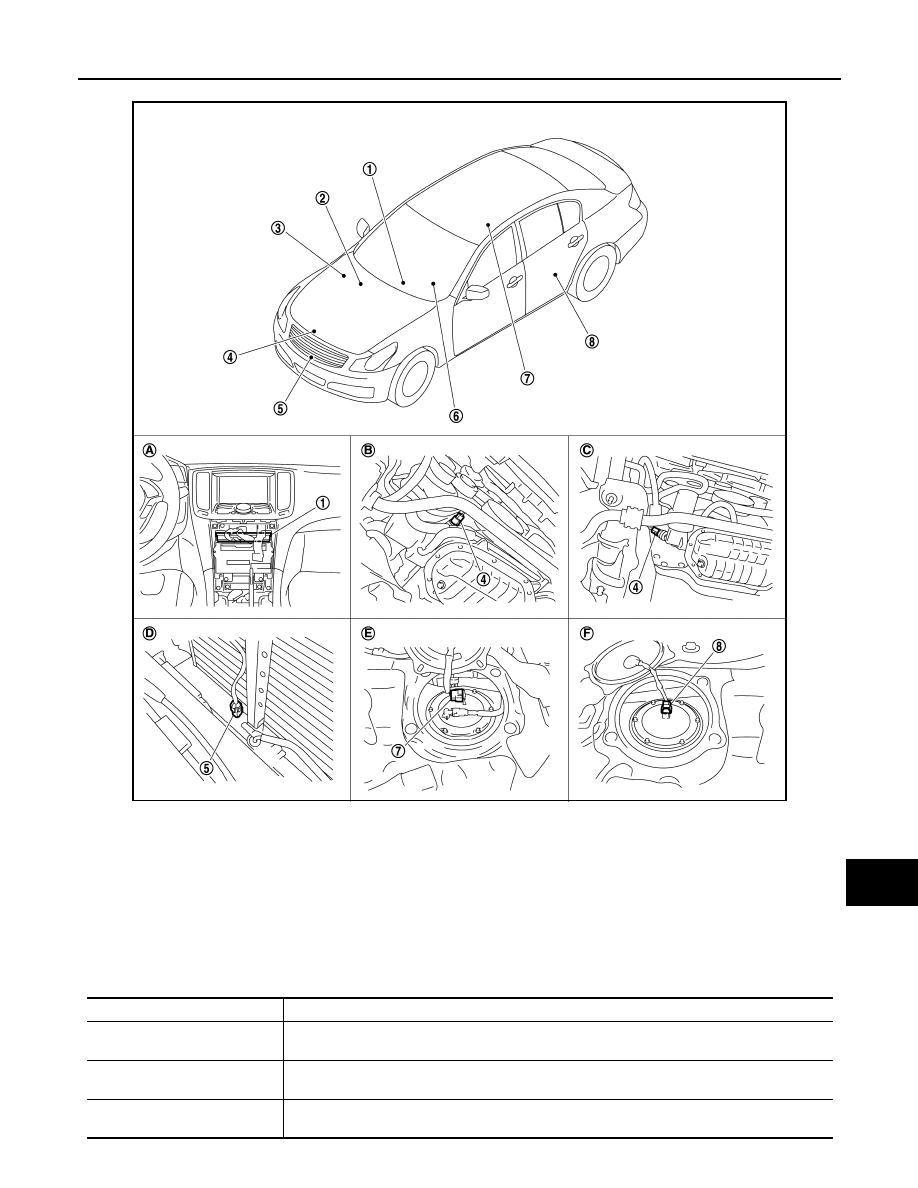

TACHOMETER : Component Parts Location

INFOID:0000000000964336

TACHOMETER : Component Description

INFOID:0000000000964337

JSNIA0042ZZ

1.

Unified meter and A/C amp.

2.

BCM

3.

IPDM E/R

4.

Oil pressure switch

5.

Ambient sensor

6.

Combination meter

7.

Fuel level sensor unit (main)

8.

Fuel level sensor unit and fuel pump
(sub)

A.

Behind cluster lid C

B.

2WD [oil pan (upper) RH side]

C.

AWD (oil filter bracket part)

D.

Condenser (front)

E.

Rear seat (lower right)

F.

Rear seat (lower left)

Unit

Description

Combination meter

Indicates the engine speed according to the engine speed signal received from the unified meter
and A/C amp. by means of communication line.

Unified meter and A/C amp.

Transmits the engine speed signal received from ECM with CAN communication line to the com-
bination meter by means of communication line.

ECM

Transmits the engine speed signal to the unified meter and A/C amp. with CAN communication
line.

MWI-14

< FUNCTION DIAGNOSIS >

METER SYSTEM

ENGINE COOLANT TEMPERATURE GAUGE

ENGINE COOLANT TEMPERATURE GAUGE : System Diagram

INFOID:0000000000964338

ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000000964339

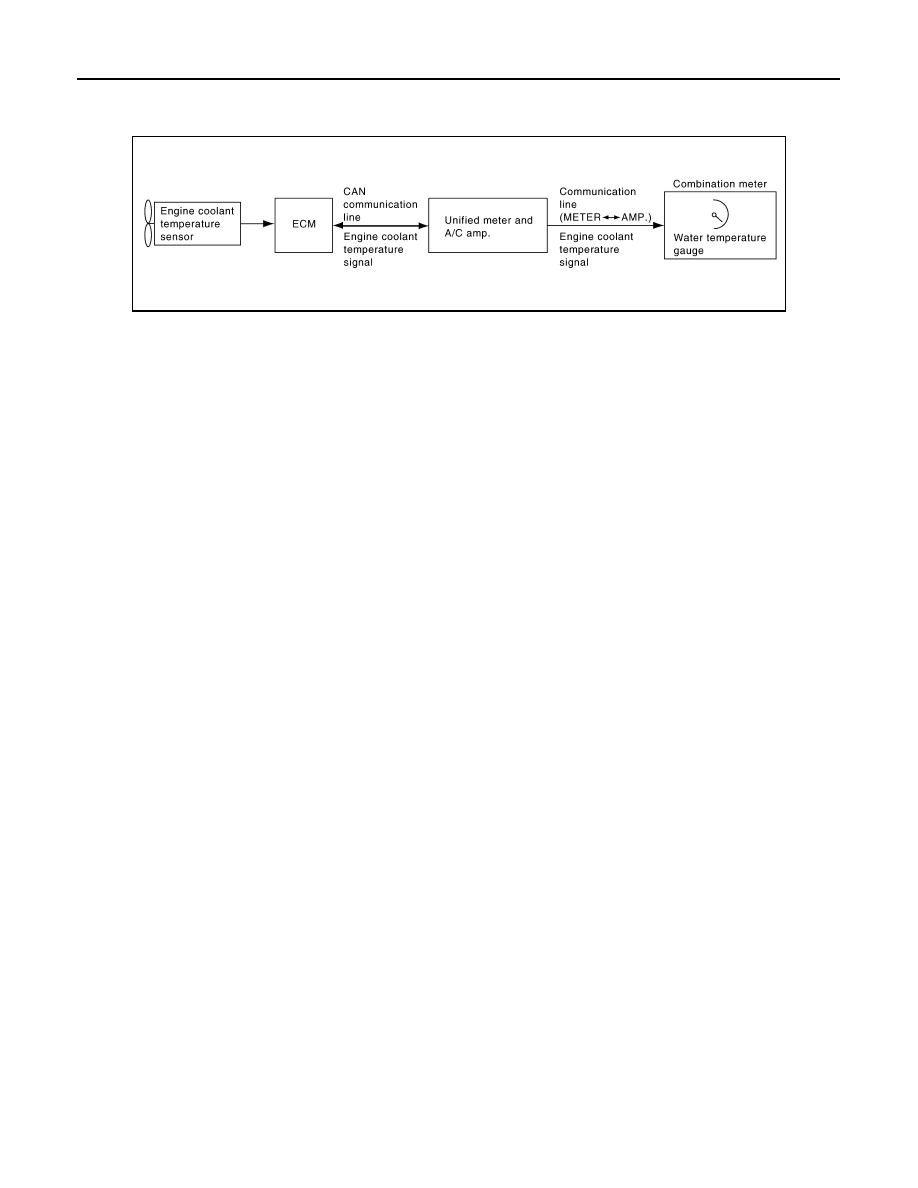

• ECM converses a signal from engine coolant temperature sensor to engine coolant temperature signal, and

transmits to unified meter and A/C amp. with CAN communication line.

• Unified meter and A/C amp. transmits engine coolant temperature signal to combination meter with commu-

nication line.

• Combination meter converses engine coolant temperature signal to the angle signal, and commands to

engine coolant temperature gauge.

JSNIA0162GB
