Infiniti G35 (V35) Sedan. Manual - part 945





MWI

METER SYSTEM

MWI-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

Information
display

Door open warning

Receives door switch signals and displays warn-
ing.

BCM

X

Trunk open warning

Receives trunk lid opener switch signal and dis-
plays warning.

BCM

X

Parking brake re-
lease warning

Receives parking brake switch signal and vehicle
speed signal and displays warnings.

Parking brake switch

ABS actuator and elec-
tric unit (control unit)

X

Low fuel warning

Receives fuel gauge signal and displays warning

if fuel level decreases to 12

 (3-1/8 US gal, 2-5/

8 Imp gal) or less.

Fuel level sensor unit

X

Low washer fluid
warning

Receives washer level switch signal and displays
warning.

Washer level switch

Low outside tempera-
ture warning

Monitors ambient sensor signal and displays
warning if ambient temperature decreases to 3

°

(37

°

F) or less. (If enabled)

Ambient sensor

X

Instantaneous fuel
consumption

Calculates instantaneous fuel consumption based
on received vehicle speed signals and fuel con-
sumption monitor signal and displays it.

ECM

X

ABS actuator and elec-
tric unit (control unit)

X

Average fuel con-
sumption

Calculates average fuel consumption in a reset-
to-reset interval based on received vehicle speed
signals and fuel consumption monitor signal and
displays it.

ECM

X

ABS actuator and elec-
tric unit (control unit)

X

Average vehicle
speed

Calculates average vehicle speed in a reset-to-re-
set interval based on received vehicle speed sig-
nals and displays it.

ABS actuator and elec-
tric unit (control unit)

X

Travel time

Displays accumulated key switch ON time from
reset to reset.

X

Travel distance

Calculates accumulated travel distance in a reset-
to-reset interval based on received vehicle speed
signals and displays it.

ABS actuator and elec-
tric unit (control unit)

X

Possible driving dis-
tance

The unified meter and A/C amp. calculates the
possible driving distance according to the vehicle
speed signal and the fuel level sensor unit re-
ceived with CAN communication line, and trans-
mits it to the combination meter by means of
communication line.

ABS actuator and elec-
tric unit (control unit)

X

Fuel level sensor unit

X

Ambient air tempera-
ture

Corrects ambient temperature value based on re-
ceived ambient sensor signals and displays it.

Ambient sensor

X

System

Description

Signal source

Via unified

meter and A/C

amp.

MWI-8

< FUNCTION DIAGNOSIS >

METER SYSTEM

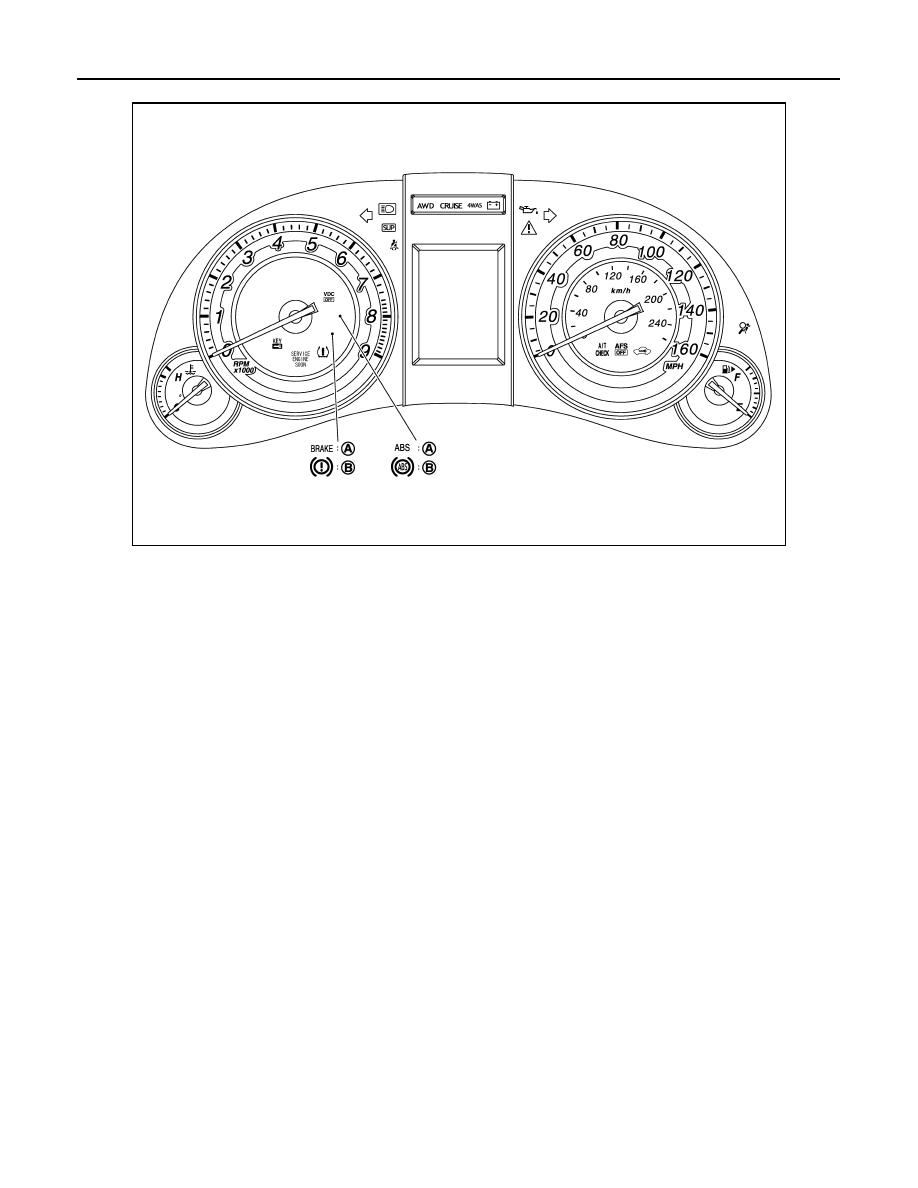

ARRANGEMENT OF COMBINATION METER

JSNIA0035GB

A.

U.S.A.

B.

Canada

MWI

METER SYSTEM

MWI-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

METER SYSTEM : Component Parts Location

INFOID:0000000000964328

METER SYSTEM : Component Description

INFOID:0000000000964329

JSNIA0042ZZ

1.

Unified meter and A/C amp.

2.

BCM

3.

IPDM E/R

4.

Oil pressure switch

5.

Ambient sensor

6.

Combination meter

7.

Fuel level sensor unit (main)

8.

Fuel level sensor unit and fuel pump
(sub)

A.

Behind cluster lid C

B.

2WD [oil pan (upper) RH side]

C.

AWD (oil filter bracket part)

D.

Condenser (front)

E.

Rear seat (lower right)

F.

Rear seat (lower left)

Unit

Description

Combination meter

Controls the following with the signals from the unified meter and A/C amp, switches and sensors.

• Speedometer

• Tachometer

• Engine coolant temperature gauge

• Fuel gauge

• Warning lamps

• Indicator lamps

• Information display

• Warning chime

MWI-10

< FUNCTION DIAGNOSIS >

METER SYSTEM

SPEEDOMETER

SPEEDOMETER : System Diagram

INFOID:0000000000964330

SPEEDOMETER : System Description

INFOID:0000000000964331

• The ABS actuator and electric unit (control unit) converts the pulse signal provided by the wheel sensor to a

vehicle speed signal and transmits it to the unified meter and A/C amp. with CAN communication line.

• The unified meter and A/C amp. receives the vehicle speed signal from the ABS actuator and electric unit

(control unit) with CAN communication line and transmits it to the combination meter by means of communi-
cation line.

• The combination meter indicates the vehicle speed according to the vehicle speed signal received from the

unified meter and A/C amp. by means of communication line.

Unified meter and A/C amp.

• The combination meter receives the necessary information from various units via CAN communi-

cation line and transmits them to the unified meter and A/C amp. with the communication line that
connects both of them.

• Transmits the fuel gauge signal from the fuel gauge unit with the communication line that connects

the unified meter and A/C amp. and the combination meter.

• Reads the signals from the A/T device and paddle shifter and transmits them to TCM with CAN

communication line.

IPDM E/R

IPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch
signal to the unified meter and A/C amp. via BCM with CAN communication line.

Fuel level sensor unit

Refer to

MWI-53, "Description"

.

Oil pressure switch

Refer to

MWI-58, "Description"

.

ECM

Transmits the following signals to the unified meter and A/C amp. with CAN communication line.

• Engine speed signal

• Engine coolant temperature signal

• Fuel consumption monitor signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the unified meter and A/C amp. with CAN communication line.

BCM

• Transmits signals provided by various units to the unified meter and A/C amp. with CAN commu-

nication line.

• Transmits the security signal to the combination meter.

A/T device

Transmits the following signals to the unified meter and A/C amp.

• Manual mode signal

• Not manual mode signal

• Manual mode shift up signal

• Manual mode shift down signal

Paddle shifter

Transmits the paddle shifter up signal and paddle shifter down signal to the unified meter and A/C
amp.

TCM

Transmits shift position signal to the unified meter and A/C amp.

Meter control switch

Refer to

MWI-56, "Description"

.

Washer level switch

Transmits the washer level signal to the combination meter.

Brake fluid level switch

Transmits the brake fluid level switch signal to the combination meter.

Parking brake switch

Refer to

MWI-59, "Description"

.

Unit

Description

JSNIA0158GB
