ON-VEHICLE MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000000962381

BASIC INSPECTION

1.

INSPECTION START

1.

Check the service history.

2.

Check the following parts.

• Fuse/circuit breaker blown.
• Poor connection, open or short circuit of harness connector.
• Battery voltage.

Is the inspection result normal?

YES

>> Inspection end.

NO

>> Repair or replace the malfunctioning parts.

MIR-96

< ON-VEHICLE REPAIR >

[WITHOUT ADP]

INSIDE MIRROR

ON-VEHICLE REPAIR

INSIDE MIRROR

Exploded View

INFOID:0000000000962382

Removal and Installation

INFOID:0000000000962383

REMOVAL

1.

Remove inside mirror finisher (if equipped).

2.

Remove nut of mirror base.

3.

Slide the mirror upward to remove.

4.

Disconnect the connector (if equipped).

INSTALLATION

Install in the reverse order of removal.

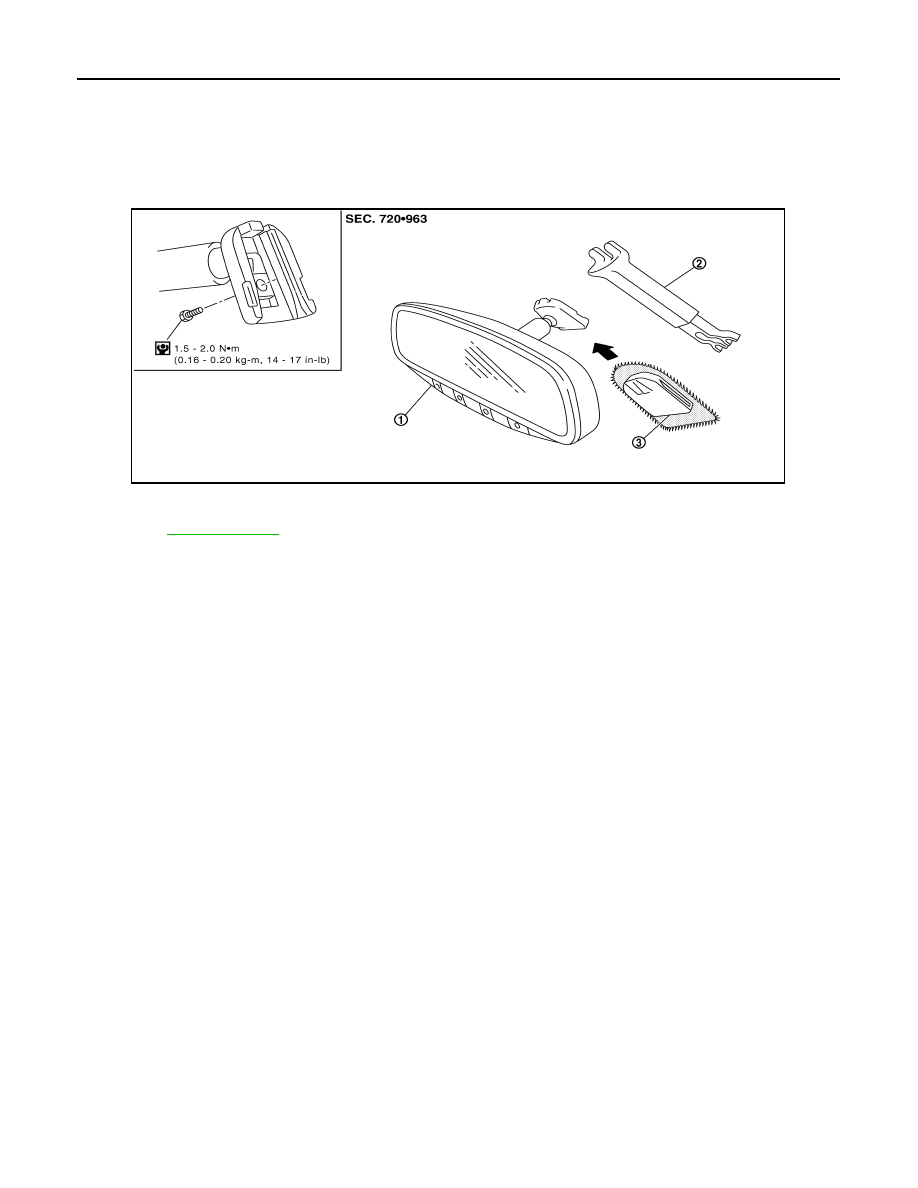

1.

Inside mirror

2.

Inside mirror finisher (if equipped)

3.

Mirror base

Refer to

GI-4, "Components"

 for symbols in the figure.

PIIB5780E

DOOR MIRROR

MIR-97

< ON-VEHICLE REPAIR >

[WITHOUT ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR

Exploded View

INFOID:0000000000962384

Removal and Installation

INFOID:0000000000962385

REMOVAL

1.

Remove the front door finisher. Refer to

INT-10, "Removal and Installation"

.

2.

Remove the corner cover.

3.

Disconnect the door mirror harness connector.

4.

Remove the door mirror mounting nuts, and remove the door mirror assembly.

CAUTION:

Do not damage the mirror bodies.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Do not damage the mirror bodies.

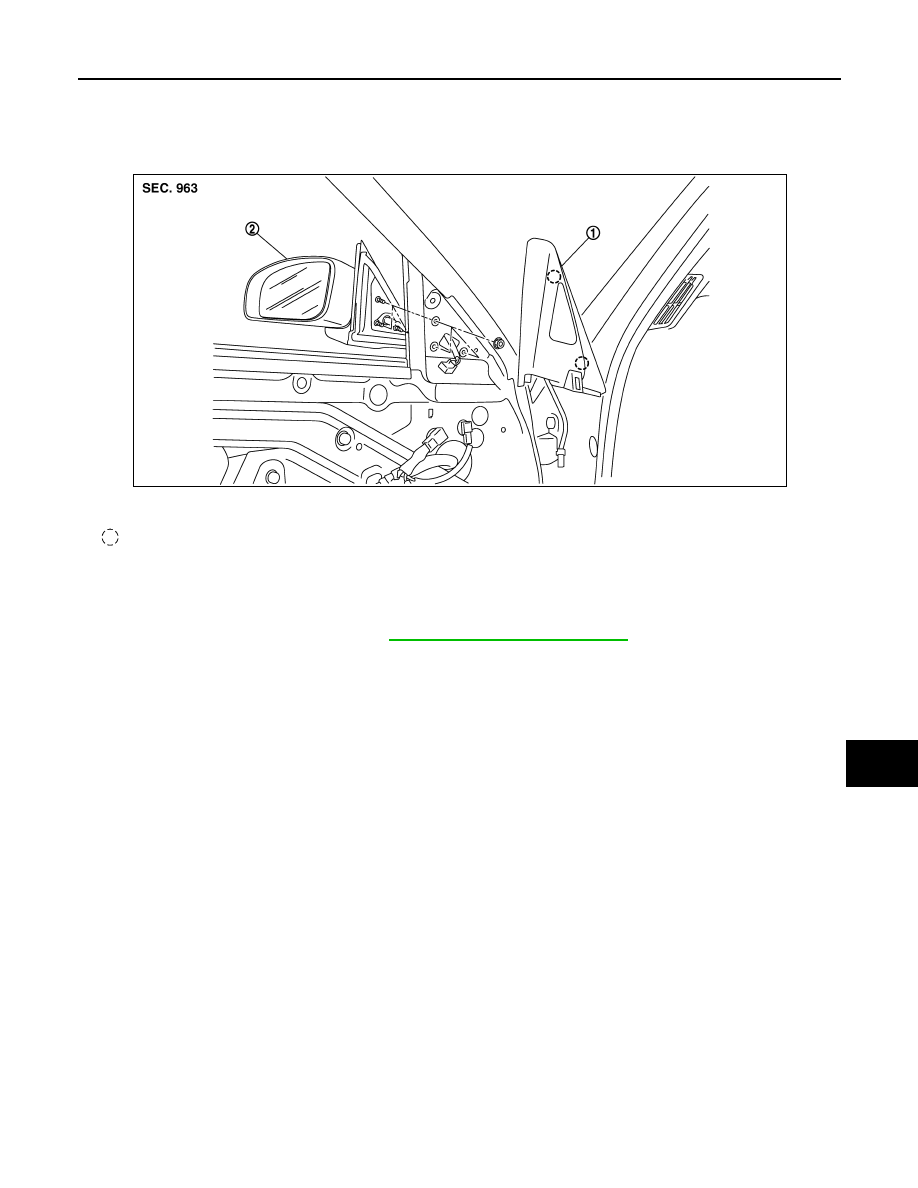

1.

Corner cover

2.

Door mirror assembly

Clip

JMLIA0001ZZ

MIR-98

< ON-VEHICLE REPAIR >

[WITHOUT ADP]

DOOR MIRROR REMOTE CONTROL SWITCH

DOOR MIRROR REMOTE CONTROL SWITCH

Exploded View

INFOID:0000000000962386

Refer to

INT-10, "Exploded View"

.

Removal and Installation

INFOID:0000000000962387

REMOVAL

1.

Remove the power window main switch finisher (2).
 Refer to

INT-10, "Removal and Installation"

.

2.

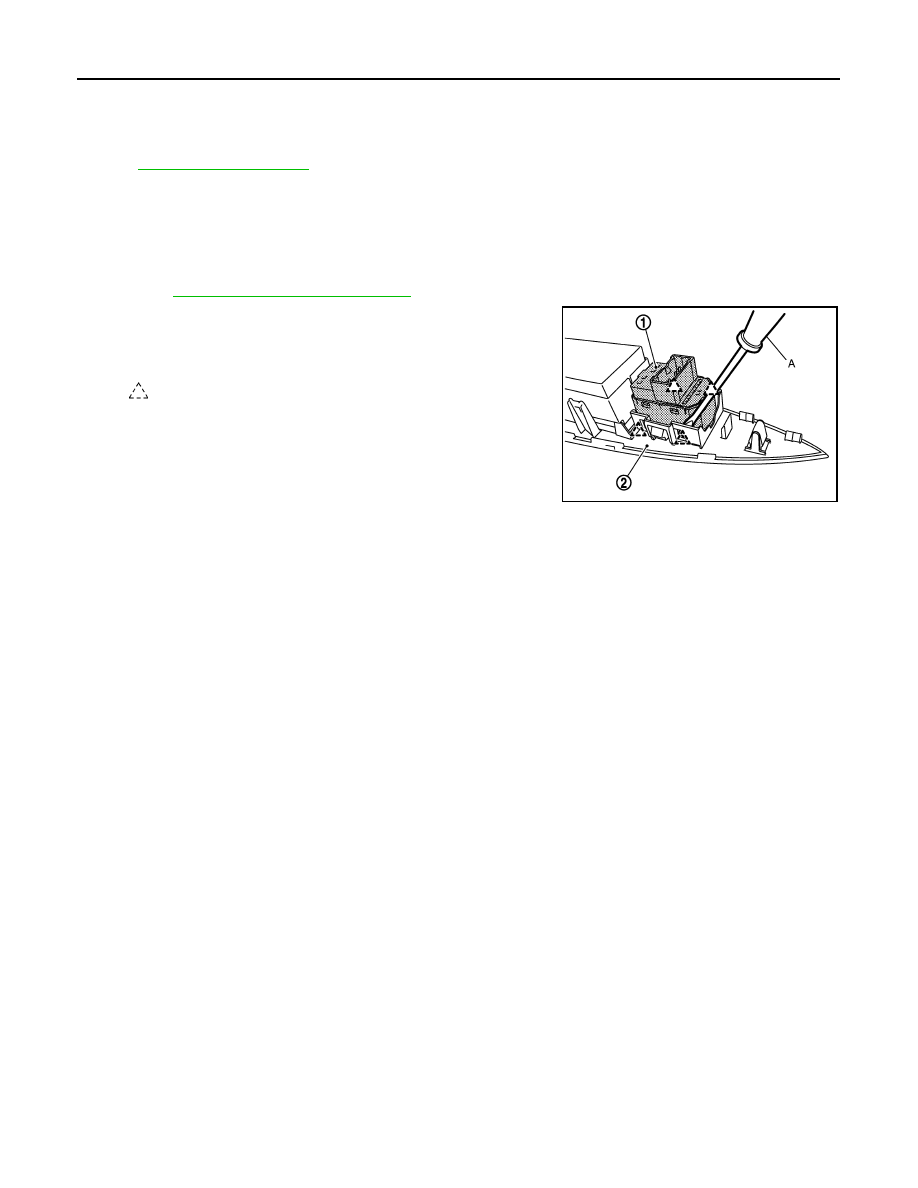

Remove door mirror remote control switch (1) from power win-
dow main switch finisher (2) using screw driver (A).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMLIA0011ZZ
