Infiniti G35 (V35) Sedan. Manual - part 919





MIR-4

< BASIC INSPECTION >

[WITH ADP]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000000962307

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-
tion occurred) as much as possible when the customer brings the vehicle in.

>> GO TO 2.

2.

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.
Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 3.

3.

PERFORM “BASIC INSPECTION”

Perform the basic inspection.Refer to

MIR-65, "Basic Inspection"

.

>> GO TO 4.

4.

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 2. Then identify where to start perform-
ing the diagnosis based on possible causes and symptoms.

>> GO TO 5.

5.

IDENTIFY MALFUNCTIONING PARTS WITH “COMPONENT DIAGNOSIS”

Perform the diagnosis with “Component diagnosis” of the applicable system.

>> GO TO 6.

6.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 7.

7.

FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,
referring to the symptom inspection result in step 2.

Is the malfunctioning part repaired or replaced?

YES

>> Trouble diagnosis is completed.

NO

>> GO TO 3.

DOOR MIRROR SYSTEM

MIR-5

< FUNCTION DIAGNOSIS >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

FUNCTION DIAGNOSIS

DOOR MIRROR SYSTEM

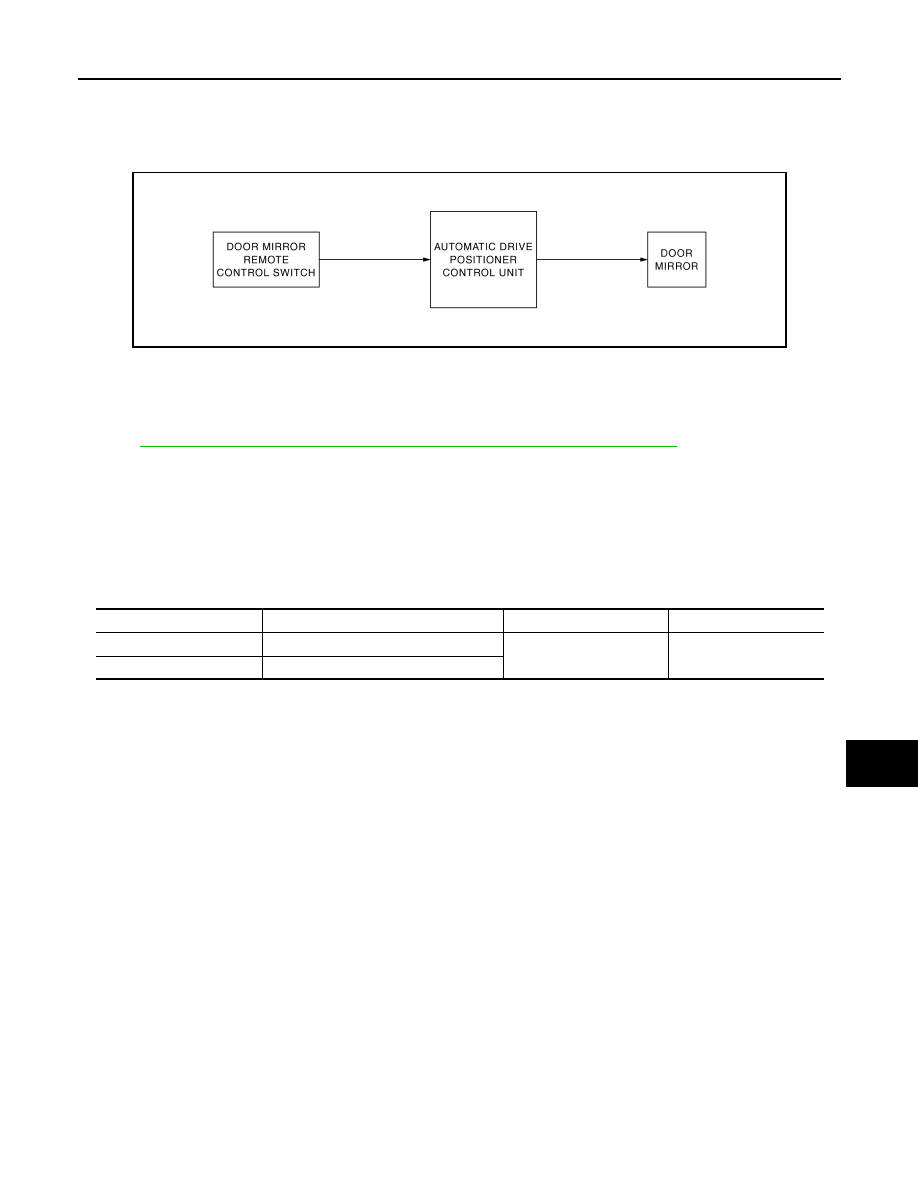

System Diagram

INFOID:0000000000962308

System Description

INFOID:0000000000962309

Automatic drive positioner linked operation

Refer to

ADP-15, "AUTOMATIC DRIVE POSITIONER SYSTEM : System Description"

 Manual operation

• Automatic drive positioner (ADP) control unit receives changeover switch signal and perform the LH/RH

control of door mirror motor that supplies electric power when changeover switch is operated.

• Automatic drive positioner control unit receives mirror switch signal and supplies electric power to door mir-

ror motor when mirror switch is operated.

INPUT/OUTPUT SIGNAL CHART

Component Parts Location

INFOID:0000000000962310

JMLIA0006GB

Switch

Input Signal to ADP

ADP function

Acutuator

Mirror switch

Mirror switch signal

Door mirror motor control

Door mirror motor

Changeover switch

Changeover switch signal

MIR-6

< FUNCTION DIAGNOSIS >

[WITH ADP]

DOOR MIRROR SYSTEM

Component Description

INFOID:0000000000962311

1.

Door mirror remote control switch D7 2.

Door mirror (driver side) D3

3.

Door mirror (passenger side) D33

4.

Automatic drive positioner control
unit M51,M52

A,

View with instrument driver lower
panel removed

JMLIA0004ZZ

Component

Function

Automatic drive positioner control
unit

Door mirror is supplied with power after receiving the input of the MIRROR SWITCH and
CHANGEOVER SWITCH.

Mirror switch

It transmits mirror face adjust operation to AUTOMATIC DRIVE POSITIONER CONTROL
UNIT.

Changeover switch

It transmits the LH/RH control of door mirror that supplies power to AUTOMATIC DRIVE PO-
SITIONER CONTROL UNIT.

Door mirror

It makes mirror face operate from side to side and up and down via integrated motor.
