LU-16

< ON-VEHICLE REPAIR >

OIL PUMP

OIL PUMP

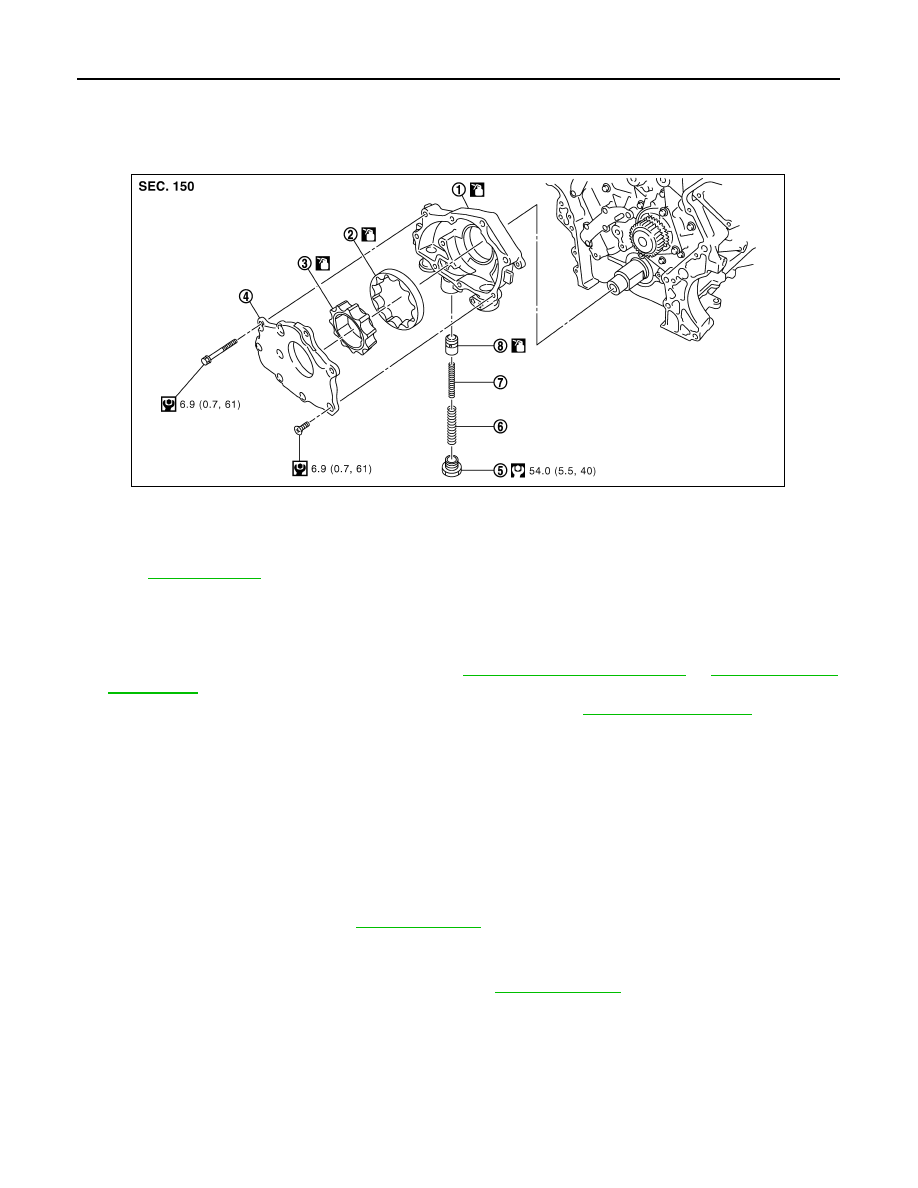

Exploded View

INFOID:0000000000956321

Removal and Installation

INFOID:0000000000956322

REMOVAL

1.

Remove oil pans (lower) and oil strainer. Refer to

EM-41, "Exploded View (2WD)"

 or

EM-41, "Exploded

View (AWD)"

.

2.

Remove front timing chain case and timing chain (primary). Refer to

EM-48, "Exploded View"

.

3.

Remove oil pump assembly.

INSTALLATION

CAUTION:

Before installation, apply new engine oil to the parts as instructed in the figure.
Note the following, and install in the reverse order of removal.
• When installing, align crankshaft flat faces with oil pump inner rotor flat faces.

Inspection

INFOID:0000000000956323

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-7, "Inspection"

.

2.

Start the engine, and check there is no leaks of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level and adjust the level. Refer to

LU-7, "Inspection"

.

1.

Oil pump body

2.

Oil pump outer rotor

3.

Oil pump inner rotor

4.

Oil pump cover

5.

Regulator valve plug

6.

Regulator valve spring

7.

Regulator valve spring

8.

Regulator valve

Refer to

GI-4, "Components"

 for symbol marks in the figure.

JPBIA0242GB

OIL PUMP

LU-17

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

DISASSEMBLY AND ASSEMBLY

OIL PUMP

Disassembly

INFOID:0000000000956324

1.

Remove oil pump cover.

2.

Remove oil pump inner rotor and oil pump outer rotor from oil pump body.

3.

After removing regulator valve plug, remove regulator valve spring and regulator valve.

Assembly

INFOID:0000000000956325

Note the following, and assemble in the reverse order of disassembly.
• Install oil pump inner rotor with the groove faced to oil pump cover

side.

Inspection

INFOID:0000000000956326

INSPECTION AFTER DISASSEMBLY

Oil Pump Clearance

• Measure the clearance with feeler gauge (C).
- Clearance between oil pump outer rotor and oil pump body [posi-

tion (B)]

- Tip clearance between oil pump inner rotor and oil pump outer

rotor [position (A)]

• Measure the clearance with feeler gauge and straightedge (A).
- Side clearance between oil pump inner rotor and oil pump body

[position (C)]

- Side clearance between oil pump outer rotor and oil pump body

[position (B)]

• Calculate the clearance between oil pump inner rotor and oil pump body as follows:

OIL PUMP BODY INNER DIAMETER

A

: Oil pump body side

B

: Oil pump cover side

C

:  Groove

JPBIA0084ZZ

Standard

: Refer to

LU-19, "Oil Pump"

.

Standard

: Refer to

LU-19, "Oil Pump"

.

JPBIA0078ZZ

Standard

: Refer to

LU-19, "Oil Pump"

.

Standard

: Refer to

LU-19, "Oil Pump"

.

JPBIA0079ZZ

LU-18

< DISASSEMBLY AND ASSEMBLY >

OIL PUMP

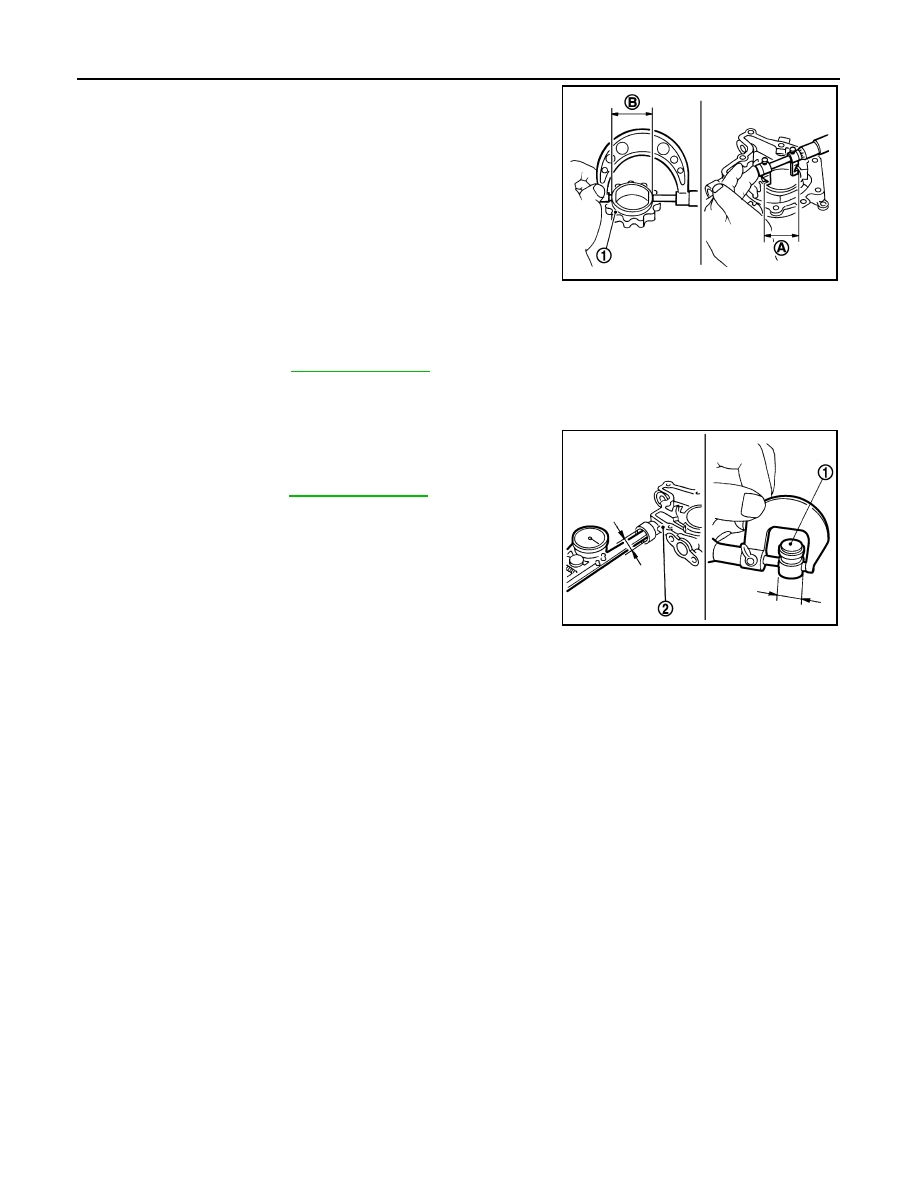

- Measure the inner diameter of oil pump body with inside microme-

ter. [position (A)]

OIL PUMP INNER ROTOR OUTER DIAMETER

- Measure the outer diameter of protruded portion of oil pump inner

rotor (1) with micrometer. [position (B)]

OIL PUMP INNER ROTOR TO OIL PUMP BODY CLEARANCE

- (Clearance) = (Oil pump body inner diameter) – (Oil pump inner rotor outer diameter)

• If measured/calculated values are out of the standard, replace oil pump assembly.

Regulator Valve Clearance

(Clearance) = (Regulator valve hole diameter) – (Regulator valve
outer diameter)

• If the calculated value is out of the standard, replace oil pump

assembly.

CAUTION:

• Coat regulator valve with engine oil.
• Make sure that it falls smoothly into valve hole by its own weight.

JPBIA0080ZZ

Standard

: Refer to

LU-19, "Oil Pump"

.

Standard

: Refer to

LU-19, "Oil Pump"

.

1

:  Regulator  valve

2

: Oil pump body

JPBIA0081ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

LU-19

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000000956327

ENGINE OIL CAPACITY (APPROXIMATE)

Unit:

 (US qt, lmp qt)

Engine Oil Pressure

INFOID:0000000000956328

Unit: kPa (kg/cm

2

, psi)

*: Engine oil temperature at 80

°

C (176

°

F)

Oil Pump

INFOID:0000000000956329

Unit: mm (in)

Regulator Valve

INFOID:0000000000956330

Unit: mm (in)

Drain and refill

With oil filter change

4.9 (5-1/8, 4-1/4)

Without oil filter change

4.6 (4-7/8, 4)

Dry engine (Overhaul)

5.5 (5-3/4, 4-7/8)

Engine speed

Approximate discharge pressure*

Idle speed

More than 98 (1.0, 14)

2,000 rpm

More than 294 (3.0, 43)

Oil pump body to oil pump outer rotor radial clearance

0.114 - 0.260 (0.0045 - 0.0102)

Oil pump inner rotor to oil pump outer rotor tip clearance

Below 0.180 (0.0071)

Oil pump body to oil pump inner rotor axial clearance

0.030 - 0.070 (0.0012 - 0.0028)

Oil pump body to oil pump outer rotor axial clearance

0.030 - 0.090 (0.0012 - 0.0035)

Oil pump inner rotor to brazed portion of housing clearance

0.045 - 0.091 (0.0018 - 0.0036)

Regulator valve to oil pump cover clearance

0.040 - 0.097 (0.0016 - 0.0038)
