Infiniti G35 (V35) Sedan. Manual - part 832





IP-24

< ON-VEHICLE REPAIR >

CENTER CONSOLE ASSEMBLY

• Remove clips from rear of console finisher, and then remove pawl of front. Pull console finisher upward

to disengage from center console.

• Disconnect harness connectors.

5.

Remove screws (B) of center console front side with screw
driver (A).

6.

Remove rear upper console assembly. (AT Models only)
• Slide to front, pull up rear upper console assembly (1), and

disconnect metal clips.

• Disconnect heated seat switch harness connectors. (with

heated seat)

7.

Disconnect auxiliary input jacks connector (A) and power socket
harness connector (B). (AT Models only)

1.

Console finisher (AT models)

2.

Console finisher (MT models)

: Pawl

: Metal clip

JMJIA0031GB

JMJIA0032GB

: Pawl

: Metal clip

JMJIA0033GB

JMJIA0065ZZ

CENTER CONSOLE ASSEMBLY

IP-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

8.

Disconnect console sub harness connectors (A). (MT Models
only)

9.

Disconnect heated seat switch connector (A). (MT models with
heated seat only)

10. Remove coin pocket fixing pawl using a remover tool (A), and

then remove coin pocket (1). (MT Models only)

11. Insert a deep-well socket wrench (A) to rotate adjusting nut to

loosen cable sufficiently. (MT Models only) Refer to

PB-4,

"LEVER TYPE : Inspection and Adjustment"

.

12. Remove console rear finisher.

• Pull back the console rear finisher (1).
• Disconnect inside key antenna connector (A).

JMJIA0038GB

JMJIA0286ZZ

: Pawl

JMJIA0034GB

JMJIA0035GB

: Metal clip

JMJIA0037GB

IP-26

< ON-VEHICLE REPAIR >

CENTER CONSOLE ASSEMBLY

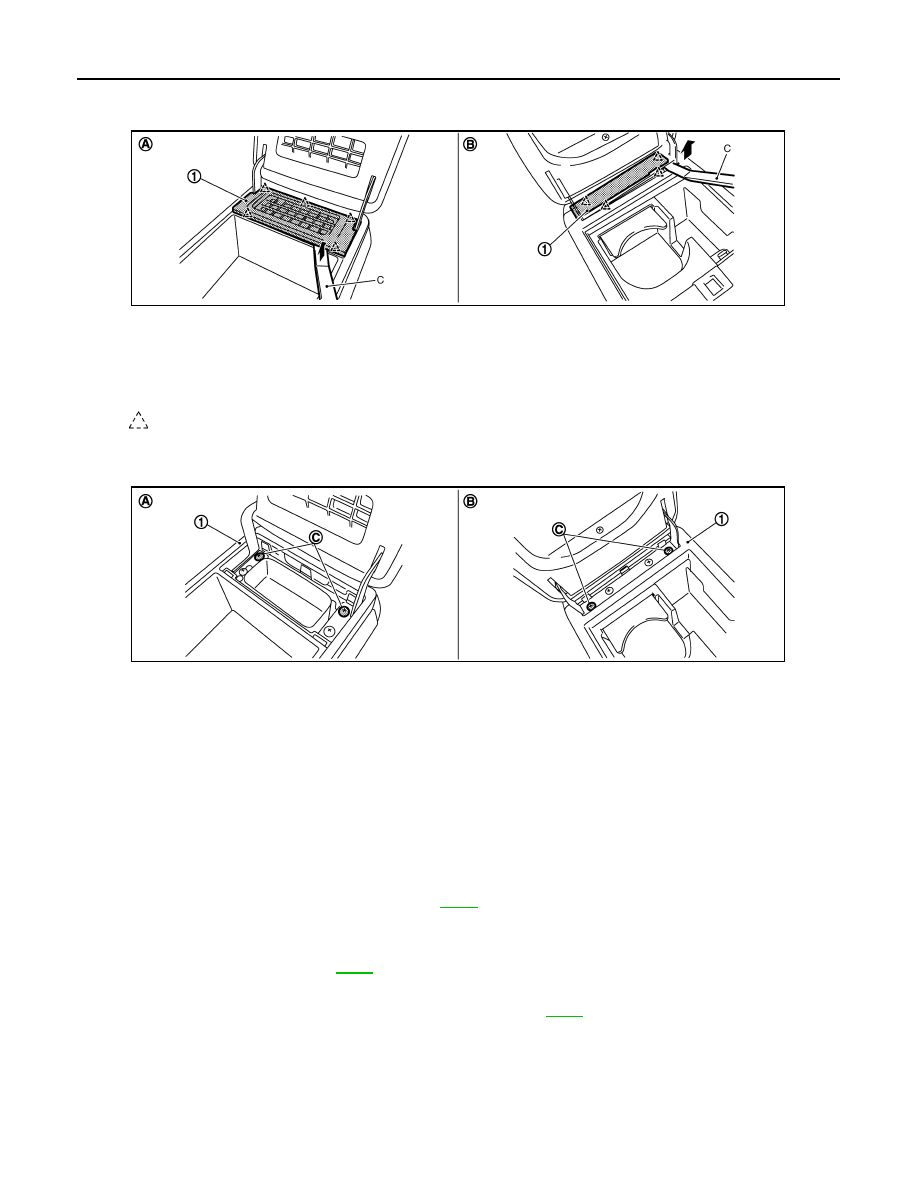

13. Remove console mask.

• Open the console lid.
• Pull up console mask (1) by using a remover tool (C), and disengage pawls.

14. Remove screws (C) of center console rear side, and then remove center console assembly (1).

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000000960458

DISASSEMBLY AND ASSEMBLY OF CENTER CONSOLE (AT MODELS)

Disassembly

1.

Remove screws of console finisher assembly back side, and remove ashtray (front portion).

2.

Remove rear upper console assembly. Refer to

IP-12

.

3.

Remove screws and remove cup holder assembly.

4.

Remove screws and remove console front bracket.

5.

Remove console mask. Refer to

IP-12

.

6.

Remove console lid mounting screws and remove console lid.

7.

Remove metal clips and remove console rear finisher. Refer to

IP-12

.

8.

Remove console ashtray.

9.

Remove screw and remove console ashtray bracket.

10. Remove console pocket from center console assembly.
11. Remove auxiliary input jacks and socket knob, cigarette lighter case.

Assembly

(A)

Console mask (with rear ventilator grille)

(B)

Console mask (without rear ventilator grille)

: Pawl

JMJIA0036GB

(A)

Console mounting screws
(with rear ventilator grille)

(B)

Console mounting screws
(without rear ventilator grille)

JMJIA0039GB

CENTER CONSOLE ASSEMBLY

IP-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Assemble in the reverse order of disassembly.

DISASSEMBLY AND ASSEMBLY OF CENTER CONSOLE (MT MODELS)

Disassembly

1.

Remove screws of console finisher assembly back side, and remove ashtray (front portion).

2.

Remove coin pocket. Refer to

IP-12

.

3.

Remove console mask. Refer to

IP-12

.

4.

Remove console lid mounting screws and remove console lid.

5.

Remove metal clips and remove console rear finisher. Refer to

IP-12

.

6.

Remove console ashtray.

7.

Remove screw and remove console ashtray bracket.

8.

Remove screws and remove cup holder assembly.

9.

Remove auxiliary input jacks and socket knob, cigarette lighter case.

10. Remove console sub harness.

Assembly

Assemble in the reverse order of disassembly.
