IP-12

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

Removal and Installation

INFOID:0000000000960455

REMOVAL

1.

Put selector lever in drive position. (A/T Models only)

2.

Remove selector lever knob. (A/T Models only)
• Refer  to

TM-232, "2WD : Removal and Installation"

. (2WD models)

• Refer  to

TM-234, "AWD : Removal and Installation"

. (AWD models)

3.

Remove shift lever knob. (M/T Models only) Refer to

TM-18, "Removal and Installation"

.

4.

Remove console finisher.

• Remove clips from rear of console finisher, and then remove pawl of front. Pull console finisher upward

to disengage from center console.

• Disconnect harness connectors.

5.

Remove screws (B) of center console front side with screw
driver (A).

1.

Instrument finisher A

2.

Cluster lid A assembly

3.

Steering column cover upper

4.

Steering column cover lower

5.

Steering column side cover (LH)

6.

Steering column side cover (RH)

7.

Steering column mask

8.

Cluster lid A lower bracket

9.

Steering column front lower cover

10. Meter bracket

11.

Knee protector lower

12. Instrument driver lower panel

13. Cluster lid C assembly

14. AV control unit

15. Cluster lid D assembly

16. Center ventilator grille (LH)

17. Center ventilator grille (RH)

18. Glove box assembly

19. Glove box lock assembly

20. Instrument finisher B

21. Instrument lower cover

22. Instrument assist lower panel

23. Instrument side panel (LH)

24. Instrument side panel (RH)

25. Instrument side finisher (RH)

26. Instrument side finisher (LH)

27. Instrument panel & pad

28. Center speaker grille

Clip

Pawl

Metal clip

1.

Console finisher (AT models)

2.

Console finisher (MT models)

: Pawl

: Metal clip

JMJIA0031GB

JMJIA0032GB

INSTRUMENT PANEL ASSEMBLY

IP-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

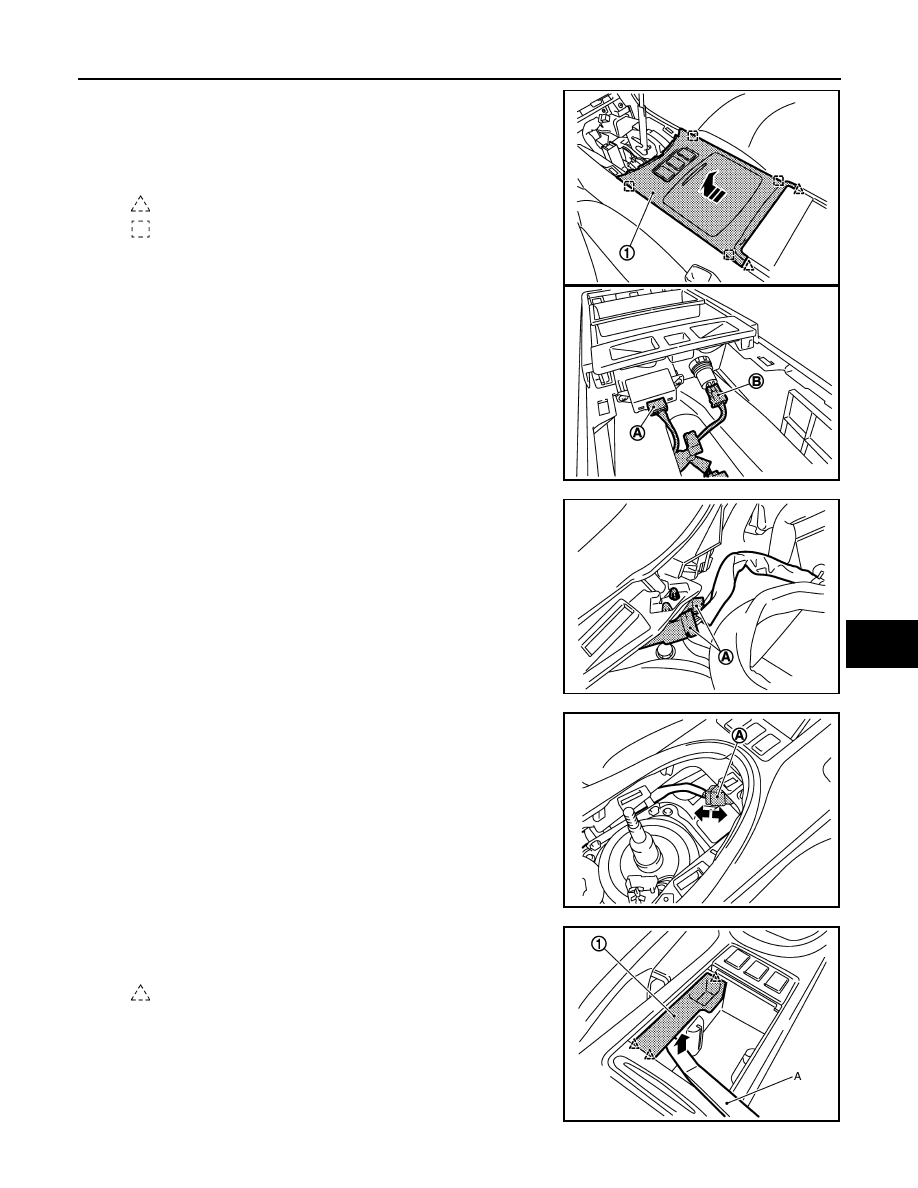

6.

Remove rear upper console assembly. (AT Models only)
• Slide to front, pull up rear upper console assembly (1), and

disconnect metal clips.

• Disconnect heated seat switch harness connectors. (with

heated seat)

7.

Disconnect auxiliary input jacks connector (A) and power socket
harness connector (B). (AT Models only)

8.

Disconnect console sub harness connectors (A). (MT Models
only)

9.

Disconnect heated seat switch connector (A). (MT models with
heated seat only)

10. Remove coin pocket fixing pawl using a remover tool (A), and

then remove coin pocket (1). (MT Models only)

: Pawl

: Metal clip

JMJIA0033GB

JMJIA0065ZZ

JMJIA0038GB

JMJIA0286ZZ

: Pawl

JMJIA0034GB

IP-14

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

11. Insert a deep-well socket wrench (A) to rotate adjusting nut to

loosen cable sufficiently. (MT Models only) Refer to

PB-4,

"LEVER TYPE : Inspection and Adjustment"

.

12. Remove console rear finisher.

• Pull back the console rear finisher (1).
• Disconnect inside key antenna connector (A).

13. Remove console mask.

• Open the console lid.
• Pull up console mask (1) by using a remover tool (C), and disengage pawls.

14. Remove screws (C) of center console rear side, and then remove center console assembly (1).

JMJIA0035GB

: Metal clip

JMJIA0037GB

(A)

Console mask (with rear ventilator grille)

(B)

Console mask (without rear ventilator grille)

: Pawl

JMJIA0036GB

(A)

Console mounting screws
(with rear ventilator grille)

(B)

Console mounting screws
(without rear ventilator grille)

JMJIA0039GB

INSTRUMENT PANEL ASSEMBLY

IP-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

15. Remove cluster lid C.

• Remove cluster lid C mounting screws (A).
• Pull back cluster lid C (1).
• Disconnect harness connectors.

16. Remove cluster lid D.

• Remove cluster lid D mounting screw (A).
• Pull back cluster lid D (1).
• Disconnect harness connectors.

17. Remove display unit. Refer to

AV-531, "Removal and Installation"

.

18. Disconnect center speaker harness connector (A). (with center

speaker)

19. Remove screw (B).

20. Disconnect inside key antenna connector (A) and clip (B)

located under audio unit.

21. Remove AV control unit. Refer to

AV-111, "Removal and Installation"

.

22. Remove front body side welt LH. Refer to

INT-13, "Removal and Installation"

.

23. Remove front pillar garnish LH. Refer to

INT-13, "Removal and Installation"

.

JMJIA0043GB

: Pawl

JMJIA0044GB

JMJIA0045GB

JMJIA0046GB
