INL-100

< ON-VEHICLE REPAIR >

STEP LAMP

STEP LAMP

Exploded View

INFOID:0000000000962619

Removal and Installation

INFOID:0000000000962620

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the step lamp and the door trim. Remove the step lamp.

2.

Disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000000962621

CAUTION:

Disconnect the battery negative terminal or the fuse.

STEP LAMP BULB

1.

Remove the step lamp.

2.

Remove the lens.

3.

Remove the bulb.

1.

Step lamp case

2.

Bulb

3.

Lens

A

Metal  clip

JPLIA0062ZZ

PERSONAL LAMP

INL-101

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

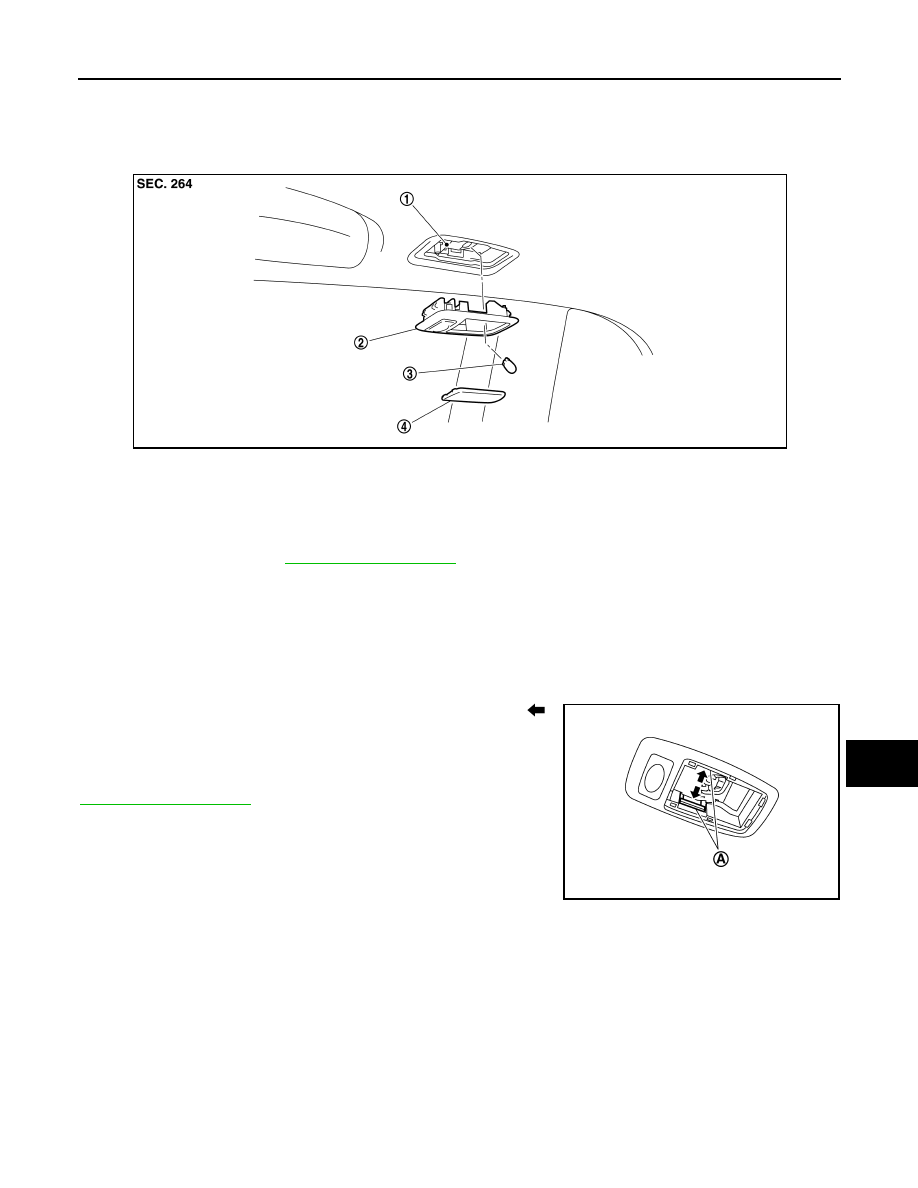

PERSONAL LAMP

Exploded View

INFOID:0000000000962622

NOTE:
Replace the personal lamp case as a set (right and left). Before installing the headlining assembly, remove the
personal lamp case. Refer to

INT-22, "Exploded View"

.

Removal and Installation

INFOID:0000000000962623

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Press the both side pawls (A) to the arrow direction (

).

Remove the personal lamp finisher.

NOTE:
Replace the personal lamp case as a set (right and left). Remove the
personal lamp case after installing the headlining assembly. Refer to

INT-22, "Exploded View"

.

INSTALLATION

Install in the reverse order of removal.
NOTE:
The following is easier to install the personal lamp finisher with the headlining installed.

1.

Personal lamp case

2.

Personal lamp finisher

3.

Bulb

4.

Lens

JPLIA0060ZZ

JPLIA0087ZZ

INL-102

< ON-VEHICLE REPAIR >

PERSONAL LAMP

• Press the personal lamp finisher to the headlining. Pull the per-

sonal lamp case pawl to the arrow direction (

) with any appropri-

ate tool.

Replacement

INFOID:0000000000962624

CAUTION:

Disconnect the battery negative terminal or the fuse.

PERSONAL LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

JPLIA0088ZZ

TRUNK ROOM LAMP

INL-103

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

TRUNK ROOM LAMP

Exploded View

INFOID:0000000000962625

Removal and Installation

INFOID:0000000000962626

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Widen the pawl (A). Open the lens (1).

2.

Remove the bulb.

3.

Pressing the pawl (B) to the arrow direction (

). Pull out the

trunk room lamp.

4.

Disconnect the connector.

5.

Remove the trunk room lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000000962627

CAUTION:

Disconnect the battery negative terminal or the fuse.

TRUNK ROOM LAMP BULB

1.

Widen the lens pawl. Open the lens.

2.

Remove the bulb.

1.

Trunk room lamp

2.

Bulb

A

Pawl (for lens fixing)

B.

Pawl (for case installation)

JPLIA0065ZZ

SKIB8336J
