INL-96

< ON-VEHICLE REPAIR >

MAP LAMP

ON-VEHICLE REPAIR

MAP LAMP

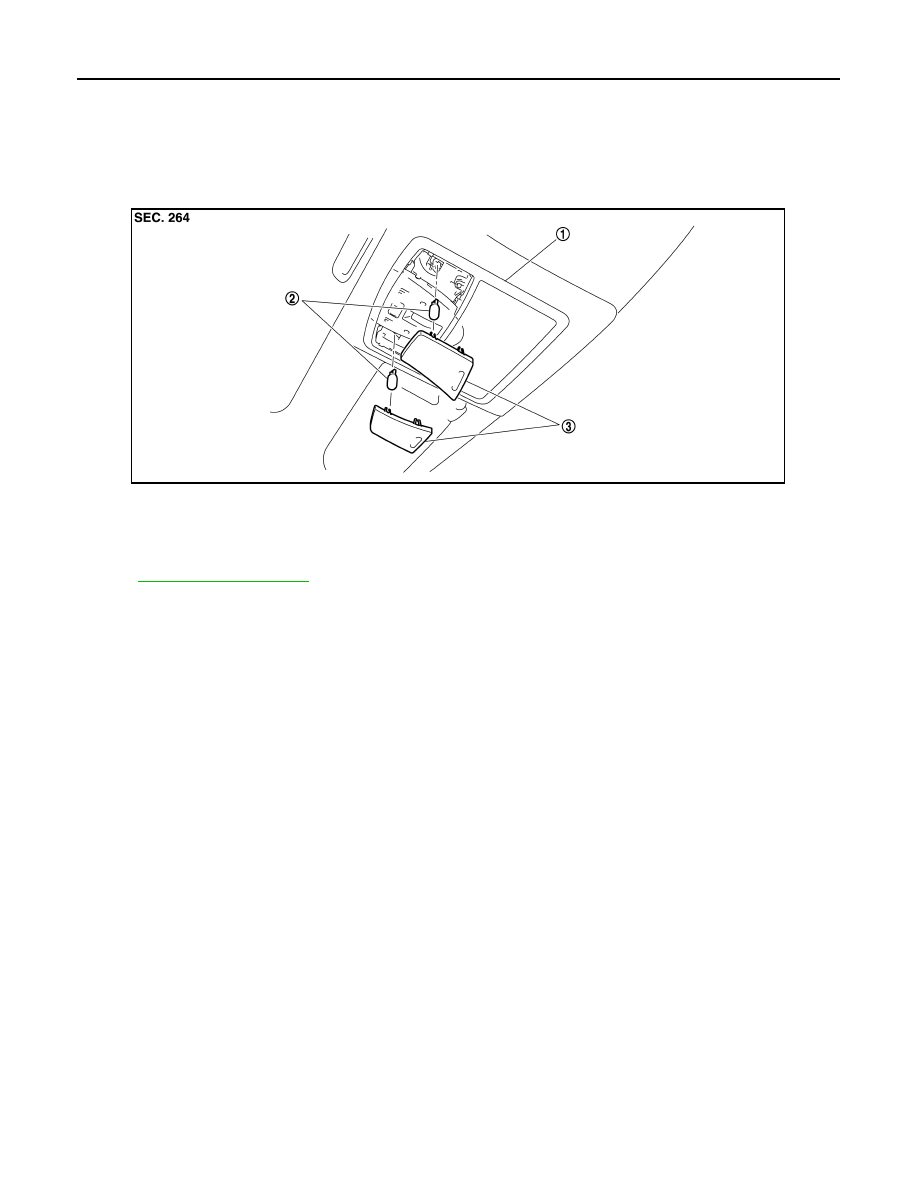

Exploded View

INFOID:0000000000962610

Removal and Installation

INFOID:0000000000962611

Refer to

INT-22, "Exploded View"

 for the map lamp assembly installation/removal.

Replacement

INFOID:0000000000962612

CAUTION:

Disconnect the battery negative terminal or the fuse.

MAP LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Map lamp assembly

2.

Bulb

3.

Lens

JPLIA0059ZZ

VANITY MIRROR LAMP

INL-97

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

VANITY MIRROR LAMP

Exploded View

INFOID:0000000000962613

Replacement

INFOID:0000000000962614

CAUTION:

Disconnect the battery negative terminal or the fuse.

VANITY MIRROR LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Lens

2.

Bulb

JPLIA0061ZZ

INL-98

< ON-VEHICLE REPAIR >

CIGARETTE LIGHTER ILLUMINATION

CIGARETTE LIGHTER ILLUMINATION

Exploded View

INFOID:0000000000962615

Replacement

INFOID:0000000000962616

CAUTION:

Disconnect the battery negative terminal or the fuse.

CIGARETTE LIGHTER ILLMINATION BULB

1.

Remove the console finisher. Refer to

IP-22, "Exploded View"

.

2.

Insert any appropriate tool into the gap of the bulb socket. Widen the hook and remove the bulb socket.

3.

Remove the bulb.

1.

Bulb socket

2.

Bulb
(Share with the ashtray illumination)

A

Hook

JPLIA0068ZZ

GLOVE BOX LAMP

INL-99

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

GLOVE BOX LAMP

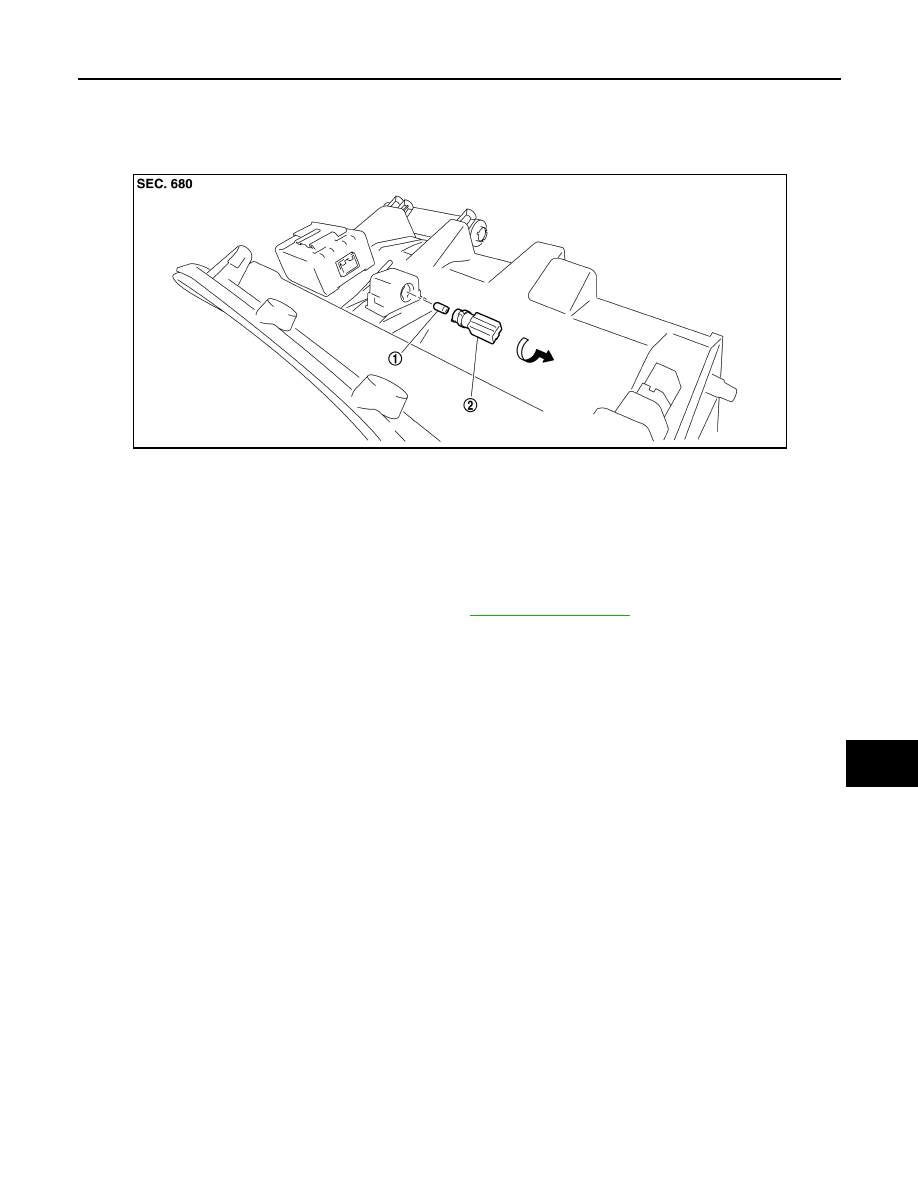

Exploded View

INFOID:0000000000962617

Replacement

INFOID:0000000000962618

CAUTION:

Disconnect the battery negative terminal or the fuse.

GLOVE BOX LAMP BULB

1.

Remove the instrument assist lower panel. Refer to

IP-11, "Exploded View"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

1.

Bulb

2.

Bulb socket

JPLIA0066ZZ
