COMBINATION METER

COMBINATION METER

Reference Value

INFOID:0000000000962604

VALUES ON THE DAIAGNOSIS TOOL

Refer to

MWI-80, "Reference Value"

.

TERMINAL LAYOUT

PHYSICAL VALUES

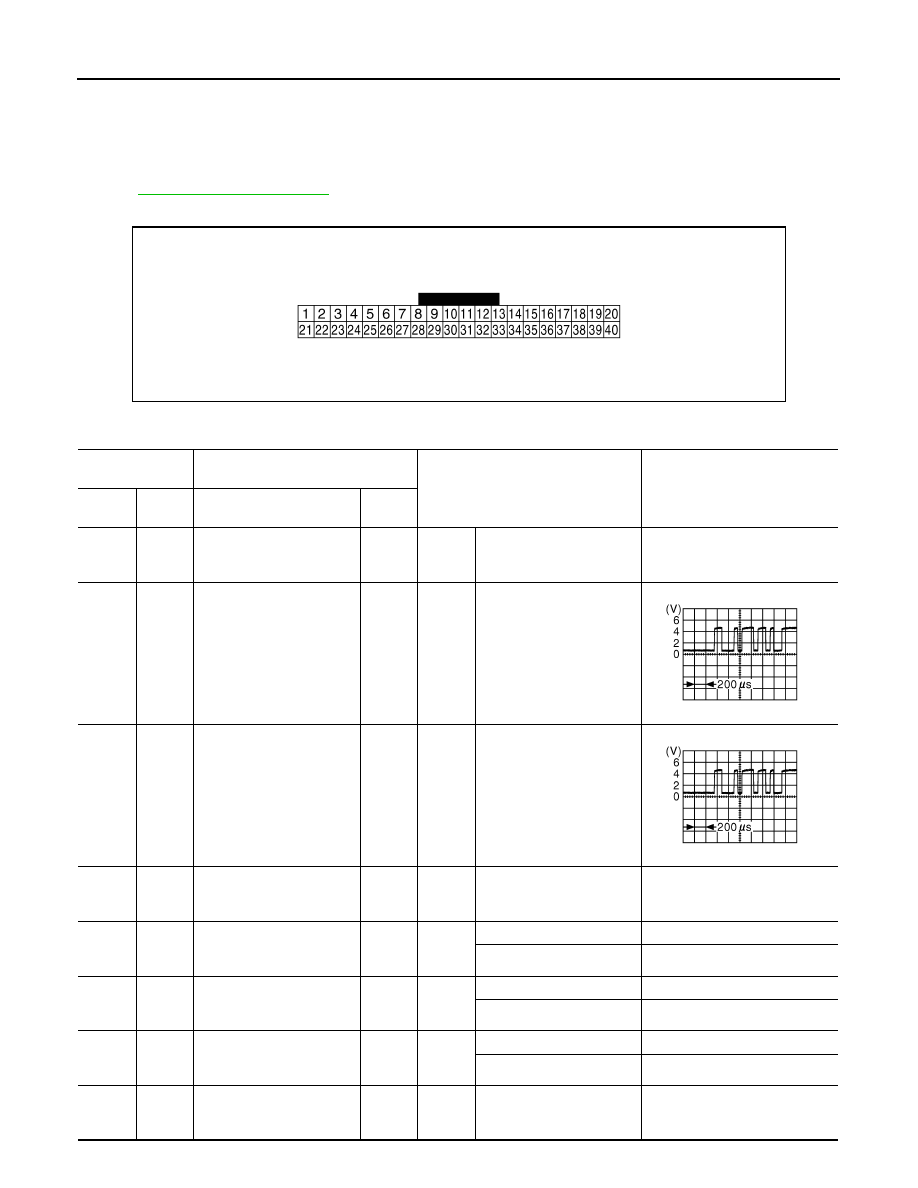

JSNIA0096ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

1

(GR)

Ground

Battery power supply

Input

Ignition
switch
OFF

—

Battery voltage

2

(LG)

Ground

Communication signal
(METER

→

 AMP.)

Output

Ignition
switch
ON

—

3

(GR)

Ground

Communication signal
(AMP.

→

 METER)

Input

Ignition
switch
ON

—

5

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

6

(W)

Ground

Alternator signal

Input

Ignition
switch
ON

Charge warning lamp ON

0 V

Charge warning lamp OFF

12 V

7

(LG)

Ground

Air bag signal

Input

Ignition
switch
ON

Air bag warning lamp ON

4 V

Air bag warning lamp OFF

0 V

10

(G)

Ground

Security signal

Input

Ignition
switch
OFF

Security warning lamp ON

0 V

Security warning lamp OFF

12 V

15

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

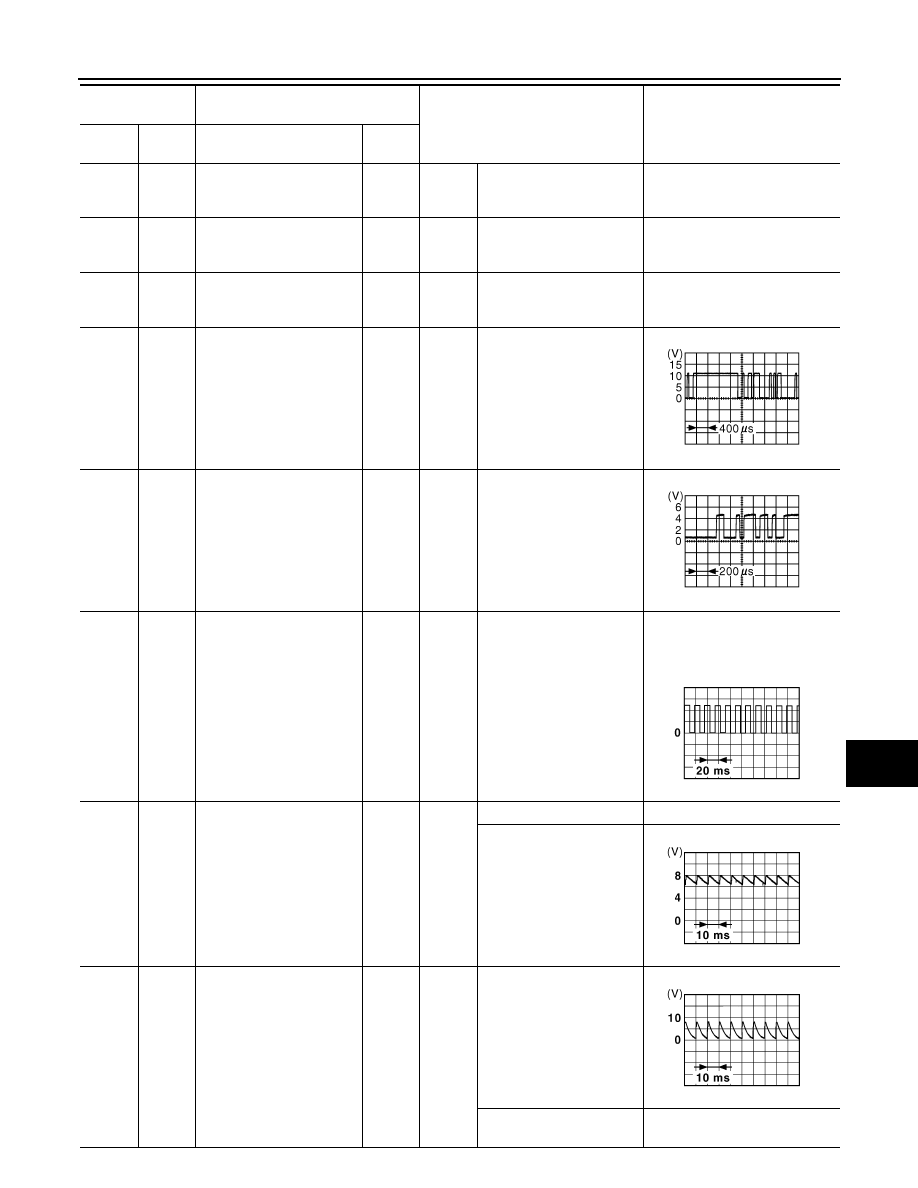

JSNIA0027GB

JSNIA0027GB

COMBINATION METER

INL-81

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

16

(B)

Ground

Meter control switch ground

—

Ignition
switch
ON

—

0  V

21

(R)

Ground

Ignition signal

Input

Ignition
switch
ON

—

12  V

22

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

24

(BR)

Ground

Communication signal
(LCD

→

 AMP.)

Output

Ignition
switch
ON

—

25

(Y)

Ground

Communication signal
(AMP.

→

 LCD)

Input

Ignition
switch
ON

—

26

(R)

Ground

Vehicle speed signal
(8-pulse)

Input

Ignition
switch
ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

27

(V)

Ground

Parking brake switch signal

Input

Ignition
switch
ON

Parking brake ON

0 V

Parking brake OFF

28

(W)

Ground

Brake fluid level switch sig-
nal

Input

Ignition
switch
ON

Brake fluid level is normal.

The brake fluid level is low-
er than the low level

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0028GB

JSNIA0027GB

JSNIA0012GB

JSNIA0007GB

JSNIA0008GB

INL-82

< ECU DIAGNOSIS >

COMBINATION METER

29

(SB)

Ground

Seat belt buckle switch sig-
nal (driver side)

Input

Ignition
switch
ON

When driver seat belt is fas-
tened

12 V

When driver seat belt is un-
fastened

0 V

31

(L)

Ground

Washer level switch signal

Input

Ignition
switch
ON

Washer level switch ON

0 V

Washer level switch OFF

5 V

34

(R)

Ground

Illumination control signal

Output

Ignition
switch
ON

Lighting switch ON, then
operate the illumination
control switch.

NOTE:
When brightness level is midway

36

(LG)

16

(B)

Select switch signal

Input

Ignition
switch
ON

When

 is pressed

0 V

Other than the above

5 V

37

(SB)

16

(B)

Enter switch signal

Input

Ignition
switch
ON

When

is

pressed

0 V

Other than the above

5 V

38

(L)

16

(B)

Trip A/B reset switch signal

Input

Ignition
switch
ON

When trip A/B reset switch
is pressed

0 V

Other than the above

5 V

39

(P)

16

(B)

Illumination control switch
signal (–)

Input

Ignition
switch
ON

When

switch

is

pressed

0 V

Other than the above

5 V

40

(O)

16

(B)

Illumination control switch
signal (+)

Input

Ignition
switch
ON

When

 switch is

pressed

0 V

Other than the above

5 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0010GB

COMBINATION METER

INL-83

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Wiring Diagram —  METER —
