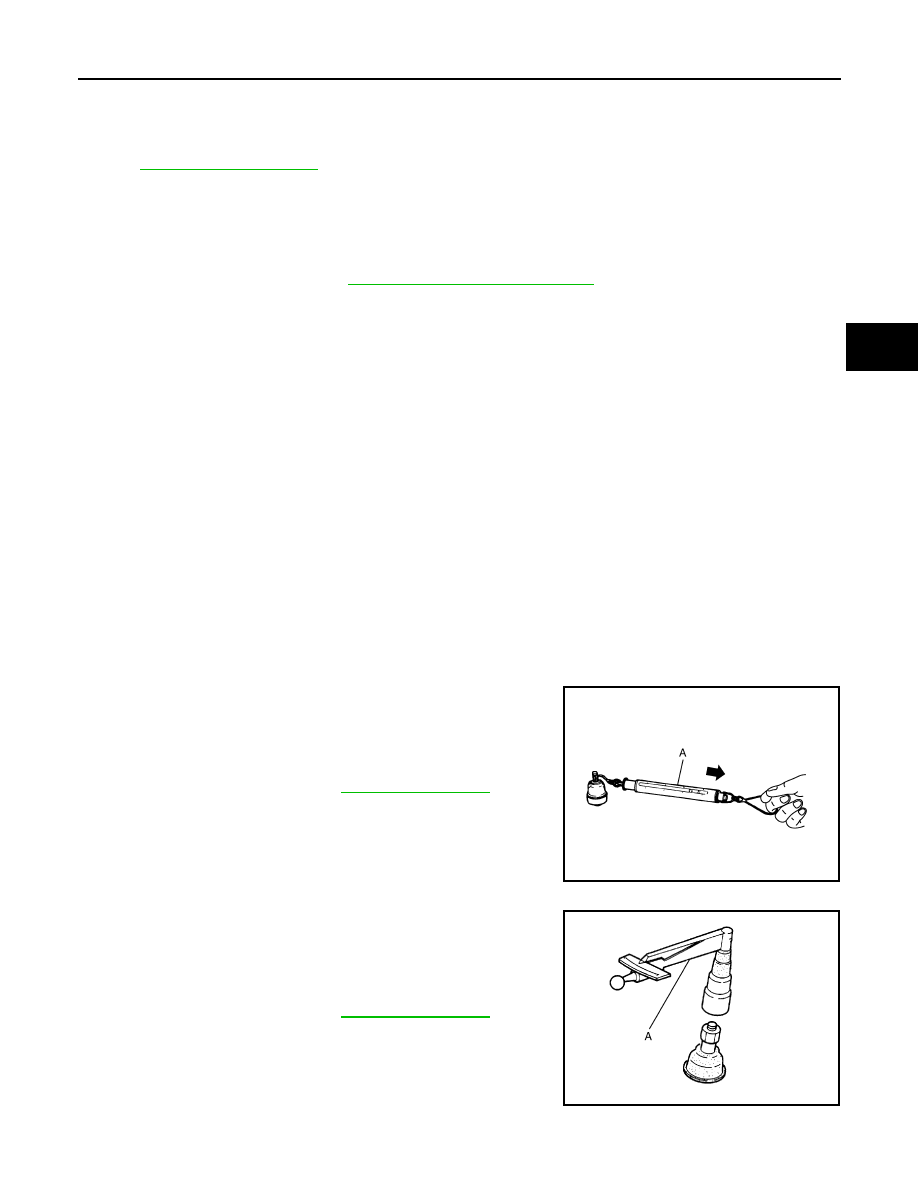

TRANSVERSE LINK FSU-33 < ON-VEHICLE REPAIR > [AWD] C D F G H I J K L M A B FSU N O P TRANSVERSE LINK Exploded View INFOID:0000000000957802 Removal and Installation INFOID:0000000000957803 REMOVAL 1. Remove tires with power tool. 2. Remove under cover with power tool. 3. Remove shock absorber. Refer to FSU-29, "Removal and Installation" 4. Remove front crossbar. 5. Remove transverse link from steering knuckle. Refer to ST-34, "AWD : Removal and Installation" . 6. Set suitable jack under transverse link. 7. Remove mounting bolts and nuts, and then remove transverse link. INSTALLATION Note the following, and install in the reverse order of removal. CAUTION: Never tap on the ball joint cap of the stabilizer connecting rod with a hammer or a similar item when lower side (rubber bushing), under unladen conditions with tires on level ground. Inspection INFOID:0000000000957804 INSPECTION AFTER REMOVAL Visual Inspection Check the following: detected. Ball Joint Inspection Manually move ball stud to confirm it moves smoothly with no binding. Swing Torque Inspection NOTE: spring balance measurement value is within specifications when - If it is outside the specified range, replace transverse link assem- bly. Rotating Torque Inspection Standard Swing toque JPEIA0005ZZ |
