FL-12

< ON-VEHICLE REPAIR >

FUEL TANK

1.

Turn ignition switch “ON” (with engine stopped), and check connections for leakage by applying fuel pres-
sure to fuel piping.

2.

Start engine and rev it up and make sure there are no fuel leaks at the fuel system tube and hose connec-
tions.

• After removing/installing rear suspension assembly, make sure to adjust wheel alignment and then, adjust

neutral position of steering angle sensor. Refer to

RSU-6, "Wheel Alignment Inspection"

 and

STC-27,

"4WAS FRONT ACTUATOR NEUTRAL POSITION ADJUSTMENT : Description"

.

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-13

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

DISASSEMBLY AND ASSEMBLY

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

Exploded View

INFOID:0000000000956374

Disassembly

INFOID:0000000000956375

CAUTION:

Sub fuel level sensor unit cannot be disassembled and should be replaced as a unit.
Remove fuel level sensor unit as follows:
1.

Disconnect harness connector (A).
• Hold connector by fingers and pull it out, because there is no

stopper release tab.

2.

Using suitable tool, pull up tabs points as shown in the figure
(two points) to release the lock.

CAUTION:

Be careful not to damage it.

1.

Fuel level sensor unit

2.

Fuel filter and fuel pump assembly

PBIC1081E

JPBIA0141ZZ

1

: Fuel level sensor unit

A

: Pull up tabs

JPBIA0142ZZ

FL-14

< DISASSEMBLY AND ASSEMBLY >

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

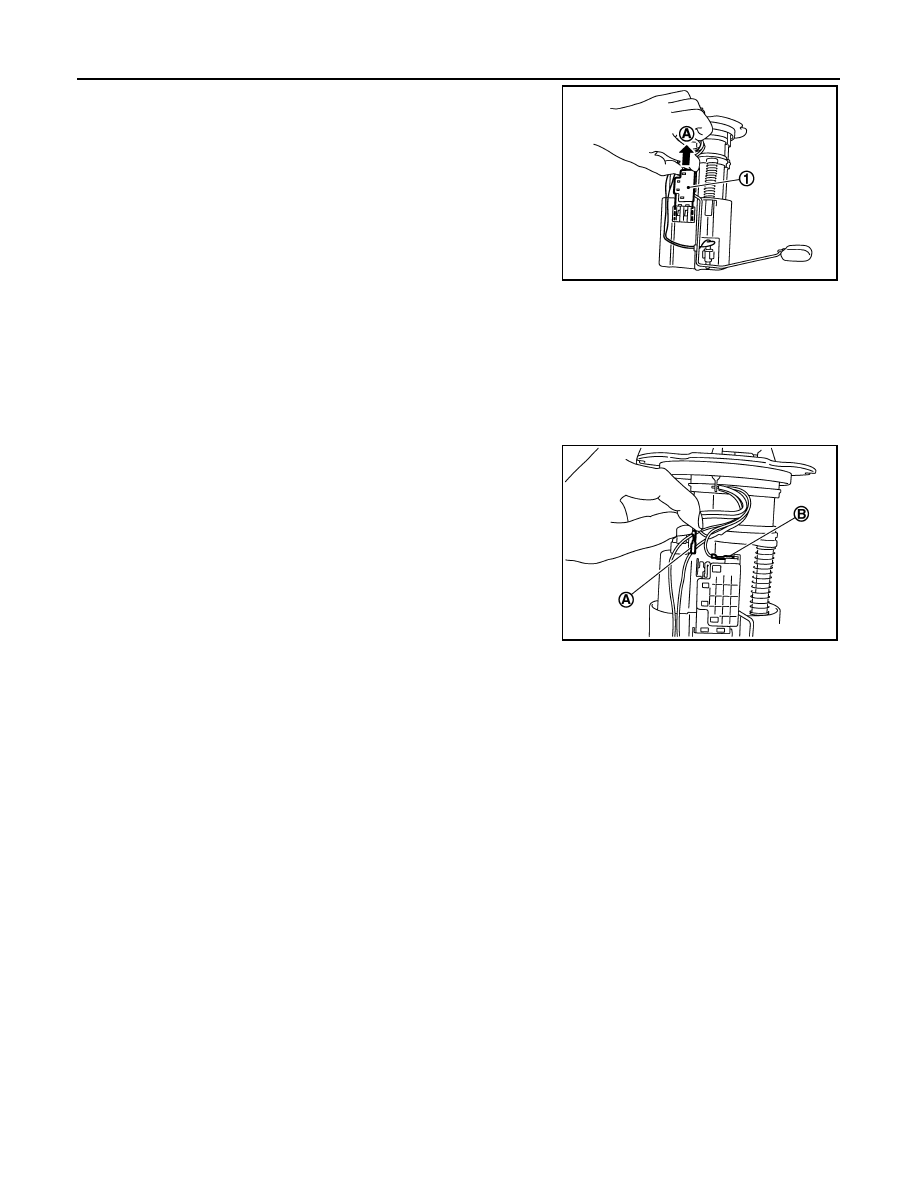

3.

After fixing tabs are disengaged, slide fuel level sensor unit (1)
out in direction shown by the arrow.

CAUTION:

Do not disassemble fuel filter and fuel pump assembly.

Assembly

INFOID:0000000000956376

CAUTION:

Sub fuel level sensor unit cannot be disassembled and should be replaced as a unit.

1.

Check for damage of fuel level sensor unit installation position on the side of fuel filter and fuel pump
assembly.

2.

Slide fuel level sensor unit until it aligns to installation groove, then insert it until it stops.
• After inserting, apply force in reverse direction (removal direction) to ensure it cannot be pulled out.

3.

Connect the black (A) and white (B) harnesses so that they are
in the positions shown in the figure.
• Securely insert harness connector until it stops.

A

:  Pull

JPBIA0143ZZ

PBIC3387E

SERVICE DATA AND SPECIFICATIONS (SDS)

FL-15

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Tank

INFOID:0000000000956377

Standard and Limit

Fuel tank capacity

Approx. 76   (20 US gal, 16-5/8 Imp gal)

Fuel recommendation

Refer to

GI-29
