FAX-12

< PREPARATION >

[AWD]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000000957482

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000000957483

Tool number
(Kent-Moore No.)
Tool name

Description

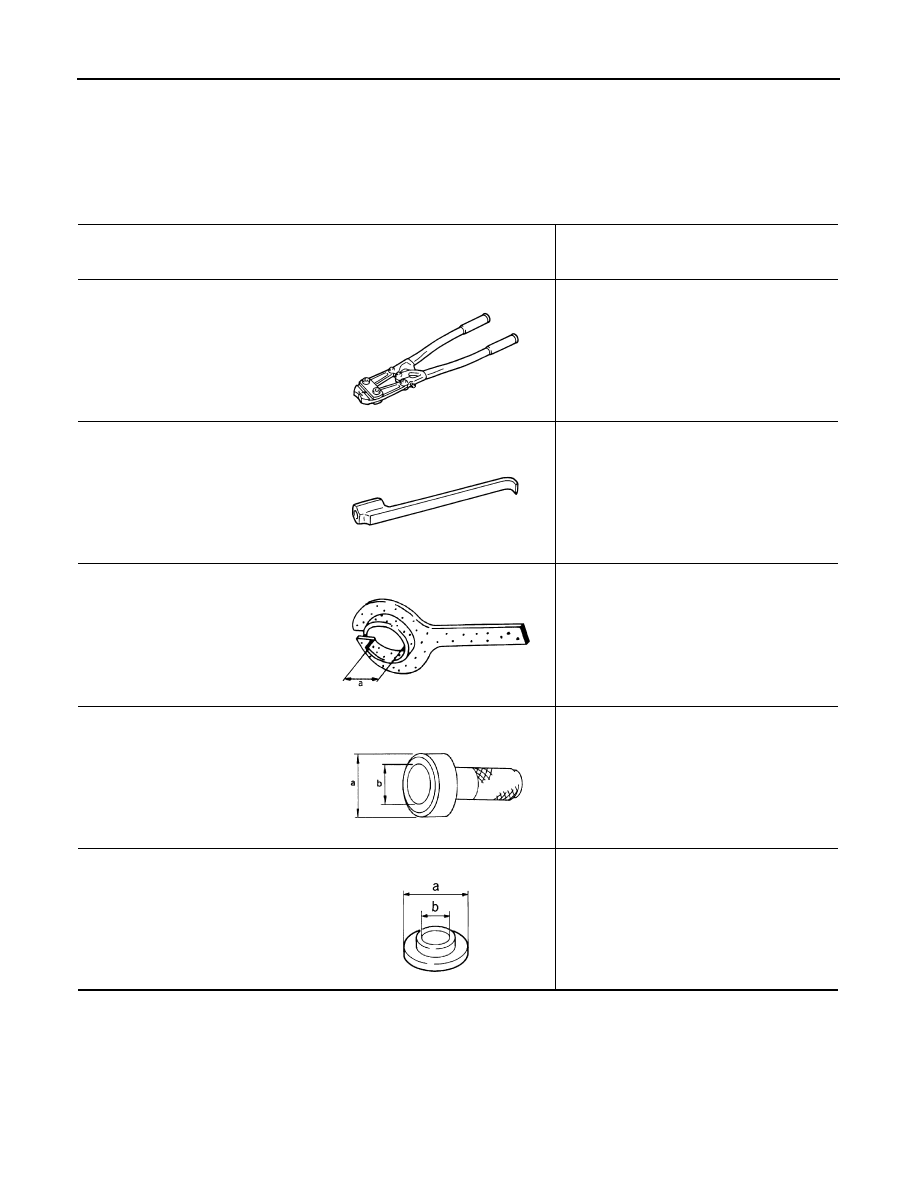

KV40107300
(

)

Boot band crimping tool

Installing boot band

KV40107500
(

)

Drive shaft attachment

Removing drive shaft

KV38107900
(

)

Protector
a: 32 mm (1.26 in) dia.

Installing drive shaft

KV38100500
(

)

Drift
a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.

Installing drive shaft plug

KV38102200
(

)

Drift
a: 90 mm (3.54 in) dia.
b: 31 mm (1.22 in) dia.

Installing drive shaft plug

ZZA1229D

ZZA1230D

PDIA1183J

ZZA0701D

ZZA0920D

PREPARATION

FAX-13

< PREPARATION >

[AWD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

Tool name

Description

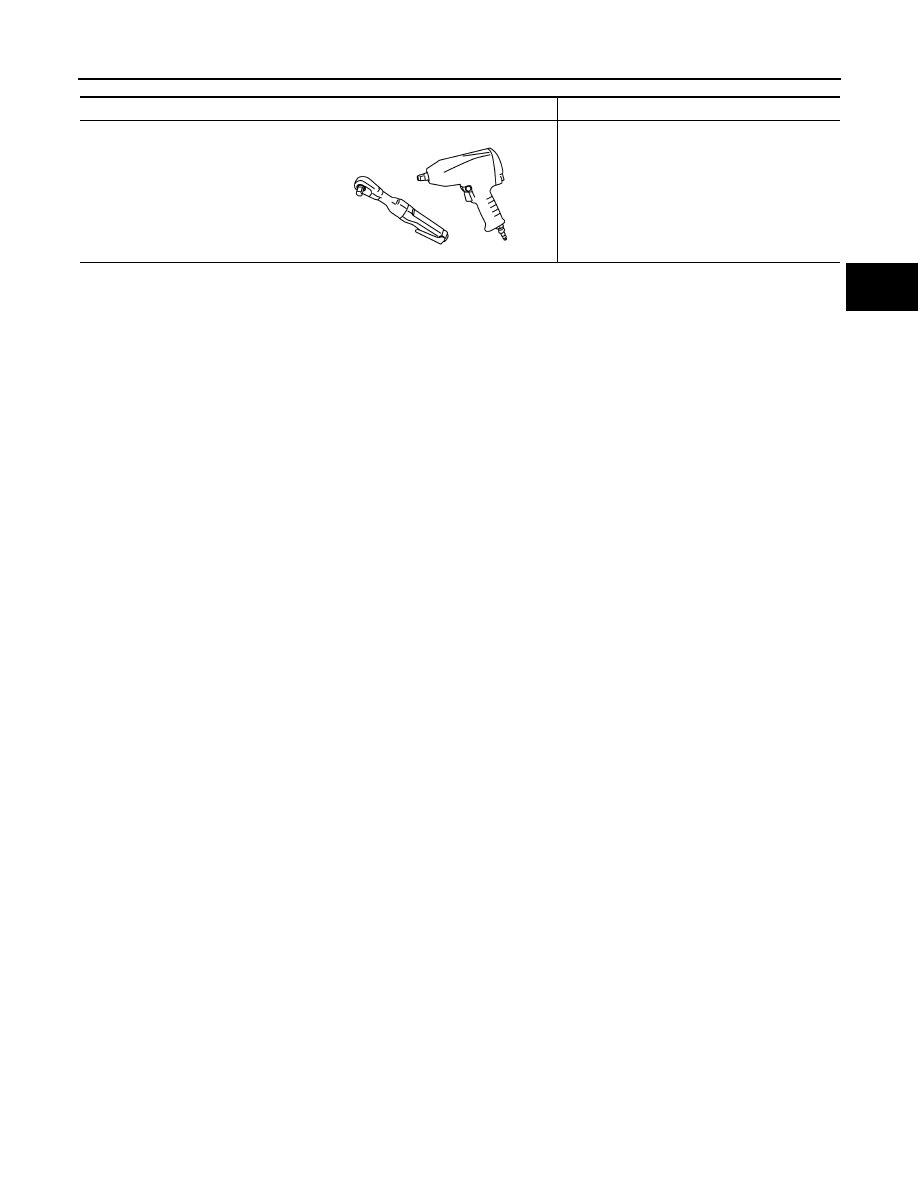

Power tool

Loosening bolts and nuts

PBIC0190E

FAX-14

< ON-VEHICLE MAINTENANCE >

[AWD]

FRONT WHEEL HUB AND KNUCKLE

ON-VEHICLE MAINTENANCE

FRONT WHEEL HUB AND KNUCKLE

Exploded View

INFOID:0000000000957484

Refer to

FAX-16, "Exploded View"

.

Inspection

INFOID:0000000000957485

MOUNTING INSPECTION

Make sure that the mounting conditions (looseness, backlash) of each component and component conditions
(wear, damage) are normal.

WHEEL BEARING INSPECTION

• Move wheel hub and bearing assembly in the axial direction by hand. Make sure there is no looseness of

wheel bearing.

• Rotate wheel hub and make sure that is no unusual noise or other irregular conditions. If there is any of

irregular conditions, replace wheel hub and bearing assembly.

Standard

Axial end play

: Refer to

FAX-28, "Wheel Bearing"

.

FRONT DRIVE SHAFT

FAX-15

< ON-VEHICLE MAINTENANCE >

[AWD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

FRONT DRIVE SHAFT

Inspection

INFOID:0000000000957486

• Check drive shaft mounting point and joint for looseness and other damage.
• Check boot for cracks and other damage.

CAUTION:

Replace entire drive shaft assembly when noise or vibration occur from drive shaft.
