Infiniti G35 (V35) Sedan. Manual - part 700





EXT-38

< ON-VEHICLE REPAIR >

REAR SPOILER

3.

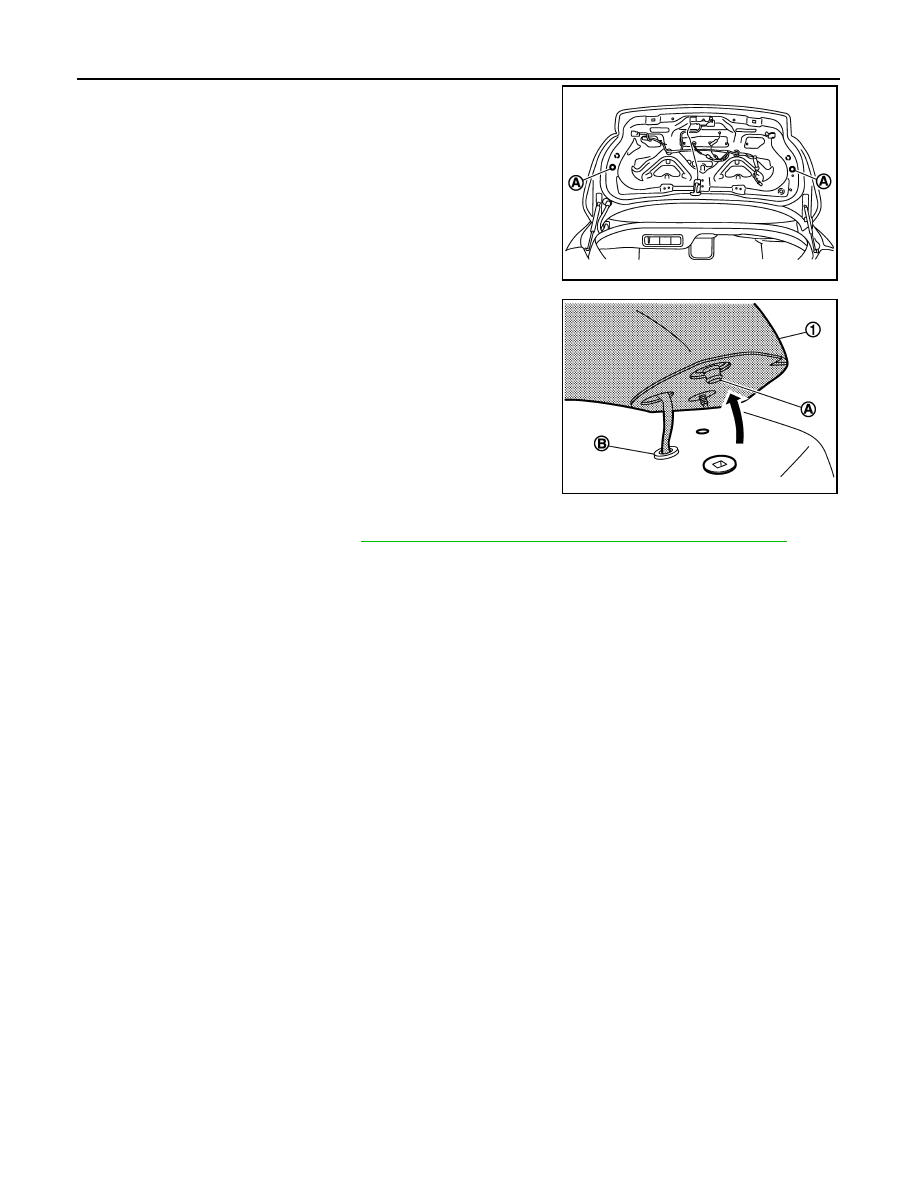

Remove rear spoiler mounting nuts (A).

4.

Disengage rear spoiler mounting clip (A) then disconnect grom-
met (B) of high-mounted stop lamp harness.

5.

Remove rear spoiler (1).

6.

Remove following parts after removing rear spoiler.
• High-mounted stop lamp. Refer to

EXL-199, "WITH REAR SPOILER : Removal and Installation"

.

• Rear spoiler clip and grommet.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be careful not to damage the body.

JMKIA0122GB

JMKIA0123GB

FAX-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

FAX

A

B

FAX

N

O

P

CONTENTS

FRONT AXLE

2WD

SYMPTOM DIAGNOSIS  ...............................

3

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

3

NVH Troubleshooting Chart  ......................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tool  ..........................................

4

ON-VEHICLE MAINTENANCE .....................

5

FRONT WHEEL HUB AND KNUCKLE  ..............

5

Exploded View  ..........................................................

5

Inspection ..................................................................

5

ON-VEHICLE REPAIR ..................................

6

FRONT WHEEL HUB AND KNUCKLE  ..............

6

Exploded View  ..........................................................

6

Removal and Installation ...........................................

6

Inspection ..................................................................

7

SERVICE DATA AND SPECIFICATIONS
(SDS) .............................................................

8

SERVICE DATA AND SPECIFICATIONS
(SDS) ...................................................................

8

Wheel Bearing ...........................................................

8

AWD

SYMPTOM DIAGNOSIS  ...............................

9

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

9

NVH Troubleshooting Chart  ......................................

9

PRECAUTION ..............................................

10

PRECAUTIONS ..................................................

10

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

10

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  ...................................

10

Precaution for Procedure without Cowl Top Cover ....

10

Precautions for Drive Shaft ......................................

11

PREPARATION ...........................................

12

PREPARATION .................................................

12

Special Service Tool ................................................

12

Commercial Service Tool  ........................................

12

ON-VEHICLE MAINTENANCE ....................

14

FRONT WHEEL HUB AND KNUCKLE  ............

14

Exploded View .........................................................

14

Inspection ................................................................

14

FRONT DRIVE SHAFT  .....................................

15

Inspection ................................................................

15

ON-VEHICLE REPAIR .................................

16

FRONT WHEEL HUB AND KNUCKLE  ............

16

Exploded View .........................................................

16

Removal and Installation  .........................................

16

Inspection ................................................................

17

FRONT DRIVE SHAFT BOOT  ..........................

18

Exploded View .........................................................

18

Replacement ...........................................................

18

FRONT DRIVE SHAFT  .....................................

23

Exploded View .........................................................

23

Removal and Installation  .........................................

23

Disassembly and Assembly .....................................

24

Inspection ................................................................

27

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

28

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

FAX-3

< SYMPTOM DIAGNOSIS >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000000957469

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

FA

X

-6

FA

X

-5

NVH in F

AX and FSU sections

NVH in WT section

NVH in WT section

Refe

r to

 DRIVE

SHAFT i

n

 thi

s

 cha

rt.

NVH in BR section

NV

in

 S

T

 s

e

c

ti

o

n

Possible cause and SUSPECTED PARTS

Im

pro

per in

st

a

lla

ti

on

lo

os

en

es

s

Part

s interference

Whe

e

l be

ari

n

g

 da

m

age

FRONT AXLE AND F

R

ONT

 SUSPENSI

ON

TIRES

ROA

D

 WHEELS

DRIVE SHA

F

T

BRAKES

STEERI

N

G

Symptom

FRONT AXLE

Noise

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

Judder

×

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×
