EXT-22

< ON-VEHICLE REPAIR >

FENDER PROTECTOR

Removal and Installation

INFOID:0000000000961803

REMOVAL

FENDER PROTECTOR

1.

Remove bolt (A) of fender protector (rear) rear end.

2.

Remove screws (B) of fender protector (rear) located center
mud guard and front fender.

3.

Remove clips of fender protector (rear).

4.

Remove fender clip from wheelhouse arches, and then remove fender protector (rear) from wheel house.

1.

Rear wheel house protector

JMKIA0079GB

JMKIA0106GB

FENDER PROTECTOR

EXT-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

5.

Remove bolts (A) of fender protector (front) located engine
under cover and front bumper.

6.

Remove fender protector (front) mounting clips.

7.

Remove fender clip from wheel house arches, and then remove fender protector (front) from wheel house.

8.

Remove the following parts after removing front fender protector.
• Air guide
• Fender clip

REAR WHEEL HOUSE PROTECTOR

1.

Remove bolt (A) of rear wheel house protector rear end.

2.

Remove screws (A) of rear wheel house protector located cen-
ter mud guard.

3.

Remove rear wheel house protector mounting nuts and then remove rear wheel house protector.

INSTALLATION

Install in the reverse order of removal.

JMKIA0107GB

JMKIA0108GB

JMKIA0109GB

EXT-24

< ON-VEHICLE REPAIR >

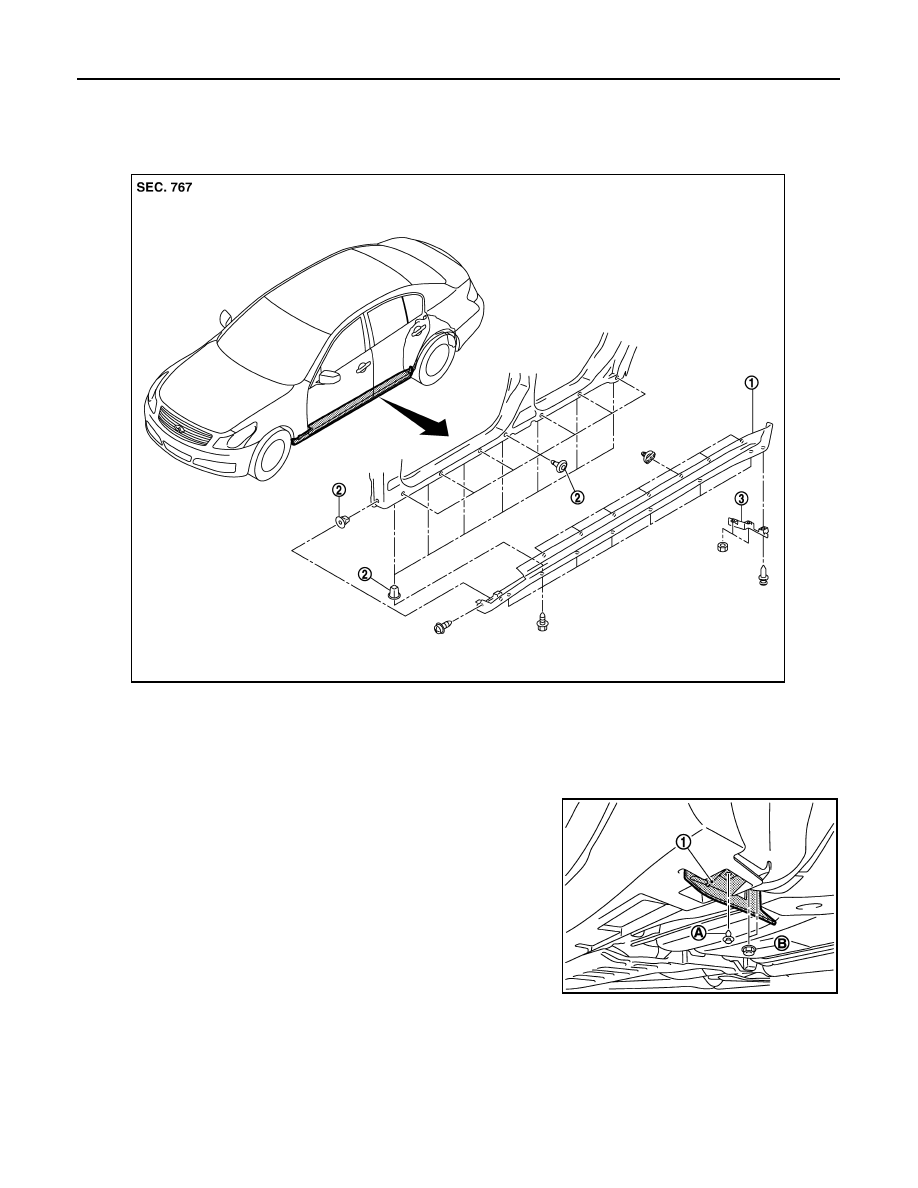

CENTER MUD GUARD

CENTER MUD GUARD

Exploded View

INFOID:0000000000961804

Removal and Installation

INFOID:0000000000961805

REMOVAL

1.

Remove wind deflector mounting clip (A) and nuts (B), and then
remove wind deflector (1).

1.

Center mud guard

2.

Grommet

3.

Wind deflector

JMKIA0080GB

JMKIA0110GB

CENTER MUD GUARD

EXT-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

2.

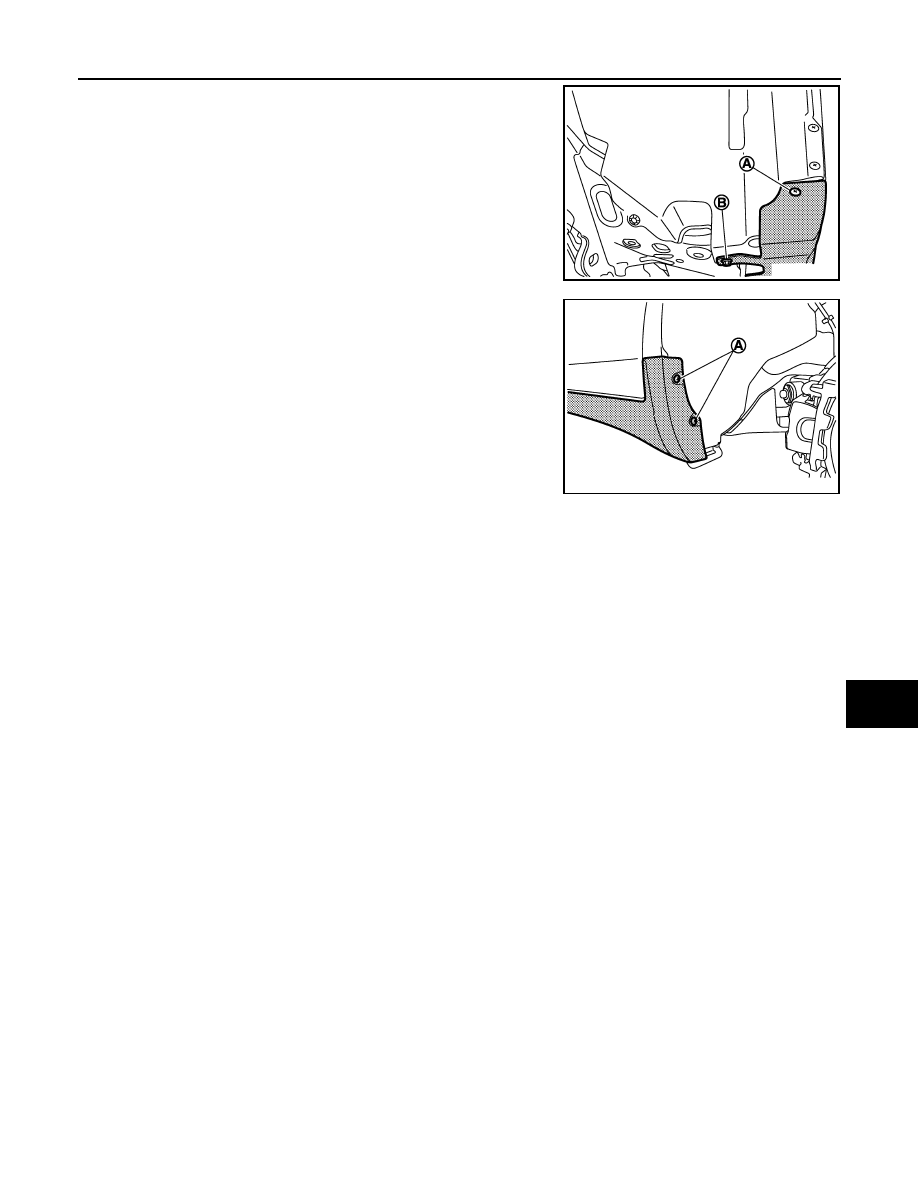

Remove screw (A) and bolt (B) of center mudguard front end.

3.

Remove screws (A) of center mudguard rear end.

4.

Remove screws of center mudguard underside.

5.

Fully open front door and rear door.

6.

Remove clips from back of center mudguard using remover tool.

7.

Remove center mudguard from body side.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing center mud guard, make sure that clips are securely fitted in panel holes on body, and
then press them in.
