Infiniti G35 (V35) Sedan. Manual - part 689

EXL-198

< ON-VEHICLE REPAIR >

[XENON TYPE]

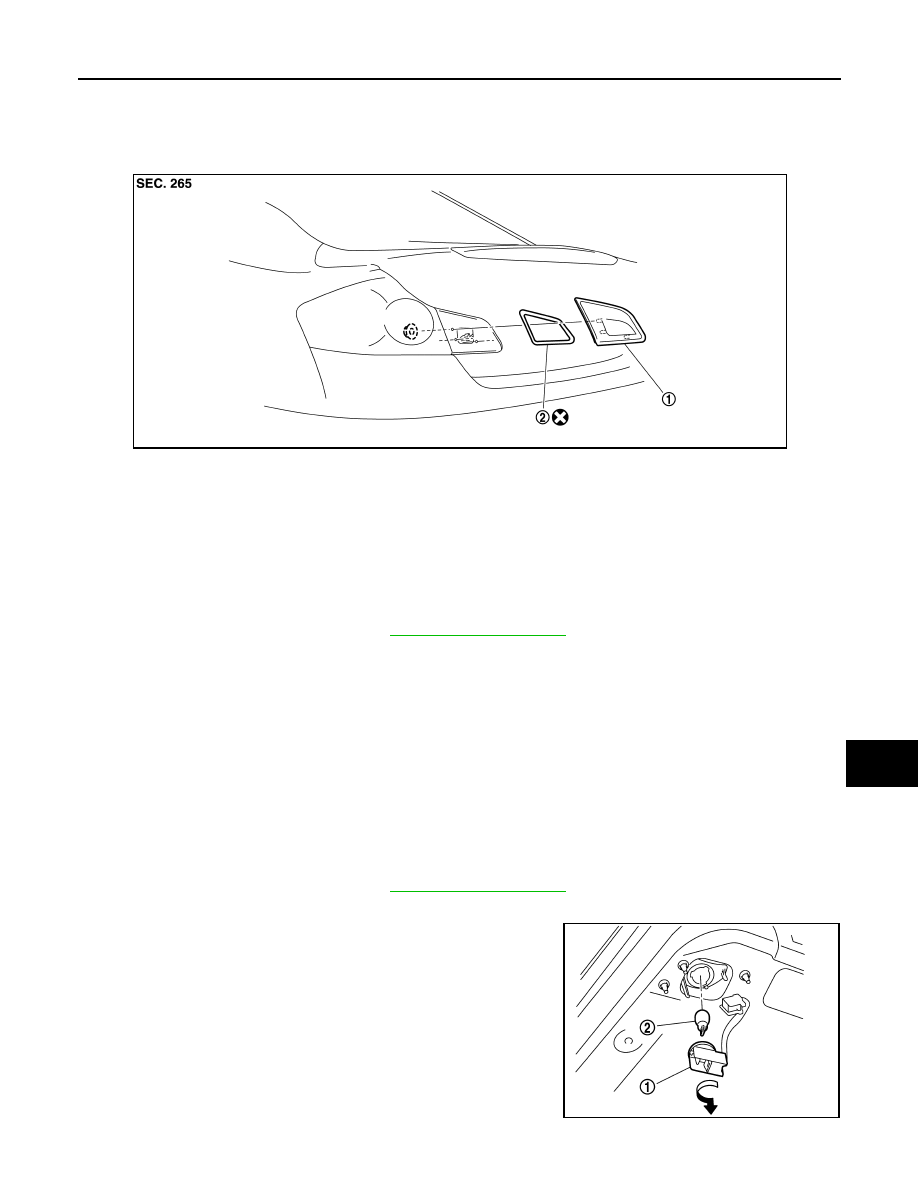

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Exploded View

INFOID:0000000000962550

Removal and Installation

INFOID:0000000000962551

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove trunk side finisher. Refer to

INT-26, "Exploded View"

.

2.

Disconnect rear combination lamp connector.

3.

Remove rear combination lamp mounting nuts.

4.

Pull the rear combination lamp toward rear of the vehicle. Remove the rear combination lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000000962552

REAR TURN SIGNAL LAMP BULB

CAUTION:

Disconnect the battery negative terminal or the fuse.

1.

Remove trunk side finisher. Refer to

INT-26, "Exploded View"

.

2.

Turn the rear turn signal lamp bulb socket (1) counterclockwise
and unlock it.

3.

Remove the bulb (2) from the socket.

1.

Seal packing

2.

Rear combination lamp

Refer to

GI-3, "Contents"

 for symbols in the figure.

JPLIA0058ZZ

JPLIA0057ZZ

HIGH-MOUNTED STOP LAMP

EXL-199

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HIGH-MOUNTED STOP LAMP

WITHOUT REAR SPOILER

WITHOUT REAR SPOILER : Exploded View

INFOID:0000000000962553

WITHOUT REAR SPOILER : Removal and Installation

INFOID:0000000000962554

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

INT-18, "Exploded View"

.

2.

Remove screws and remove high-mounted stop lamp from rear parcel shelf finisher.

INSTALLATION

Install in the reverse order of removal.

WITH REAR SPOILER

WITH REAR SPOILER : Exploded View

INFOID:0000000000962555

WITH REAR SPOILER : Removal and Installation

INFOID:0000000000962556

REMOVAL

1.

Rear parcel shelf finisher

2.

High-mounted stop lamp

JPLIA0051ZZ

1.

Rear spoiler

2.

High-mounted stop lamp

JPLIA0052ZZ

EXL-200

< ON-VEHICLE REPAIR >

[XENON TYPE]

HIGH-MOUNTED STOP LAMP

1.

Remove rear spoiler. Refer to

EXT-37, "Exploded View"

.

2.

Remove the cap. Remove the high-mounted stop lamp mounting screw.

3.

Remove the high-mounted stop lamp from rear spoiler. And then disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

BACK-UP LAMP

EXL-201

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BACK-UP LAMP

Exploded View

INFOID:0000000000962557

Removal and Installation

INFOID:0000000000962558

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove trunk lid finisher inner. Refer to

EXT-35, "Exploded View"

.

2.

Disconnect back-up lamp connector.

3.

Remove back-up lamp mounting nuts. And then remove back-up lamp.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

Replacement

INFOID:0000000000962559

CAUTION:

Disconnect the battery negative terminal or the fuse.

BACK-UP LAMP BULB

1.

Remove trunk lid finisher inner. Refer to

EXT-35, "Exploded View"

.

2.

Disconnect the back-up lamp connector.

3.

Turn the bulb socket (1) counterclockwise and unlock it.

4.

Remove the bulb (2) from the socket.

1.

Back-up lamp

2.

Seal packing

Refer to GI-XX for symbols in the figure.

JPLIA0054ZZ

JPLIA0053ZZ
