Infiniti G35 (V35) Sedan. Manual - part 656





EXL-66

< COMPONENT DIAGNOSIS >

[XENON TYPE]

HEADLAMP (HI) CIRCUIT

Is the measurement value normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK HEADLAMP (HI) OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between the IPDM E/R harness connector and the front combination lamp harness con-
nector.

Does continuity exist?

YES

>> Replace the front combination lamp.

NO

>> Repair the harnesses or connectors.

3.

CHECK HEADLAMP (HI) FUSE

1.

Turn the ignition switch OFF.

2.

Check that the following fuses are not fusing.

Is the fuse fusing?

YES

>> GO TO 4.

NO

>> Replace IPDM E/R.

4.

CHECK FRONT COMBINATION LAMP (HI) SHORT CIRCUIT

1.

Disconnect IPDM E/R connector.

2.

Check continuity between the IPDM E/R harness connector terminal and the ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors. And then replace the fuse.

NO

>> Replace the fuse. (Replace IPDM E/R if the fuse is fusing again.)

Terminals

Condition

Voltage

(Approx.)

(+)

(

)

IPDM E/R

Ground

External

lamp

Connector

Terminal

RH

E8

89

HI

Battery
voltage

LH

90

OFF

0 V

IPDM E/R

Front combination lamp

Continuity

Connector

Terminal

Connector

Terminal

RH

E8

89

E28

7

Existed

LH

90

E58

7

Unit

Location

Fuse No.

Capacity

Headlamp HI (RH)

IPDM E/R

#55

10 A

Headlamp HI (LH)

IPDM E/R

#54

10 A

IPDM E/R

Ground

Continuity

Connector

Terminal

RH

E8

89

Not existed

LH

90

HEADLAMP (LO) CIRCUIT

EXL-67

< COMPONENT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP (LO) CIRCUIT

Description

INFOID:0000000000962473

Headlamp (LO) circuit is connected to HID control unit integrated in the headlamp. Headlamp (LO) circuit turns
xenon headlamp ON.
For the details of HID control unit and the xenon headlamp, refer to EXL-XX.

Component Function Check

INFOID:0000000000962474

1.

CHECK HEADLAMP (LO) OPERATION

IPDM E/R AUTO ACTIVE TEST

1.

Start IPDM E/R auto active test. Refer to XX-XX auto active test.

2.

Check that the headlamp is turned ON.

CONSULT-III ACTIVE TEST

1.

Select "EXTERNAL LAMP" of IPDM E/R active test item.

2.

With operating the test items, check that the headlamp is turned ON.

Is the headlamp turned ON?

YES

>> Headlamp (LO) is normal.

NO

>> Refer to

EXL-67, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000000962475

1.

CHECK HEADLAMP (LO) OUTPUT VOLTAGE

CONSULT-III ACTIVE TEST

1.

Turn the ignition switch OFF.

2.

Disconnect the front combination lamp connector.

3.

Turn the ignition switch ON.

4.

Select "EXTERNAL LAMP" of IPDM E/R active test item.

5.

With operating the test items, check the voltage between the IPDM E/R harness connector and the
ground.

Is the measurement value normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK HEADLAMP (LO) OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between the IPDM E/R harness connector and the front combination lamp harness con-
nector.

LO

: Headlamp ON

OFF

: Headlamp OFF

Terminals

Test item

Voltage

(Approx.)

(+)

(

)

IPDM E/R

Ground

External

lamp

Connector

Terminal

RH

E8

83

LO

Battery
voltage

LH

84

OFF

0 V

IPDM E/R

Front combination lamp

Continuity

Connector

Terminal

Connector

Terminal

EXL-68

< COMPONENT DIAGNOSIS >

[XENON TYPE]

HEADLAMP (LO) CIRCUIT

Does continuity exist?

YES

>> GO TO 5.

NO

>> Repair the harnesses or connectors.

3.

CHECK HEADLAMP (LO) FUSE

1.

Turn the ignition switch OFF.

2.

Check that the following fuses are not fusing.

Is the fuse fusing?

YES

>> GO TO 4.

NO

>> Replace IPDM E/R.

4.

CHECK HEADLAMP (LO) SHORT CIRCUIT

1.

Disconnect IPDM E/R connector.

2.

Check continuity between the IPDM E/R harness connector and the ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors. And then replace the fuse.

NO

>> Replace the fuse. (Replace IPDM E/R if the fuse is fusing again.)

5.

CHECK HEADLAMP GROUND OPEN CIRCUIT

Check continuity between the front combination lamp harness connector and the ground.

Does continuity exist?

YES

>> Perform the xenon headlamp diagnosis. Refer to

EXL-69, "Description"

.

NO

>> Repair the harnesses or connectors.

RH

E8

83

E28

5

Existed

LH

84

E58

5

Unit

Lotion

Fuse No.

Capacity

Headlamp LO (RH)

IPDM E/R

#57

15 A

Headlamp LO (LH)

IPDM E/R

#56

15 A

IPDM E/R

Ground

Continuity

Connector

Terminal

RH

E8

83

Not existed

LH

84

Front combination lamp

Ground

Continuity

Connector

Terminal

RH

E28

3

Existed

LH

E58

3

XENON HEADLAMP

EXL-69

< COMPONENT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

XENON HEADLAMP

Description

INFOID:0000000000962476

OUTLINE

• The lamp light source is by the arch discharge by applying high voltage into the xenon gas-filled bulb instead

of the halogen bulb filament.

• Sight becomes more natural and brighter because the amount of light are gained adequately and the color of

light is sunshine-like white.

• The xenon bulb drops the amount of light, repeats blinking, and illuminates in red if the bulb reaches the ser-

vice life.

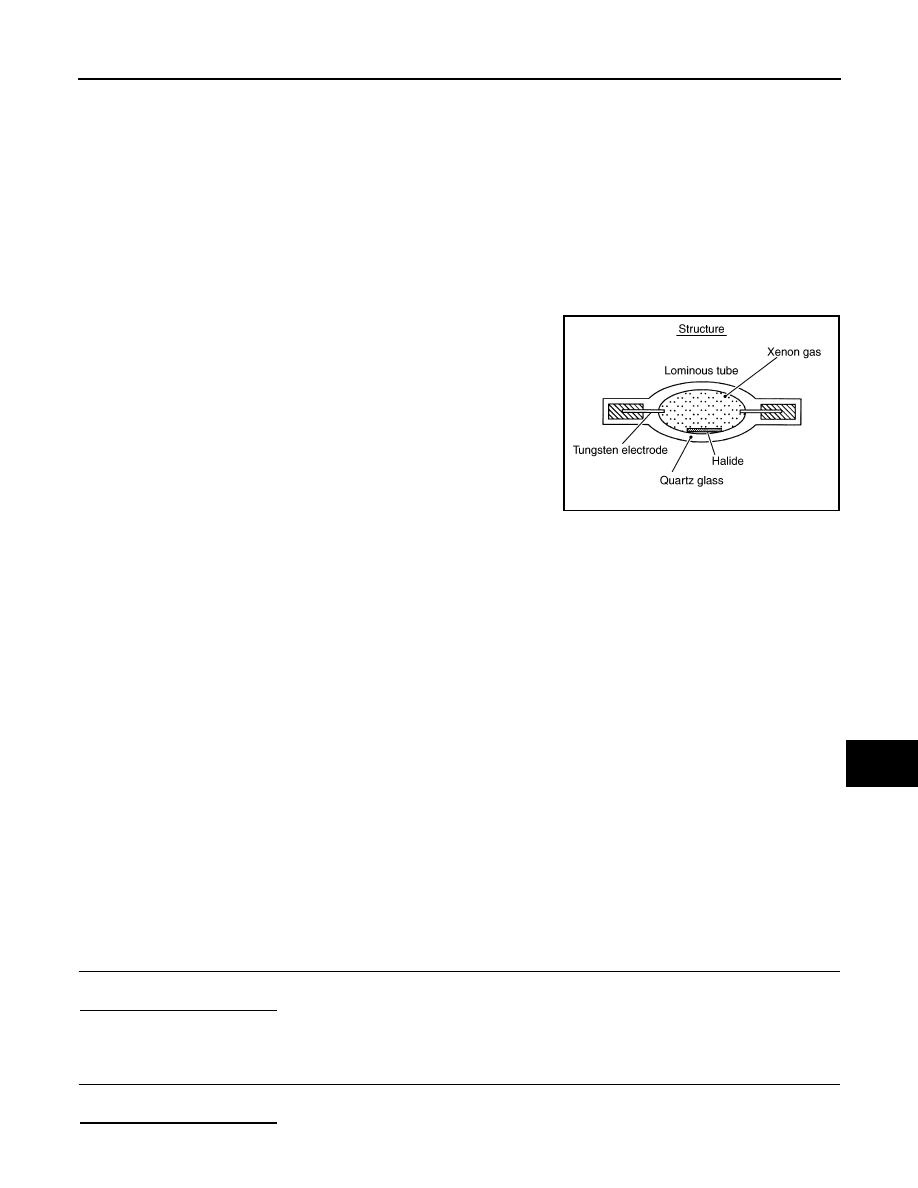

ILLUNMINATION PRINCIPLE

1.

 Discharging starts in high voltage pulse between bulb elec-
trodes.

2.

Xenon gas is activated by current between electrodes. Pale light
is emitted.

3.

The luminous tube (bulb) temperature elevates. Evaporated
halide is activated by discharge. The color of light changes into
white.

NOTE:
• Brightness and the color of light may change slightly immediately

after the headlamp turned ON until the xenon bulb becomes sta-
ble. This is not malfunction.

• Illumination time lag may occur between right and left. This is not

malfunction.

PRECAUTIONS FOR TROUBLE DIAGNOSIS

Representative malfunction examples are; "Light does not turn ON", "Light blinks", and "Brightness is inade-
quate." The cause often be the xenon bulb. Such malfunctions, however, are occurred occasionally by HID
control unit malfunction or lamp case malfunction. Specify the malfunctioning part with diagnosis procedure.

WARNING:

• Never touch the harness, HID control unit, the inside and metal part of lamp when turning the head-

lamp ON or operating the light switch.

• Never work with wet hands.

CAUTION:

• Never perform HID control unit circuit diagnosis with a circuit tester or an equivalent.
• Temporarily install the headlamp on the vehicle. Connect the battery to the connector (vehicle side)

when checking ON/OFF status.

• Disconnect the battery negative terminal before disconnecting the lamp socket connector or the har-

ness connector.

• Check for fusing of the fusible link(s), open around connector, short, disconnection if the symptom

is caused by electric error.

NOTE:
• Turn the switch OFF once before turning ON, if the ON/OFF is inoperative.
• The xenon bulb drops the amount of light, repeats blinking, and illuminates in red if the bulb reaches the ser-

vice life.

Diagnosis Procedure

INFOID:0000000000962477

1.

CHECK XENON BULB

Install the normal bulb to the applicable headlamp. Check that the xenon bulb is turned ON.

Is the headlamp turned ON?

YES

>> Replace the xenon bulb.

NO

>> GO TO 2.

2.

CHECK HID CONTROL UNIT

Install the normal HID control unit to the applicable headlamp. Check that the lamp is turned ON.

Is the headlamp turned ON?

JPLIA0009GB
