INTAKE MANIFOLD COLLECTOR

EM-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

INTAKE MANIFOLD COLLECTOR

Exploded View

INFOID:0000000000956239

Removal and Installation

INFOID:0000000000956240

REMOVAL

WARNING:

To avoid the danger of being scalded, never drain engine coolant when the engine is hot.

1.

EVAP canister purge control solenoid
valve

2.

Clamp

3.

EVAP hose

4.

EVAP hose

5.

Clamp

6.

Water hose

7.

Water hose

8.

Electric throttle control actuator
(bank1)

9.

Gasket

10. PCV hose

11.

Clamp

12. Intake manifold collector

13. Gasket

14. Water hose

15. Water hose

16.

Electric throttle control actuator
(bank2)

17. EVAP hose

18. Water hose

19. EVAP tube assembly

20. EVAP hose

A.

To vacuum pipe

B.

To brake booster

C.

To intake manifold collector

D.

To PCV valve

E.

To heater pipe

F.

To water outlet (rear)

Refer to

GI-4, "Components"

 for symbol marks in the figure.

JPBIA0097GB

EM-28

< ON-VEHICLE REPAIR >

INTAKE MANIFOLD COLLECTOR

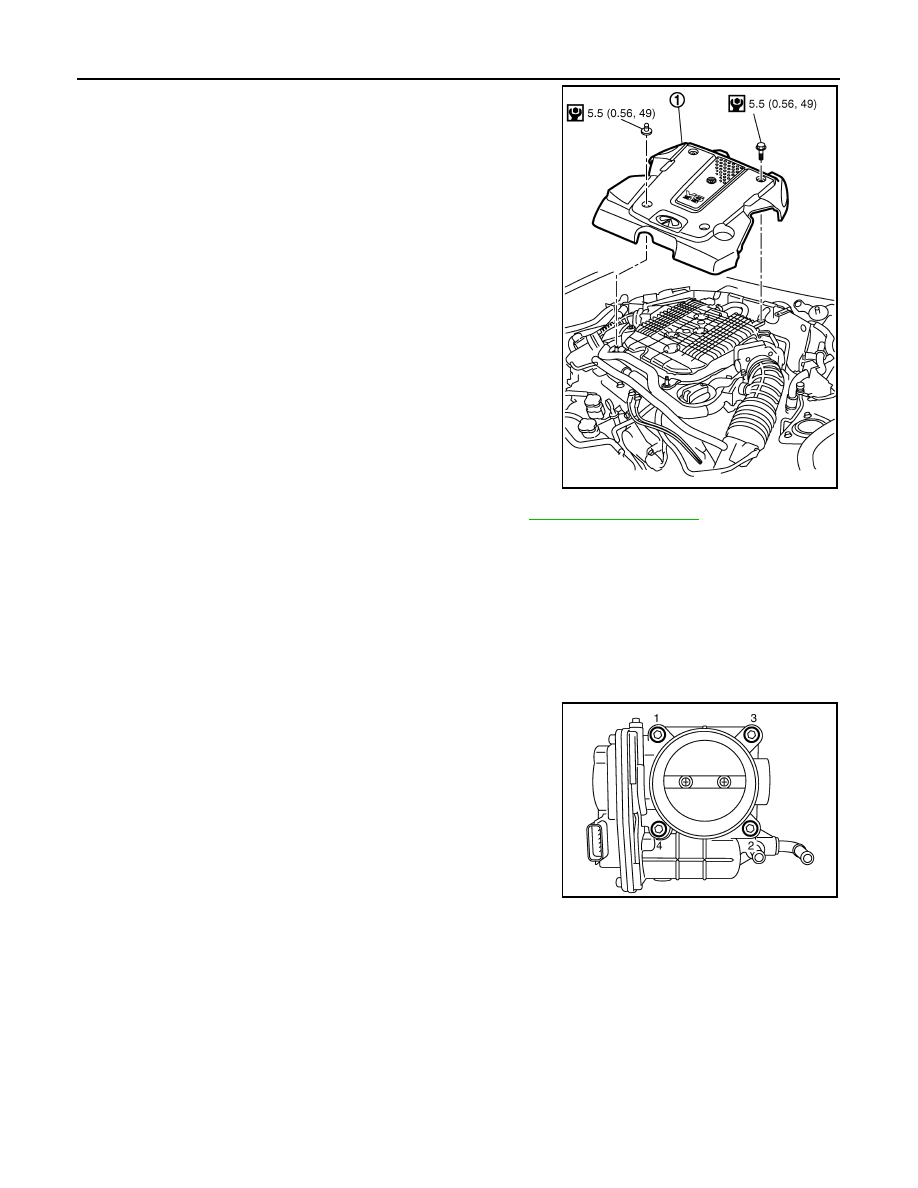

1.

Remove engine cover (1) with power tool.

2.

Remove air cleaner case and air duct (RH and LH). Refer to

EM-25, "Exploded View"

.

3.

Remove electric throttle control actuator as follows:

a.

Drain engine coolant, or when water hoses are disconnected, attach plug to prevent engine coolant leak-
age.

CAUTION:

• Perform this step when engine is cold.
• Do not spill engine coolant on drive belt.

b.

Disconnect water hoses from electric throttle control actuator. when engine coolant is not drained from
radiator, attach plug to water hoses to prevent engine coolant leakage.

c.

Disconnect harness connector.

d.

Loosen mounting bolts in reverse order as shown in the figure.
NOTE:
• When removing only intake manifold collector, move electric

throttle control actuator without disconnecting the water hose.

• The figure shows the electric throttle control actuator (bank 1)

viewed from the air duct side.

• Viewed from the air duct side, order of loosening mounting

bolts of electric throttle control actuator (bank 2) is the same
as that of the electric throttle control actuator (bank 1).

4.

Disconnect vacuum hose, PCV hose and EVAP hose from intake manifold collector.

5.

Remove EVAP canister purge volume control solenoid valve and EVAP tube assembly from intake mani-
fold collector.

JPBIA0256GB

JPBIA0011ZZ

INTAKE MANIFOLD COLLECTOR

EM-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

6.

Loosen mounting bolts and nuts with power tool in the reverse
order as shown in the figure to remove intake manifold collector.

INSTALLATION

Note the following, and install in the reverse order of removal.

INTAKE MANIFOLD COLLECTOR

• If stud bolts were removed, install them and tighten to the specified torque below.

• Tighten mounting bolts and nuts in numerical order as shown in the

figure.

WATER HOSE

• Insert hose by 27 to 32 mm (1.06 to 1.26 in) from connector end.
• Clamp hose at location of 3 to 7 mm (0.12 to 0.28 in) from hose end.

ELECTRIC THROTTLE CONTROL ACTUATOR (BANK 1 AND BANK 2)

• Tighten in numerical order as shown in the figure.
• Perform the “Throttle Valve Closed Position Learning” when har-

ness connector of electric throttle control actuator is disconnected.
Refer to

EC-18, "THROTTLE VALVE CLOSED POSITION

LEARNING : Description"

.

• Perform the “Idle Air Volume Learning” and “Throttle Valve Closed

Position Learning” when electric throttle control actuator is
replaced. Refer to

EC-18, "IDLE AIR VOLUME LEARNING :

Description"

 and

EC-18, "THROTTLE VALVE CLOSED POSITION

LEARNING : Description"

.

NOTE:
• The figure shows the electric throttle control actuator (bank 1)

viewed from the air duct side.

• Viewed from the air duct side, order of loosening mounting bolts of electric throttle control actuator (bank 2)

is the same as that of the electric throttle control actuator (bank 1).

: Engine front

JPBIA0012ZZ

: 10.8 N·m (1.1 kg-m, 8 ft-lb)

: Engine front

JPBIA0012ZZ

JPBIA0011ZZ

EM-30

< ON-VEHICLE REPAIR >

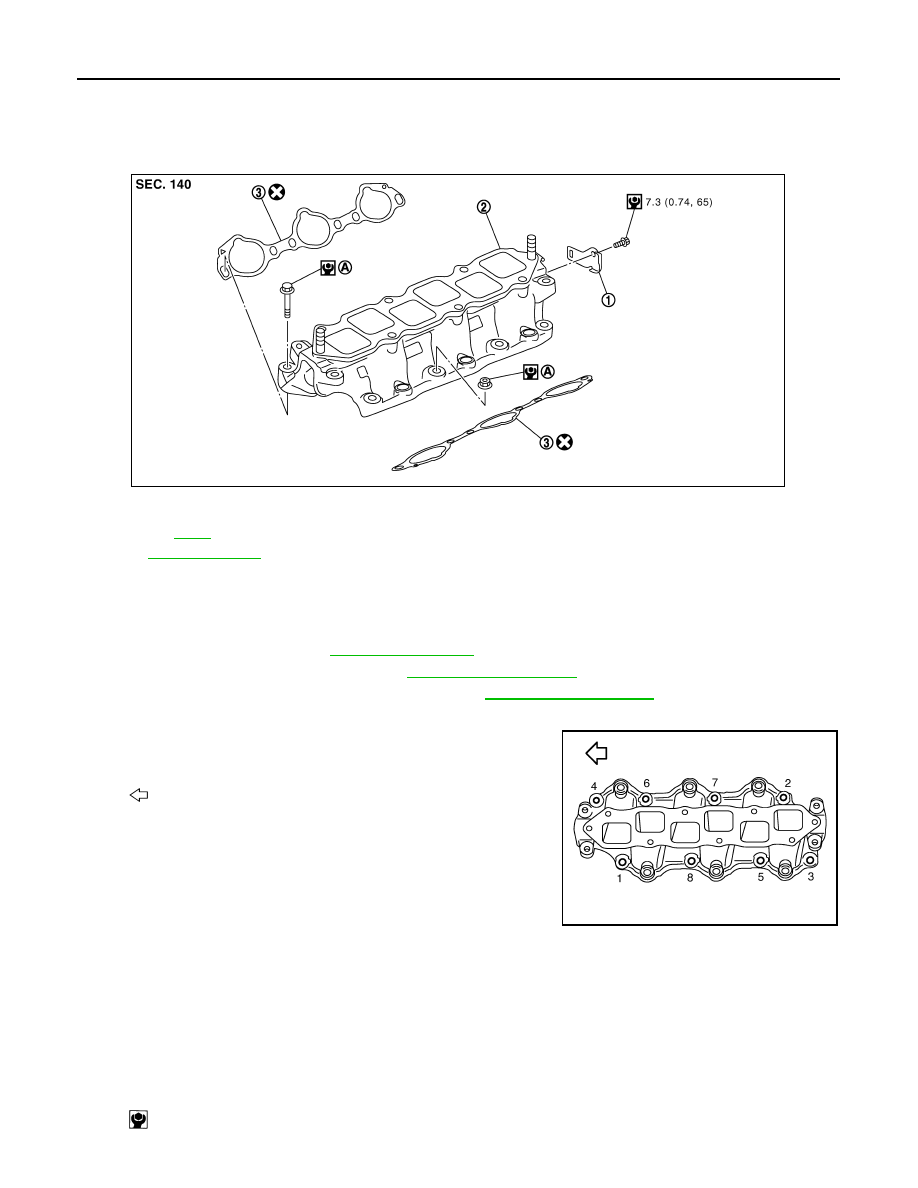

INTAKE MANIFOLD

INTAKE MANIFOLD

Exploded View

INFOID:0000000000956241

Removal and Installation

INFOID:0000000000956242

REMOVAL

1.

Release fuel pressure. Refer to

EC-543, "Inspection"

.

2.

Remove intake manifold collector. Refer to

EM-27, "Exploded View"

.

3.

Remove fuel tube and fuel injector assembly. Refer to

EM-35, "Exploded View"

.

4.

Remove harness bracket.

5.

Loosen mounting bolts and nuts in reverse order as shown in
the figure to remove intake manifold with power tool.

6.

Remove gaskets.

CAUTION:

Cover engine openings to avoid entry of foreign materials.

INSTALLATION

Note the following, and install in the reverse order of removal.

INTAKE MANIFOLD

• If stud bolts were removed, install them and tighten to the specified torque below.

1.

Harness bracket

2.

Intake manifold

3.

Gasket

A.

Refer to

EM-30

Refer to

GI-4, "Components"

 for symbol marks in the figure.

JPBIA0006ZZ

: Engine front

JPBIA0013ZZ

: 9.8 N·m (1.0 kg-m, 7 ft-lb)
