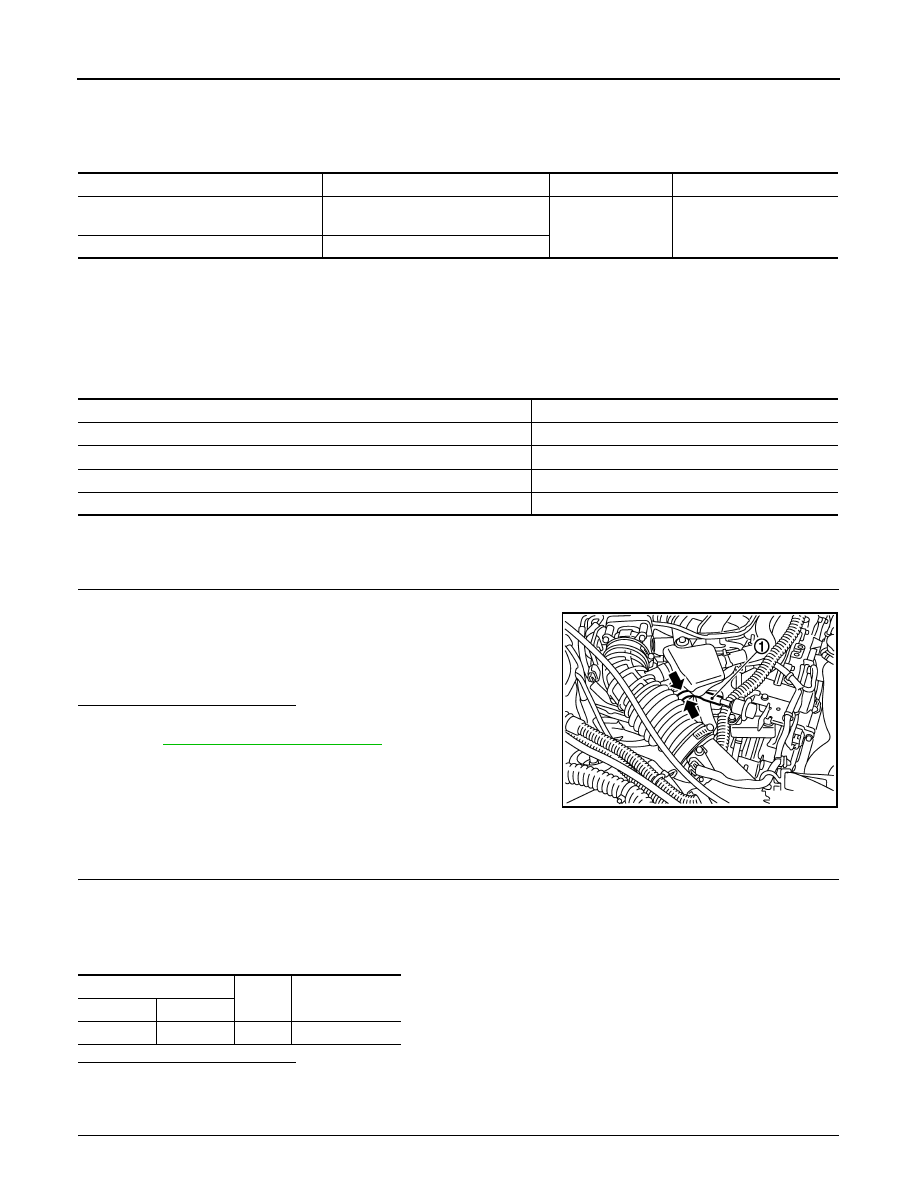

FUEL PUMP

FUEL PUMP

Description

INFOID:0000000000956868

*: ECM determines the start signal status by the signals of engine speed and battery voltage.

The ECM activates the fuel pump for several seconds after the ignition switch is turned ON to improve engine
startability. If the ECM receives a engine speed signal from the camshaft position sensor (PHASE), it knows
that the engine is rotating, and causes the pump to operate. If the engine speed signal is not received when
the ignition switch is ON, the engine stalls. The ECM stops pump operation and prevents battery discharging,
thereby improving safety. The ECM does not directly drive the fuel pump. It controls the ON/OFF fuel pump
relay, which in turn controls the fuel pump.

Component Function Check

INFOID:0000000000956869

1.

CHECK FUEL PUMP FUNCTION

1.

Turn ignition switch ON.

2.

Pinch fuel feed hose (1) with two fingers.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>>

EC-458, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000000956870

1.

CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between ECM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II

Sensor

Input signal to ECM

ECM Function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

Fuel pump control

Fuel pump relay

↓

Fuel pump

Battery

Battery voltage*

Condition

Fuel pump operation

Ignition switch is turned to ON.

Operates for 1 second.

Engine running and cranking

Operates.

When engine is stopped

Stops in 1.5 seconds.

Except as shown above

Stops.

Fuel pressure pulsation should be felt on the fuel feed
hose for 1 second after ignition switch is turned ON.

JMBIA0020ZZ

ECM

Ground

Voltage

Connector

Terminal

F101

22

Ground

Battery voltage

FUEL PUMP

EC-459

< COMPONENT DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Check the voltage between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 10.

3.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E3, F1
• Harness connectors F104, F105
• Harness for open or short between IPDM E/R and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK FUEL PUMP POWER SUPPLY CIRCUIT-III

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Disconnect “fuel level sensor unit and fuel pump” harness connector.

4.

Turn ignition switch ON.

5.

Check the voltage between “fuel level sensor unit and fuel pump” harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> GO TO 5.

5.

CHECK 15A FUSE

1.

Turn ignition switch OFF.

2.

Disconnect 15A fuse (No. 41) from IPDM E/R.

3.

Check 15A fuse.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace fuse.

6.

CHECK FUEL PUMP POWER SUPPLY CIRCUIT-IV

1.

Disconnect IPDM E/R harness connector E5.

2.

Check the continuity between IPDM E/R harness connector and “fuel level sensor unit and fuel pump”
harness connector.

3.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> GO TO 7.

IPDM E/R

Ground

Voltage

Connector

Terminal

E7

77

Ground

Battery voltage

Fuel level sensor unit and

fuel pump

Ground

Voltage

Connector

Terminal

B22

1

Ground

Battery voltage should exist for 1 second
after ignition switch is turned ON.

IPDM E/R

Fuel level sensor unit

and fuel pump

Continuity

Connector

Terminal

Connector

Terminal

E5

13

B22

1

Existed

EC-460

< COMPONENT DIAGNOSIS >

[VQ35HR]

FUEL PUMP

7.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E104, B4
• IPDM E/R harness connector E5
• Harness for open or short between IPDM E/R and “fuel level sensor unit and fuel pump”

>> Repair open circuit or short to power in harness or connectors.

8.

CHECK FUEL PUMP GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect dropping resistor harness connector.

3.

Check the continuity between “fuel level sensor unit and fuel pump” harness connector and ground.

4.

Also check harness for short to power.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair open circuit or short to power in harness or connectors.

9.

CHECK FUEL PUMP

Refer to

EC-460, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Replace fuel pump.

10.

CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R.

NO

>> Repair or replace harness or connectors.

Component Inspection

INFOID:0000000000956871

1.

CHECK FUEL PUMP

1.

Turn ignition switch OFF.

2.

Disconnect “fuel level sensor unit and fuel pump” harness connector.

3.

Check resistance between “fuel level sensor unit and fuel pump” terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace “fuel level sensor unit and fuel pump”

Fuel level sensor unit

and fuel pump

Ground

Continuity

Connector

Terminal

B22

3

Ground

Existed

Terminals

Resistance

1 and 3

0.2 - 5.0

Ω

 [at 25

°

C (77

°

F)]

ICC BRAKE SWITCH

EC-461

< COMPONENT DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

ICC BRAKE SWITCH

Description

INFOID:0000000000956872

When the brake pedal is depressed, ICC brake switch is turned OFF and stop lamp switch is turned ON. ECM
detects the state of the brake pedal by this input of two kinds (ON/OFF signal).
Refer to

CCS-16, "System Description"

 for the ICC function.

Component Function Check

INFOID:0000000000956873

1.

CHECK ICC BRAKE SWITCH FUNCTION

 With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT-III.

3.

Check “BRAKE SW1” indication under the following conditions.

 Without CONSULT-III

1.

Turn ignition switch ON.

2.

Check the voltage between ECM harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-461, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000000956874

1.

INSPECTION START

Check which type of transmission the vehicle is equipped with.

Which type of transmission?

A/T

>> GO TO 2.

M/T

>> GO TO 7.

2.

CHECK ICC BRAKE SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ICC brake switch harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between ICC brake switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Monitor item

Condition

Indication

BRAKE SW1

Brake pedal (A/T)
Brake pedal and clutch pedal (M/T)

Slightly depressed

OFF

Fully released

ON

ECM

Ground

Condition

Voltage

Connector

Terminal

M107

126

(ICC brake switch signal)

Ground

Brake pedal (A/T)
Brake pedal and clutch pedal (M/T)

Slightly depressed

Approx. 0V

Fully released

Battery voltage

ICC brake switch

Ground

Voltage

Connector

Terminal

E114

1

Ground

Battery voltage
