EC-26

< FUNCTION DIAGNOSIS >

[VQ35HR]

ENGINE CONTROL SYSTEM

 : Vehicle front

1.

Heated oxygen sensor 2 (bank 2)

2.

Heated oxygen sensor 2 (bank 2)
harness connector

3.

Heated oxygen sensor 2 (bank 1)

4.

Heated oxygen sensor 2 (bank 1)
harness connector

1.

Exhaust valve timing control position
sensor (bank 1)

2.

Camshaft position sensor (PHASE)
(bank 1)

3.

Camshaft position sensor (PHASE)
(bank 2)

4.

Exhaust valve timing control position
sensor (bank 2)

1.

Exhaust valve timing control magnet
retarder (bank 1) harness connector

2.

Intake valve timing control solenoid
valve (bank 1) harness connector

3.

Intake valve timing control solenoid
valve (bank 2) harness connector

4.

Exhaust valve timing control magnet
retarder (bank 2) harness connector

JMBIA0018ZZ

JMBIA0008ZZ

JMBIA0009ZZ

ENGINE CONTROL SYSTEM

EC-27

< FUNCTION DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

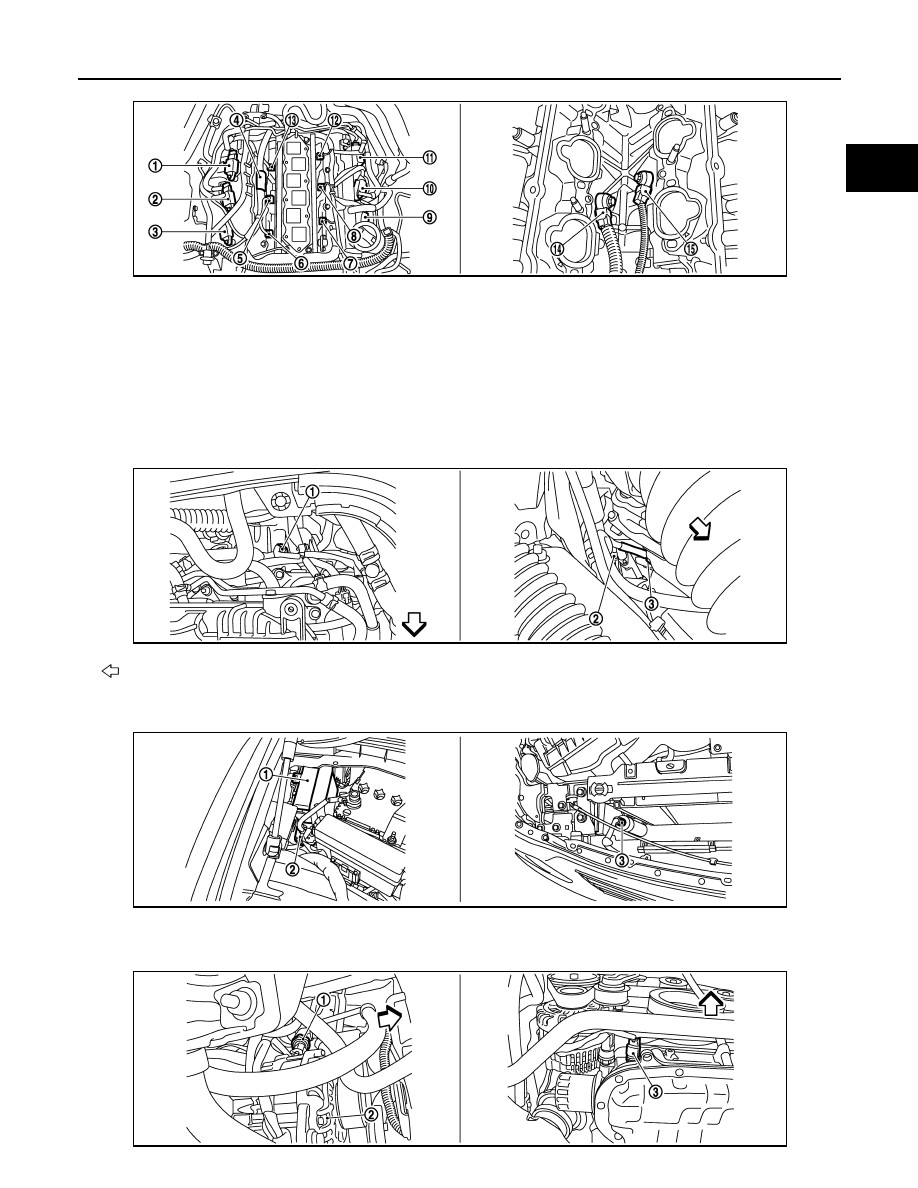

1.

Ignition coil No.5 (with power transis-
tor)

2.

Ignition coil No.3 (with power transis-
tor)

3.

Ignition coil No.1 (with power transis-
tor)

4.

Condenser

5.

Fuel injector No.3

6.

Fuel injector No.1

7.

Fuel injector No.2

8.

Fuel injector No.4

9.

Ignition coil No.2 (with power transis-
tor)

10. Ignition coil No.4 (with power transis-

tor)

11.

Ignition coil No.6 (with power transis-
tor)

12. Fuel injector No.6

13. Fuel injector No.5

14. Knock sensor (bank 1)

15. Knock sensor (bank 2)

 : Vehicle front

1.

Engine coolant temperature sensor

2.

A/F sensor 1 (bank 1)

3.

Crankshaft position sensor (POS)

1.

IPDM E/R

2.

Battery current sensor

3.

Refrigerant pressure sensor

JMBIA0010ZZ

JMBIA0011ZZ

JMBIA0013ZZ

JMBIA0014ZZ

EC-28

< FUNCTION DIAGNOSIS >

[VQ35HR]

ENGINE CONTROL SYSTEM

 : Vehicle front

1.

Power steering pressure sensor

2.

Alternator

3.

Engine oil temperature sensor

 : Vehicle front

1.

EVAP service port

2.

EVAP canister purge volume control
solenoid valve

3.

EVAP canister

4.

EVAP canister vent control valve

5.

EVAP control system pressure sen-
sor

 : Vehicle front

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

4.

Fuel tank temperature sensor

1.

Accelerator pedal position sensor

2.

ECM

JMBIA0012ZZ

JMBIA0019ZZ

JMBIA0015ZZ

ENGINE CONTROL SYSTEM

EC-29

< FUNCTION DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Description

INFOID:0000000000956481

1.

ICC steering switch

2.

CANCEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

DISTANCE switch

6.

MAIN switch

1.

ASCD steering switch

2.

CANCEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

1.

Stop lamp switch

2.

ASCD brake switch (ASCD models)
ICC brake switch (ICC models)

3.

Brake pedal

4.

ASCD clutch switch (ASCD models)
ICC clutch switch (ICC models)

5.

Clutch pedal

JMBIA0016ZZ

JMBIA0017ZZ

JMBIA0051ZZ

Component

Reference

A/F sensor 1

EC-187, "Description"

A/F sensor 1 heater

EC-147, "Description"

Accelerator pedal position sensor

EC-425, "Description"

ASCD brake switch

EC-402, "Description"

ASCD steering switch

EC-395, "Description"

ASCD vehicle speed sensor

EC-417, "Description"

Battery current sensor

EC-378, "Description"
